Radium VTA Dual Catch Can Kit

These catch cans vent-to-atmosphere (VTA) eliminating any chance of blowby recirculating to the engine. The kit is for high horsepower engines that create more blowby than the factory PCV system can handle. The OEM ports on the valve covers are replaced with press-fit 10AN fittings. All hose and fittings for these catch cans are -10AN.

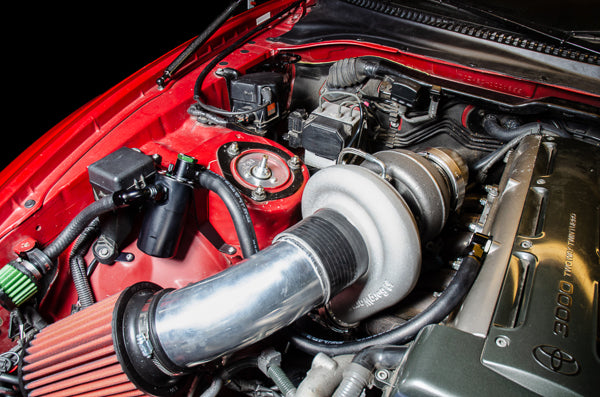

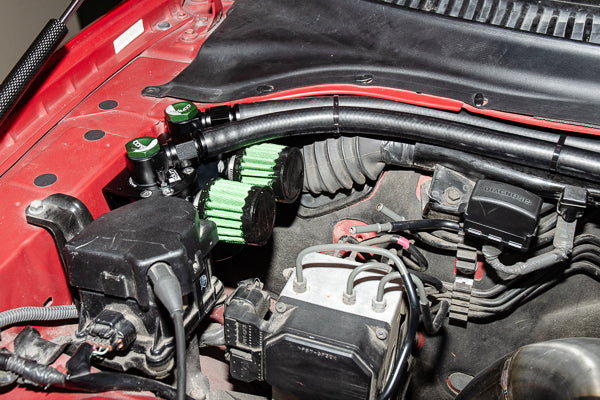

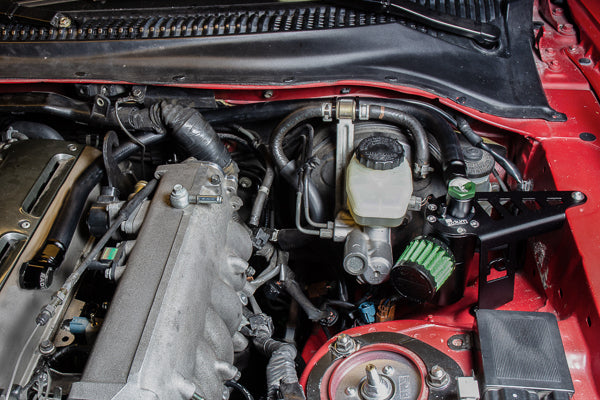

Shown above is one potential mounting location for the intake side crankcase breather, one potential mounting location for the exhaust side crankcase breather, and both of the catch cans mounted together.

Because of the many OEM component variations for this chassis, 3 different brackets are included for optimal mounting. All brackets use factory holes and integrate perfectly with the surrounding components. No cutting, drilling or permanent modification to the vehicle is required.

Each Kit Includes

• Oil catch can with integrated condenser and dipstick (x2)
• Supra specific aluminum mounting brackets (x3)
• AN adapter fittings and hose ends
• Enough hose for custom applications
• Stainless steel mounting hardware
