 |  SKU: RCM3447

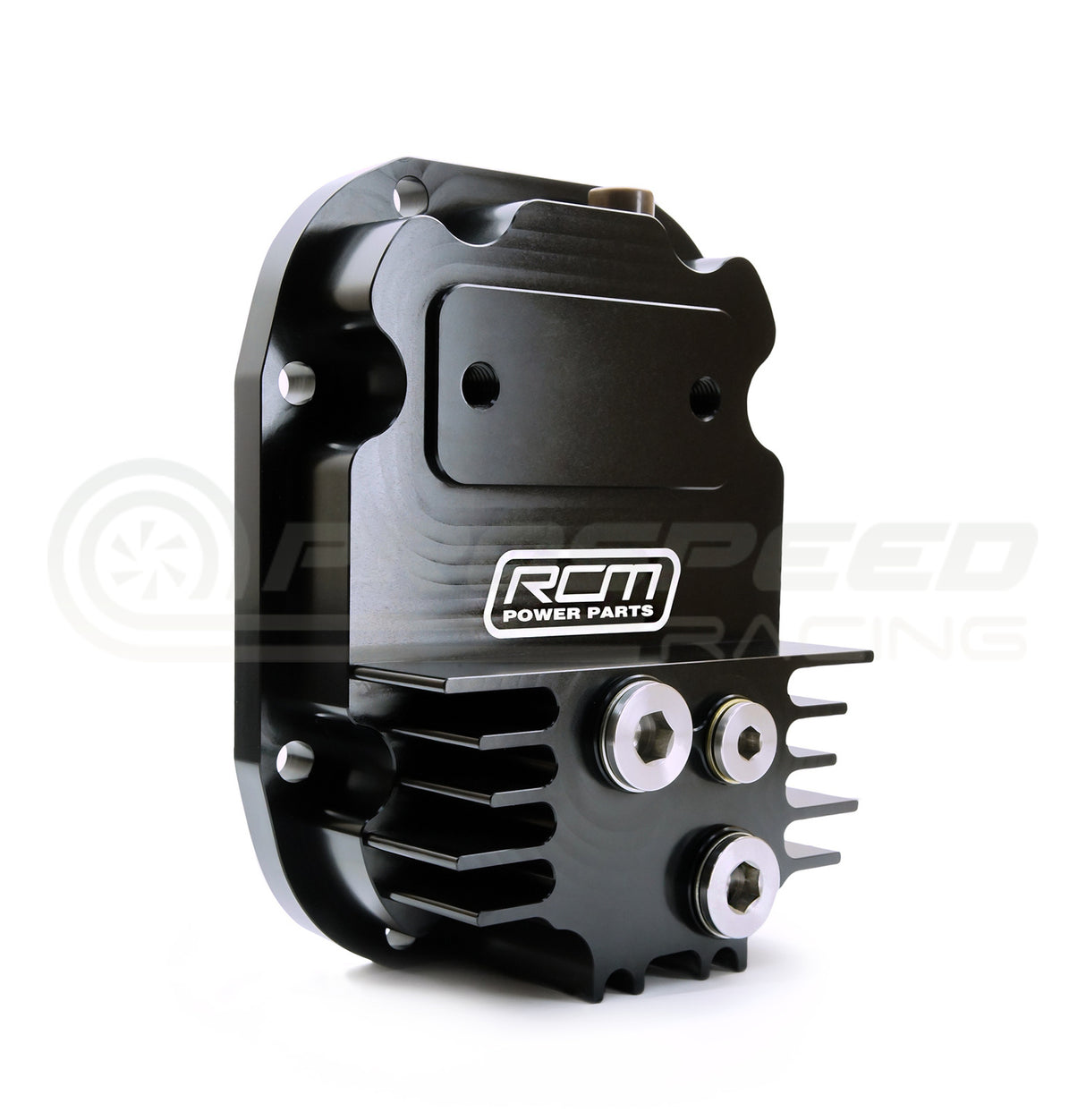

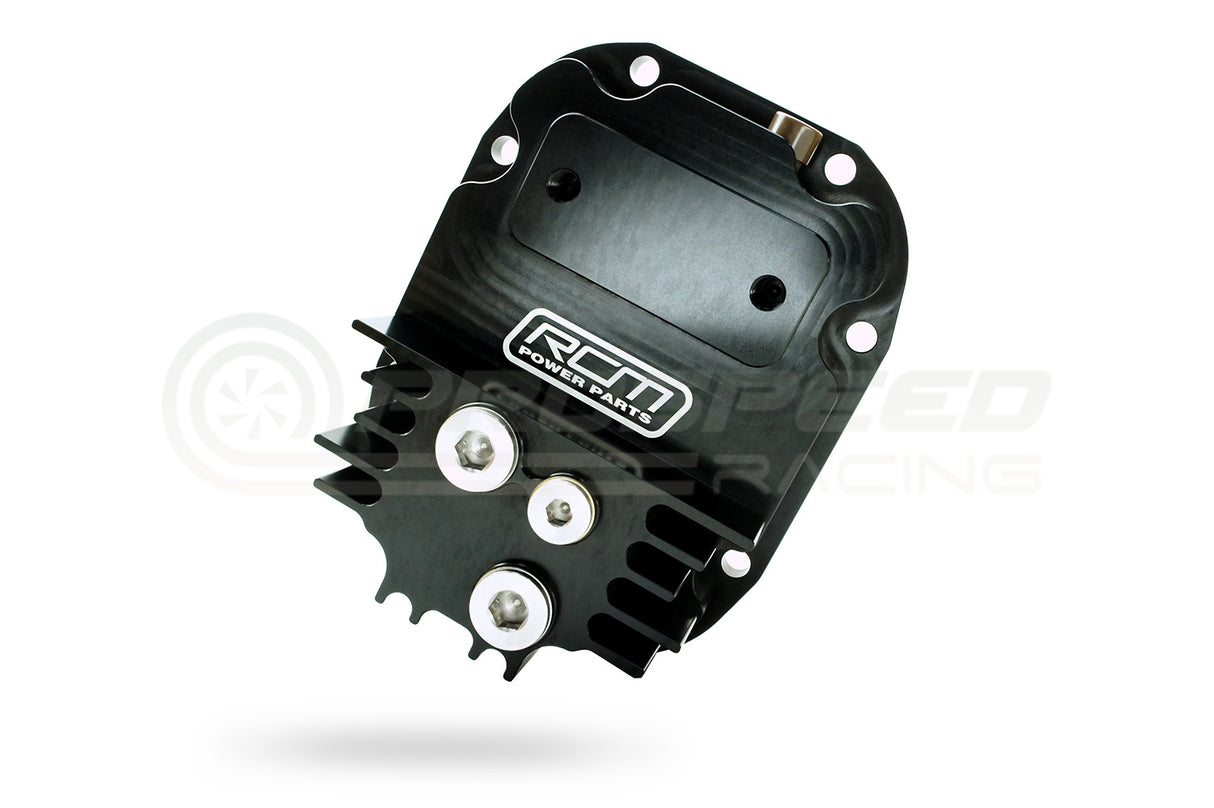

Roger Clark Motorsport Billet R180 Diff Rear Cover

Subaru WRX 92-00 & 08-14/STI 92-00 & 08-21 (R180)

In Stock :

This product is in stock & ready to be dispatched.

Very low inventory :

This product has very limited stock remaining.

Incoming :

Product will be in stock soon.

Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.

Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$899.95

Earn [points_amount] when you buy this item.


Description

"Competition improves the breed" they say and this is a great example! This anodised Billet R180 rear differential cover has been developed off the back of RCM’s inhouse Gobstopper projects which have been used extensively and successfully in Sprints, Hill Climbs and of course Time Attack.

Manufactured using the very latest CNC techniques this rear differential cover boasts a 25% increase in oil volume over the standard OEM part. This increase in oil volume not only helps to dissipate heat, but it also helps to extend LSD and transmission component life during sustained loads associated with high powered street and Motorsport applications.

The intricate, effective cooling fins also help to dissipate any excess heat, helping you to manage transmission temperatures.

The cover features large M20 drain and fill ports allowing rapid oil fill and drain when necessary. The cover also has an additional M16 port which can be used for a diff temperature sensor or can be used for additional plumbing when an external oil cooler has been installed.

This kit is compatible with GC8 Imprezas that are equipped with R180 rear differential carriers. (Will not fit R160)

Features and Benefits

  • 25% increase in oil volume (1000cc) over OEM Oil Capacity (800cc)
  • Increase in oil volume helps extended transmission component life
  • Black anodised Heat sink fins promotes enhanced cooling
  • Additional ports can be used and adapted to run an external oil cooler or utilized to house an oil temperature sensor

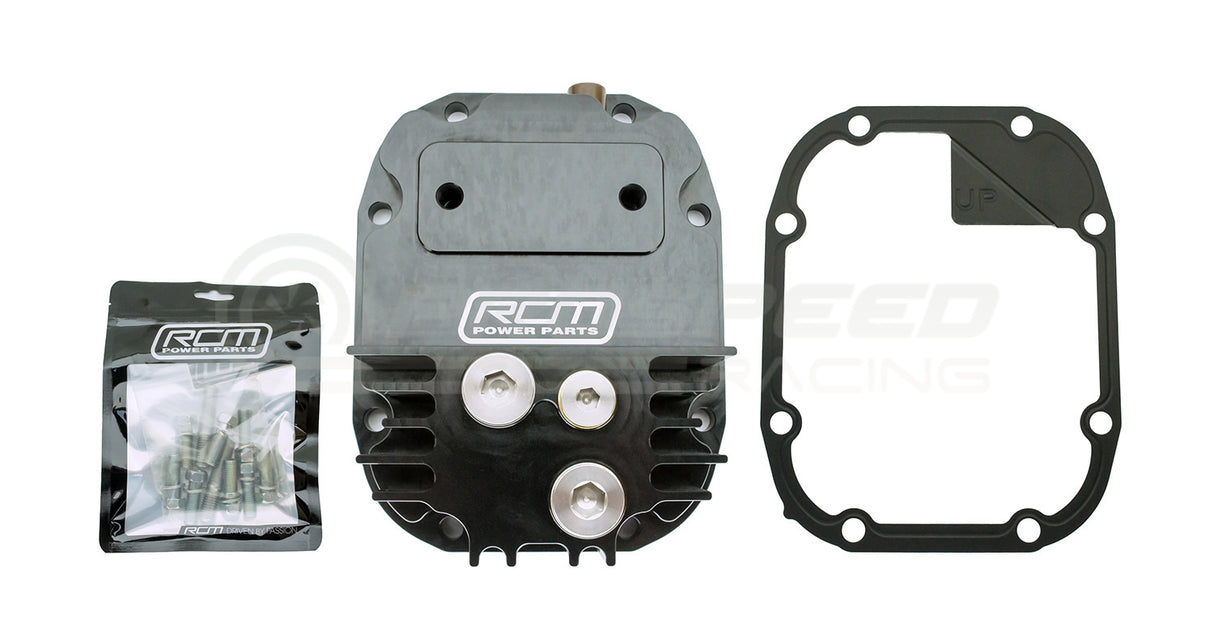

Included Components

  • 1 x RCM CNC Billet Aluminium rear differential cover
  • 2 x Differential mounting studs & Nuts
  • 1 x Rear Differential cover gasket
  • 1 x OEM Rear Differential Breather
  • 1 x M20 x1.5 Stainless Steel Drain Plug
  • 1 x M20 x1.5 Stainless Steel Fill Plug
  • 1 x M16 x1.5 Stainless Steel Blanking plug for temperature sensor / external oil cooler
  • 1 x Gold Plug High Intensity magnetic sump plug (optional)
  • 8 x Cover to Differential Housing mounting Bolts

Fitment Table

Fitment Notes

General Notes:

  • Only suits vehicles fittted with an R180 differential.
