Roger Clark Motorsport Oil Cooler Kit Thermostatic Black Core
Subaru WRX/STI 94-07
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$1,149.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
Engine oil temperatures are key to maintaining a healthy engine as well as performance. Under hard driving conditions oil temperatures naturally raise as a greater heat is generated from the faster moving engine components. With oil temperatures greatly increased the viscosity of the oil naturally thins lessening its ability to efficiently lubricate precious engine components which eventually leads to premature wear and in extreme cases engine failure.

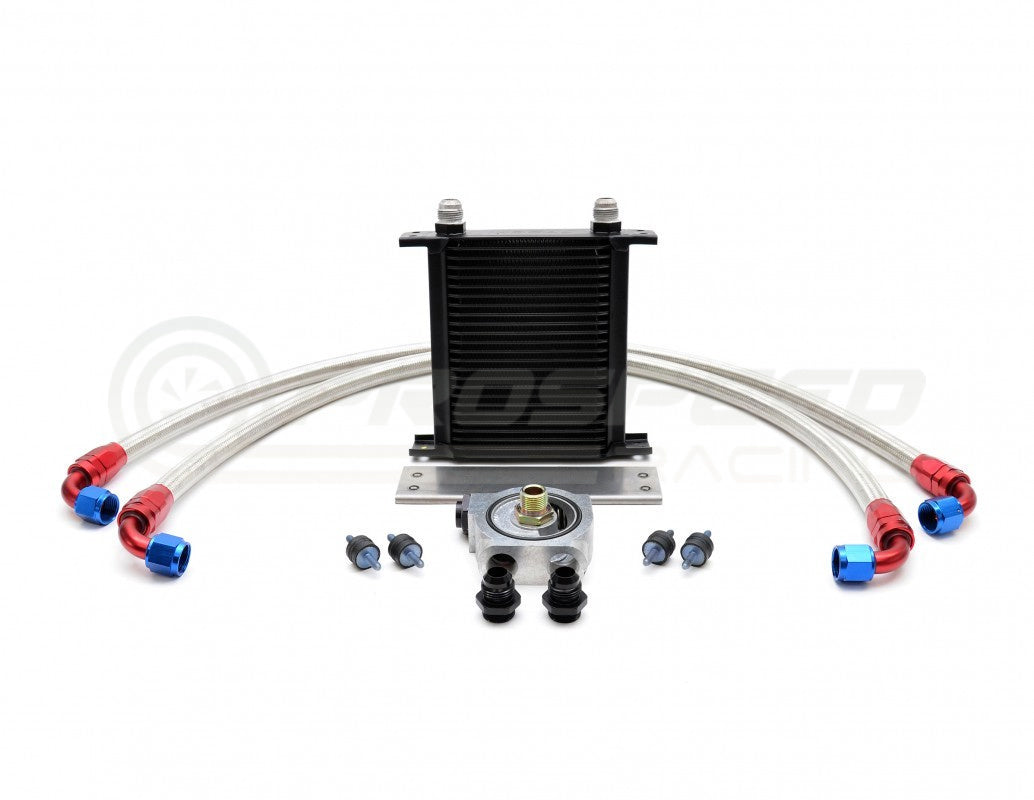

Our cooler kit has been specifically designed to combat the above problem and ensure your temperatures maintain a safe level. Choosing only the best possible components our kit not only cures rising engine temperatures but is built to last with no compromise on quality.

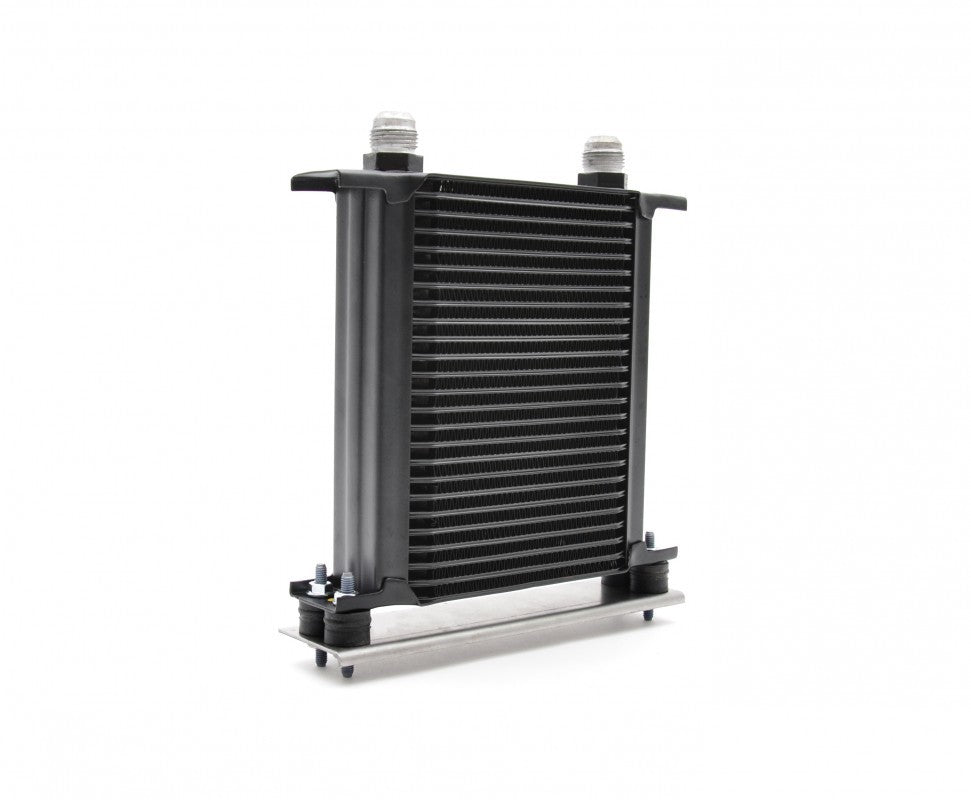

Each RCM oil cooler kit is supplied with a 25 Row Setrab Core. Setrab's cores are renowned for strength and quality, with working temperatures from -40°C to 150°C and a maximum burst pressure of 37 Bar(g), these coolers are more than qualified for the job and will provide long term reliability as well as consistent performance.

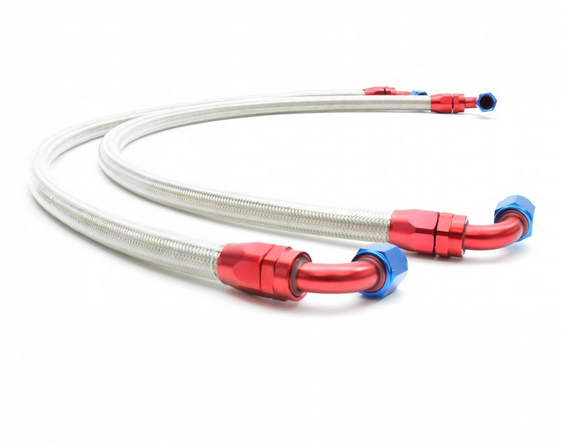

Leading Aeropquip manufacturers Goodridge produce pre-assembled lines to our specification using their latest -8 200 Series stainless steel braided nitrile hose. Designed to Goodridge’s exacting specifications this hose has been supplied to motorsport racing champions for many years. 200 Hose provides essential protection and resistance to high pressure, temperature, vibration, fire risks and chafing. It is constructed of a seamless synthetic CPE inner with an integral stainless steel braid and a high tensile stainless steel outer braid. 200 Series hose has the highest corrosion and fire resistance threshold of any stainless braided nitrile hose available, but lets not stop there! In addition our lines are covered with a sleeve which acts as a secondary fire retardant, insulator and chafe protector. To finish, each line end is fitted with a re-usable alloy fitting precisely engineered to fit 200 Series Hose. The Aerospace standard Triple Seal/Double O-ring nitrile, cutter design ensures a secure, leak free connection every time and allow for any required alignment with their 360-degree swivel ends.

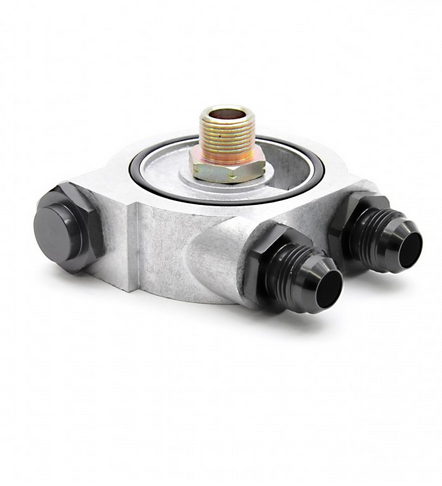

The final vital component is the Thermostatically Controlled Oil Sandwich Plate ensuring your oil cooler only engages when required.
Features:
Thermostatically controlled
Provides additional engine oil cooling under high temperatures.
Helps to maintain stable engine temperatures.
Prolongs engine life
Supplied with pre assembled oil lines.
Technical Specifications
Oil Cooler:
Core Dimensions: 25 Row 210x190x50 (mm)
Max Pressure: 12Bar(g) | Burst pressure 37Bar(g).
Working Temperature: -40°C to 150°C.
Max Connection Tightening Torque: 40NM.

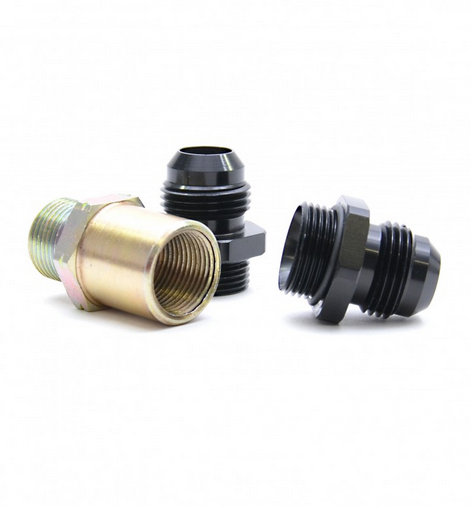

Oil Line Adapter Thread: M22 (supplied with M22 to -8 Male / Male alloy adapters).
Oil Lines:
Material: Goodridge 200 series -8 Braided Nitrile Hose.
