 |  SKU: RCM393

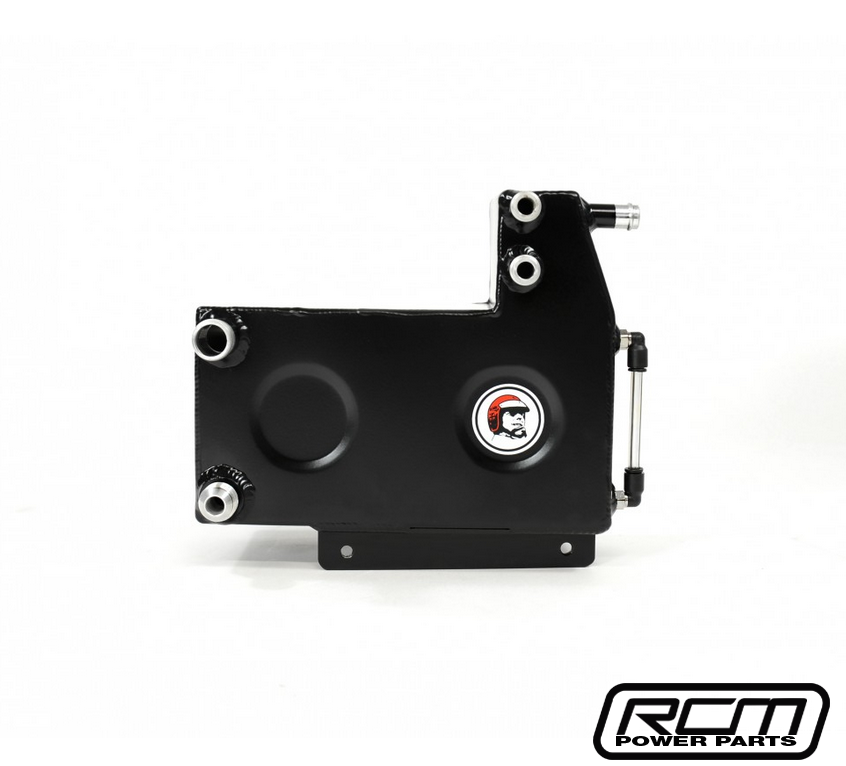

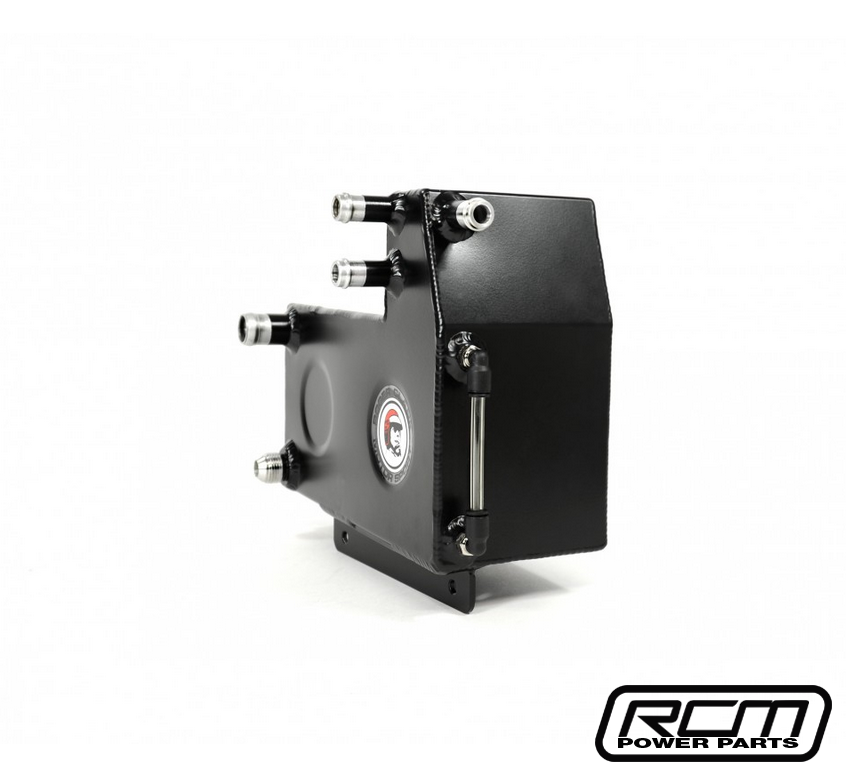

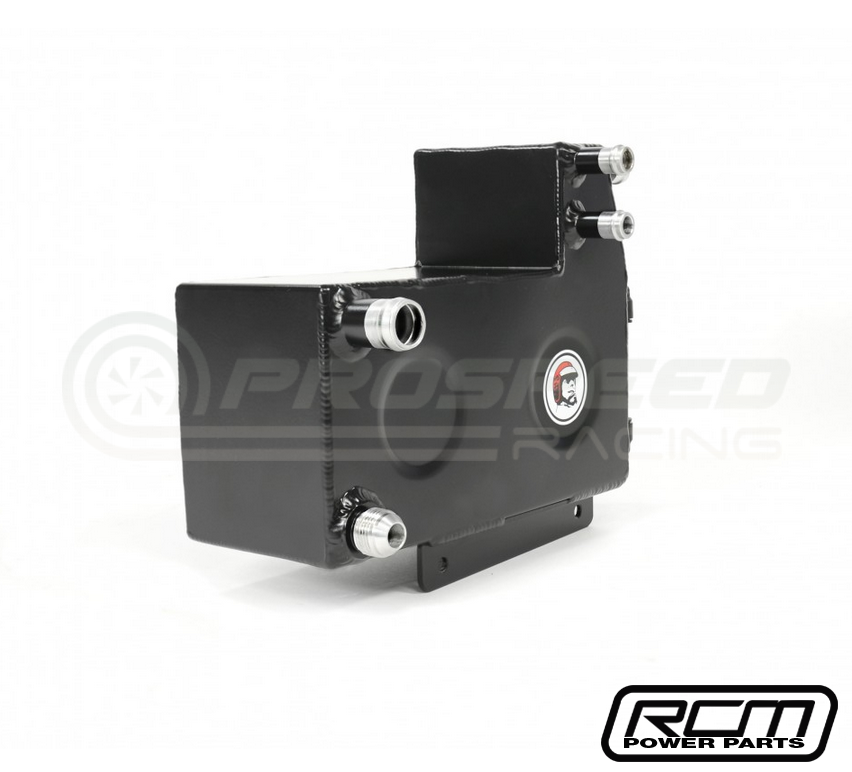

Roger Clark Motorsport RHD Oil Catch Can Only

Subaru WRX/STI 94-00
$449.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Note: Listing for catch can only. Hose/Fittings/Hardware not included



The RCM Oil Catch Tank manufactured specifically for Impreza Turbos 1992-2000.

On a standard engine oil vapours from the crankcase and cylinder heads are usually recycled back through the air intake system. The downside of this is that the intake hoses, turbo, intercooler and connecting pipe work can all see a build up of oil over a period of time which in turn slows air flow, reduces cooling abilities and causes general wear and tear.

Fitting a catch tank enables you to vent all excess engine vapour directly into a separate tank where the oil is then separated from the damp air before being returned directly back into the sump oil pan or left to collect within the separator tank. This ensures your engines breathing system is kept clean and free of oil residue to maximize its efficiency and can be especially useful in high performance or tuned applications where dense oil vapour can have a detrimental effect on performance.

Unlike universal tanks all RCM tanks are manufactured specifically for the Impreza which guarantees easy, straight forward installation for that factory appearance. (Note: 2 holes are needed to be drilled into the chassis leg)

This part consists of the tank only and is designed for users who wish to use their own oil breather lines and fittings.

Fitting instructions can be downloaded here.



Features:

  • A tig welded lower mounting bracket is attached to the base of the tank to allow easy fitment onto the chassis leg of the vehicle.
  • Durable powder coated finish protects the surface of the tank making it easy to clean and also provides a long term clean appearance.
  • Specifically designed for the Impreza our tanks come with the correct amount of breather ports required for the Subaru engine.
  • A universal dash eight male fitting offers the ability of either a drain cap to be fitted or a "return back to sump drain hose".



Specifications:

  • X1 Aluminium Catch Tank (with tig welded joints and durable powdercoat finish).
  • X1 AN-8 Male fitting intended for the drain fittings (either a blank can be used or a return to sump line).
  • X1 larger off take for the tanks Vent.
  • X3 ports for breather hose (Usually one per cylinder head and one for the crank case).
  • X1 fitted sight glass



Vehicle Fitment:

  • 1994-2000 Subaru WRX
  • 1994-2000 Subaru STI



Fitment Table
