$5,238.00
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
Ever since the launch of Civic Type R FK8, wSpoon have been focusing on the turbocharged K20C engine potential. ECU analysis has been conducted rigourously, with settings changed multiple times with the goal of further improving engine performance.
Just by safely optimising the ECU settings for boost, ignition timing and fuel, an improvement of 29kw is achievable. The further need to improve the low to mid-range torque and high rpm output has led Spoon to developing this high-capacity turbocharger.

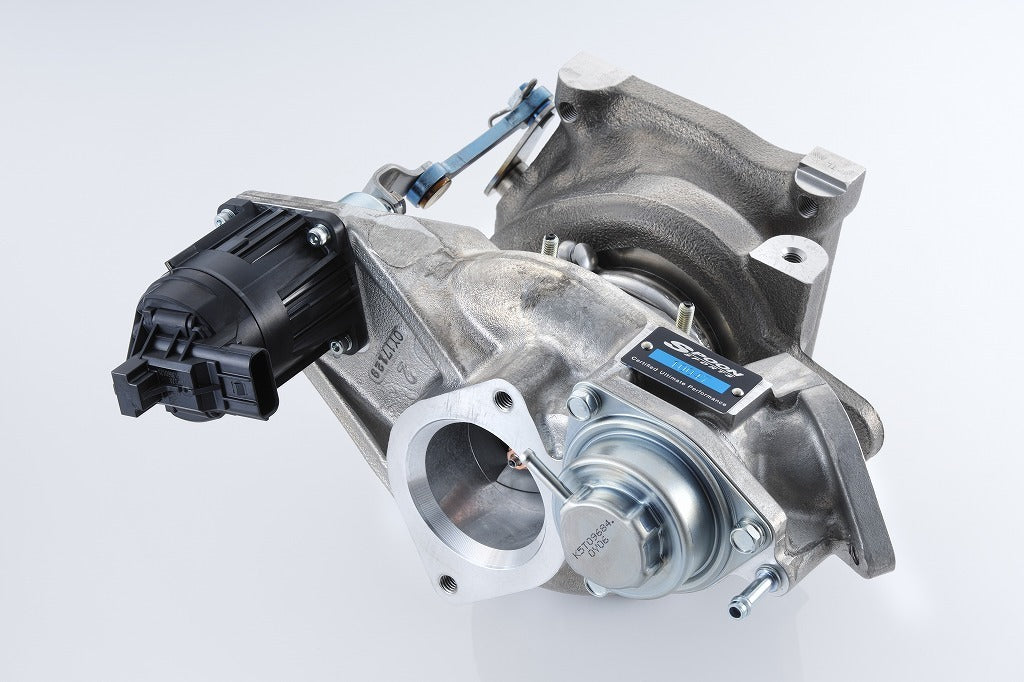

This upgrade uses the latest, highly efficient MHI turbocharger, who provide the factory unit for the FK8 Type R. This means a truly bolt-on application due to using the same exhaust and compressor housing dimensions.
The latest CFD analysis technology helped with optimising the internals of the unit. By adjusting the compressor and turbine blade profiles, along with an increase in diameter, Spoon were able to achieve a higher power output without sacrificing the low to mid-range torque.

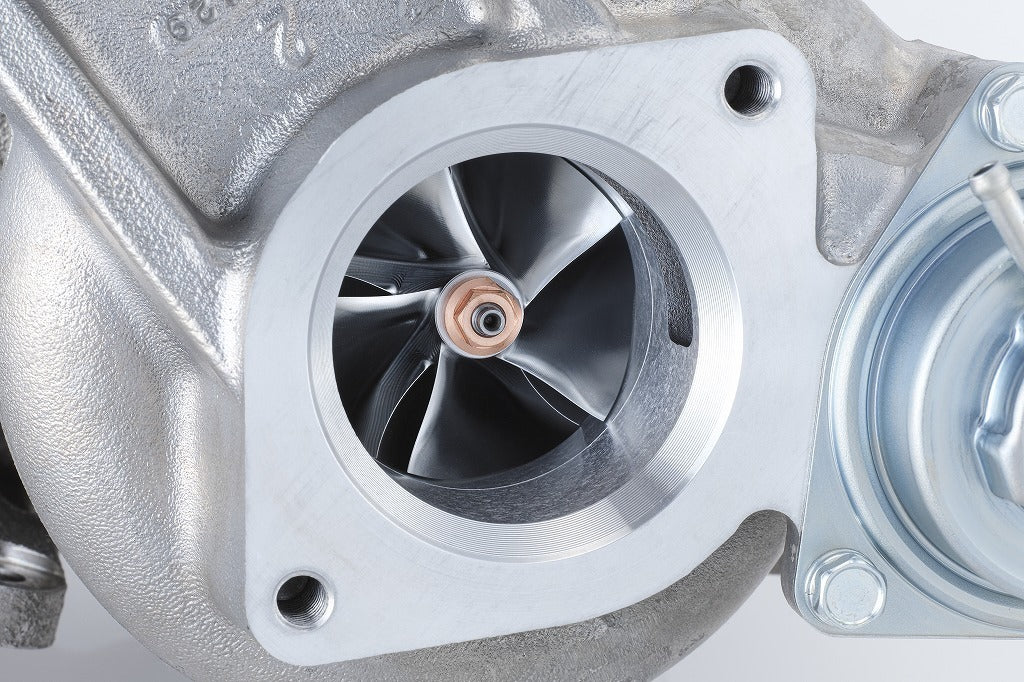

The shape of the compressor and the number of blades has been optimised, providing a higher flow rate and higher boost levels. This is achieved by increasing the compressor wheel from a 58mm diameter to 65mm.

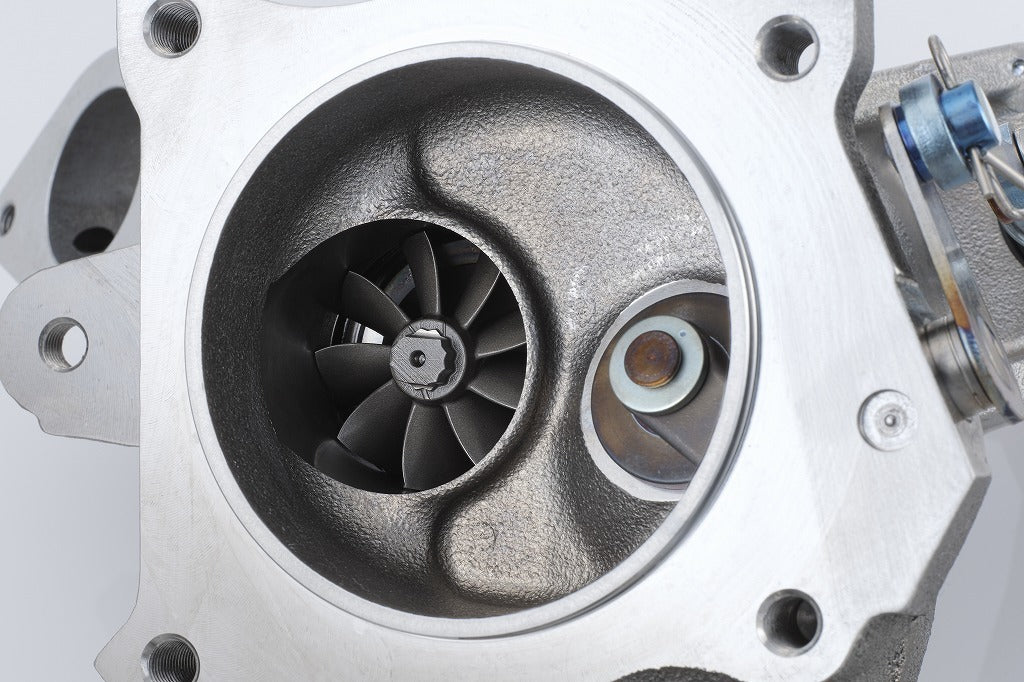

The blade shape and the number of turbine wheels has also been enhanced, from the OEM 47mm to 52mm. The suppressed moment of inertia and increased capacity reduces exhaust pressure and improves engine response.

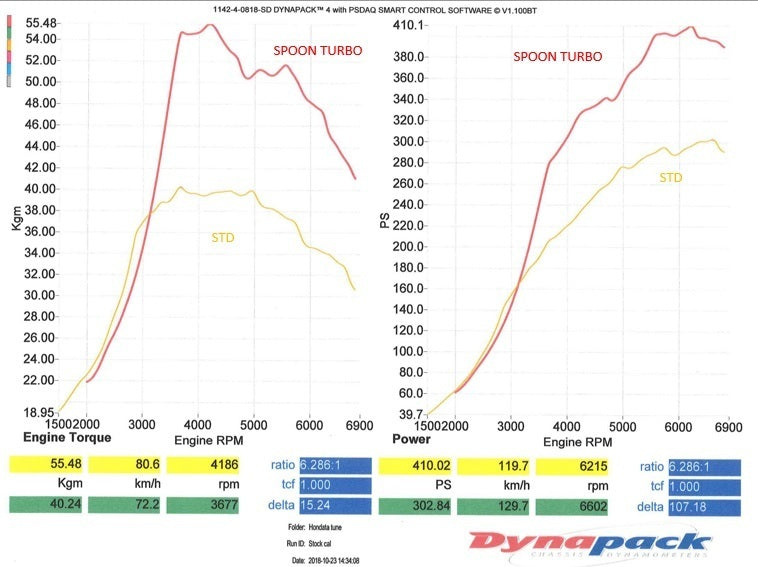

SPOON comparison data:
Standard Vehicle
Power: 222.73kW
Torque: 394.62N-m
Spoon demonstration car
Spoon Turbo 301.57kW
Spoon Turbo 544.07N-m
Spoon demonstration vehicle modifications:
Spoon N1 Muffler, Spoon Air Cleaner, Hondata Fuel System Upgrade, intercooler and downpipe installed along with a re-tune allowed an increase in output by 79kW and torque by 150N-m.
*Caution! High-capacity clutch required.
*Results may vary.
Since sufficient fuel supply is difficult to reach with normal fuel system, Hondata Fuel System install is required to provide the increased output (injector, increased fuel capacity and software upgrade included. Fuel supply amount increased by 24% compared to stock).
Features and Benefits
MHI supplied turbocharger (OEM quality)
Up to a 35% increase in power output
Up to a 37% increase in torque
Increased engine response
Requires upgraded clutch
Supporting mods required to maximise power output (see product description)
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
18900-FK8-000
