 |  SKU: KIT5360CADJK

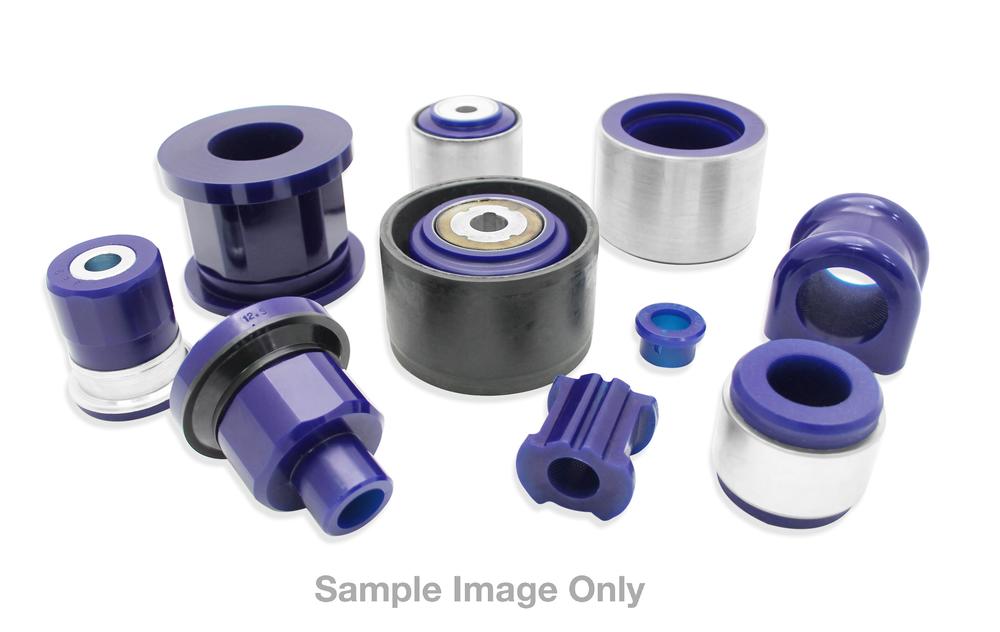

SuperPro Front Control Arm - Geometry Correction Kit

Audi, Seat, Skoda & VW MQB FWD/AWD
$299.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description
This kit has all the essential bushes needed to effectively increase the handling performance of a modified vehicle.Ideally suited as an entry level kit for a modified vehicle with bigger wheels or tyres, brakes and lowered suspension.Kit contains:
  • Front Control Arm Lower-Inner Front Bush Kit
  • Front Control Arm Lower-Inner Rear Anti Lift Bush Kit - Performance Option

Product Notes:

  • Performance Alignment - adds +0.5deg caster

Technical Specifications

Bushing Design Dimensions (mm)

Bush TypeQTYOD (A)ID (B)Length (C)FL (D)FLOD (E)C/Tube QtyC/Tube SizeSimilar Bushings
34AI=44 AII=36.528.511.022 / 227x12.3x54 / 28.57x13x50Click Here
17264.428.5728.0112 / 227x12.3x54 / 28.57x13x50Click Here
14372725.07502 / 227x12.3x54 / 28.57x13x50Click Here
Bushing Type 1 Bushing Type 3 Bushing Type 17

Misc. Product Information

SKUKIT5360CADJK
Kit Contents10 Bushings, 4 Tubes
Fitting PositionFront Axle
Foot Note 2Adds +0.5deg caster
Foot Note 3Lifetime Warranty
Sub brandSuperPro Kits
EAN9317745811992
Product NoteEnhances vehicle control & cornering traction; an all-in-one handling solution. Includes: Front Control Arm Lower-Inner Front Bush Kit Front Control Arm Lower-Inner Rear Anti Lift Bush Kit - Performance Option for reliable suspension performance.

Installation Instructions

More Information
Installation Time2 Hours
Installation DifficultySuspension Specialist recommended.
Wheel Alignment RequiredYes
Recommend Wheel AlignmentFront Wheel Alignment

Fitment Table
