SuperPro Front Differential Drop Kit
Isuzu D-Max 19+/MU-X RJ 21+/Mazda BT-50 20+ (4WD Models)
$210.00
Unit price
/
Unavailable
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Suits Lifted vehicles.The kit is supplied complete with all required spacers, bolts, washers and nuts.When lifting a vehicle, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots. The added down travel from adding extended shocks can also cause the joint to exceed the maximum operating angle, which causes the CV joints to bind up and cease to operate.The SuperPro bolt-on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm.Reducing the angles on the CV joints can help get them back into the normal operating range, helping to avoid the expensive replacement costs of CV's.
Product Notes:
- Suits lifted vehicles
Technical Specifications
Technical Specifications
Misc. Product Information
| SKU | TRC9015 |
|---|---|

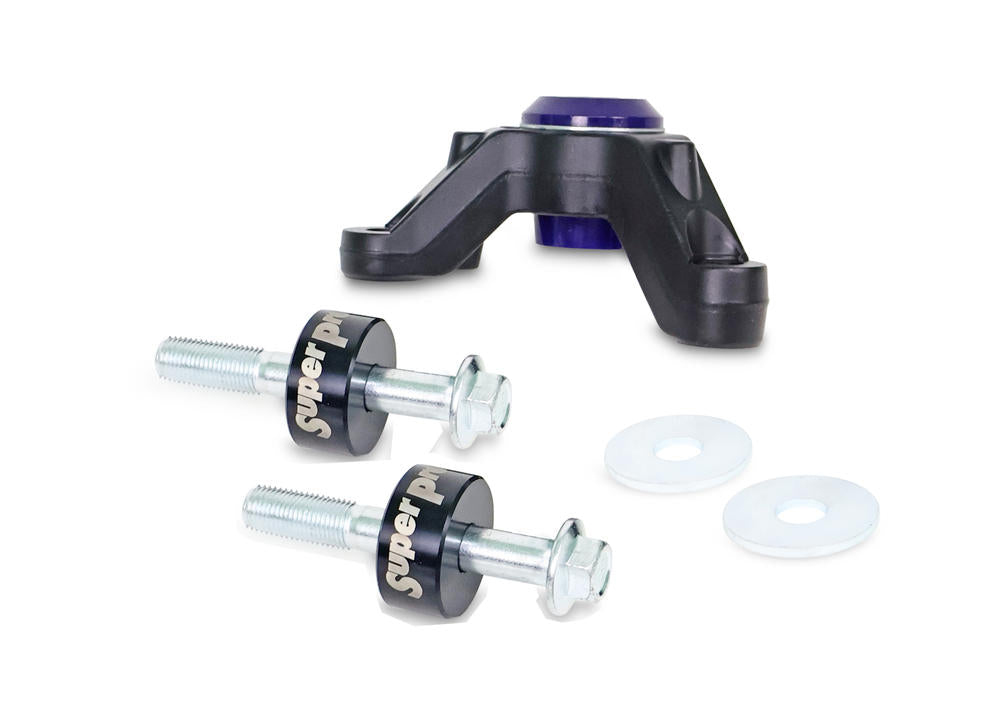

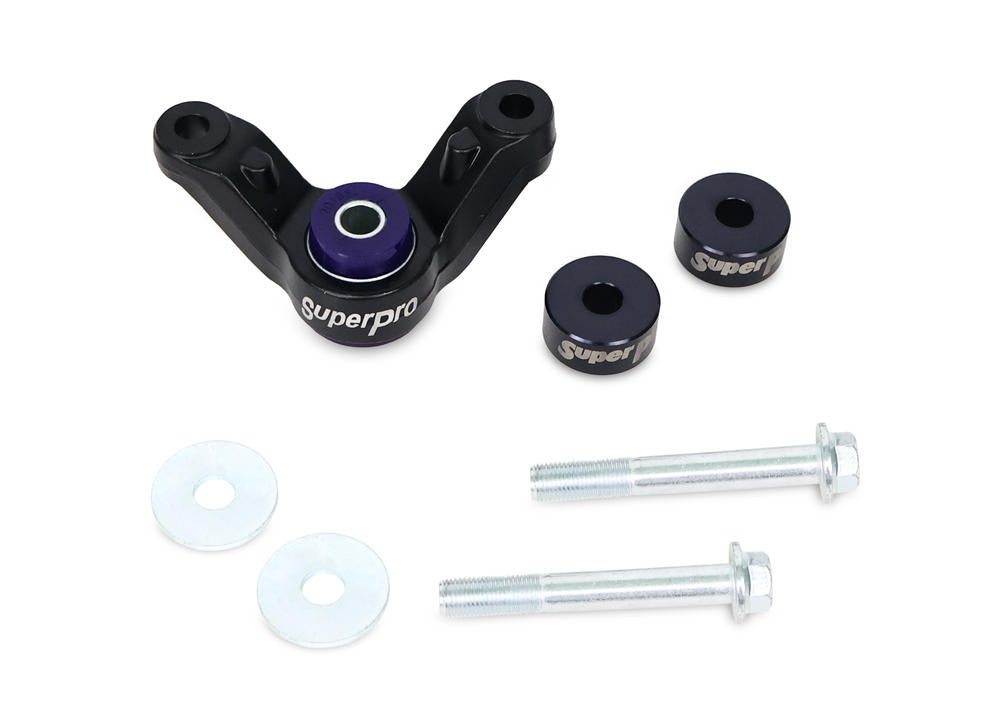

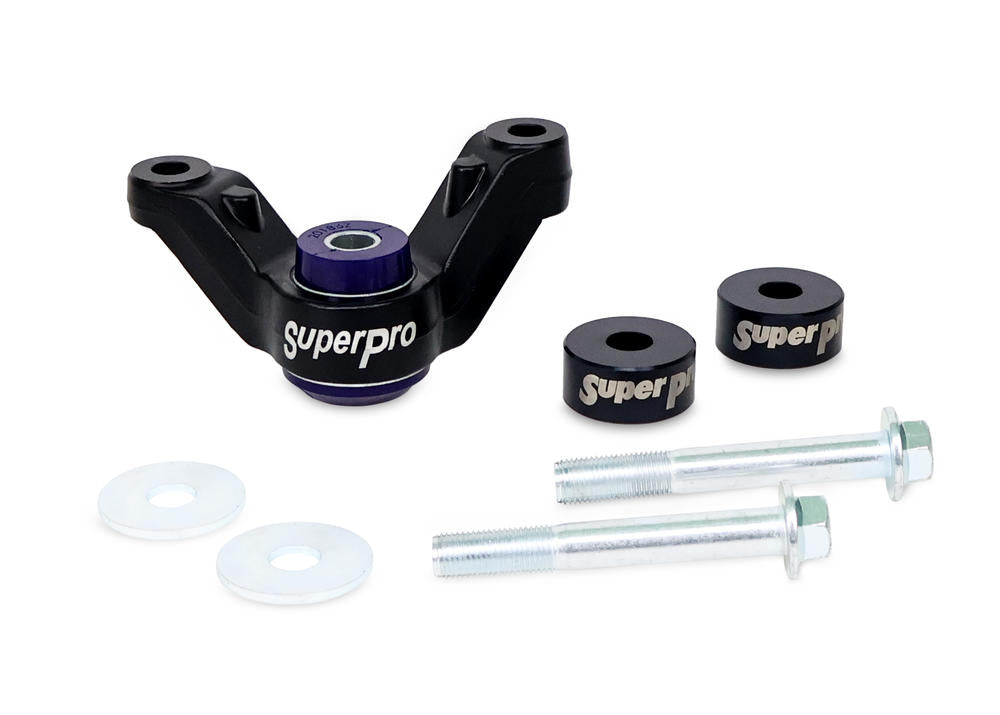

| Kit Contents | 1 Bracket, 2 Spacers, 2 Bolts, 2 Washers |
| Fitting Position | Front Axle |
| Foot Note 3 | Lifetime Warranty |
| Sub brand | Roll Control |
| EAN | 9317745842729 |
| Product Note | This bolt on kit corrects the geometry of the front axles and reducing CV bind at full droop by lowering the front diff approximately 20mm. This kit requires no modifications to the cross member and allows the original bash plate to be refitted. |
Installation Instructions
Installation Instructions
| Install Guide | Downloads |
|---|---|
| Installation Time | 1.5 Hours |
| Installation Difficulty | Tricky installation may take longer then you think if you are not experienced. |
| Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Front Wheel Alignment |
