| SKU:
SPF5788K

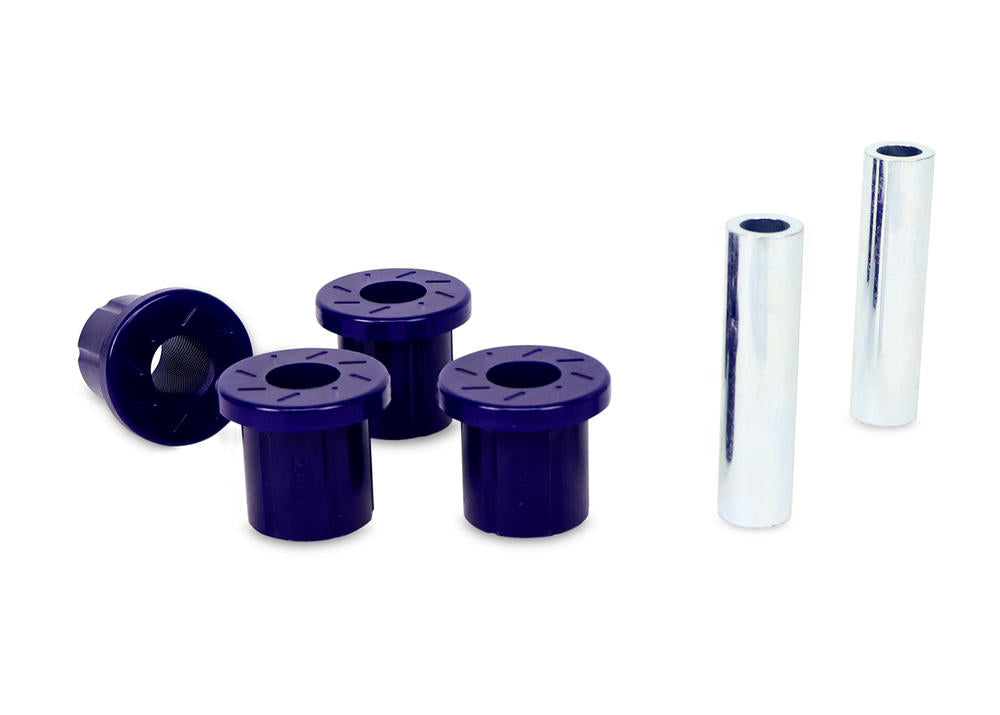

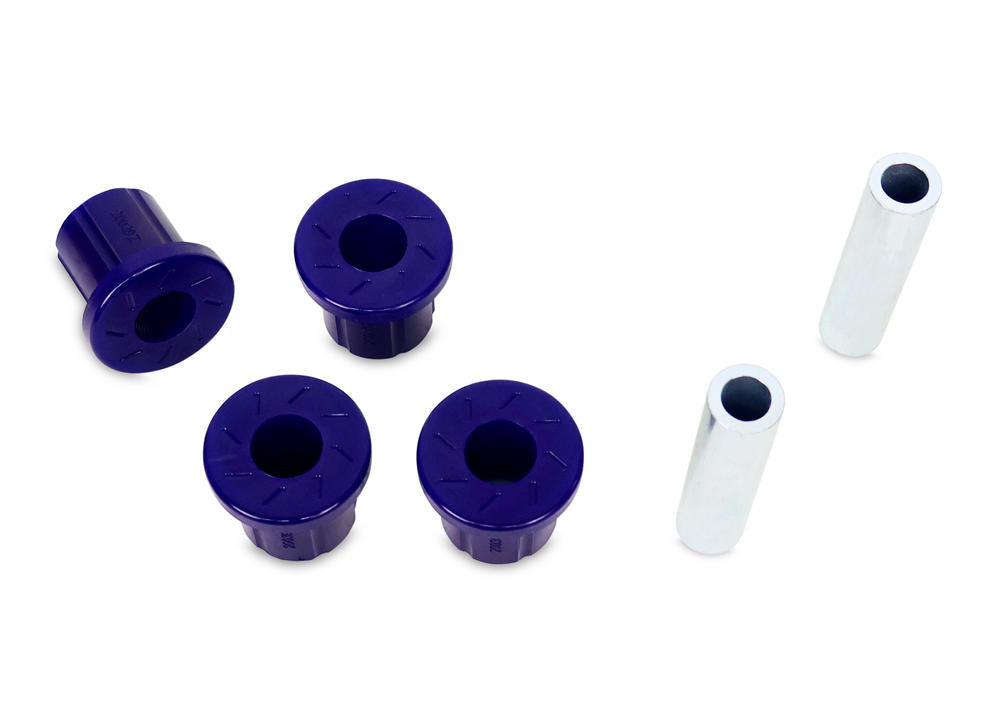

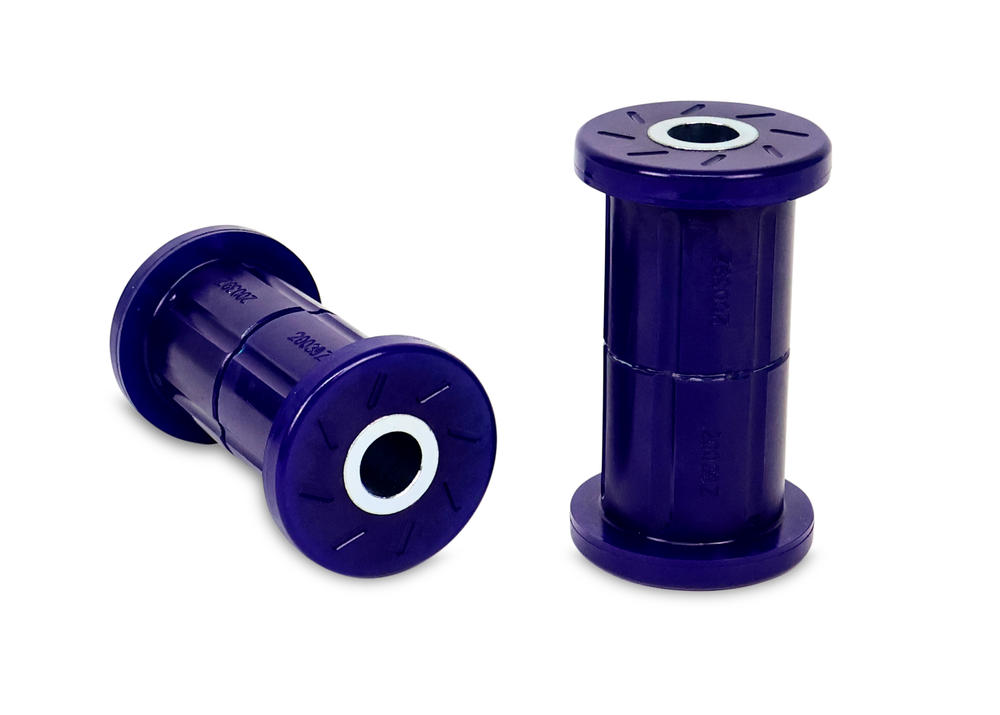

SuperPro Rear Leaf Spring - Rear Eye Bushing Kit
Ford F-150 12th Gen 07-14
$99.00
Unit price
/
Unavailable
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Benefit Note: These bushings are often overlooked when upgrading the suspension.Leaf spring bushings stabilise the movement of the rear axle, inferior bushings in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle.It also causes the vehicle to "wander" all over the road and be unstable under heavy braking.This can be especially noticeable carrying a load or towing.
Technical Specifications
Technical Specifications
Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4 | 38 | 22.2 | 44.5 | 7.4 | 51 | 2 | 22.2x14.3x90.5 | Click Here |
Misc. Product Information
| SKU | SPF5788K |
|---|---|
| Kit Contents | 4 Bushings, 2 Tubes |
| Fitting Position | Rear Axle |
| Foot Note 3 | Lifetime Warranty |
| Sub brand | SuperPro SPF |
| EAN | 9317745057888 |
| Product Note | Boost precision and control; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes |
Installation Instructions
Installation Instructions
| Installation Time | 3 Hours |
|---|---|
| Installation Difficulty | Suspension Specialist recommended. |
| Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Front and Rear Wheel Alignment |
