| SKU:
KIT8560K

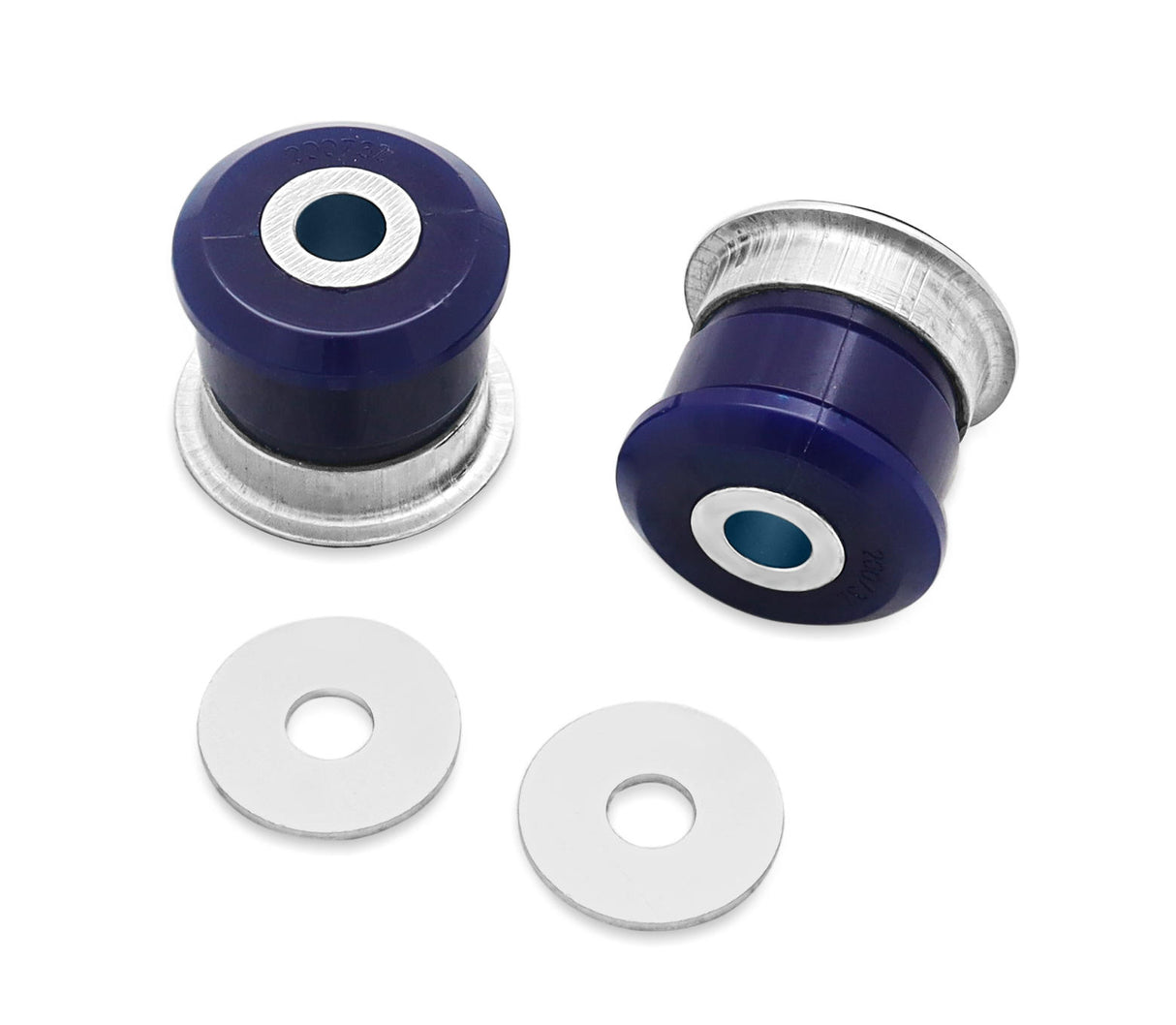

SuperPro Replacement Bush Kit to Suit Front Upper Control Arm TRC8560
Ford Ranger PX1-PX3/Everest UA/Mazda BT-50 UP, UR
-
International Shipping
We ship Worldwide
-
AUSSIE OWNED
-
FAST DISPATCH
-
WE PRICE MATCH
-
FLAT RATE SHIPPING
Description
Description
Upgrade your 4WD with a SuperPro 4x4 Control Arm! Gain extra clearance, articulation, correct alignment and install a stronger control arm designed for harsh off road conditions.
- Lifetime Warranty
- Enhances your 4WD's handling and performance
- Designed to solve alignment issues when you lift your 4WD
- Approved Nationally - VSB 14 Compliant (ADR compliant)
- High quality, form factor welding and assembly
- High grade Steel, for increased strength
For every inch a vehicle is raised the vehicles geometry is permanently changed, causing alignment issues. If a lift kit is installed, then a control arm should also be installed to solve alignment issues.
SuperPro's 4WD control arms are manufactured, tested and designed in Australia, ensuring high quality development and manufacturing with local reliable resources. SuperPro 4WD control arms are built to meet the high quality requirements set by SuperPro’s Q&A team; designed to outperform both competitor and OE products. Following our business motto "Engineered to Outperform", SuperPro exceeds many design expectations and has been certified as such.
Product Notes:
Technical Specifications
Technical Specifications
Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 2 | 47.9 | 25.2 | 50.5 | DI=7.95 DII=5.45 | 53.72 | 2 | 25.4x14.3x51 | Click Here |
Misc. Product Information
| SKU | KIT8560K |
|---|---|
| Kit Contents | 2 Bushings, 2 Tubes, 2 Washers |
| Fitting Position | Front Axle |
| Foot Note 1 | replacement bush kit to suit TRC8560 |
| Foot Note 3 | Lifetime Warranty |
| Sub brand | Roll Control |
| EAN | 9317745810001 |
| Product Note | Enhances vehicle control & cornering traction; an all-in-one handling solution. Includes: 2 x fixed offset upper control arm replacement bushings |
Installation Instructions
Installation Instructions
| Installation Time | 2 Hours |
|---|---|
| Installation Difficulty | Suspension Specialist recommended. |
| Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Front Wheel Alignment |
