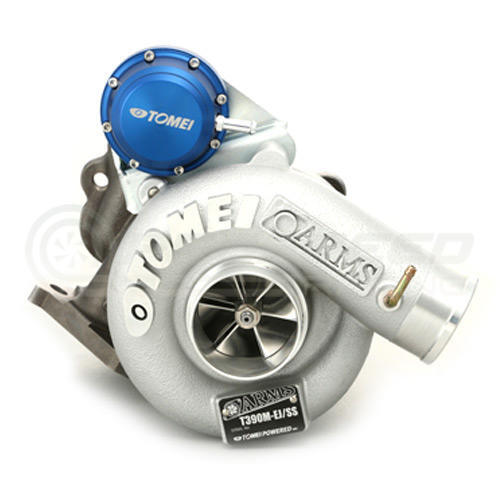

Tomei ARMS T390M Bolt On Single Scroll Turbo Charger
Subaru WRX/STI/FXT/LGT
In Stock:
This product is in stock & ready to be dispatched.
Limited Stock Available:
Stock is running low. Order soon to avoid missing out!
Almost Gone:
Stock is critically low! This product may sell out soon.
Incoming:
Product will be in stock soon.
Usually Ships In:
This product is out of stock and will usually ship in the timeframe displayed.
Sold Out:
This product is currently out of stock.
Request ETA
$2,599.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.
New option of performance turbo for EJ Single Scroll!

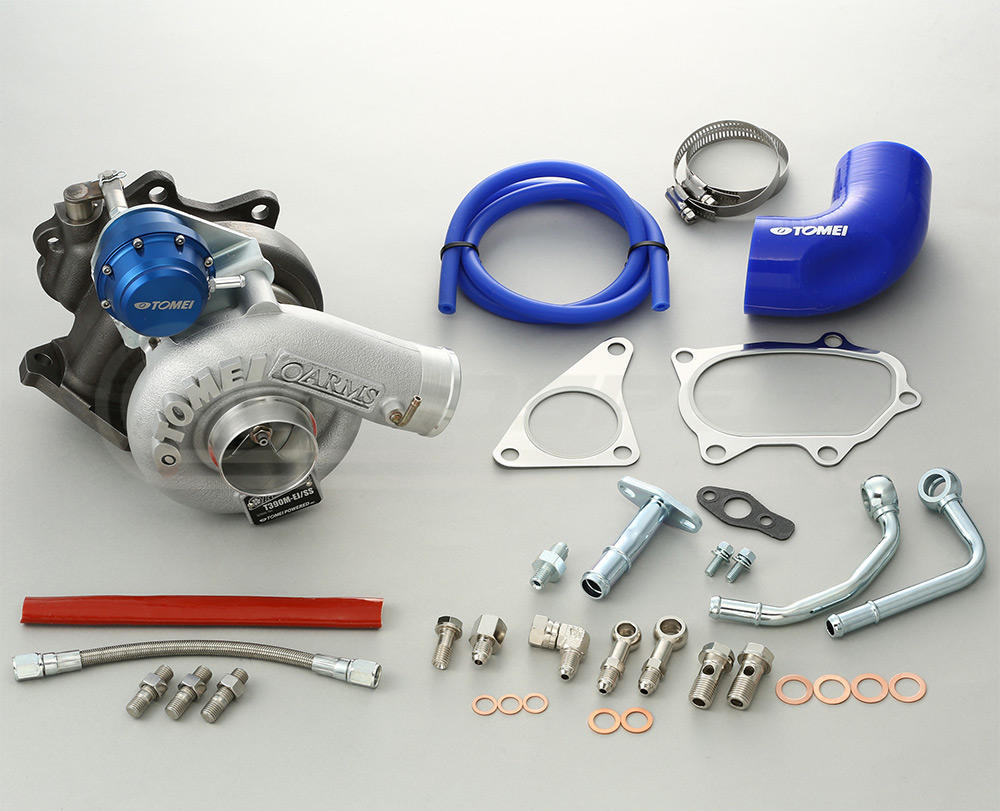

The all new T390M turbo kit designed to best perform especially with EJ20 Single Scroll. Well balanced for quick response from the low range to the top power at the high RPM range! It comes with the same billet compressor wheel as the existing T440M turbo but covers wider range of different needs while the T440M turbo kit is mainly for tuned EJ25 and long-stroked EJ22/EJ26. T390M offers well tuned low-mid torque that a 2.0L engine can spool up smoothly to the high end range. Stress-free and easy drivability from the street to sport driving on small tracks. The ARMS series turbo kits all come supplied with all the required gaskets and fitting, no modifications required.
Compressor Wheel
The all new, forged aluminum billet compressor wheel increases even more efficiency and at the same time reduces surging that is one of the well known problems on tuning especially with AVCS applications.
New Housing for More Efficiency
Redeveloped from the material for more efficiency to convert the energy straight to power with better lubrication and cooling.
Floating Metal Bearing
High quality floating journal bearing at the center shaft.
Reinforced actuator
Remarkable stability under high boost.
Specifications:
Compressor Wheel:
Trim: 60
Inducer: 52.6mm
Exducer: 68.0mm
Blades: 6/6
Turbine Wheel:
Trim: 76.9
Inducer: 56.0mm
Exducer: 49.1mm
Blades: 12
Notes:
94-07 WRX, 94-00 STI and 97-08 Forester models will require aftermarket 2.4" inlet hose for installation
Vehicle Fitment:
Direct Bolt-On for following models
1999-2000 Subaru WRX
2001-2007 Subaru WRX
1999-2000 Subaru STI
2001-2007 Subaru STI
2008-2014 Subaru STI
2015-2021 Subaru STI
1997-2002 Subaru Forester GT
2003-2008 Subaru Forester XT
1998-2003 Subaru Liberty GT (Single-Turbo Only)
Can fit to the models below however aftermarket intercooler with alternate traditional STI style hot-side intercooler hose is required
2008-2014 Subaru WRX
2008-2013 Subaru Forester XT
2007-2009 Subaru Liberty GT
Fitment Table
Fitment Notes
General Notes:
94-07 WRX, 94-00 STI and 97-08 Forester models will require aftermarket 2.4" inlet hose for installation.
