 |  SKU: 412002

Tomei Equal Length Headers

Subaru BRZ/Toyota 86 12-21
$1,599.00

Description


The FA20 boxer engine inside the Toyota 86/Subaru BRZ can be said to be the successor to the EJ engine. At Tomei Powered, through our extensive testing, we've produced numerous EJ engine and exhaust parts. By applying our knowledge and experience of EJ engines to the ZN6/ZC6, we conducted even further tests to produce 2 new exhaust manifolds with different characteristics. Using this in conjunction with our new joint pipe, released at the same time, can yield even better results.



SPECIFICATIONS COMPARISON VS STOCK

  • Optimized pipe lengths and angles.
  • Improved exhaust efficiency through catless design

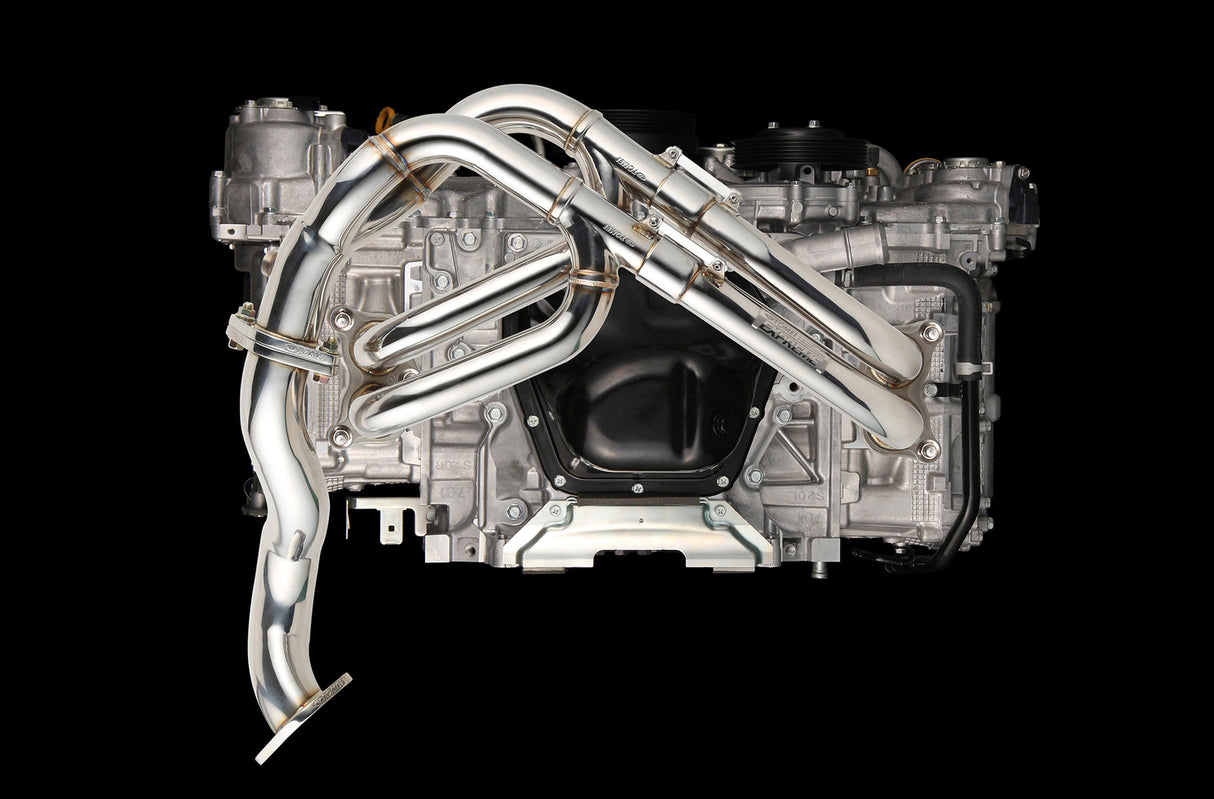

  • Designed to minimize heat transfer to the oil pan.

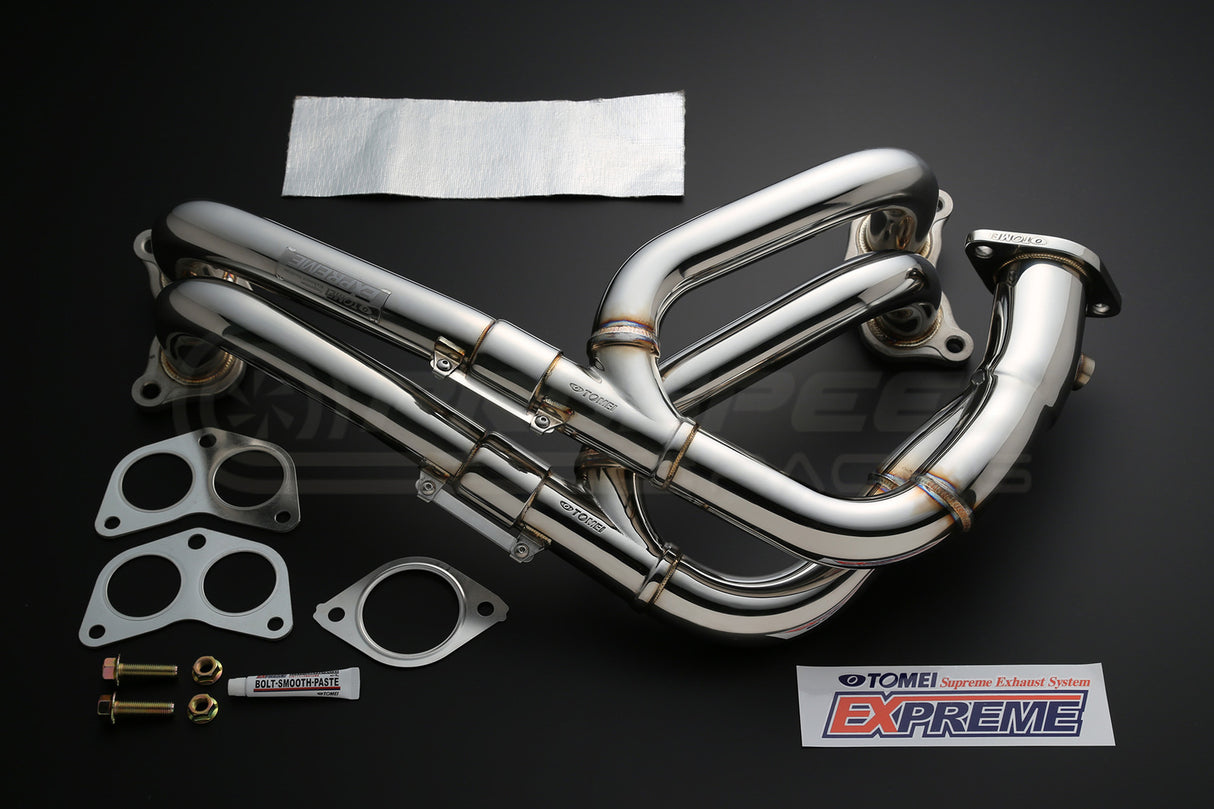

KIT CONTENTS:

  • EXHAUST MANIFOLD (1)
  • GASKET (ENGINE SIDE) (2)
  • GASKET (JOINT PIPE SIDE) (1)
  • EXHAUST REFLECTIVE HEAT SHEET (1)
  • FLANGE BOLT (2)
  • FLANGE NUT (2)
  • BOLT SMOOTH PASTE (1)
  • Includes all gaskets, nuts, bolts etc. required for installation.



Vehicle Fitment:

  • 2012-2021 Subaru BRZ
  • 2012-2021 Toyota 86


Technical Specifications


MATERIAL
LAYOUT
 PIPE
DIAMETER
（Φ）		 PIPE
THICKNESS
(mm)		 FLANGE
THICKNESS
(mm)		 WEIGHT
(kg / lbs)
Port exit
- 1st juncture		 Port exit
- 1st juncture		 2nd juncture
- joint pipe		 Front Rear
STOCK
-
4-2-1
 42.7 45.0 51.2 1.5 9.0 10.0 9.2 / 20.28
TOMEI
EQUAL
LENGTH
SUS304
4-2-1
 42.7 45.0 60.5 1.5 12.5 12.5 6.45 / 14.22
TOMEI
UNEQUAL
LENGTH
SUS304
4-1
 42.7 - 60.5 1.5 12.5 12.5 6.85 / 15.10

Fitment Table
