 |  SKU: 163051

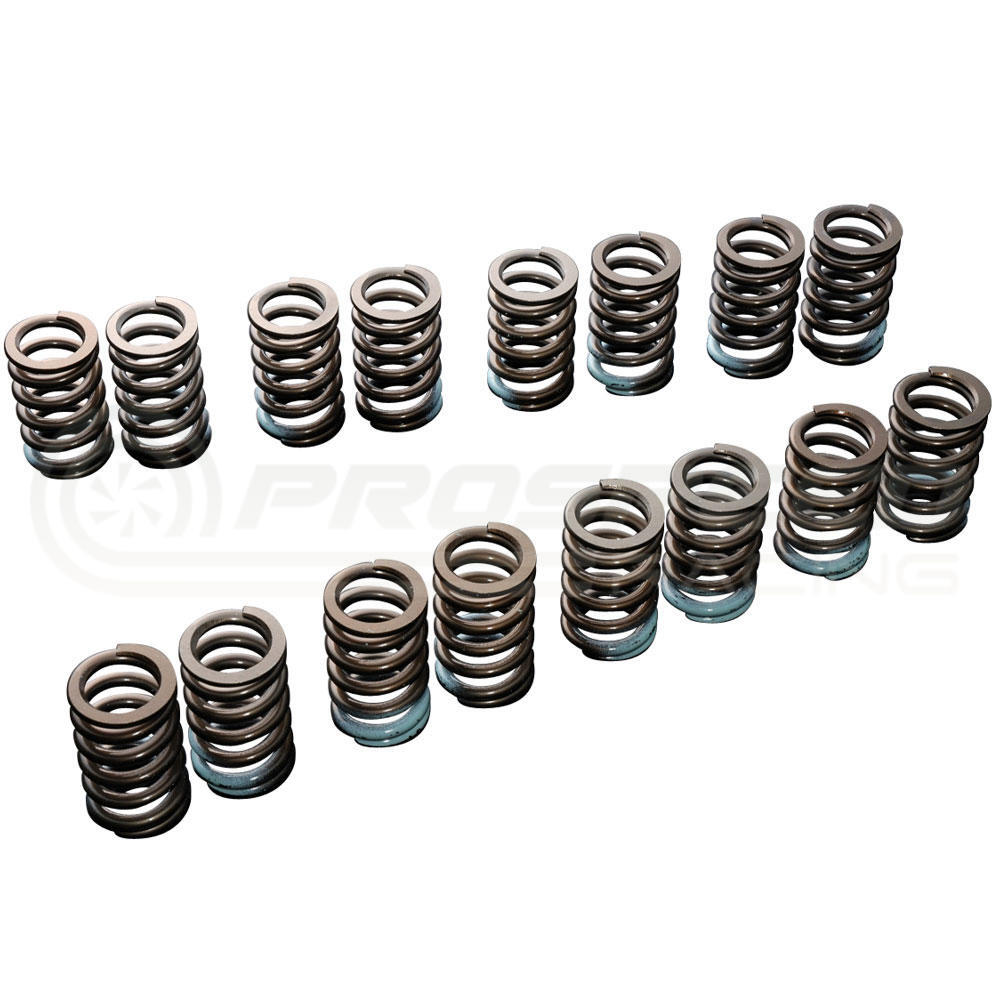

Tomei High Lift Oval Wire Valve Spring Set

Mitsubishi Evo X (4B11)

Incoming :

Product will be in stock soon.

In Stock :

This product is in stock & ready to be delivered.

Very low inventory :

This product has very limited stock remaining.

Out of stock :

This product is not available at this time.

$319.95
Earn 1 Point on this purchase. Learn more

Description

High quality designed springs is required to transfer the exact movement of the camshaft to the valves at high engine speeds on high performance engines. The TOMEI products are always engineered with precision in mind to suit the user’s needs. So with this in mind careful choices in material selection is made with surface coating and other technologies. Then the pre-production products are put through an extensive testing program for checking durability, quality and performance. We spend time and money to help you save your valuable time and money.

Multi Coil Unequal Pitch Springs

By combining several steps of spring rates into the one spring and vibration frequency becomes amazingly high. This greatly minimizes resonance and the chances of surging.

Advanced Oil Tempered Chromium-silicone Alloy Steel Core

Oil tempered chromium-silicone alloy steel wire is used which is considered to be the best material for springs for performance applications and evolved it even further. Combined with a new optimized design, not only did we make it tougher, we also succeeded in suppressing valve jumps or bounce even when raising the engines speeds RPM limit.

Nitriding

The surface treatment method for making nitrogen permeates the spring and gives it large surface compression repulsion. This method was chosen to raise the fatigue limit to suit the demands or running high lift camshafts. The dangers of spring failure is greatly reduced with the 1.5 times increase in the springs fatigue limit with the combined use of Oil tempered chromium-silicone alloy steel wire and Nitriding. This is how our valve springs are suitable for use on extreme engine speed conditions of super-high revs exceeding 10,000 RPM which had not been previously possible with high lift camshafts.

Shot Peening

A process that strikes many small steel balls onto the surface of the spring at high speeds is made to enhance the surface of the spring to raise its fatigue limit. Although it has been carried out earlier during the manufacturing process.

Warm Setting

The process that is adding higher loads beyond the actual limits to the highly heated spring. This will modify its shape and keep it permanently fixed. We succeeded in securing the highest performance over a long period of time while preventing sagging.

Oval Wire

Oval wire valve springs feature greater compression than regular valve springs, allowing them to work with a wider range of 'lift' settings. This makes them compatible with both stock AND aftermarket high lift camshafts.

Using highly durable oval wire allows the valve springs to compress even further whilst still retaining sufficient force. Compatible with many high lift camshafts, these springs provide reliable performance even under load at higher RPMs.



Technical Specifications

DIA
METER
SET
LENGTH
(mm)
LIFT
LENGTH
(mm)
COMPATIBLE LIFT(mm)
SET
LOAD
(kgf)
LIFT
LOAD
(kgf)
REV
LIMIT
(Ref.)
MATERIAL
PROCESS
COLOR
ID
3.40x4.25
35.0
23.0
12.00
27.0±7%
85.0±7%
8500
SWOSC-V
Nitride
L Blue
