$179.95
Unit price /
Unavailable
Bidit helps you and Pro Speed Racing agree on a price. You set the price and Pro Speed Racing checks if they can accept your offer. You aren't competing with anyone else.

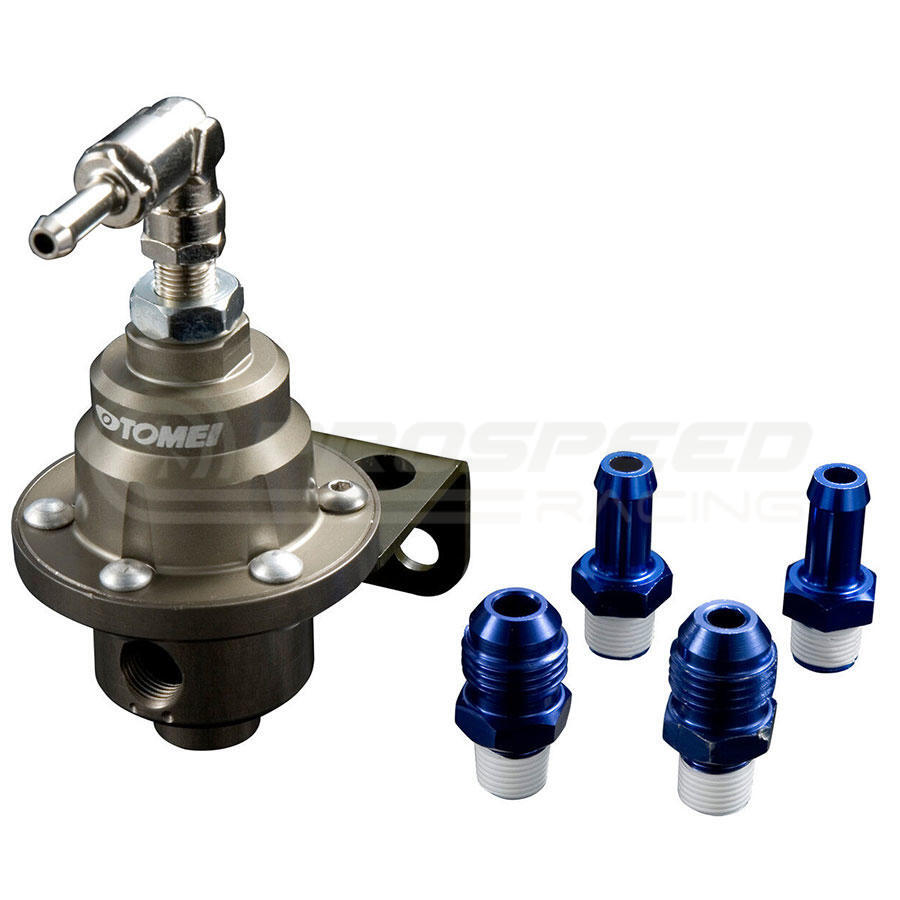

When the injectors and fuel pump are upgraded to a larger flow setup the stock fuel pressure regulator will not be enough to suit the required pressures for the new setup. Also the stock is already preset to from factory for the standard setup and non adjustable so it will be restricting the tuning potential of the car. The TOMEI Fuel Pressure Regulator will ensure stable pressures are supplied with the oversized diaphragm. This special design has proven to maintain the required pressure levels with any adjustments made.
Made from billet aluminum with a hard anodized finish to cope with the extreme conditions in the engine bay while maintaining great looks.
Adjustable Fuel Pressure Regulation
When the engine is idling low the fuel flow used compared to full power is only approx 15%. Therefore most of the fuel that is sent by the pump will be returned to the fuel tank. When the engine is tuned the optimum efficiency can be obtained with the optimum mixture of A/F ratio. When the fuel pump is too large and the regulator is not strong enough to handle the excess fuel that it is receiving it will then not be able to regulate the flow to allow the fuel to return to the tank. This will cause the fuel pressure to be too high and too much fuel to be pumped into the engine which will lead to over enrichment and poor fuel efficiency and a variety of problems will occur.
* When the fuel pressure changes from 0.5kgf/cm2 it greatly affects the settings due to the A/F difference will change from 0.5 or more.
When the adjustable fuel pressure regulator is set to optimize the injectors the best fuel consumption and burn ratio can be achieved.
* High Fuel Pressure Operational Problems e.g. Solenoid Failing to Close.
The optimum fuel pressure is then maintained and controlled by the change in pressures from the intake manifold. The balance of pressure inside the regulator (Pf+Pm=F/S) maintains the fuel pressure from when the valve opens by the pressure in the intake manifold.
Features and Benefits
HARD ANODIZED FINISH
The Hard Anodizing finish adds more protection to the Regulator since the Regulator will spend it’s time in a harsh environment. This finish helps protect the thick membrane from harmful grit and grime and with the additional resistance to corrosion and heat and electrical insulation these aspects help maximize its durability and safety.
AN6 1/8×2 / #8 STRAIGHT 1/8NPT×2 FITTINGS
Our Regulators are supplied with 2 of each AN6 and #8 nipple connectors which are the most popular type of fitments for fuel piping. Ready to install and use from the box. *Depending on your setup you may require additional equipment/parts to complete the install. * Other piping is required and not included
Step 1: Choose message placement
Click the button below and then hover over your page to select a placement.
Step 2: Paste and save
You have copied the placement for the Product Page.
Go back to the App Embeds section, and in the Paypal Advanced Settings, paste the copied value into the
Product Page field and click the 'Save' button in the top right corner.
| SKU:
185001
