 |  SKU: TS-UNI-588

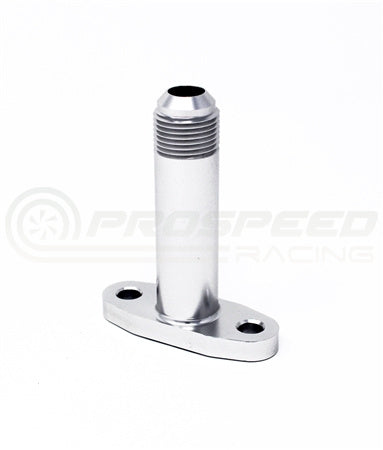

Torque Solution Extended Oil Drain Flange - 10AN for T3/T4/PTE/Turbonetics/Comp/BW

Universal

In Stock :

This product is in stock & ready to be dispatched.

Very low inventory :

This product has very limited stock remaining.

Incoming :

Product will be in stock soon.

Usually Ships In :

This product is not ready for immediate dispatch and will ship in the timeframe displayed.

Sold Out - Out of stock :

This product is not available at this time. Request ETA Information

$65.95

Earn [points_amount] when you buy this item.


Description



Torque Solution Extended Port Matched Oil Drain Flange is designed to give you extra clearance from the turbo housings making for an easier install on T3/T4 PTE, Borg Warner, Turbonetics, Comp, etc turbos. Made from CNC 6061 billet aluminum and integrated with a -10AN flare fitting. The bottom of the flange is also port matched with a tapered bore to promote the oil flow and to prevent oil pooling in the turbo. We have also incorporated a recess with an o-ring gasket for a leak proof seal.



Features:

  • Integrated -10AN Flare Fitting
  • 2.5" / 60mm Extended Height
  • 3 1/8" / 80mm Overall Length
  • Port Matched Drain Hole
  • High Temp O-ring Gasket
  • CNC'd Billet Aluminum
  • Limited Lifetime Warranty


Fitment Table
