Torque Solution HD Hard Turbo Inlet

Subaru WRX 01-07/STI 01-21
$779.95
Turbo Inlet
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

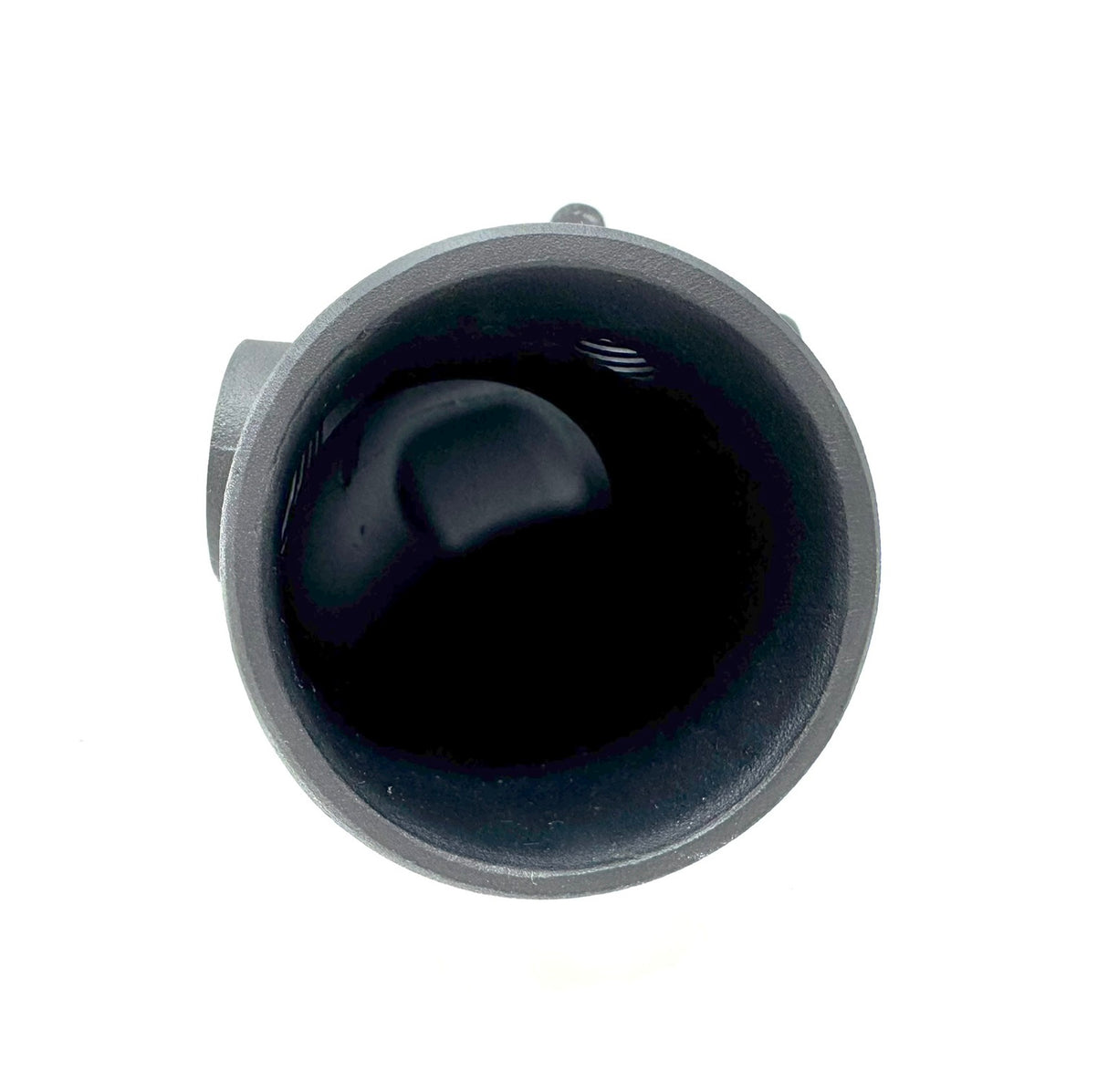

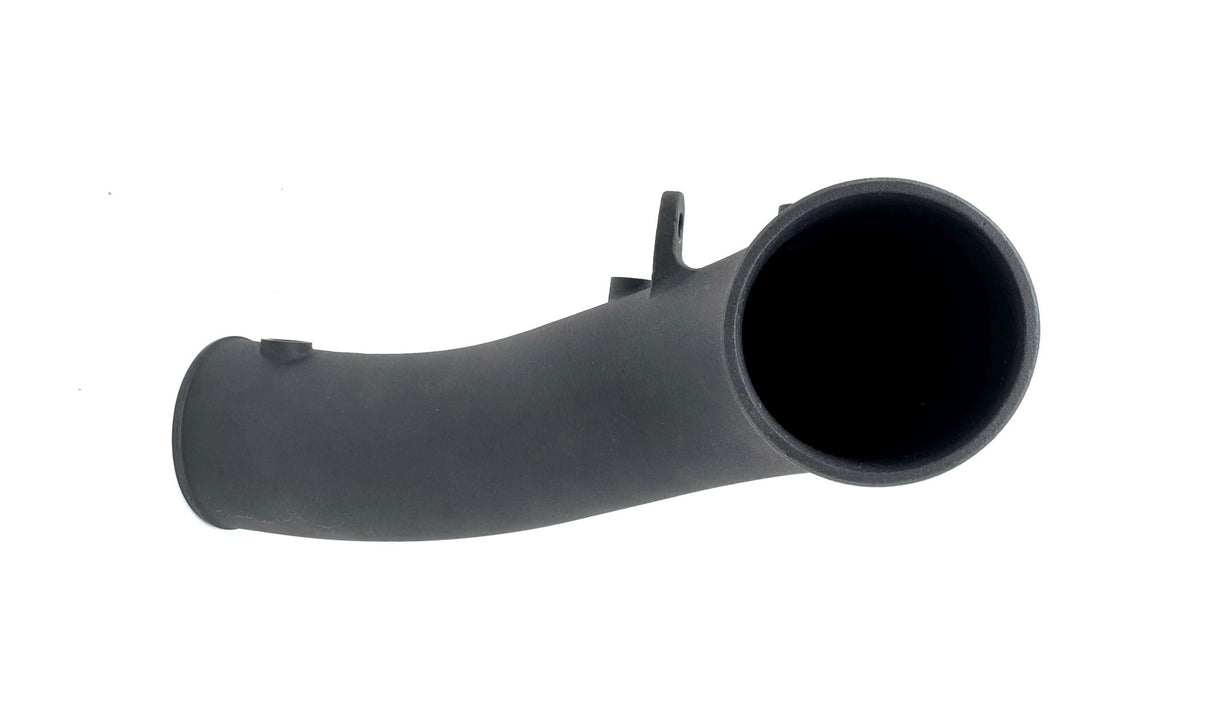

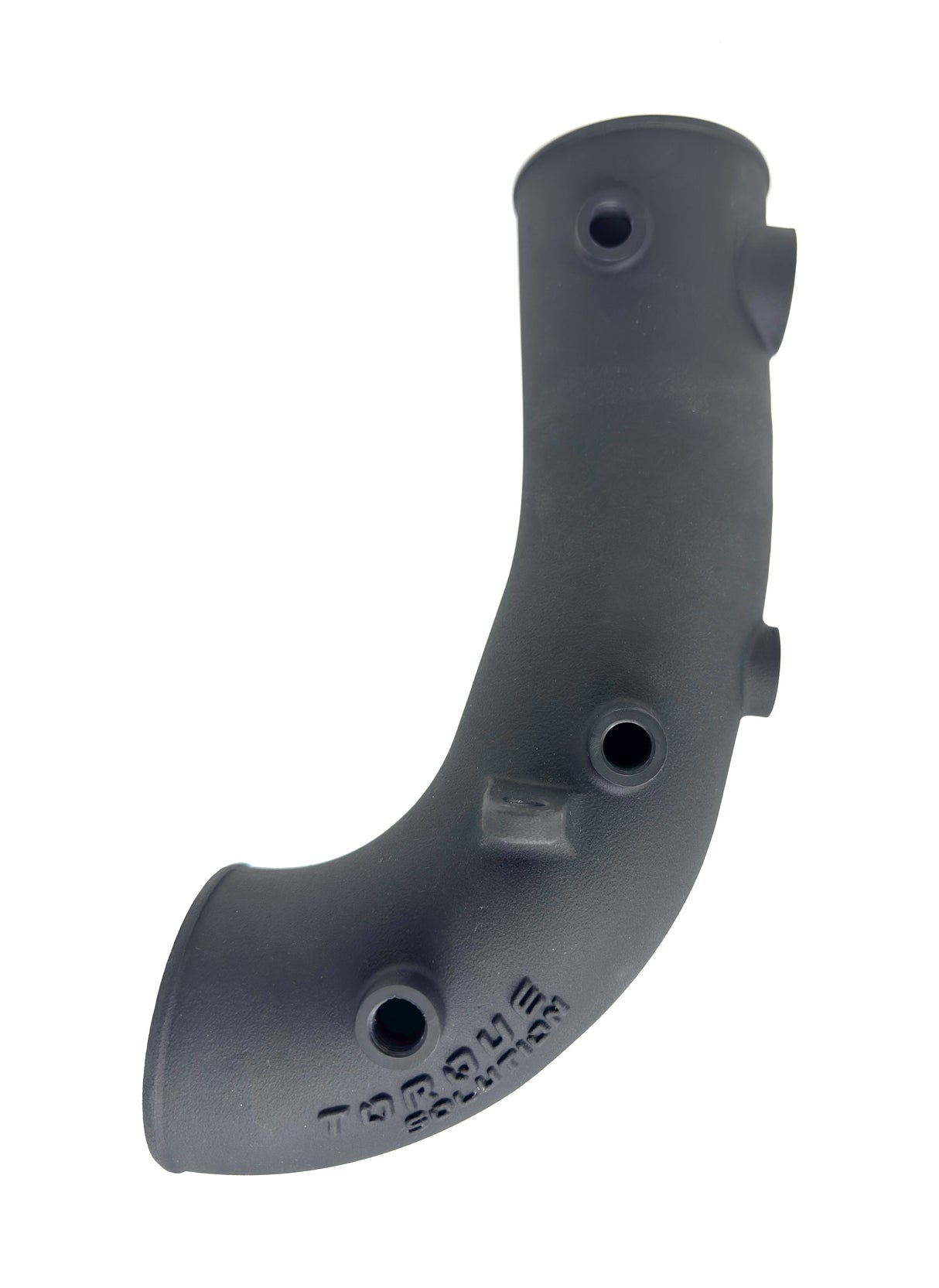

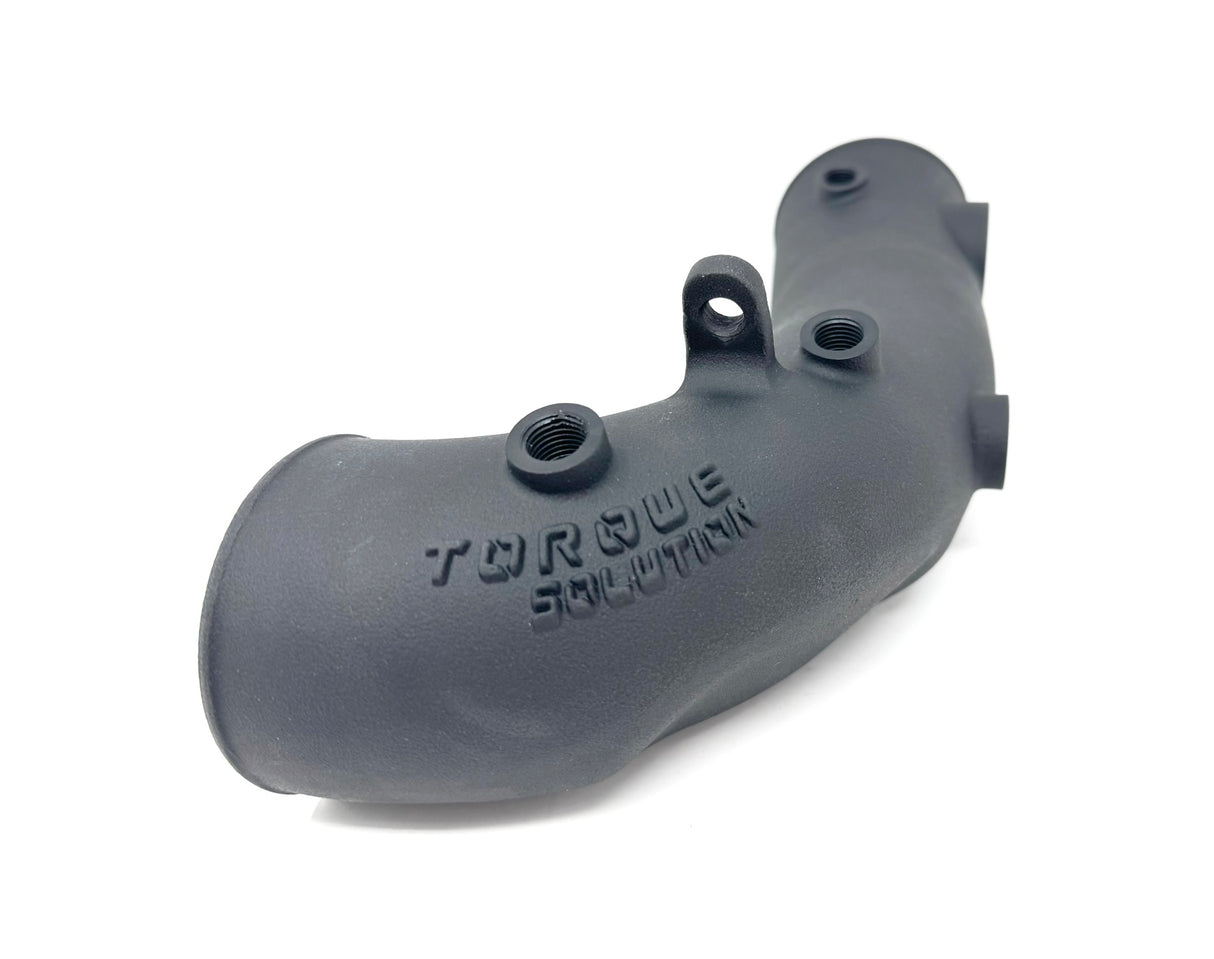

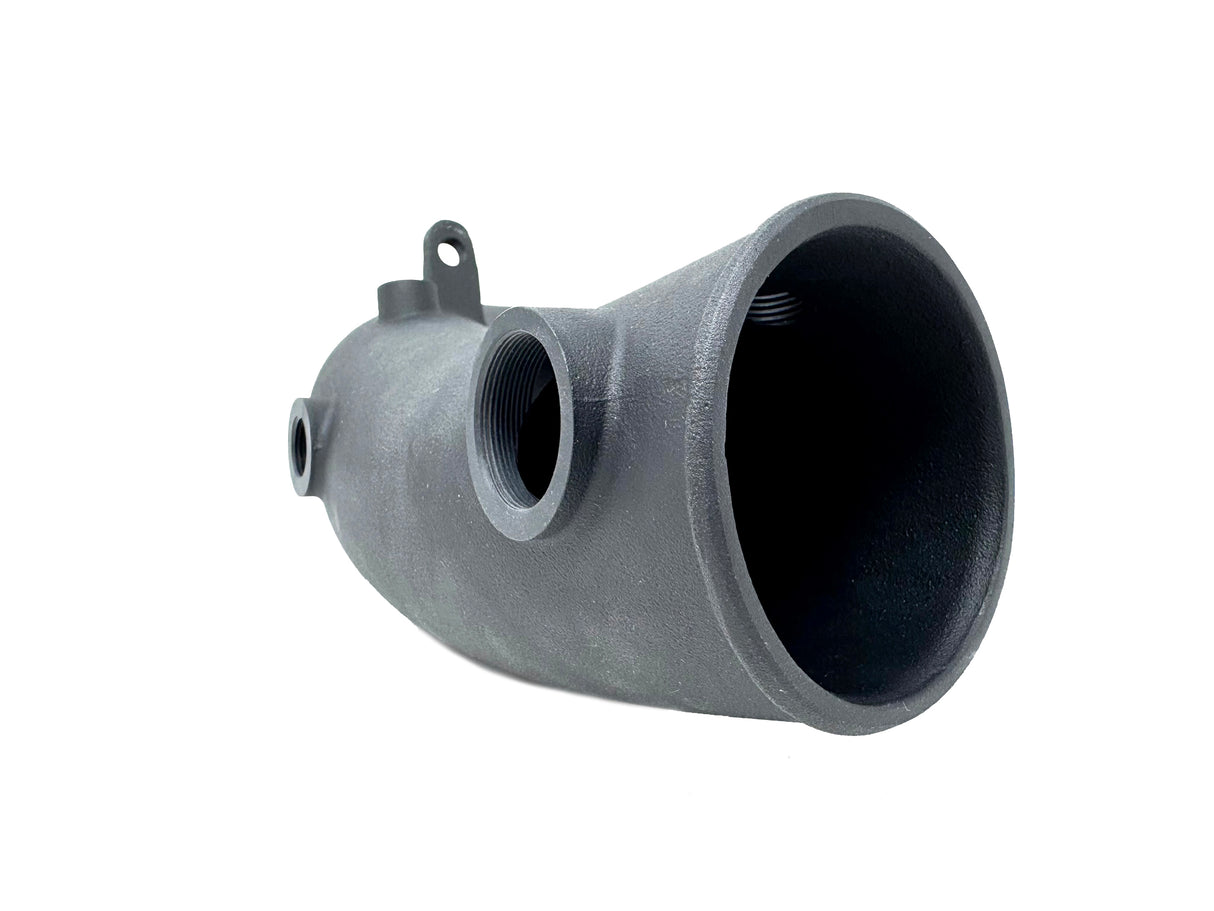

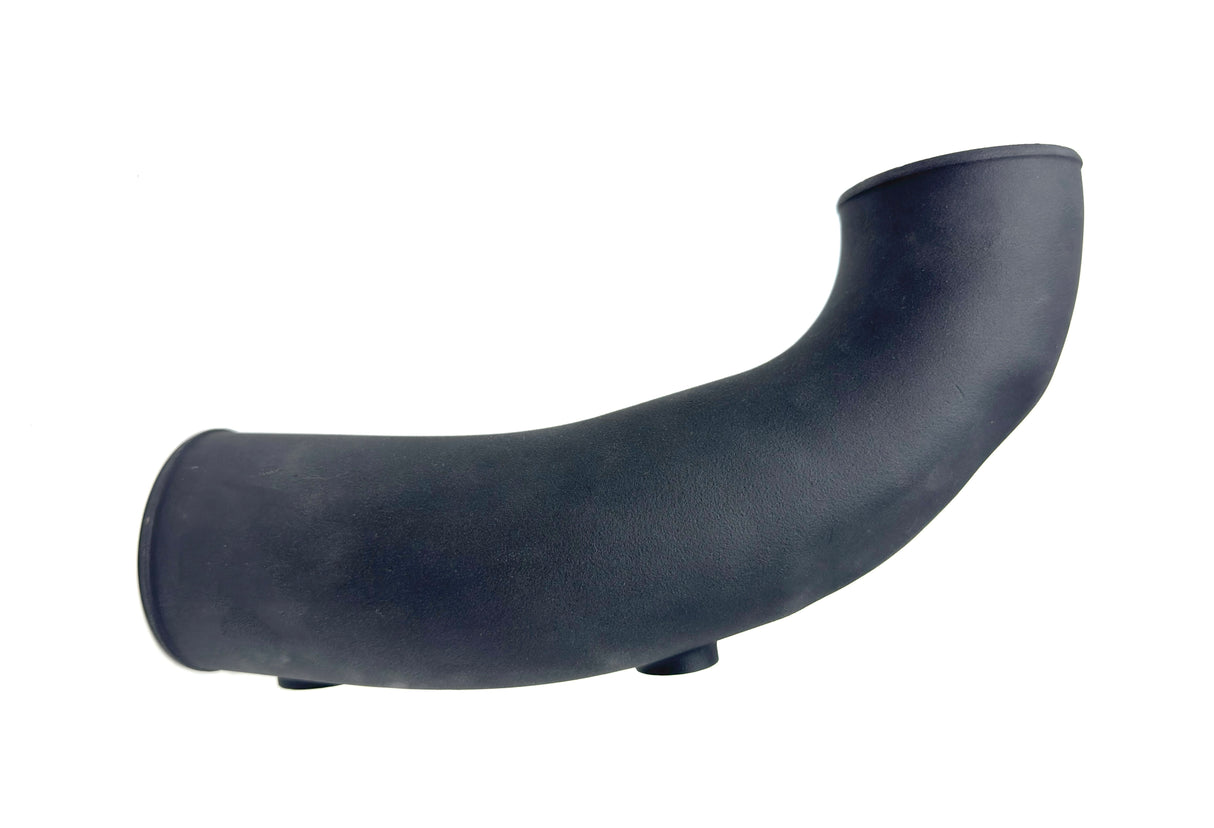

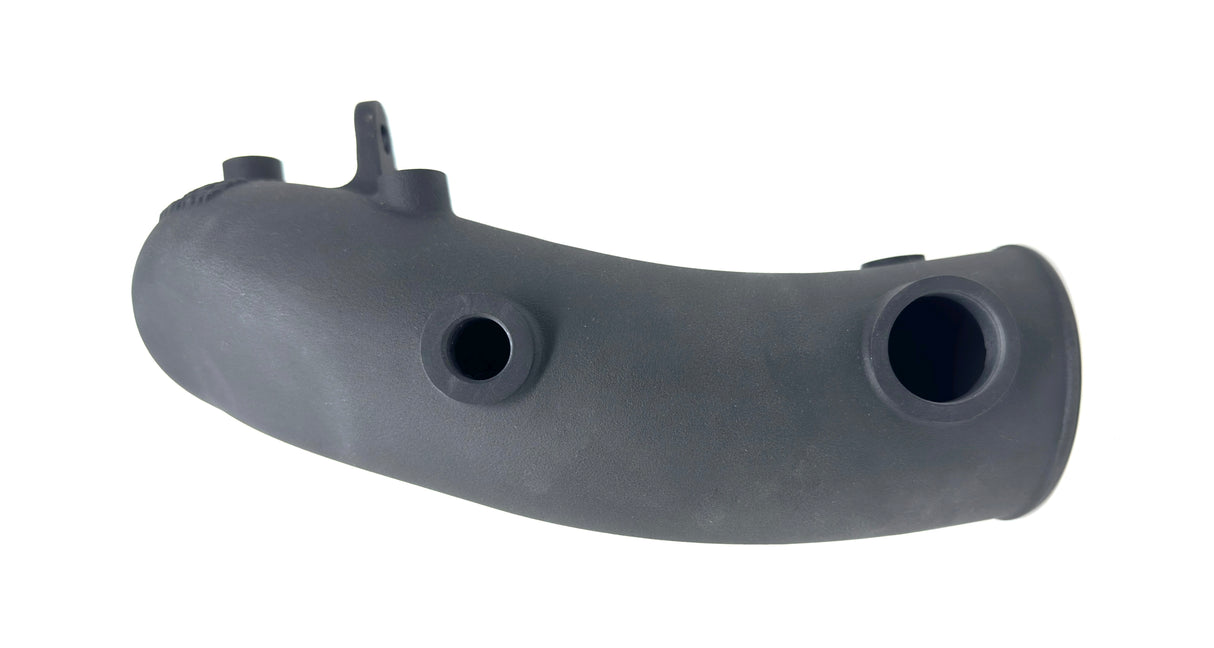

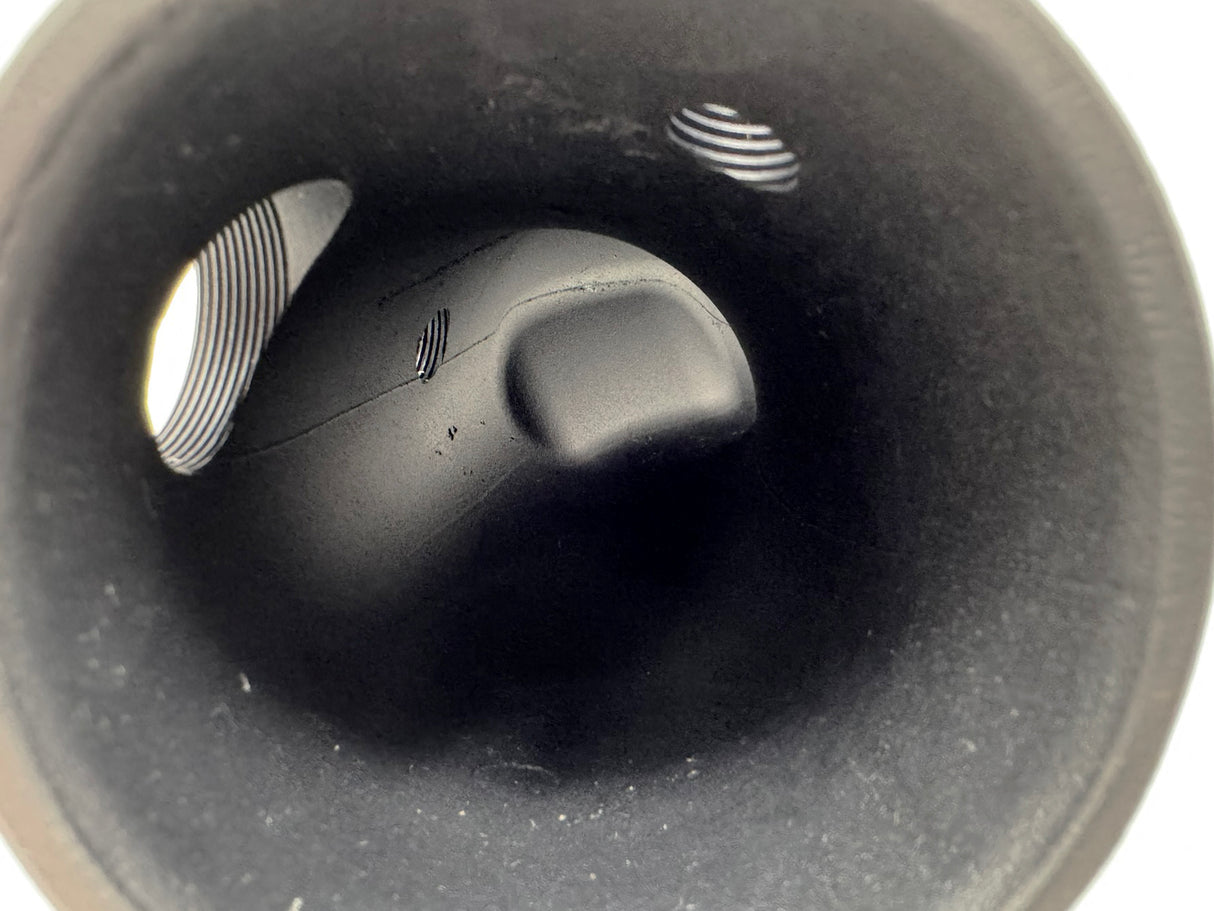

Torque Solution Cast Aluminum HD Hard Turbo Inlet Pipe for the Subaru EJ Engines that utilize a STI or similar intake manifold. Our HD inlet is much larger in size and smooths the air flow entering the turbo compared to the restrictive OEM corrugated inlet hose. We include all the necessary hardware needed to complete the install whether installing on a car in standard recirculated configuration or a full out build on speed density. Simply choose the configuration based on your turbo inlet size which they are available in 2.4" (OEM), 3" (PTE, Blouch, Garrett) or 84mm/3.3" (FP).



Installation Notes

  1. Coupler will need trimming on both ends to fit. We recommend trimming in approx. 1/8" increments using a worm gear clamp as a guide and a fresh sharp blade. Please be careful and use caution when performing this task.
  2. We highly recommend using masking tape on the inlet to prevent scratching till you have the coupler perfectly trimmed.
  3. Install all fittings with a PTFE tape.

Features and Benefits

  • Cast Aluminum / Black Anodized
  • Smooths and Increases Airflow Entering Turbo
  • Eliminates failure prone corrugated rubber hose
  • 4-ply Silicone Couplers
  • Includes Silicone Friendly Stainless Steel Hose Clamps
  • Direct Fitment
  • Includes All Necessary Hardware To Install
  • Able to be installed Recirculated or as Speed Density
  • Limited Lifetime Warranty

Included Components

  • Cast Aluminum HD Turbo Inlet (1)

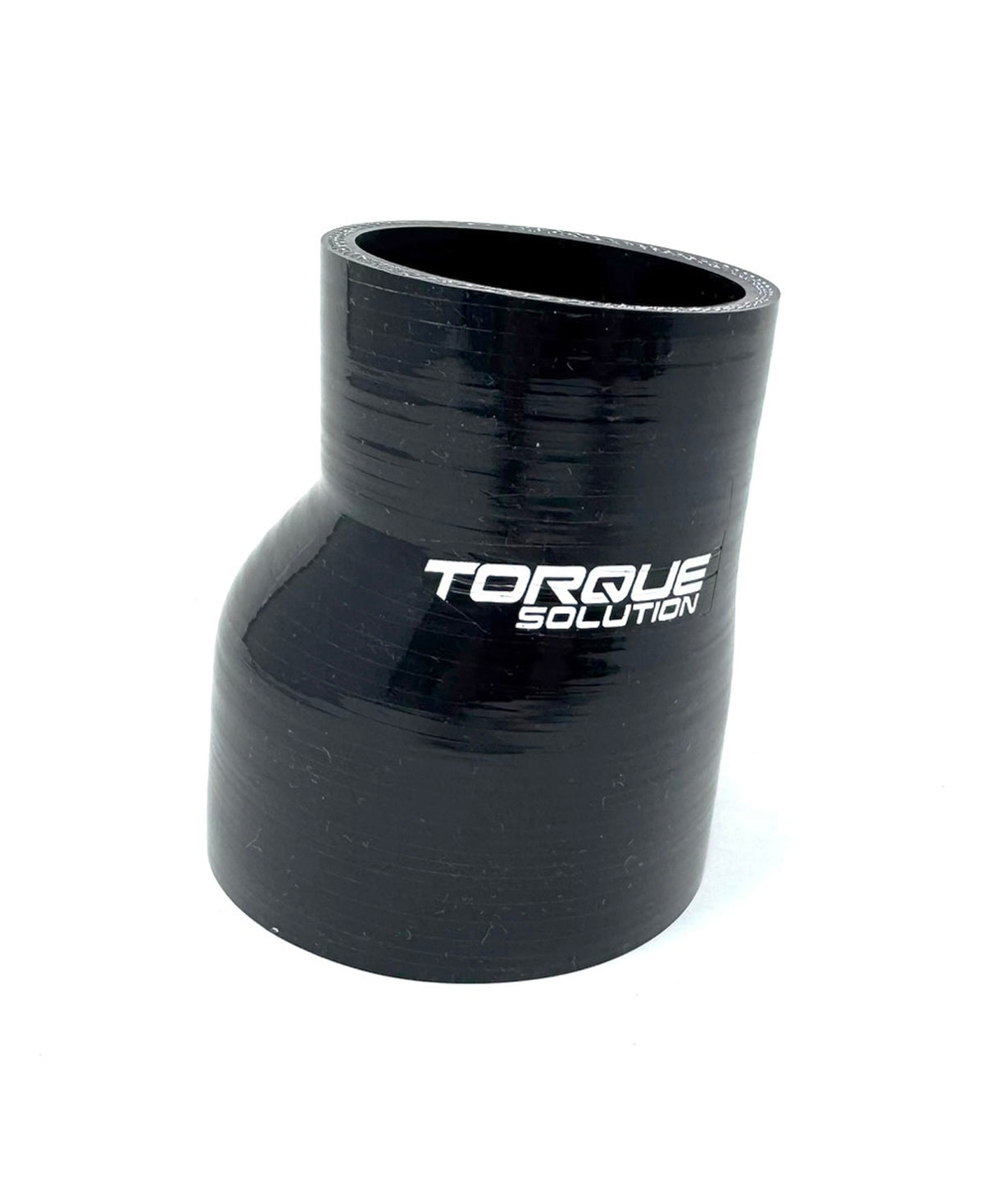

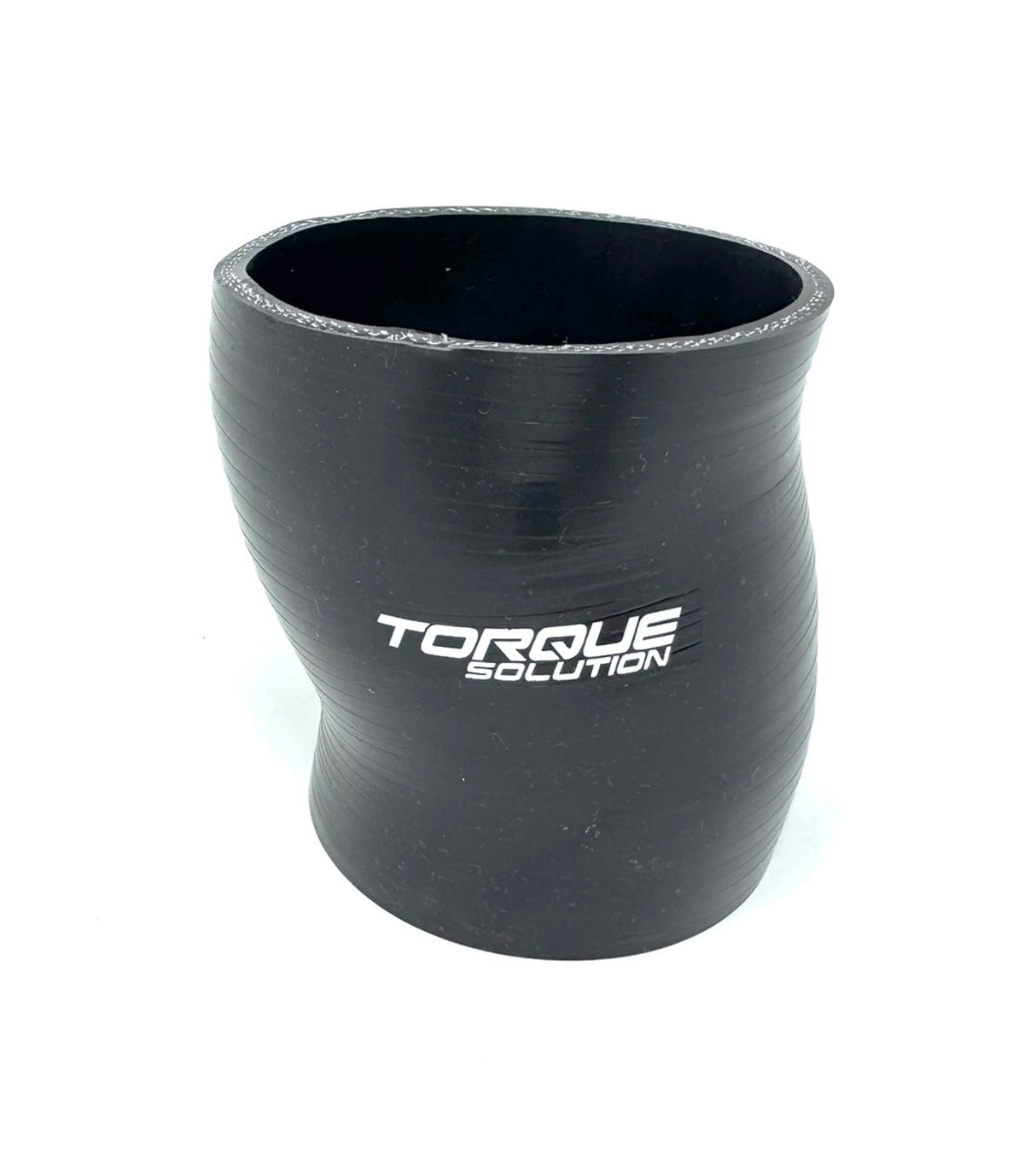

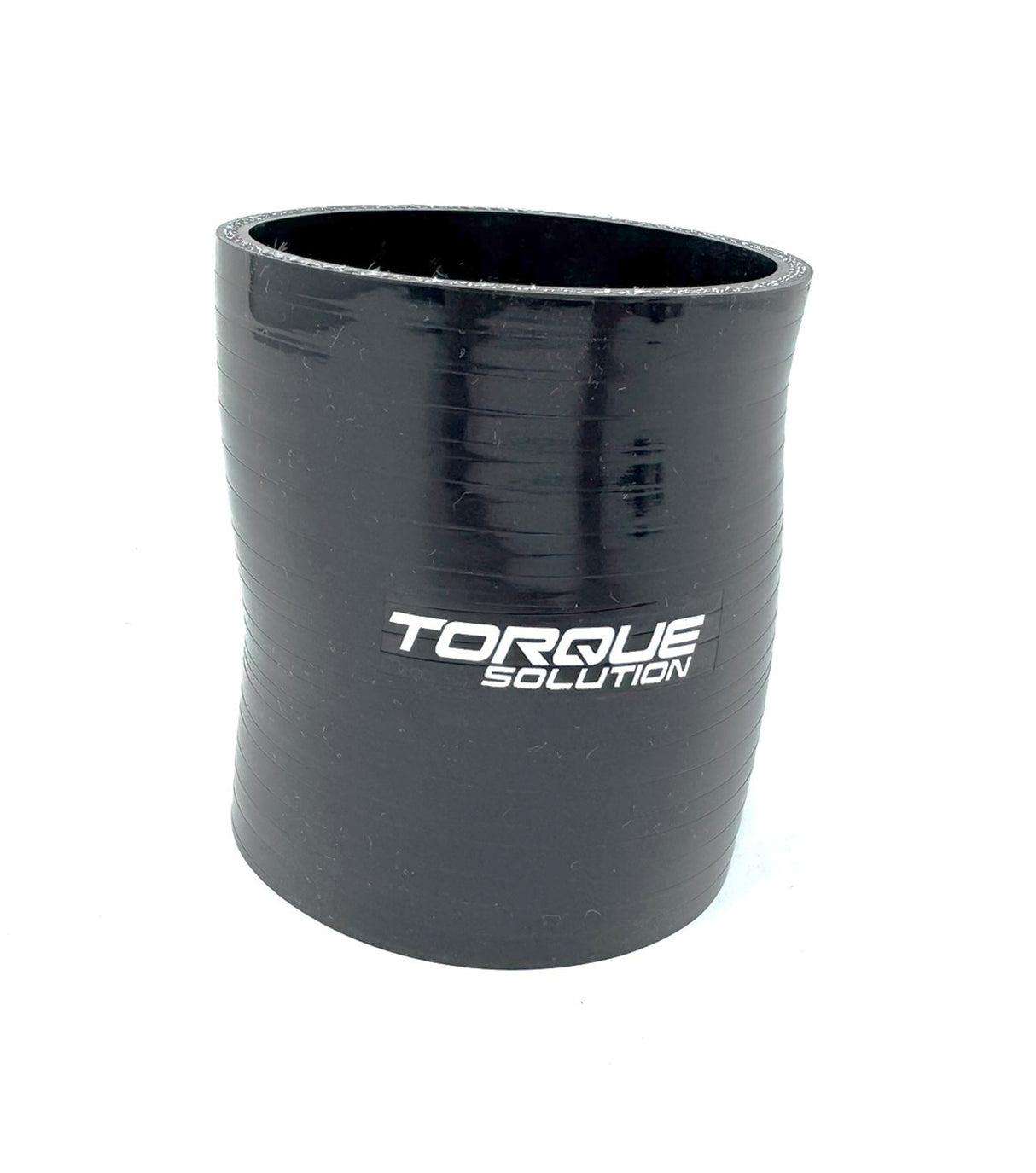

  • Silicone Turbo Coupler of your choosing (OEM, 3" or 84mm) (1)

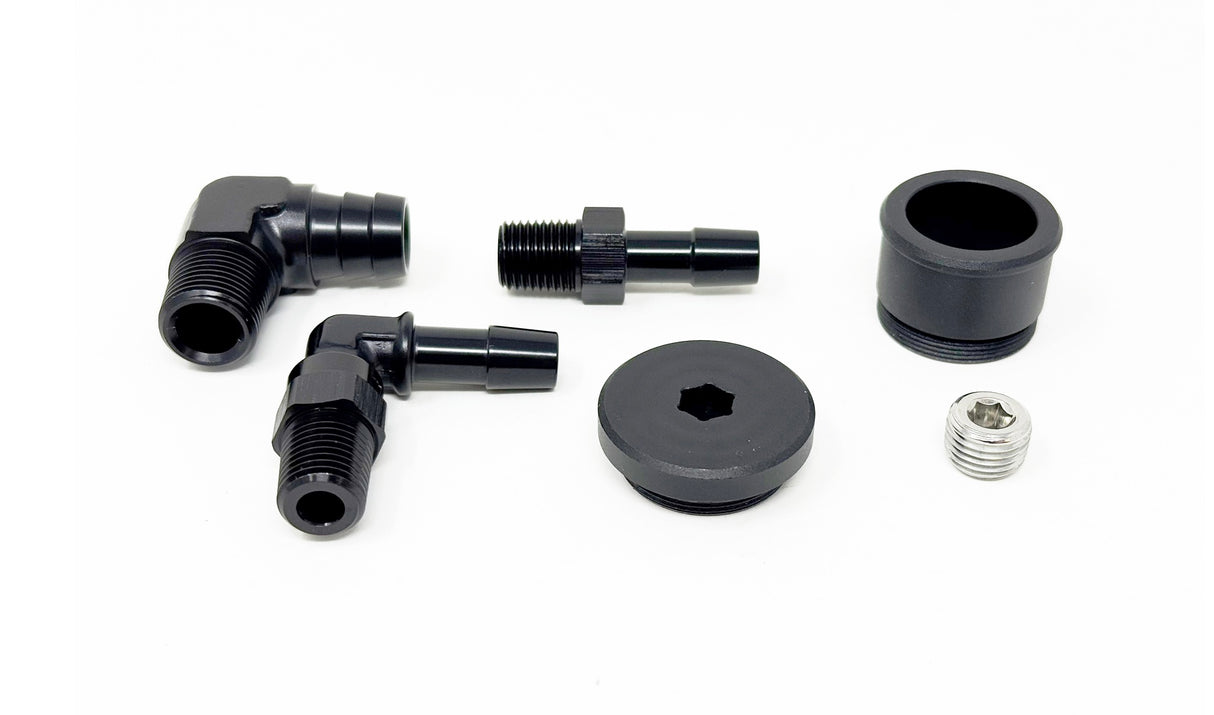

  • 1/4 Stainless NPT Plug (1)
  • Billet Aluminum 1/4 NPT to 3/8 Straight Barb Fitting (1)
  • Billet Aluminum 1/4 NPT to 3/8 90 Degree Barb Fitting (1)
  • Billet Aluminum 3/8 NPT to 5/8 90 Degree Barb Fitting (1)
  • Billet Aluminum Inlet Recirculation Adapter (1)
  • Billet Aluminum Inlet Speed Density Cap (1)
  • 80-100mm Wide Width Silicone Safe Worm Gear Clamp (1)
  • 70-90mm Wide Width Silicone Safe Worm Gear Clamp (1)
  • 70-90mm Standard Width Silicone Safe Worm Gear Clamp (2)
  • 25-40mm Standard Width Silicone Safe Worm Gear Clamp (1)
