Torque Solution Turbo Inlet Hose Suit FP 84mm Turbo
Subaru WRX/STI/Forester/Liberty
This product is in stock & ready to be dispatched.
This product has very limited stock remaining.
Product will be in stock soon.
This product is not ready for immediate dispatch and will ship in the timeframe displayed.
This product is not available at this time. Request ETA Information
Earn [points_amount] when you buy this item.
Description
Description

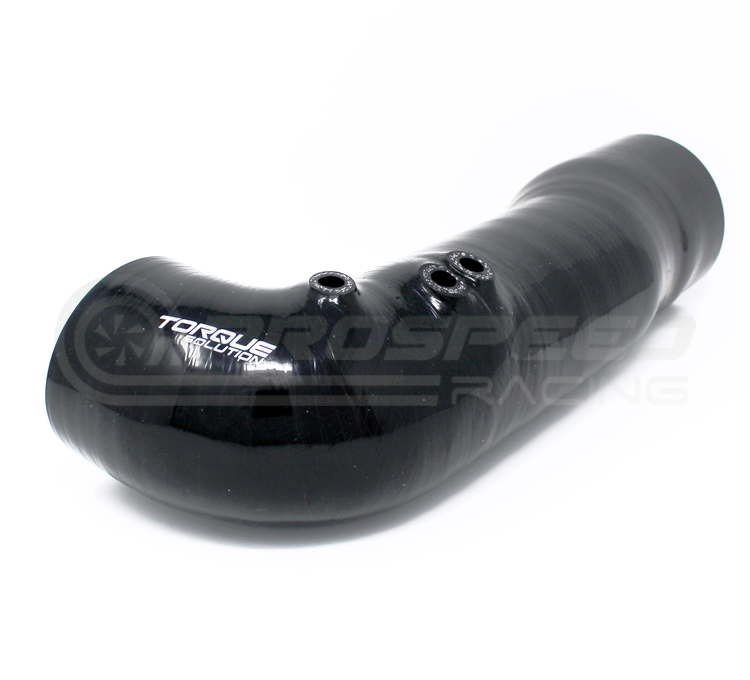

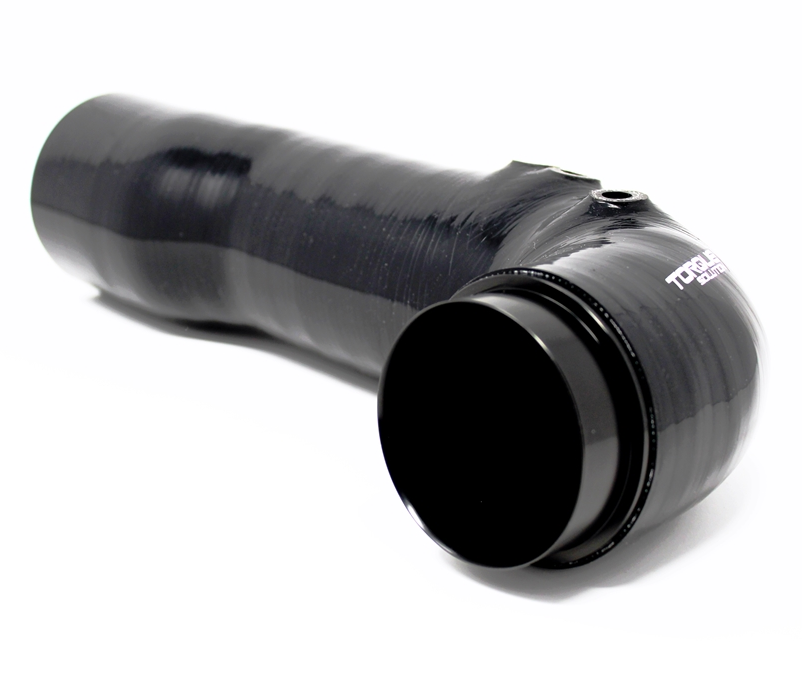

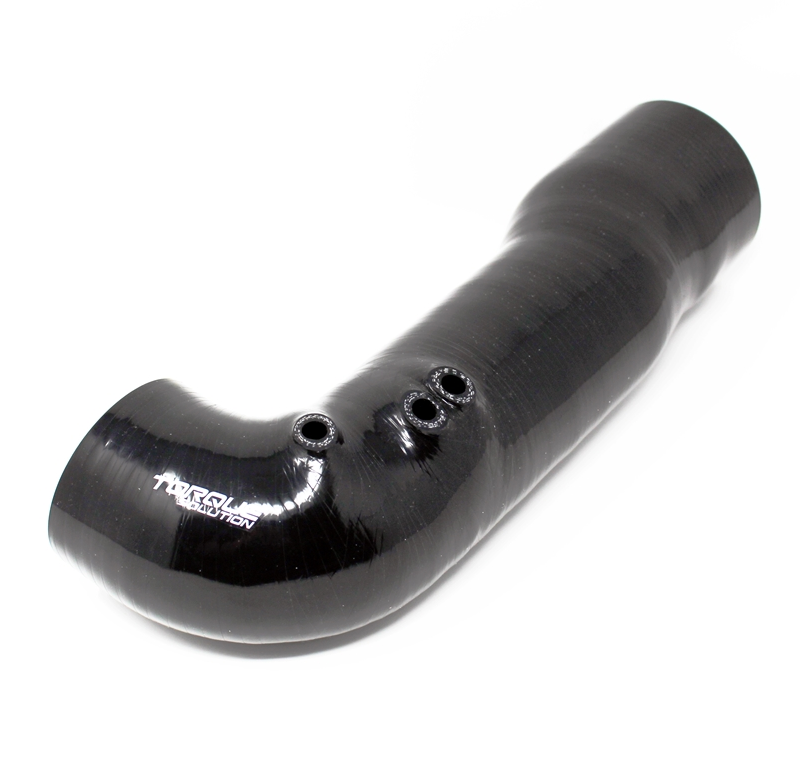

Torque Solution Turbo Inlet Hose for the Subaru EJ Engines w/ 84mm / 3.3" Inlet FP Turbo. Our silicone inlet hose is heavily wire reinforced and is made from 4 ply high grade silicone to prevent collapsing under high boost. Our inlet is also made without the BOV recirculation port, so it must be used in speed density only configurations. This is perfect for a clutter free engine bay when not utilizing an OEM style BOV. We also include a high quality black anodized billet aluminum joiner to connect to your 3" intake.
Features
- 84mm / 3.3" Specifically made to fit FP Turbos
- 4 Ply Silicone w/ Heavy Wire Reinforcement
- Includes Silicone Friendly Stainless Steel Hose Clamps
- Non Recirculated for Vent to Atmosphere (Speed Density) Set Ups
- Limited Lifetime Warranty

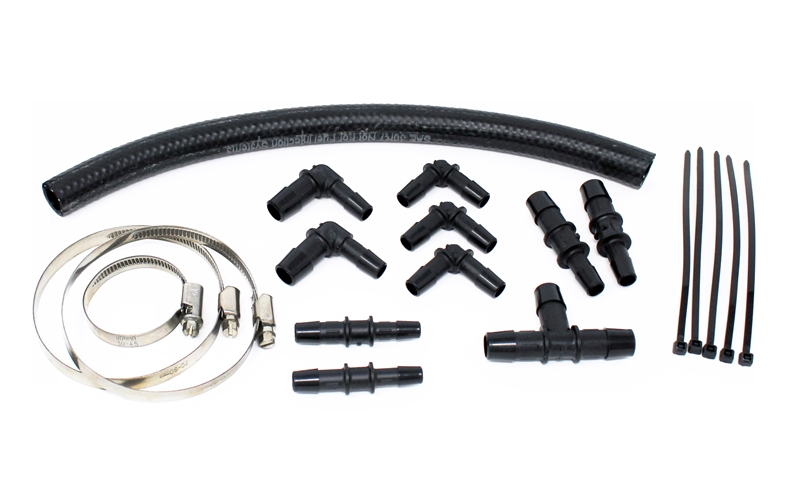

Includes:
- 84mm Non Recirc Black Silicone Turbo Inlet Hose (1)

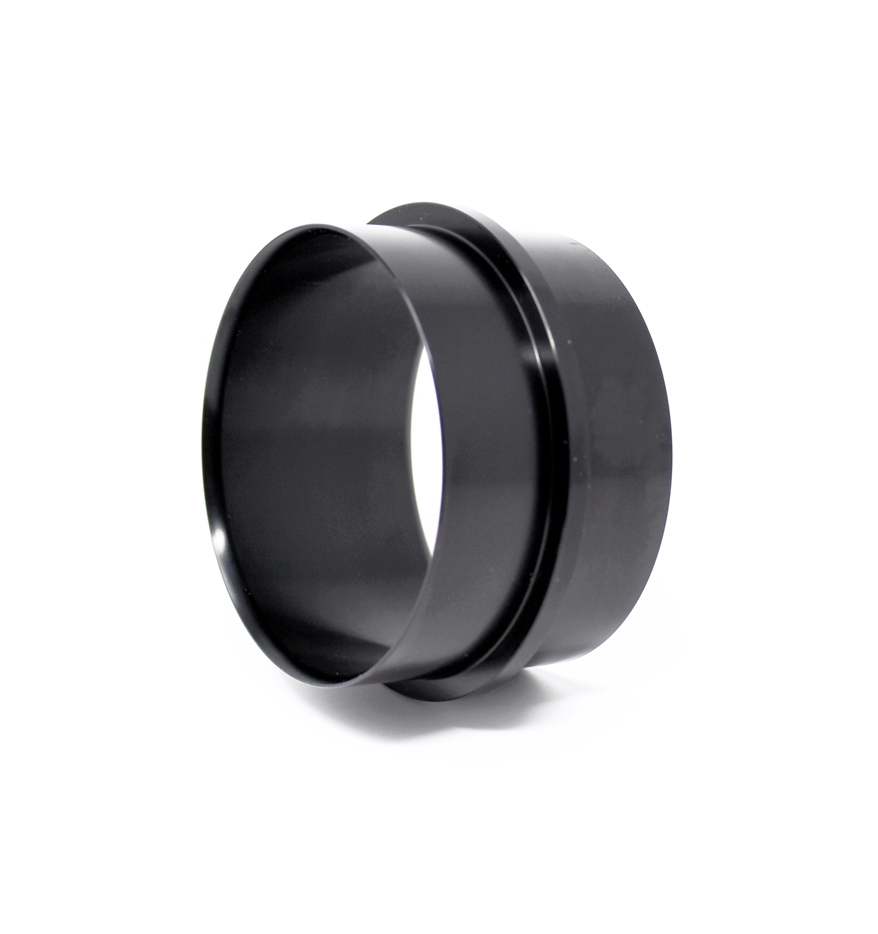

- 3" Billet Aluminum Coupler (for 3" Intakes) (1)
- 78-101mm Worm Gear Clamp (1)
- 70-90mm Worm Gear Clamp (1)
- 3/8" 90 Degree Nylon Elbows (3)
- 1/2" to 3/8" 90 Degree Nylon Reducer Elbows (2)
- 1/2" to 3/8" Straight Nylon Reducer (2)
- 5/16" to 3/8" Straight Nylon Reducer (2)
- 1/2" Nylon T Fitting (1)
- 1/2" Fuel/PCV Hose (13")
- Heavy Duty Zip Ties (6)
**We recommend using our billet TGV deletes for clearance.
***Important note: The Torque Solution inlet bypasses the PCV Diagnosis Port. You will need to perform a simple bypass.
- Locate PCV Diagnosis connector (grey or white depending on year), which located on the block next to throttle body.
- You will need to use a pair of needle nose pliers to remove the jumper pin inside the PCV Diagnosis connector. This pin should pull out easily only using slight pressure. Do not discard the jumper pin removed from the connector.
- Place the jumper pin into the female harness plug that was connected to PCV diagnosis connector. Use electrical tape to secure in place.
- The open port will either be fed into the inlet by using the supplied T fitting and hose by keeping the PCV in place connecting to 1 of the front inlet ports or by connecting to your AOS/Catch can setup by removing the PCV.
Vehicle Fitment:
Note: Due the the physical size of this inlet hose it will not be a simple bolt on procedure. It will be extremely tight and will touch/rest against other components. TGV deletes will be required and other modifications may be necessary. This hose is a one-size-fits-all for Subaru models, so depending on your vehicle you may need to re-run breather hoses.
- 2001-2014 Subaru WRX
- 2010-2021 Subaru STI
- 2003-2013 Subaru Forester XT
- 2004-2009 Subaru Liberty GT
