Torque Solution V2 HD Oil Pan w/Race Baffle

Improved oil control and cooling | Torque Solution V2 HD Oil Pan for EJ engines

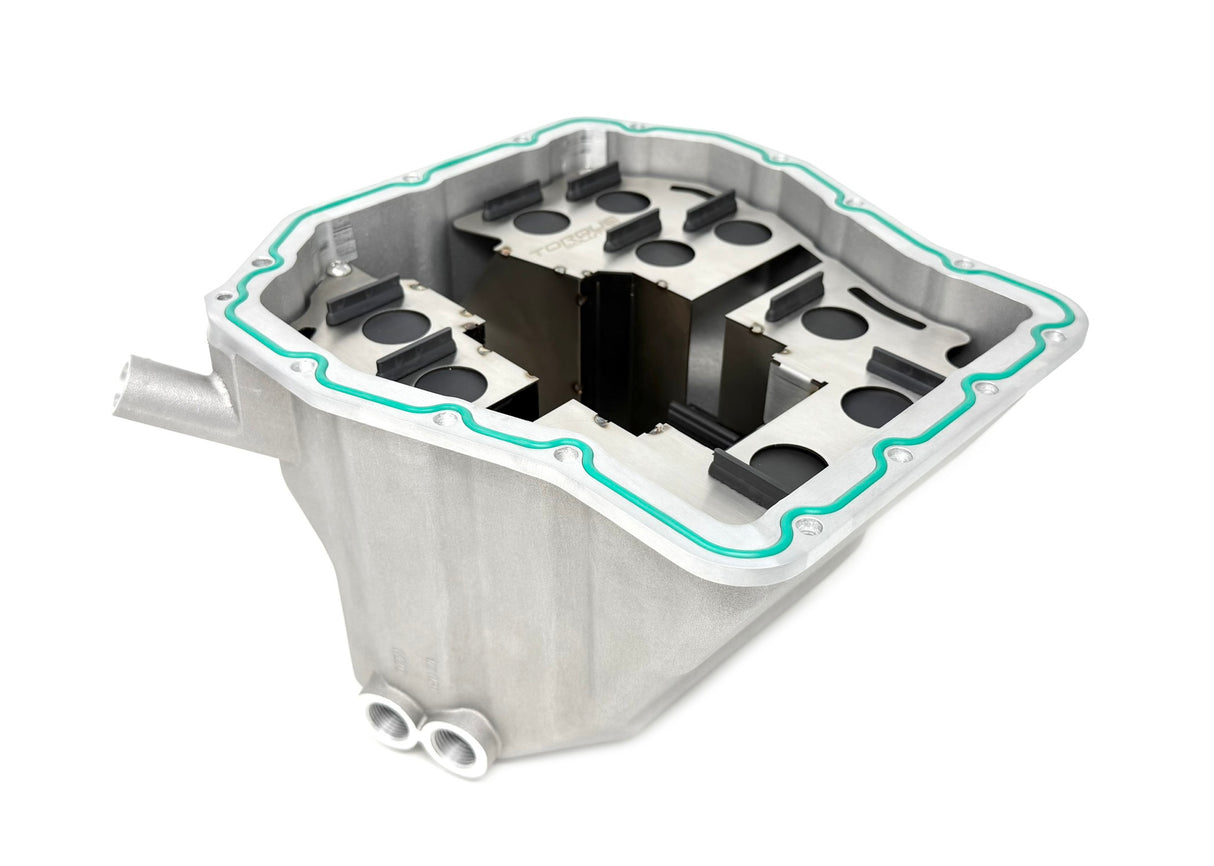

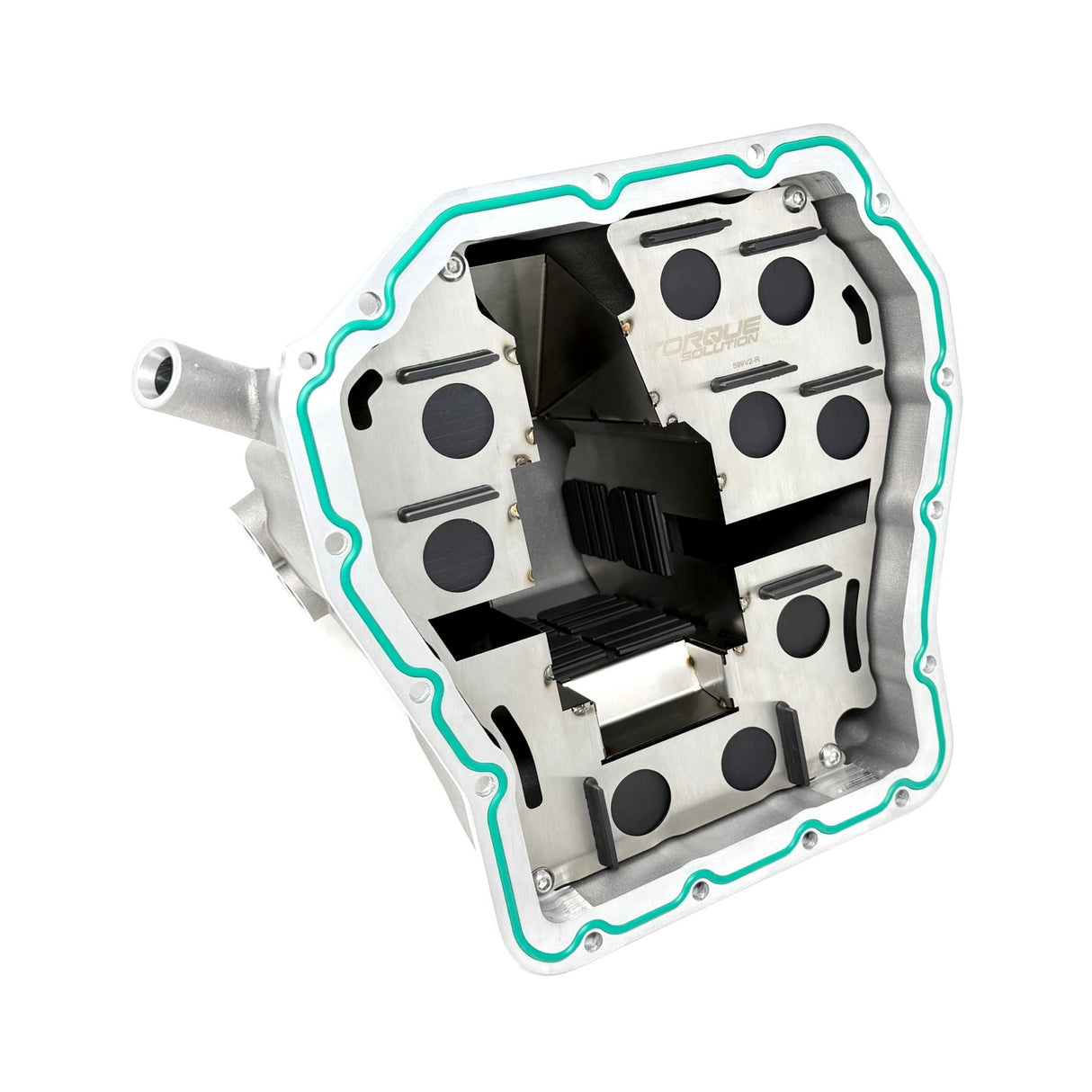

The Torque Solution V2 HD Oil Pan is designed to keep your EJ engine properly lubricated under demanding driving conditions. Precision cast from aluminium and CNC-machined for accuracy, this upgraded oil pan increases capacity while improving oil control, cooling, and serviceability.

With approximately 5.7 litres of oil capacity, this pan offers over a 30 percent increase compared to the factory unit. A CNC-machined sealing groove and seamless FKM rubber O-ring gasket provide a reliable, leakproof seal while making installation and future servicing far easier, with no gasket scraping required.

Integrated cooling fins are positioned to maximise airflow beneath the pan, helping to reduce oil temperatures during spirited driving or track use. The V2 design also includes a bolt-in internal race baffle and FKM oil control flaps, working together to minimise oil slosh and keep oil at the pickup where it is needed most.

Fitment and Installation Notes

• Must be used with an aftermarket oil pickup
• Not compatible with OEM or Moroso oil pickups
• EJ20 engines require EJ25 pickup and dipstick part number 11140AA150

Tested to fit with most aftermarket headers. Confirmed compatibility with ETS and Killer B headers. Perrin headers may require minor clearance adjustment.

• CNC-machined cast aluminium construction
• Approximately 5.7 litre oil capacity for increased lubrication reserve

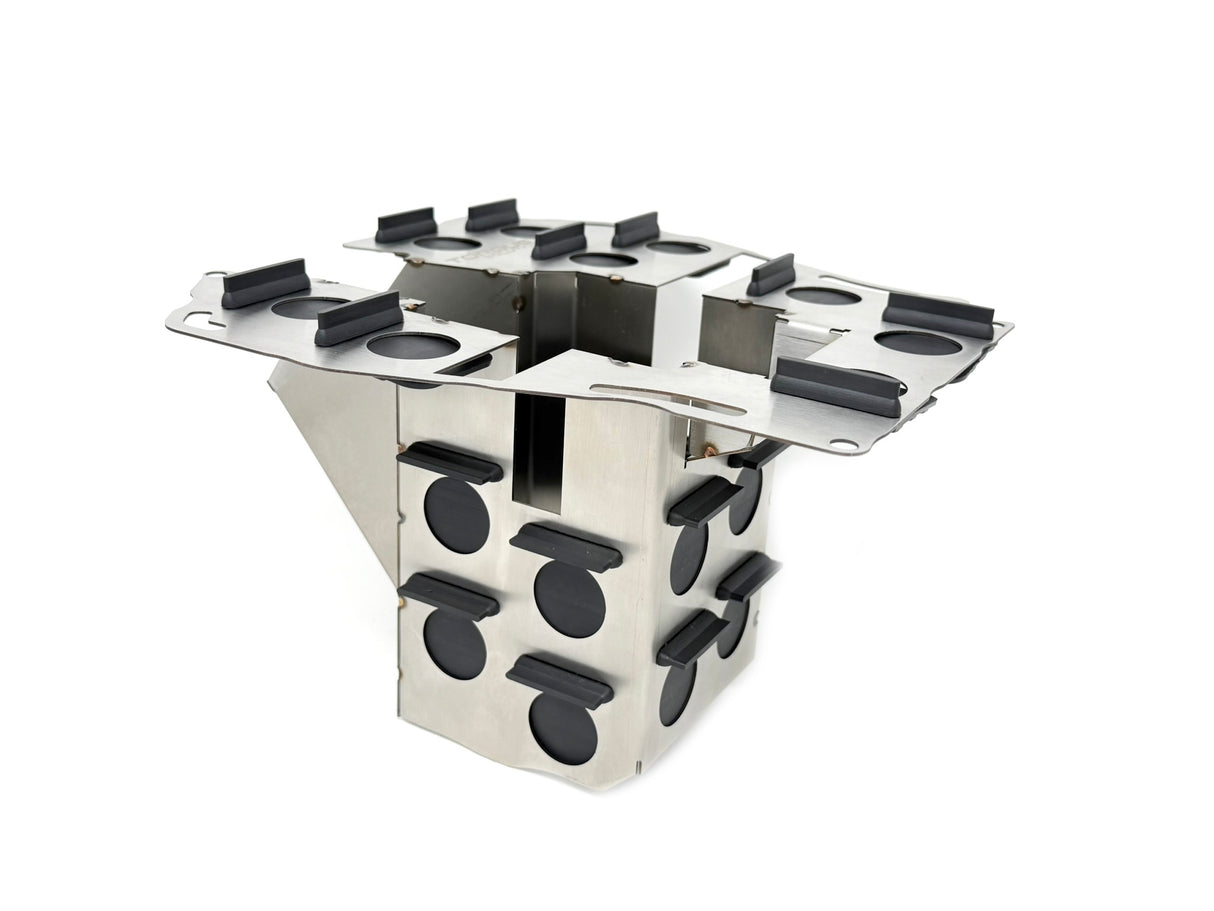

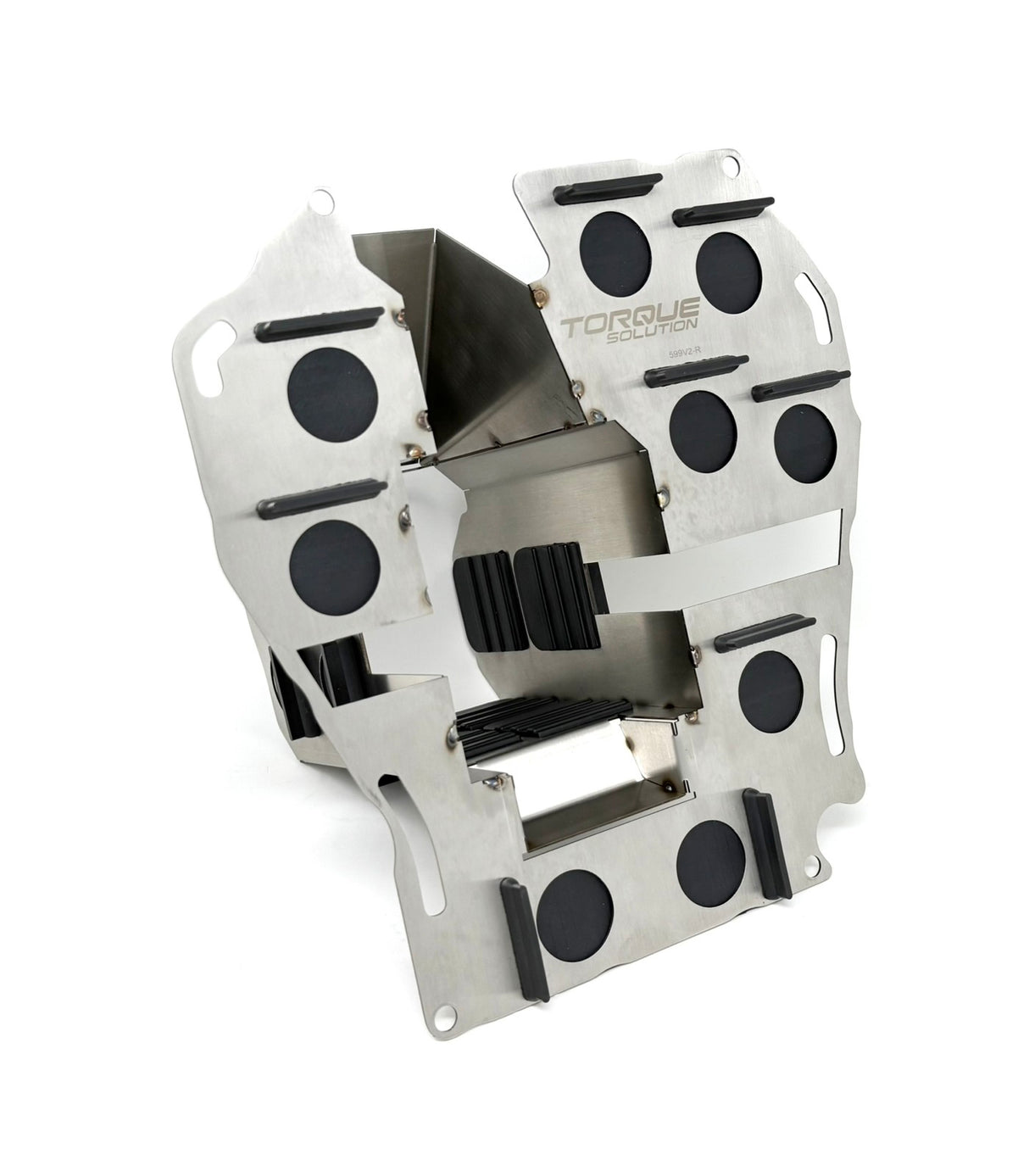

• Bolt-in stainless steel TIG-welded internal race baffle
• FKM rubber oil control flaps to reduce oil surge
• Seamless FKM rubber O-ring gasket for leakproof sealing
• CNC-machined cooling fins to assist oil temperature control
• M20 OEM and 1/2 inch NPT sensor ports
• Complete stainless steel installation hardware included
• Limited lifetime warranty

• Cast aluminium oil pan (1)
• Bolt-in stainless steel race baffle with FKM rubber oil control flaps, pre-installed (1)
• M6 x 15 stainless button head bolts, pre-installed with baffle (4)
• Seamless FKM rubber oil pan O-ring gasket (1)
• FKM rubber dipstick tube 2 x 10 mm O-ring gaskets (2)
• M20 OEM Subaru drain plug P/N 807020010 (1)
• M20 copper drain plug gaskets (5)
• 1/2 inch NPT brass plug with Teflon tape, used if not fitting a temperature sensor (1)
• 1/2 inch NPT to 1/8 inch NPT brass adaptor with Teflon tape, optional for oil temperature sensor (1)
• Billet aluminium oil pickup suction tube spacer with two -117 FKM O-ring gaskets (1)
• Billet aluminium oil pickup pedestal spacers (2)
• FKM rubber spacer bolt retainer -008 O-ring gaskets, used to pre-install spacers onto the oil pickup (4)
• M6 stainless steel flat washers for oil pickup spacer bolts (4)
• M6 x 30 stainless steel socket cap bolts for oil pickup tube (2)
• M6 x 18 stainless steel socket cap bolts for outer oil pan perimeter (14)
• M6 x 25 stainless steel socket cap bolts for oil pickup tube leg spacers (2)
