 |  SKU: TS-SU-599V2-S

Torque Solution V2 HD Street Oil Pan

Subaru WRX/STI/FXT/LGT (EJ20/EJ25)
$1,049.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
IMPORTANT : SPECIAL NOTES APPLY TO VEHICLE FITMENT FOR THIS PRODUCT, CLICK HERE TO VIEW

Description

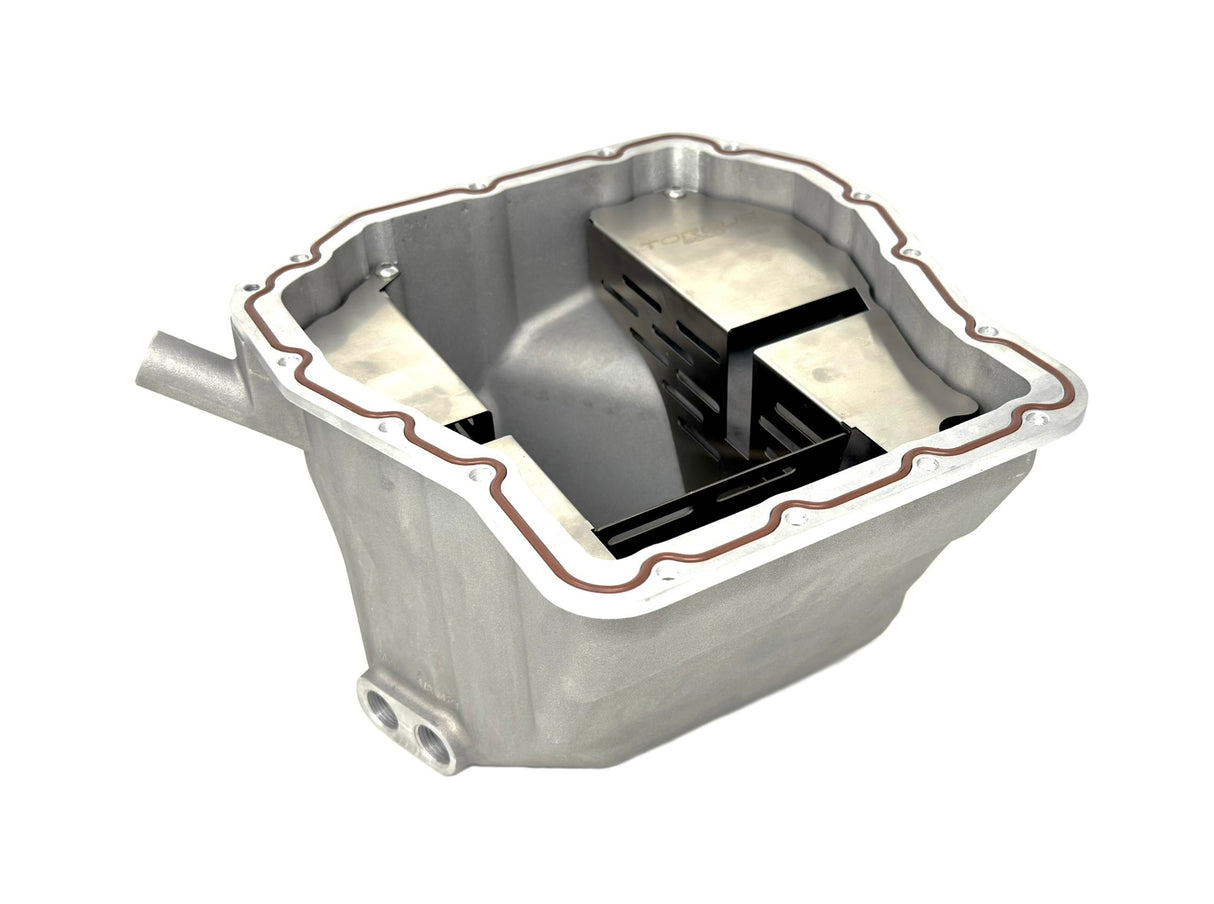

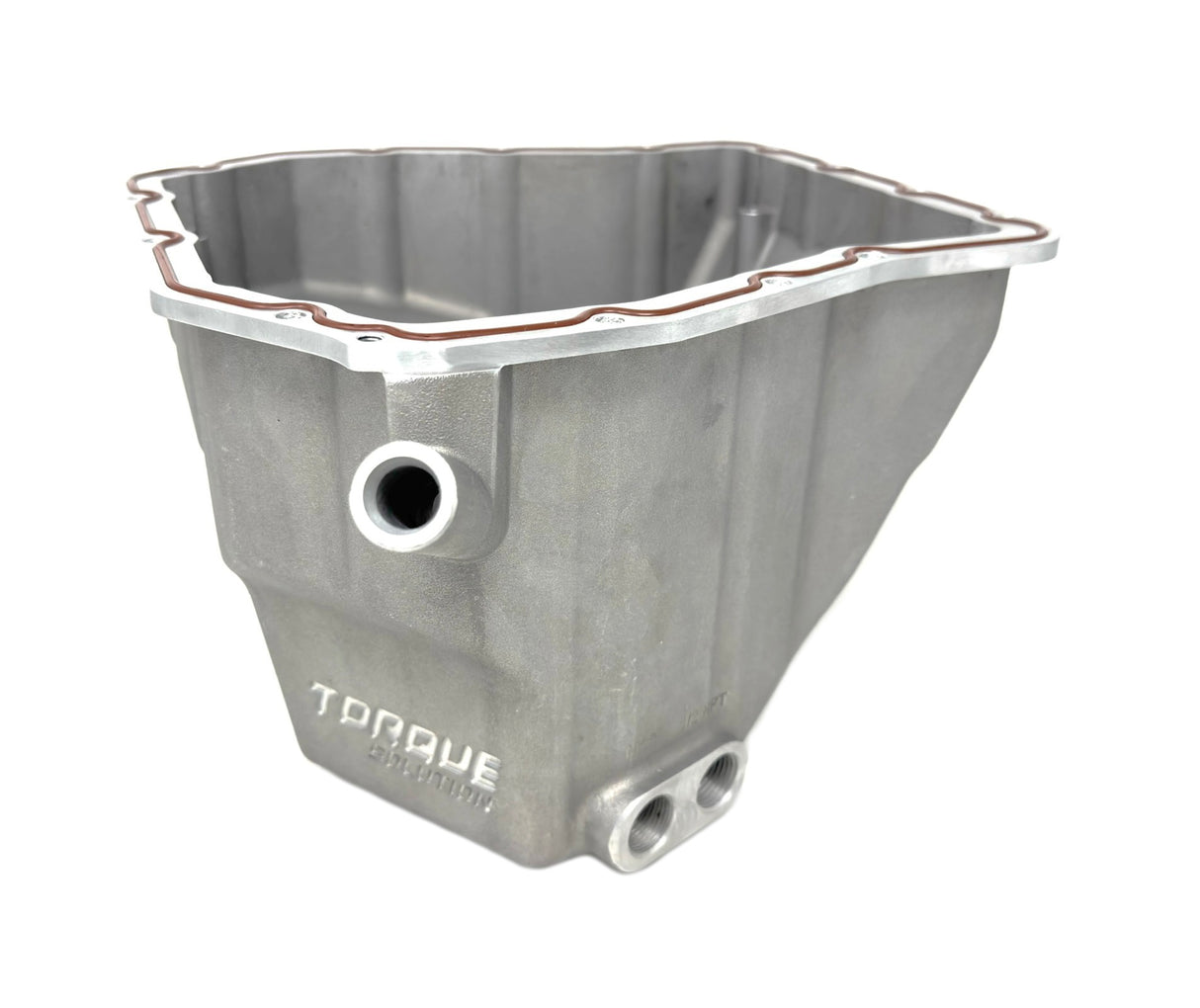

Torque Solution V2 HD Oil Pan for Subaru EJ Engines

The Torque Solution V2 HD Oil Pan is designed to improve oil control and reliability for Subaru EJ engines under demanding conditions. Constructed from cast aluminium and CNC machined for precision, the pan increases oil capacity to approximately 5.7 L, helping maintain consistent lubrication during aggressive driving.

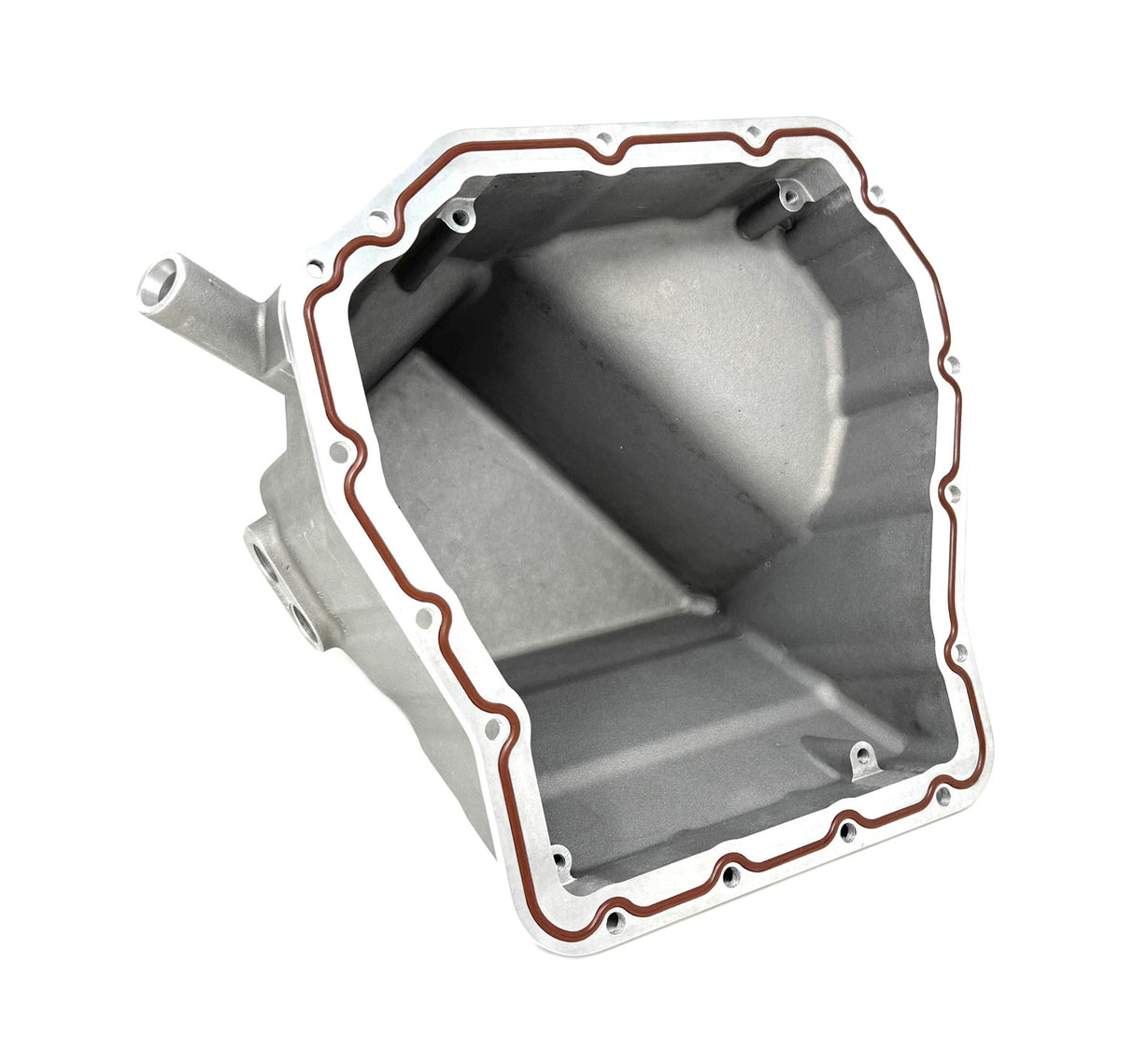

A CNC machined sealing groove paired with an FKM rubber O ring provides a secure, leak resistant seal while simplifying installation and future servicing. This design eliminates the need for traditional gasket scraping and ensures a clean, repeatable fit.

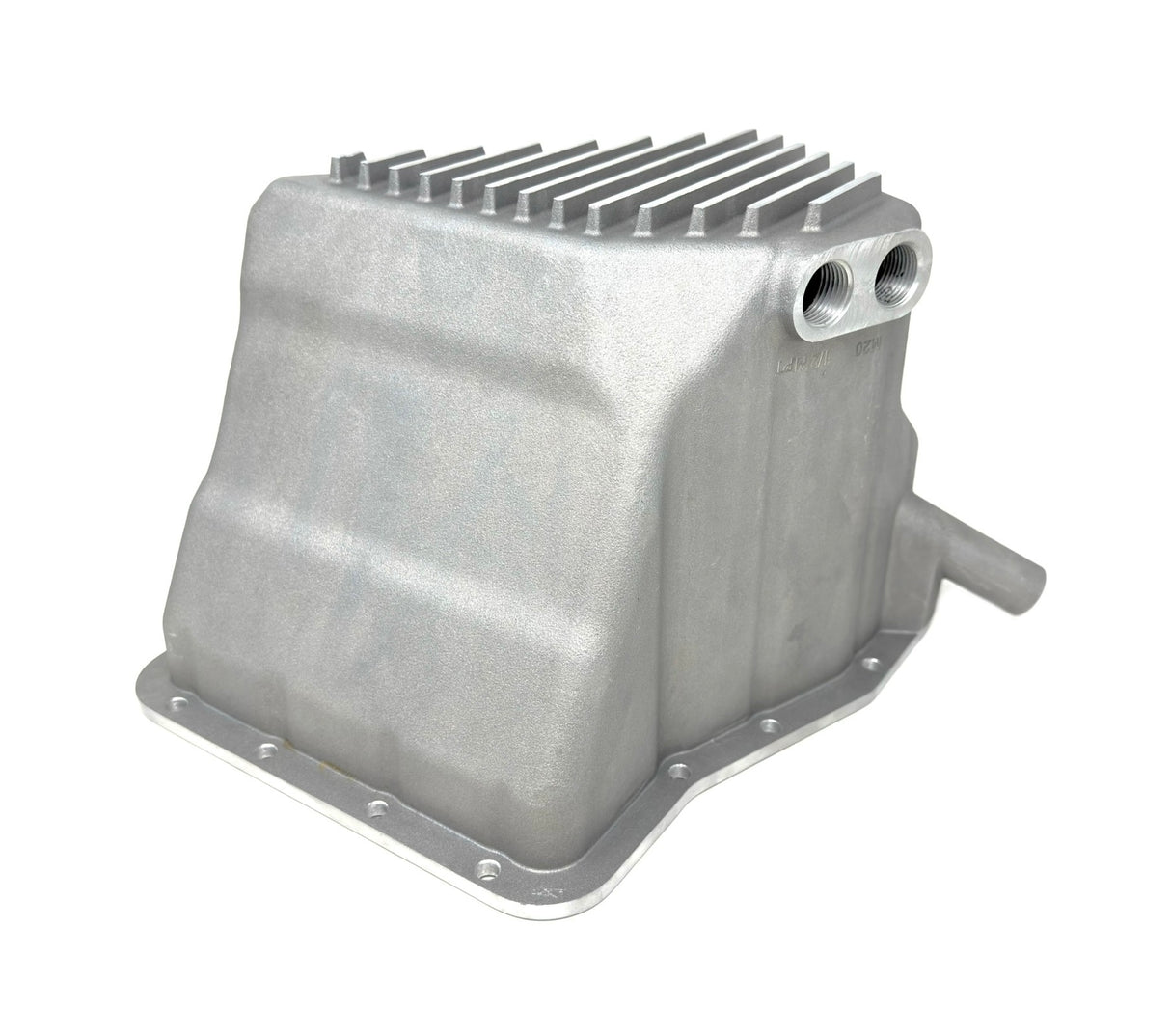

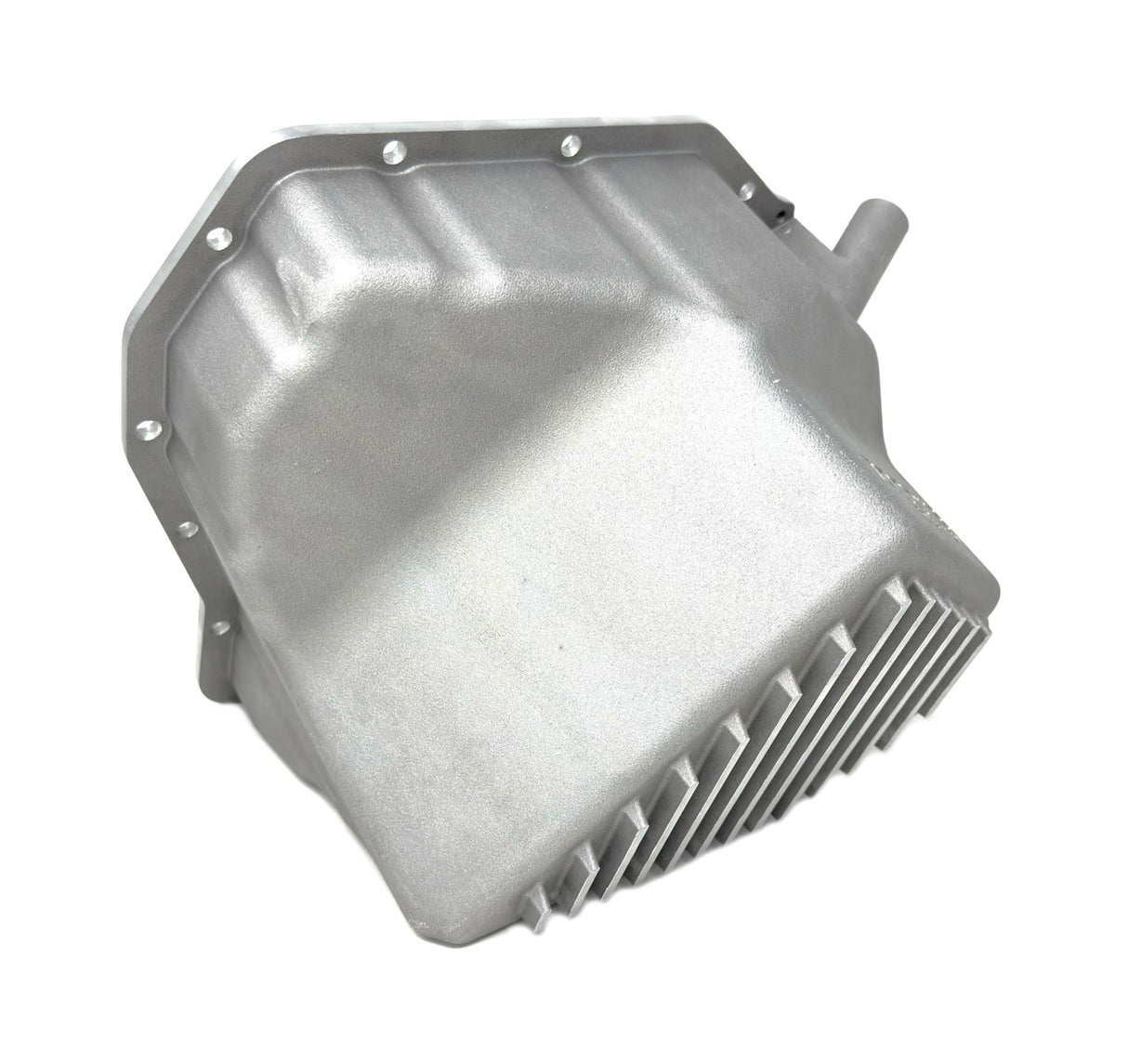

Integrated cooling fins are cast into the bottom of the pan and positioned to take advantage of airflow beneath the vehicle. These fins assist with reducing oil temperatures and improving thermal stability during extended operation.

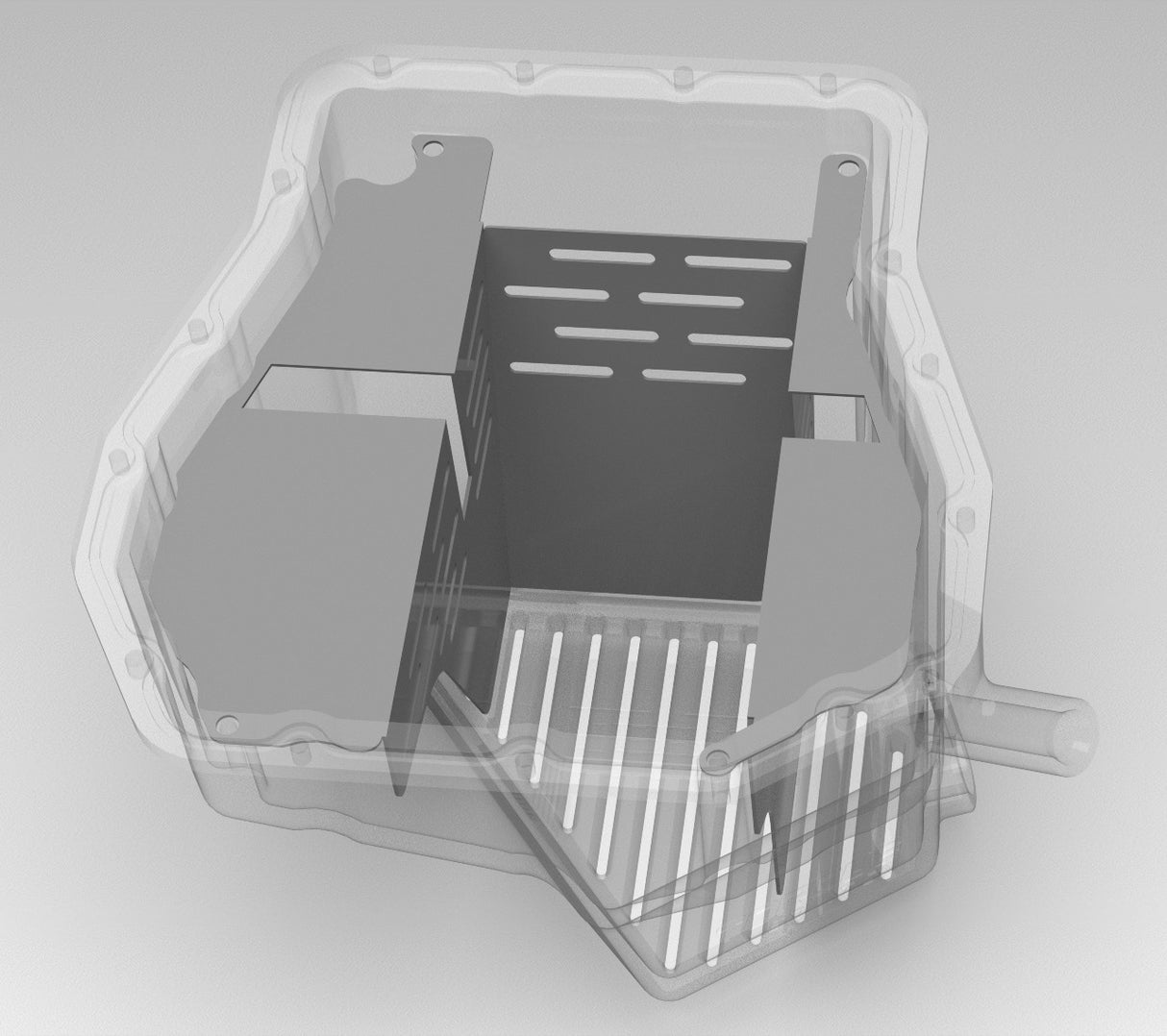

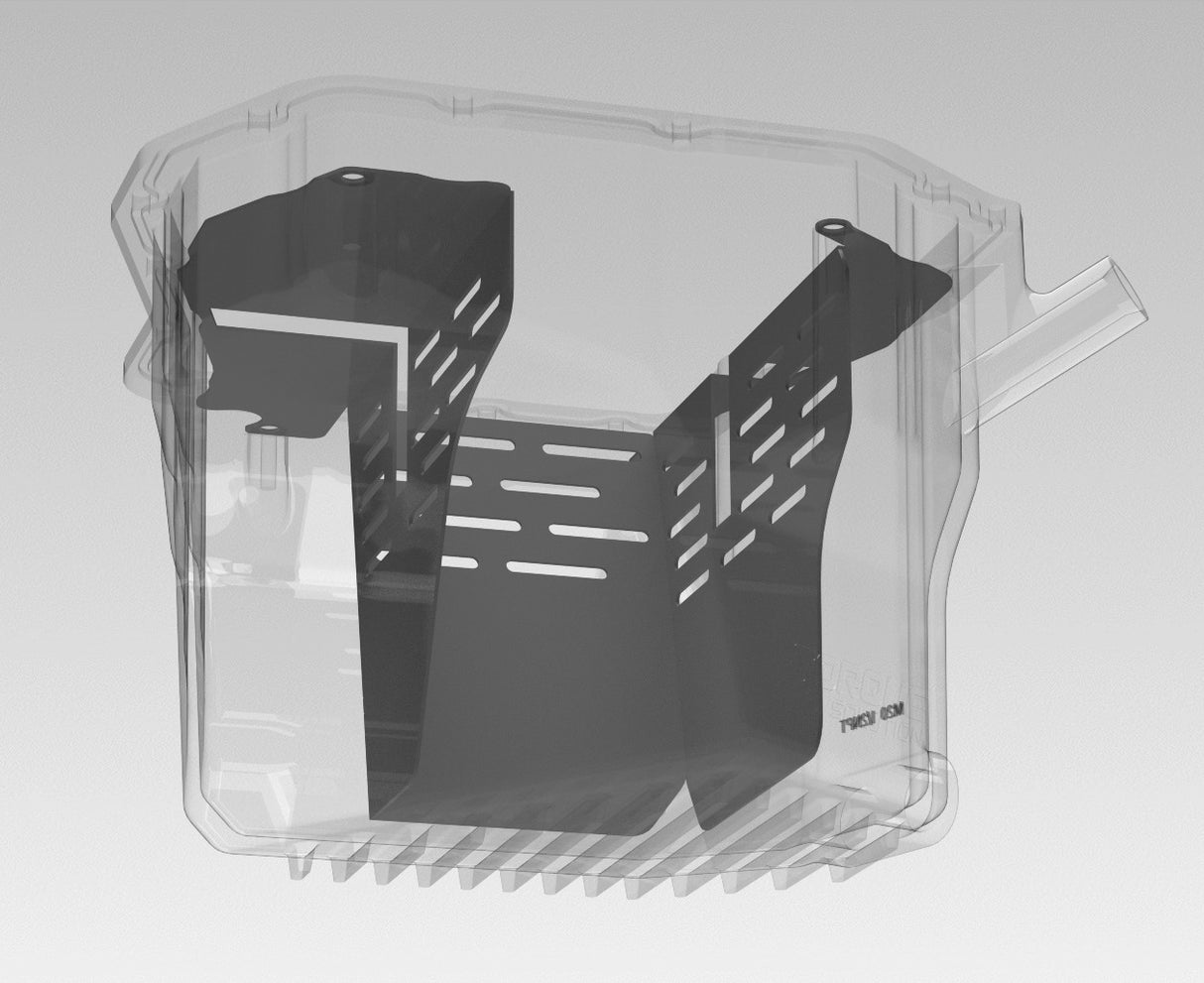

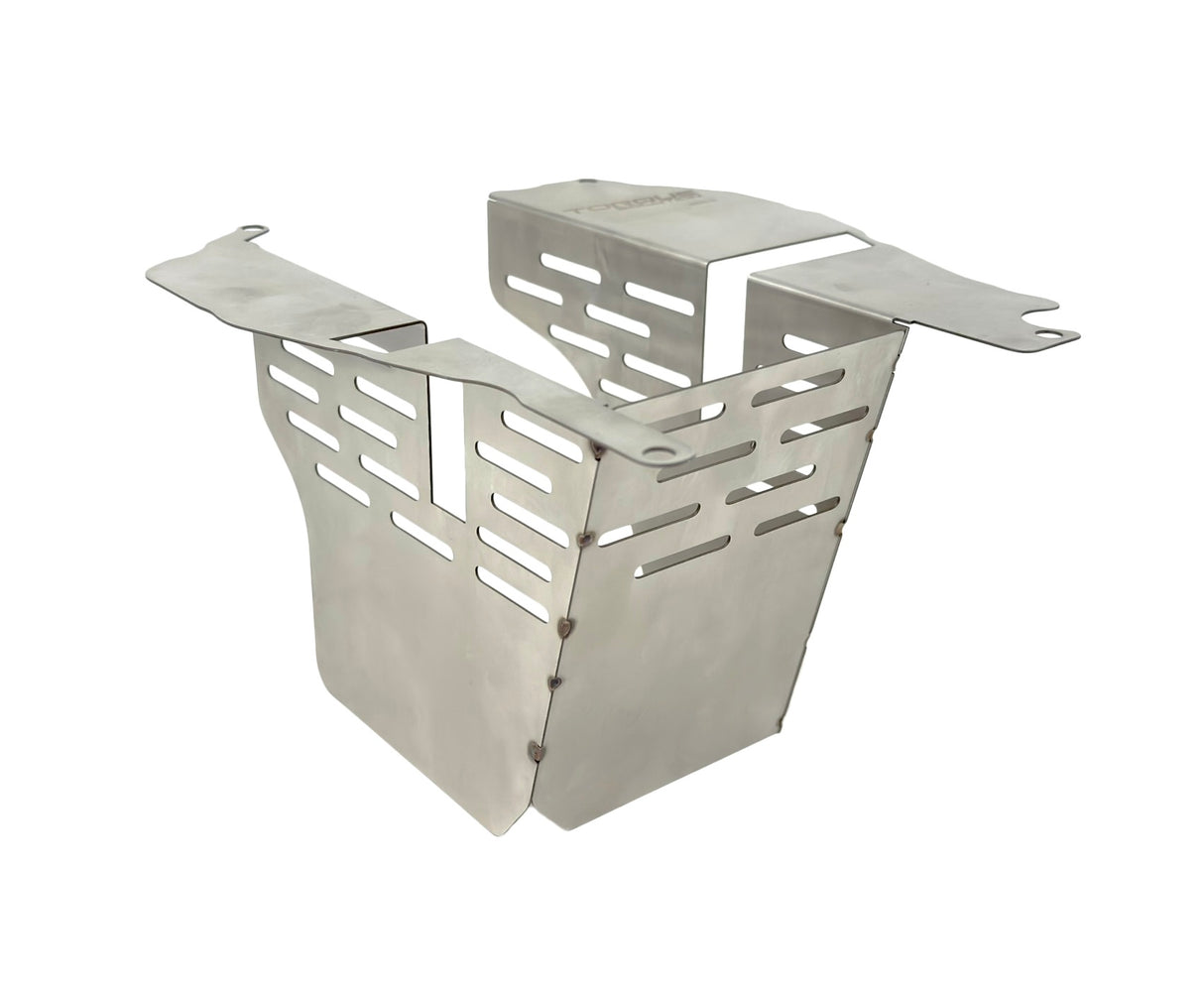

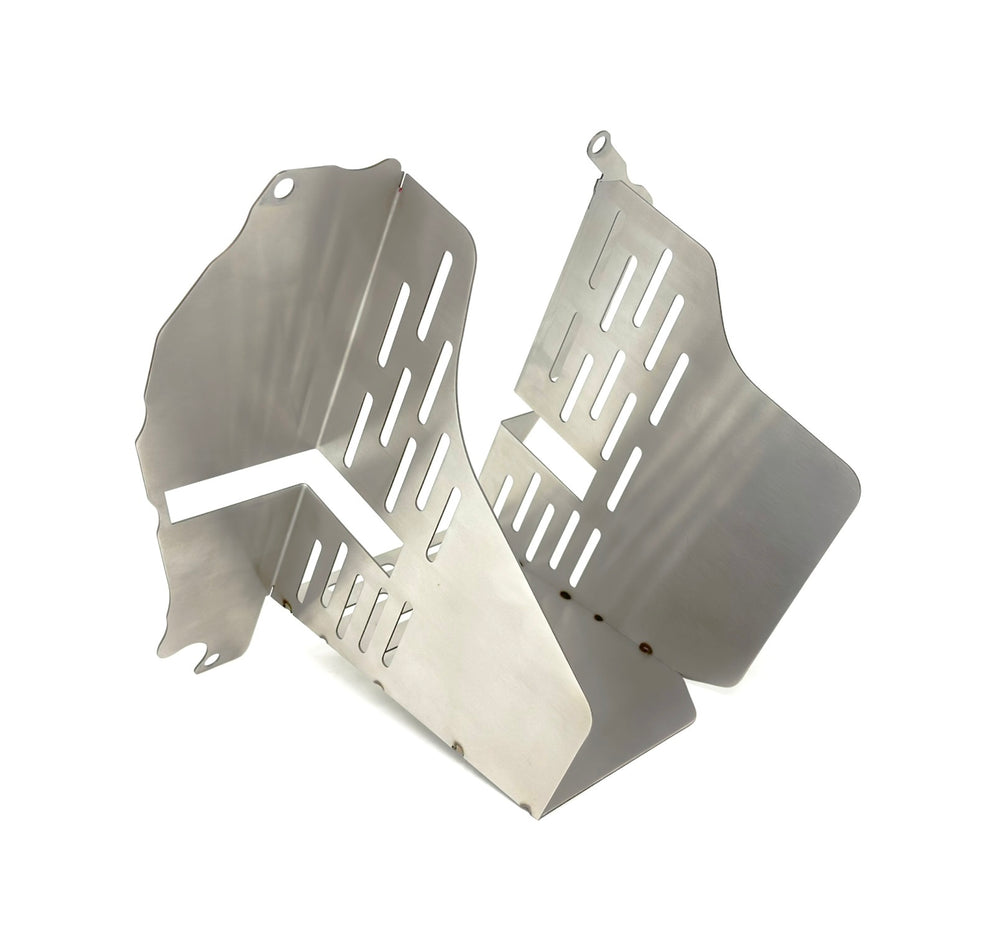

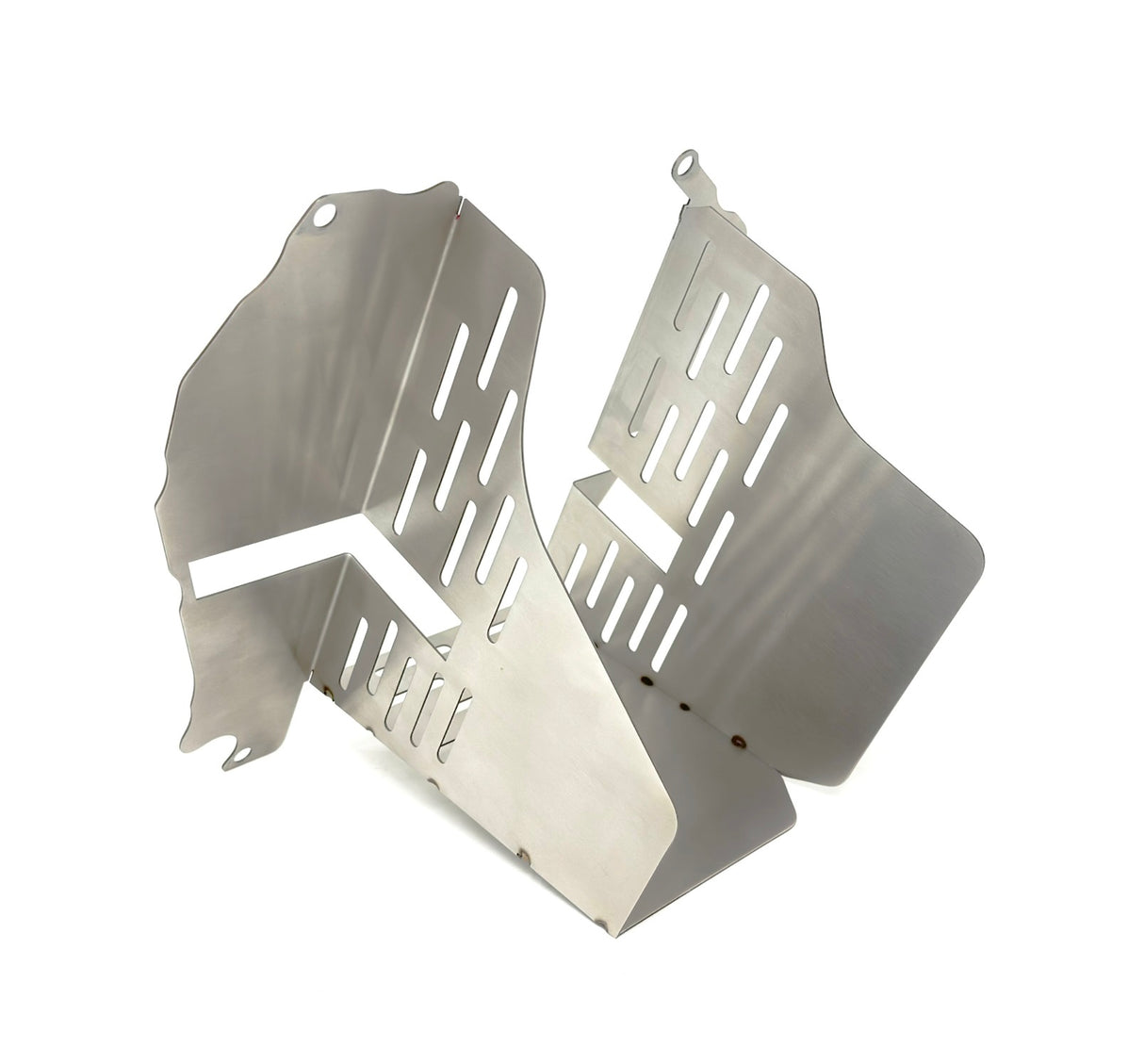

The updated V2 design includes a bolt in internal baffle that works to control oil movement during acceleration, braking, and cornering. By limiting oil slosh and keeping oil at the pickup, the baffle helps protect the engine when it is under load. All required installation hardware is included, with no additional parts needed.

Features

  • CNC machined cast aluminium construction
  • Approximate oil capacity of 5.7 L
  • FKM rubber O ring gasket for leak resistant sealing
  • Integrated cooling fins for improved oil temperature control
  • Bolt in internal baffle to reduce oil slosh
  • Installation hardware included

Important Notes

  • Must be used with an aftermarket oil pickup
  • Not compatible with OEM or Moroso oil pickups
  • EJ20 engines require EJ25 dipstick part number 11140AA150
  • EJ20 engines must use an EJ25 fitment oil pickup

Header Fitment

Tested to fit with most aftermarket headers. Confirmed compatibility with ETS and Killer B headers. Perrin headers may require minor adjustment, such as compressing the upper primary tube slightly toward the lower tube.

Features and Benefits

  • CNC Cast Aluminum
  • 6 Quart Oil Capacity (Over 30% Increase In Oil Capacity)
  • Stainless Steel / TIG Welded Bolt-In Internal Street Baffle
  • Seamless FKM Rubber O-Ring Gasket
  • CNC Cooling Fins
  • M20 (OEM) and 1/2" NPT Ports
  • Stainless Steel Install Hardware
  • No Additional Install Hardware Needed
  • Limited Lifetime Warranty

Included Components

  • Cast Aluminum Oil Pan (1)
  • Bolt-In Stainless Steel Street Baffle (pre-installed) (1)
  • M6 x 15 Stainless Button Head Bolt (pre-installed w/ baffle) (4)
  • Seamless FKM Rubber Oil Pan O-Ring Gasket (1)
  • FKM Rubber Dipstick Tube 2x10mm O-Ring Gasket (2)
  • M20 OEM Subaru Drain Plug P/N: 807020010 (1)
  • M20 Copper Drain Plug Gaskets (5)
  • 1/2" NPT Brass Plug w/ Teflon Tape (used if not using a temp sensor)
  • 1/2" NPT to 1/8" NPT Brass Plug w/ Teflon Tape (optional for oil temp sensor)
  • Billet Aluminum Oil Pick Up Suction Tube Spacer w/ x2 -117 FKM O-Ring Gasket (1)
  • Billet Aluminum Oil Pick Up Pedestal Spacers (2)
  • FKM Rubber Spacer Bolt Retainer -008 O-Ring Gaskets (4)
  • M6 Stainless Steel Flat Washer (4)
  • M6 x 30 Stainless Steel Socket Cap Bolt (6)
  • M6 x 20 Stainless Steel Socket Cap Bolt (10)
  • M6 x 25 Stainless Steel Socket Cap Bolt (2)

Fitment Table

Fitment Notes

General Notes:

  • Must use with an aftermarket oil pick up.
  • Will not work with the OEM or Moroso Oil Pick Ups.
  • EJ20 engines must use an EJ25 Dipstick Part # 11140AA150 and EJ25 fitment Oil Pick Up.
  • Tested to fit with most headers. Confirmed fitment with ETS and Killer B header. Perrin header needs a little work to fit, such as compressing the primary upper tube slightly down towards the lower tube.
