 |  SKU: TSS-GD-SA-BJ-BLK

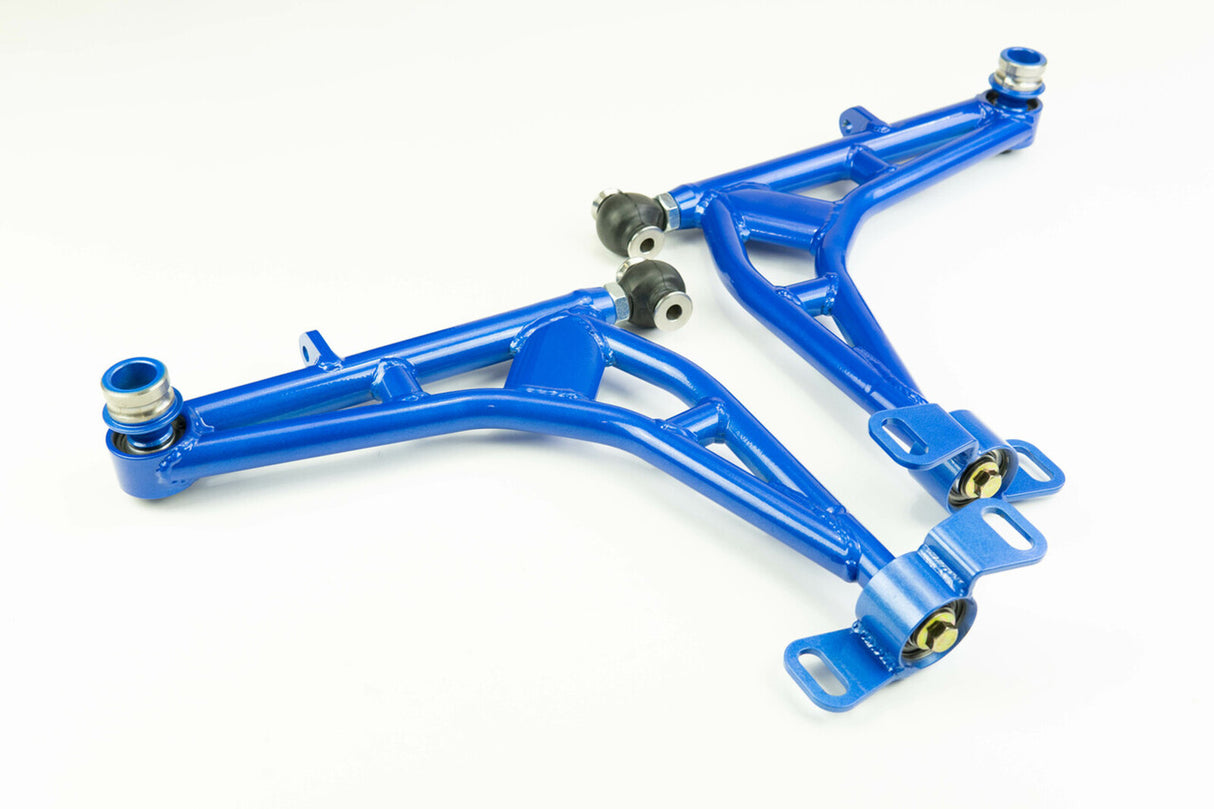

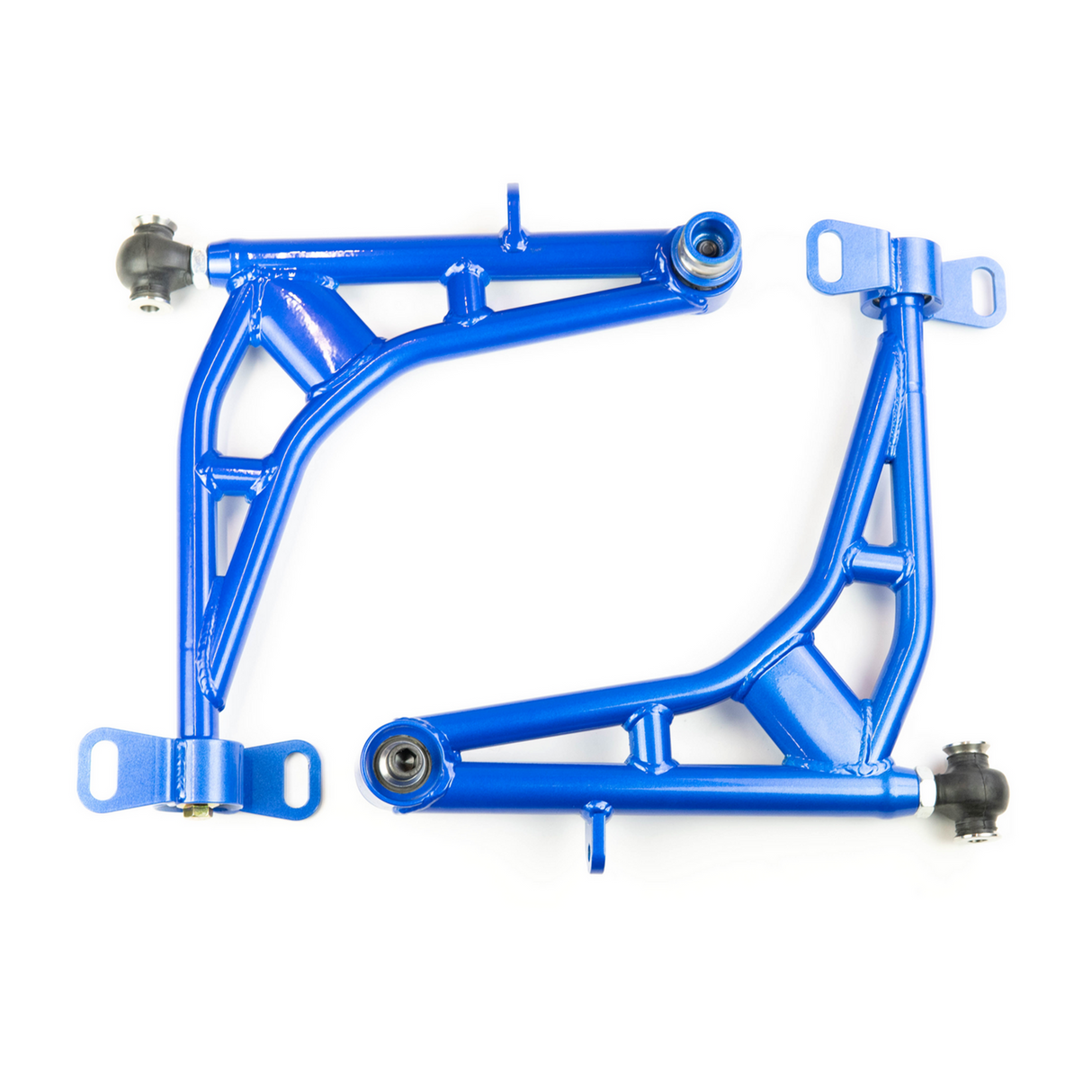

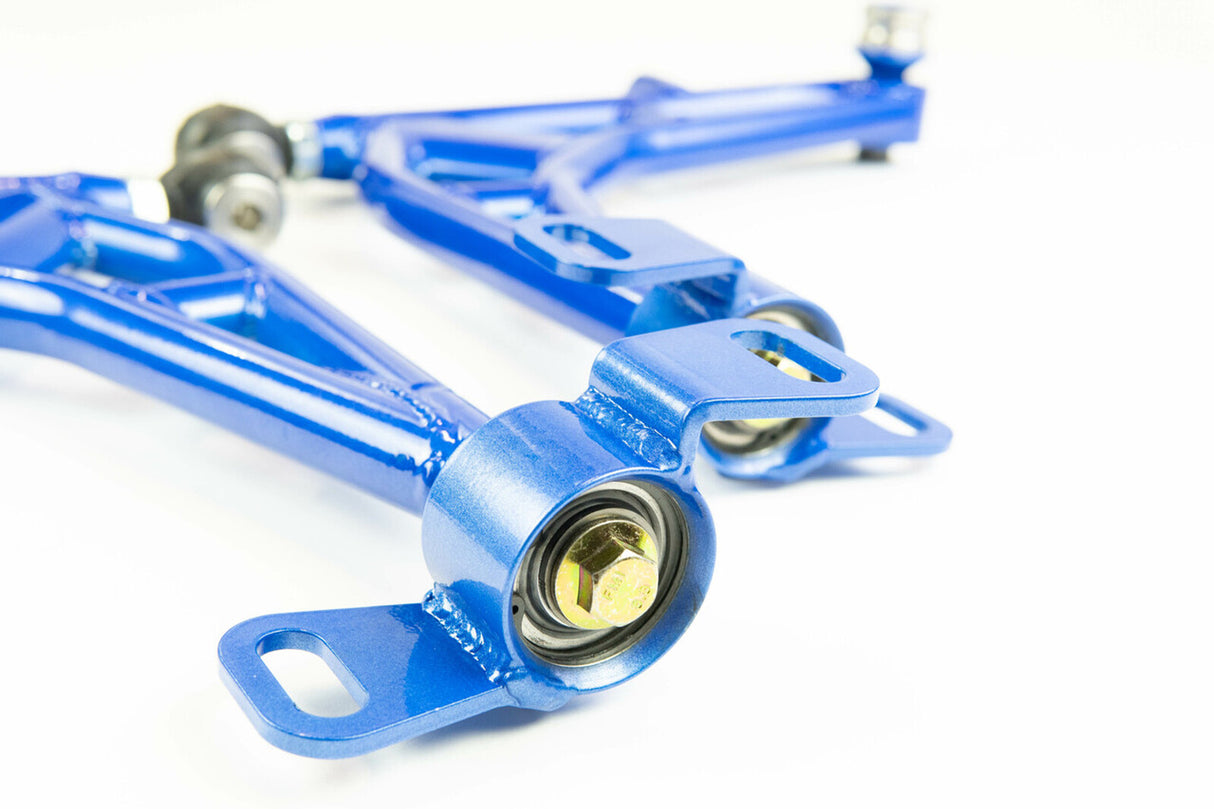

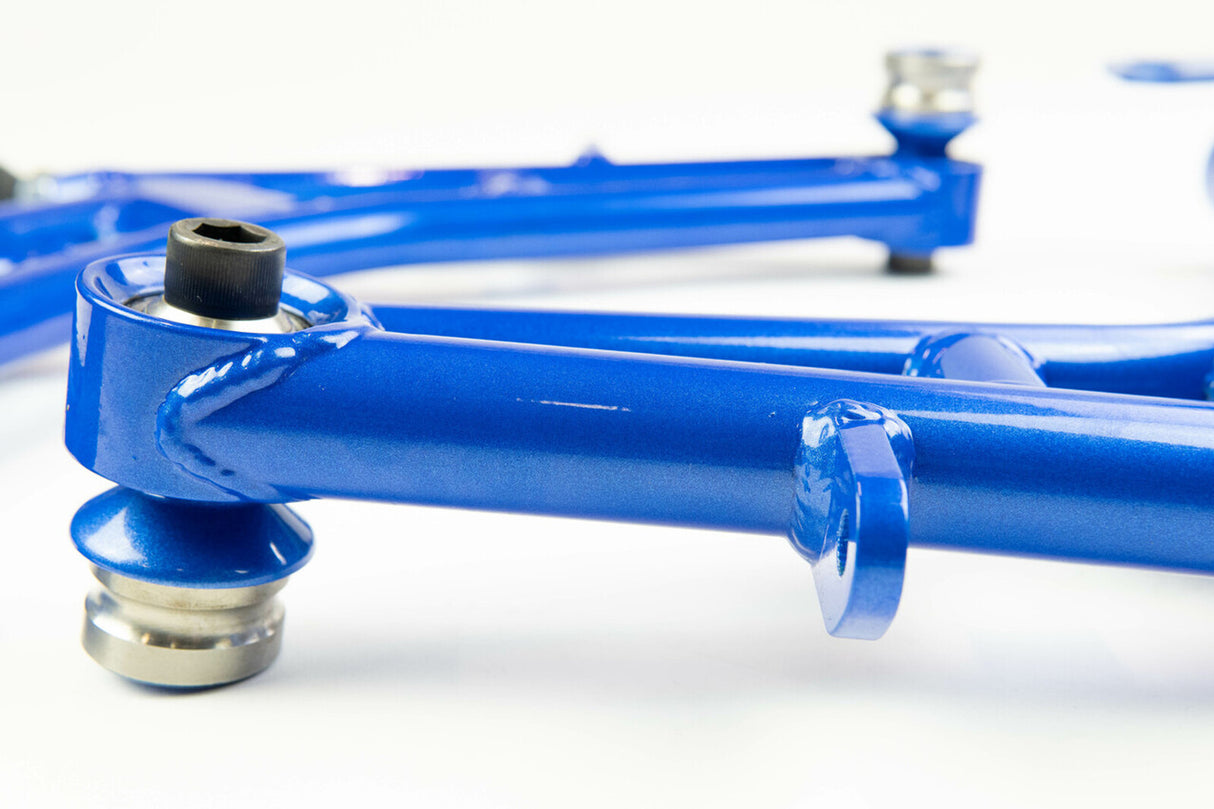

TSS FAB Front Control Arms

Subaru WRX/STI 01-07
$1,949.00
Ball Joint Option
Colour: Black
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Our Solid Front Arms can be customized for a variety of applications. Choose our TSS Pin option to correct geometry and replace your stock ball joint with a 7/8 COM Bearing and our custom made pin that bolts into a stock Subaru knuckle just like a ball joint (read more below). For rally and off road you can choose our stock ball joint option which will fit a stock Subaru ball joint.

These Solid Arms are built to be very strong, and therefore can’t accommodate wide tires with high steering angle - for that you should check out our drift arms.

All solid arms have 5mm of additional caster built into them compared to stock arms, but this can be increased all the way up to an additional 45mm of caster. All arms can be shimmed within the limits of the LCA pocket on your front frame to make adjustments to caster after the fact, but this requires replacing the misalignment spacers in your heim joints.



  • TSS Pin Option: To utilize the geometry correction of the TSS Pin setup you will need a tie rod ends that correct bump steer. We are planning on releasing a bump steer correction in the future.
  • These arms are fabricated with high strength materials such as 4130 tubing, and Strenx plate. They are mig welded and we stand by our product we will repair or replace manufacture failures or work with you if you did unfortunately damage our products.

Fitment Table
