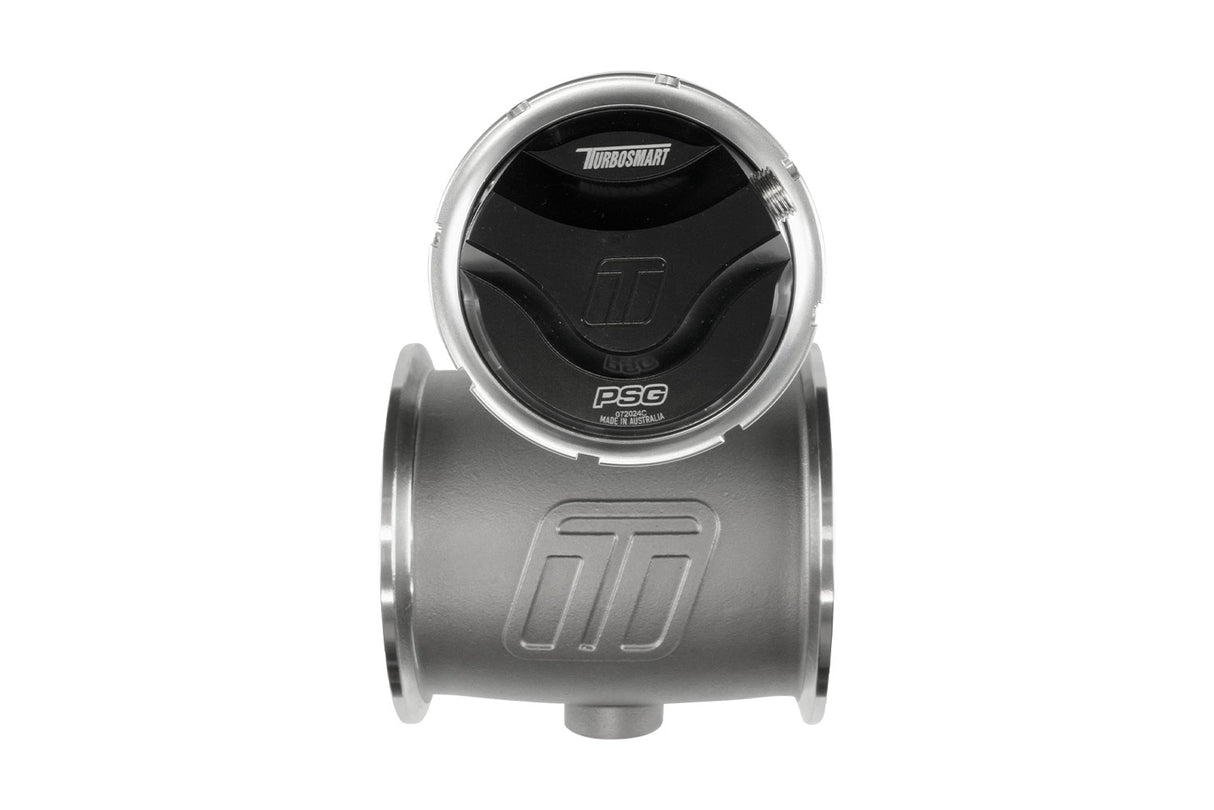

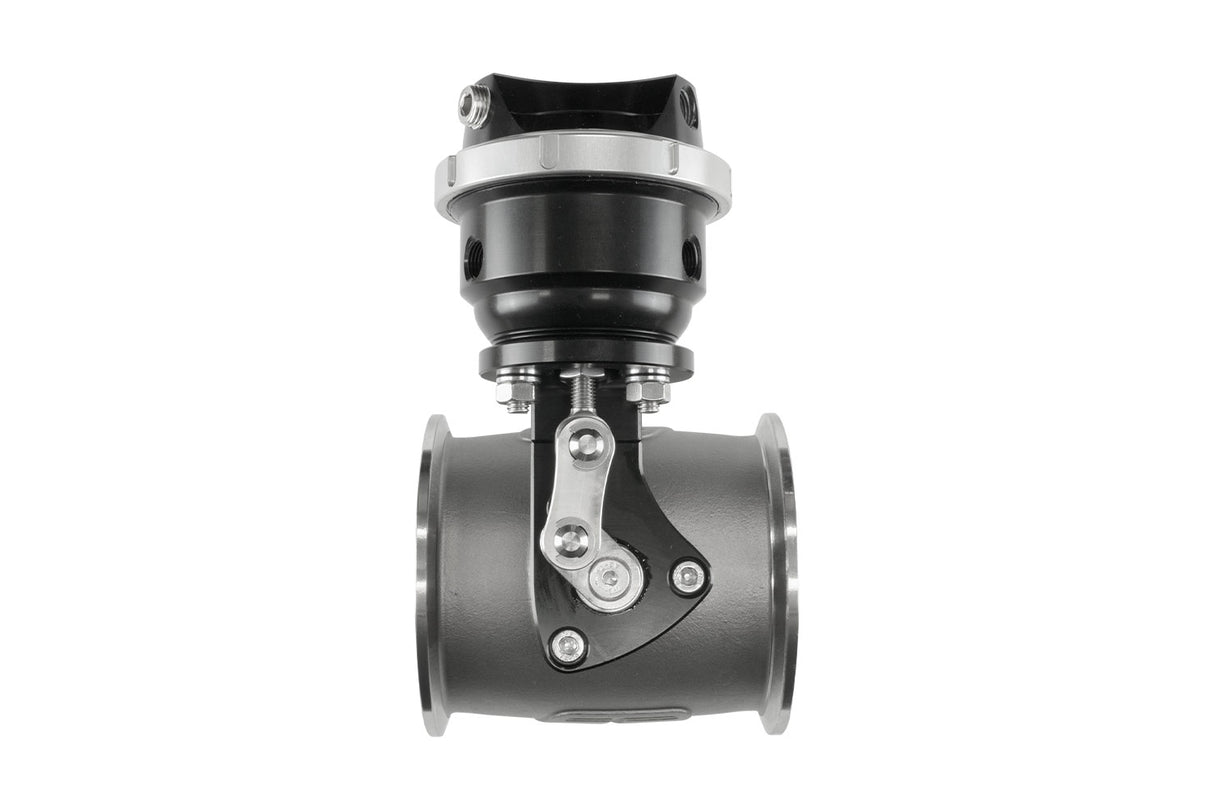

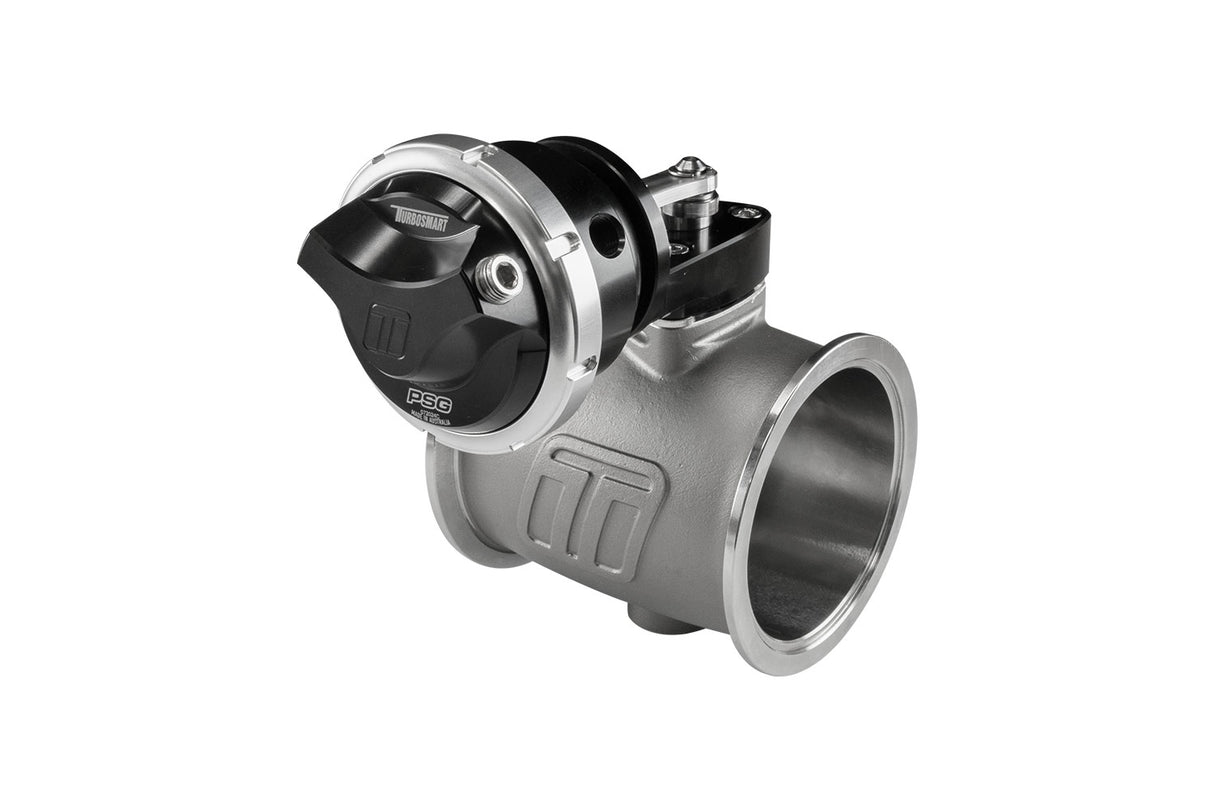

The StraightGate76 from Turbosmart is the world’s highest flowing external wastegate! Lets not sugar coat things, this wastegate is one bad bitch. The StraightGate76 is a zero-offset butterfly style wastegate which allows enormous flow and almost linear control with unparalleled boost control throughout the entire operating range.
The Boost-Based Pneumatic StraightGate76 takes the Multiple Award Winning eSG50, simplifies control via a traditional boost-based actuator and more that doubles the flow through a 76mm valve body. The Self-Balancing nature of the StraightGate76 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single and twin port control, the StraightGate76 is simple to use, and packed with performance, flow and features!

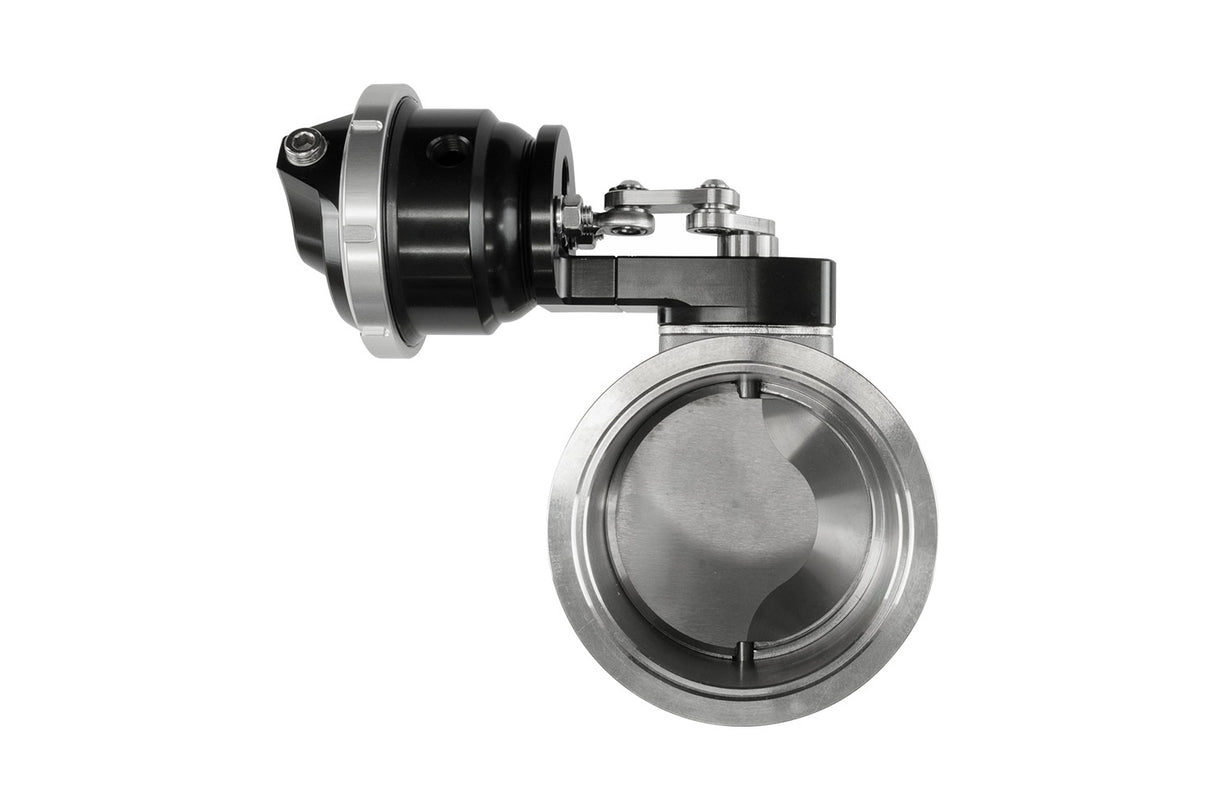

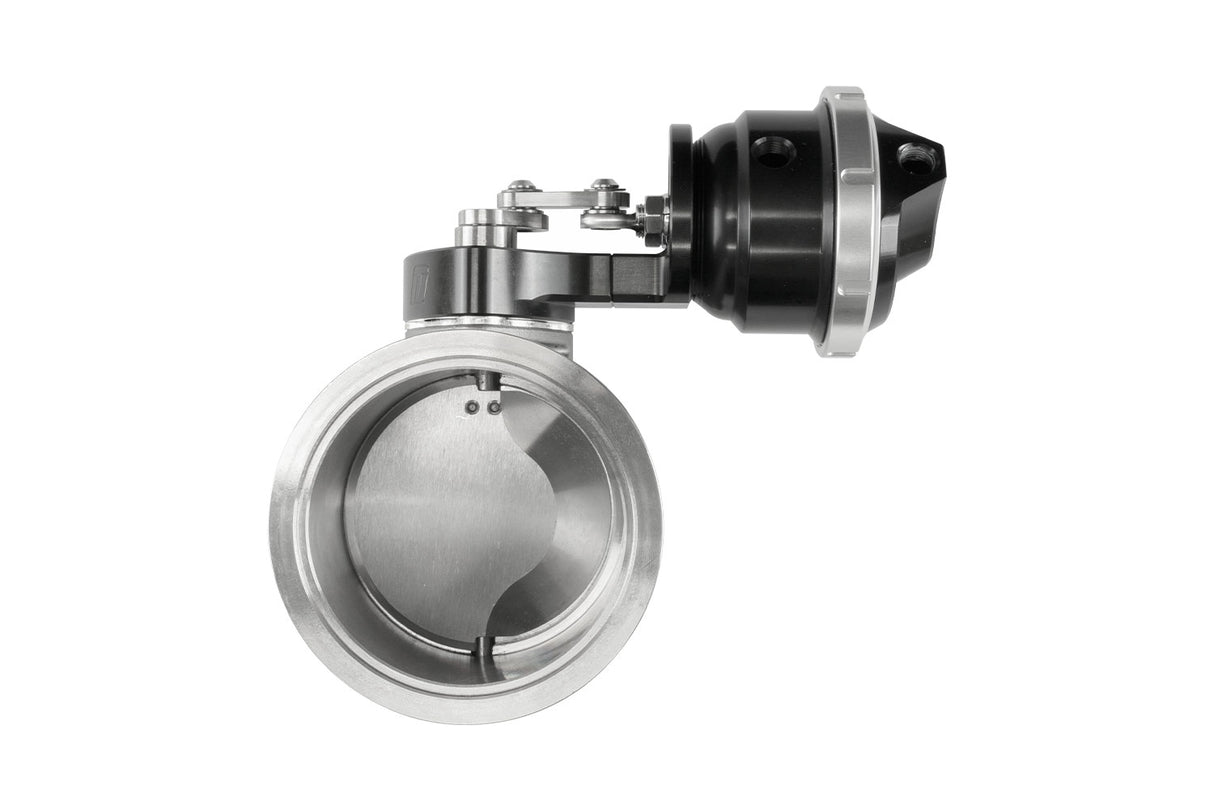

The Turbosmart StraightGate76 has been designed from the ground up and validated in-house to create a new level of control and flow, never seen in any wastegate before it. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve which pivots centrally, resulting in a valve that is self-balanced against any drive pressure. This self-balancing means less work is required to actuate against even the highest of drive pressures and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight through valve versus a traditional poppet style valve where the exhaust gas must be turned 90 degrees by the valve.
Features and Benefits
Features and Benefits
- 76mm (2.99in) Butterfly Style Zero-Offset Valve
- 723.7 CFM / 20.49m3 per minute flow
- Stainless Steel (630) Butterfly and shaft
- Stainless Steel (347) Main Body
- Stainless Steel (Heat Treated 431) V-Band Clamps
- 360 Degree Mounting options on V-Band
- Aluminium (6262 T6 Anodised) Bracket and Actuator
- Turbosmart unique Locking Collar Ring
- Base Spring Options from 6psi to 42psi
- Suitable for Single or Twin Port Boost-Based Control
- Stainless Steel (N60) Linkages and Control Arm

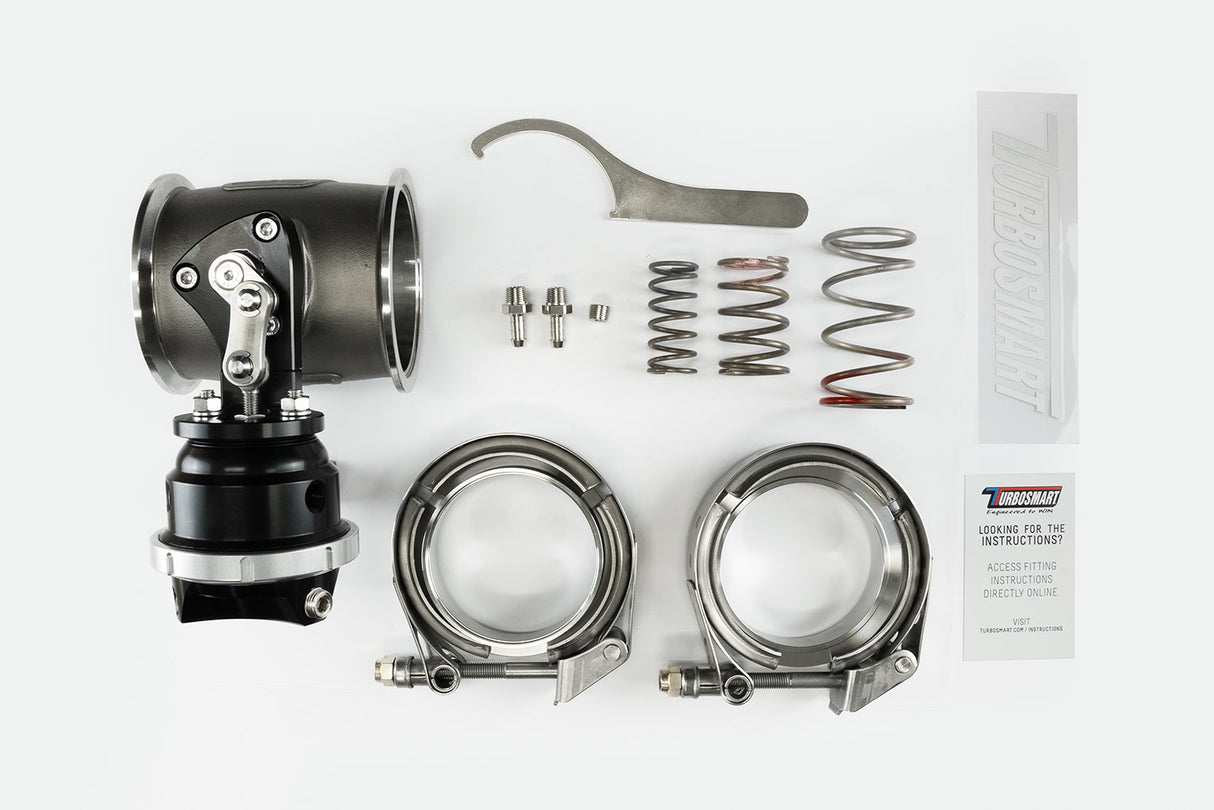

Included Components
Included Components
- Boost-Based Pneumatic StraightGate76
- StraightGate76 Inlet and Outlet Flanges
- StraightGate76 Inlet and Outlet Weld Flanges
- 6psi Springs Pre-Installed
- All Other Springs including in box
- 2 x 1/8 NPT Hose Tail Fittings
- 2 x 1/8 NPT Blanking Plugs
- Turbosmart Decal
