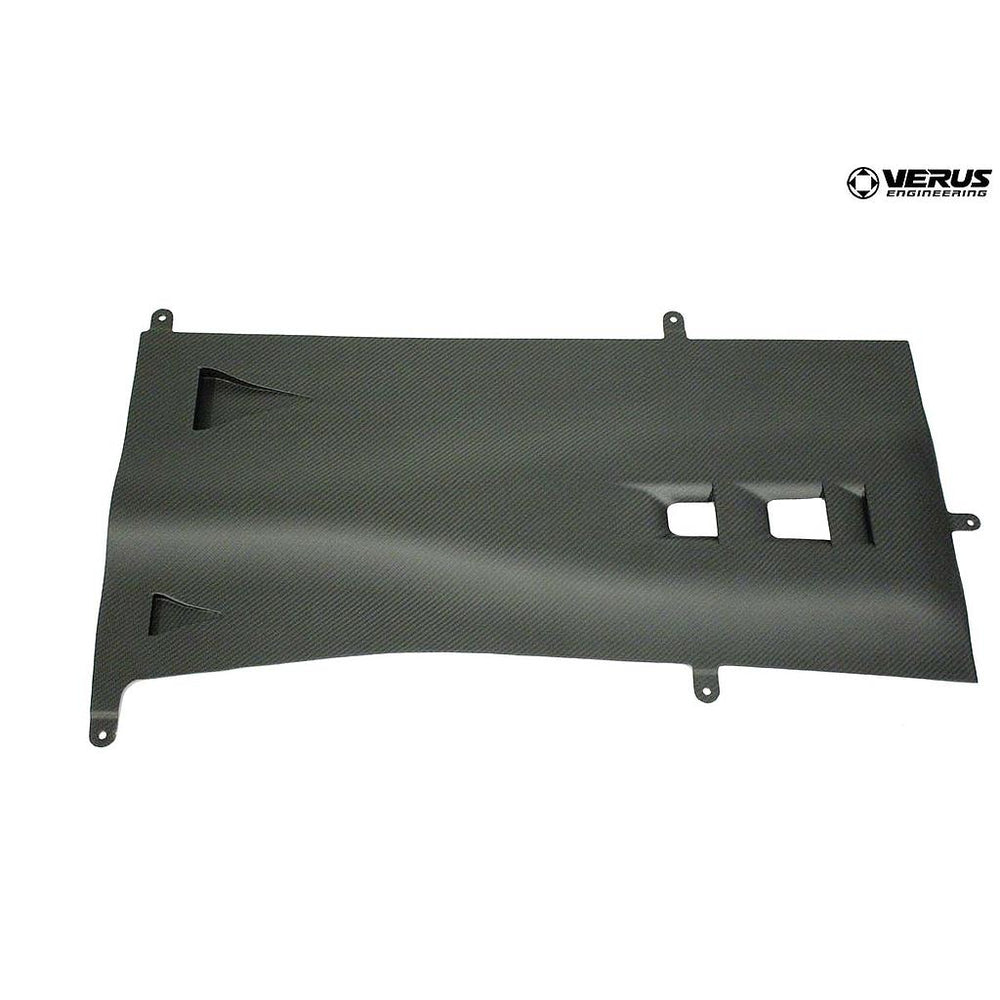

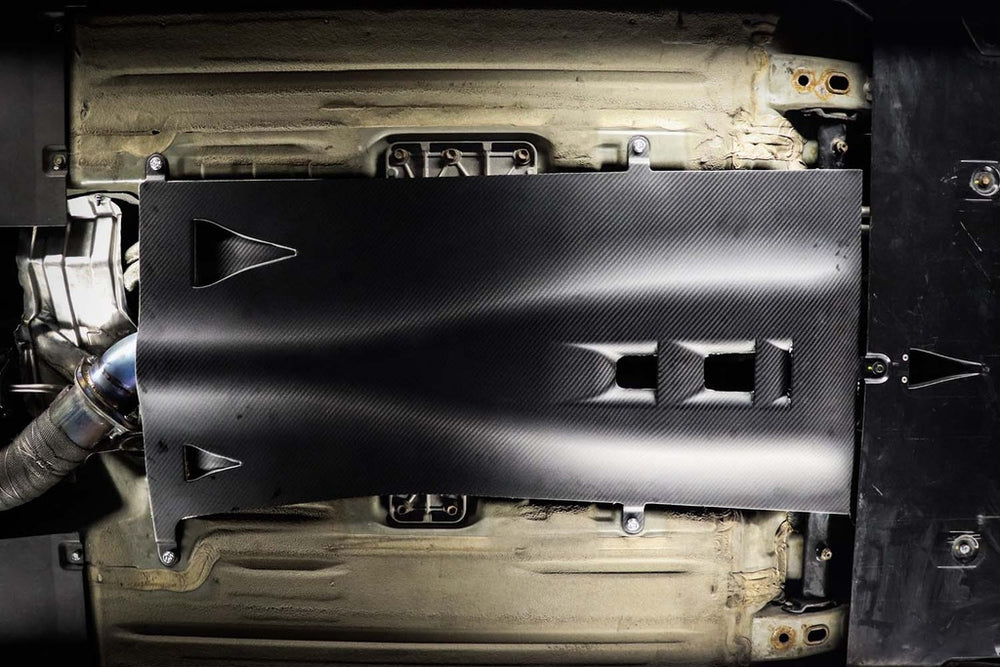

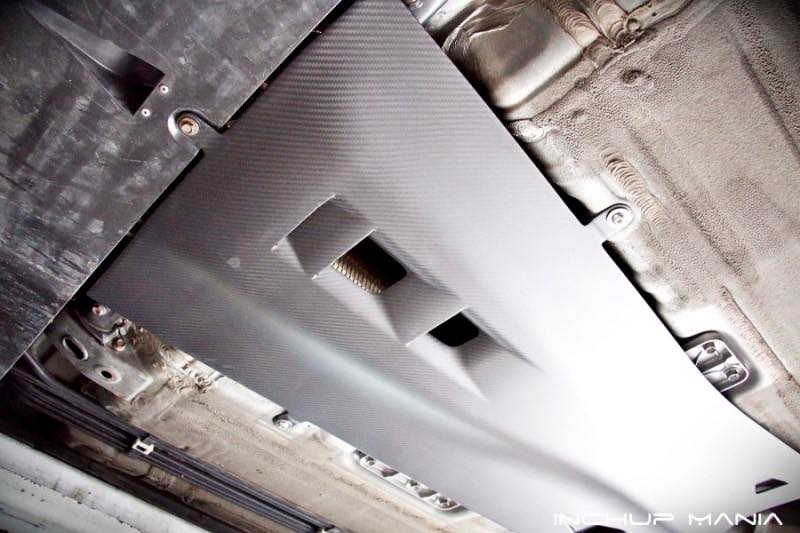

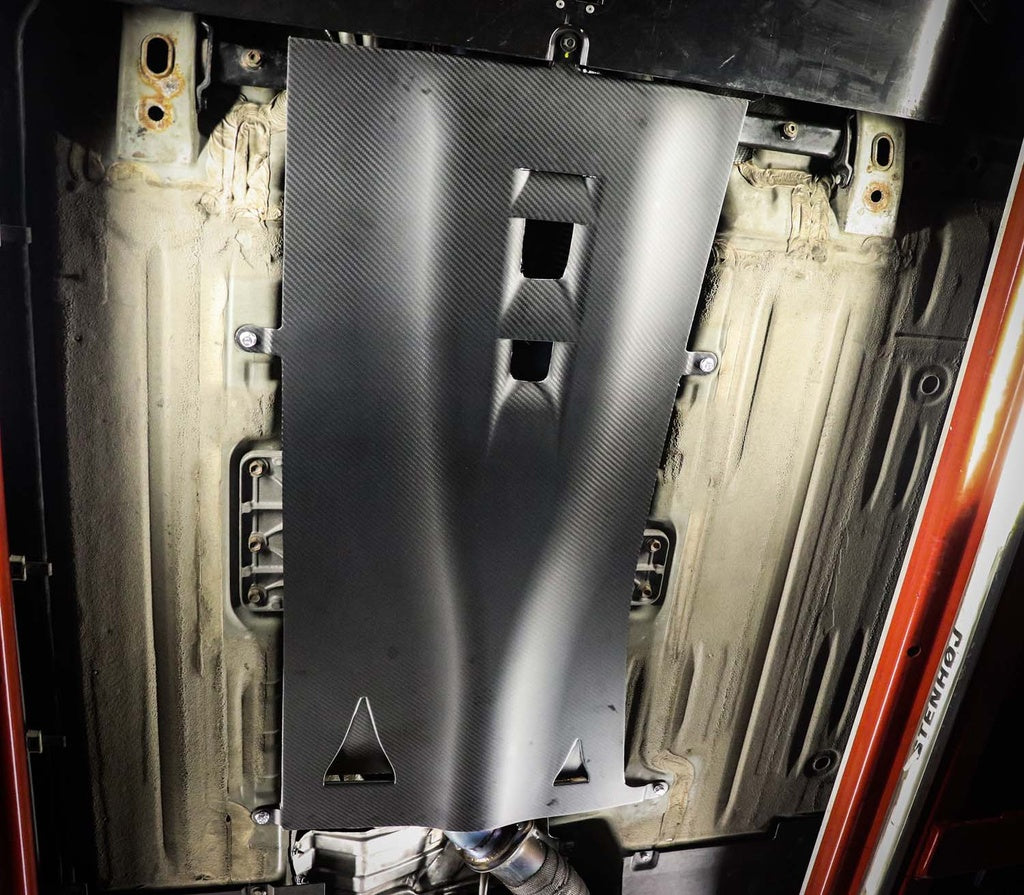

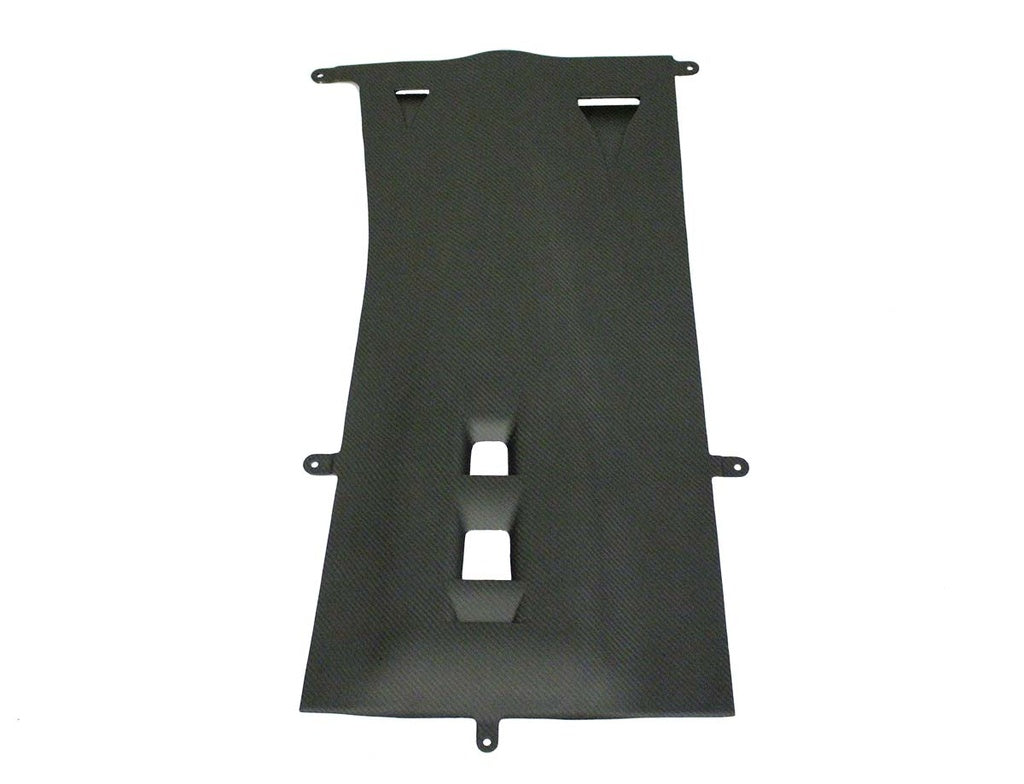

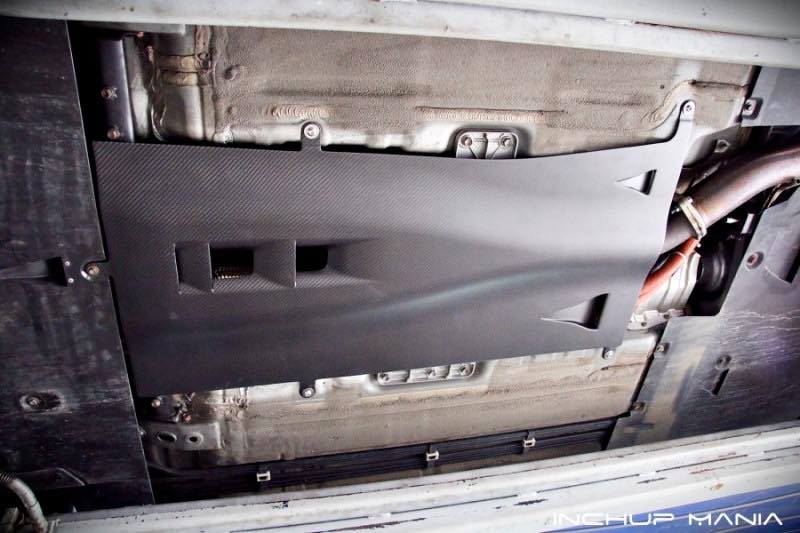

Verus Engineering Flat Underbody Panel Kit

Nissan GT-R R35 07+
$3,099.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The R35 Nissan GT-R has a great cD (Coefficient of Drag) from the factory, but we saw one area we could improve upon. The tunnel area of the R35 is left wide open; and by covering this large area, we are able to further reduce the drag generated by the vehicle's underbody. In some cases where the vehicle is raked, we were able to realize an increase in downforce.

Using ANSYS Adjoint solver and CFD, we were able to reduce the cD by 10 points, or 0.010.  The tunnel area of a vehicle is a source of increased drag; by covering this with a purposefully sculpted piece of carbon, we can reduce the drag of the vehicle.

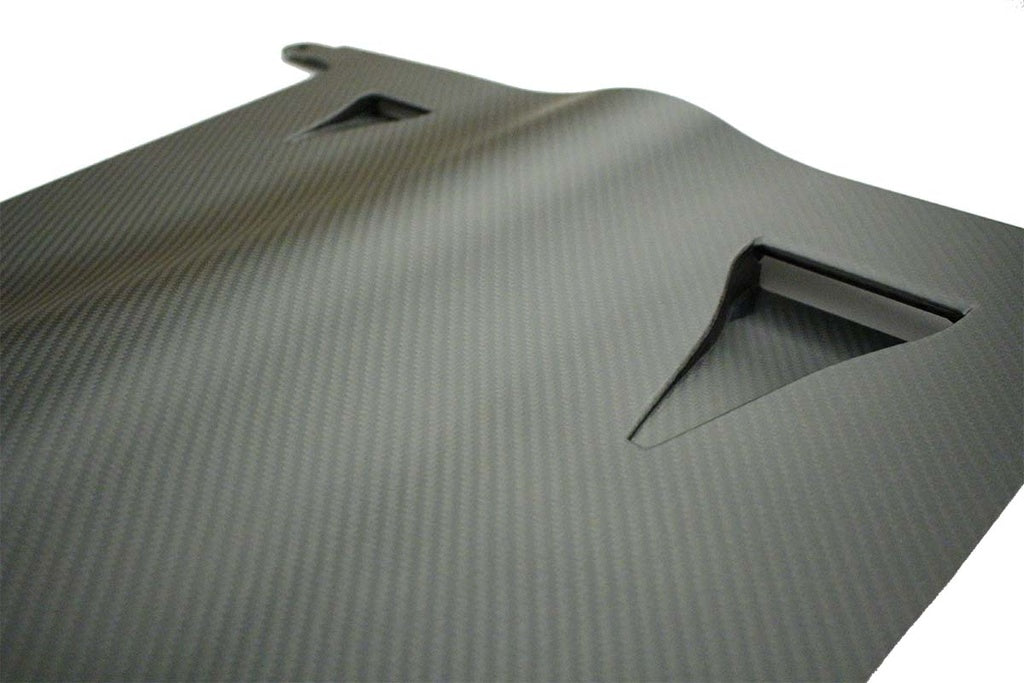

These units are produced from pre-preg carbon fiber off of a machined billet mold. No expense was spared in the production of these tunnel covers.  Included in the cover are a low drag evacuation duct for heat evacuation, and two low drag NACA ducts to aid in cooling the transmission.

Features and Benefits

  • Reduction in Drag by 0.010, or Ten Points
  • 100% Carbon Fiber Construction
  • Optimized Design for Extracting Maximum Performance Gain
  • NACA Ducts and Evacuation Vents for Cooling

Technical Specifications

  • 1.6mm Pre-preg 2x2 Twill Carbon Used Throughout
  • Matte Clear
  • Simple Install
  • Stainless Steel Hardware Throughout

Included Components

  • Carbon Fiber Underbody Panel
  • Hardware Kit, Includes All Hardware Necessary for Install

Media

Fitment Table
