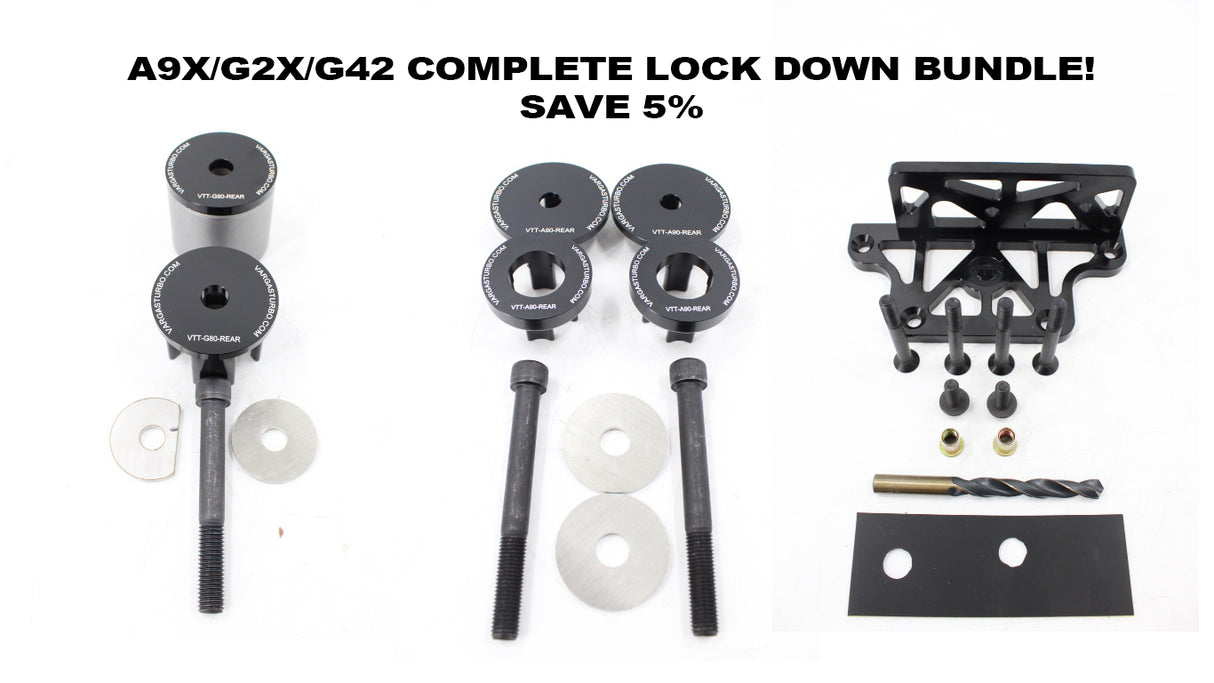

VTT Lock Down Bundle

Toyota Supra A90/BMW 2 Series G42/3, 4 Series G2X

$1,999.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Get the COMPLETE lockdown kit for your A9X / G2X / G42 at one low price.

All products that are designed to stiffen or reduce drivetrain movement inherently have the tendency to increase NVH or Noise, Harness, or vibration. While these bushings inserts have been found to add little NVH in most instances. Your results and sensitivity to NVH may vary. This product is designed to reduce drivetrain movement, and that was the goal when designing and manufacturing this product. Returns for NVH are not accepted once products are installed.



VTT A9X Supra/BMW Z4 / G2X / G42 Billet Diff Lock Down

VTT noticed a hole in the VTT A9X Supra/BMW Z4 / G2X / G42 Billet Diff Lock Down Kit market for a high-quality, lightweight, NVH-friendly, and easy-to-install Diff Lock Down kit to improve diff stability under launching, and hard cornering. So we did something about it and went to work on a very innovative design that 100% positively locks the diff down from movement, while shielding it from adding a ton of NVH, and can be used with the stock diff, and subframe bushings. This design uses existing mounting points on the vehicle, you do NOT have to remove the subframe or the Diff to install. Simply remove 4 diff bolts, drill two holes in the subframe slightly bigger, install two M10 riv-nuts, and install the lockdown, you do not even have to move the exhaust. A typical install can be 15-30 minutes for someone who is experienced working on vehicles, an hour if you like taking it slow. You WILL need a Riv-nut tool to install the Riv-nuts, we provide a link below for what we recommend on Amazon.



VTT A9X, G42, G2X Front Bushing Insert Kit

Want to tighten up the diff on your A9X Supra, G42 2 series, or G2X BMW and help eliminate any extra diff movement on hard launches or cornering? We got you covered with our Billet diff inserts. They are machined from 6061-T6, and anodized black for a long-lasting finish. They install easily by removing the diff bolts one at a time, lowering the diff slightly, inserting the bushing, and installing new washers, and bolts.



VTT A9X, G8X, G42, G2X Rear Bushing Insert Kit

Want to tighten up the diff on your 2021+ G8X M3/M4, A9X Supra, G42 2 Series, or G2X BMW and help eliminate any extra diff movement on hard launches? We got you covered with our Rear Billet diff insert kit. This is pressed into the factory bushing and fills the voids in the bushing. This keeps the stock bushing ride compliance but removes any unwanted movement. These are sold as a kit. To install remove the rear diff bushing, use the stock bolt in press the bushing in, and then replace it with the new bolt washer, and lock nut!



VTT Billet BMW Transfer Case Bushing Inserts

Soft bushings are the enemy of launching hard, and keeping your drivetrain together. The BMW Transfer Case bushings are notoriously soft, and that is the opposite of what you want when launching a car hard. You can replace the bushing with a solid one, but this is time-consuming usually requires lowering or removing the transfer case, and results in a lot of added NVH. The best path is simply to reduce the amount of flex of the factory bushing so you keep the nice manners when cruising around town, and at idle, but when it's time to launch the transfer case cannot move as it could without the insert.

Features and Benefits

VTT A9X Supra/BMW Z4 / G2X / G42 Billet Diff Lock Down Kit

  • Lightweight 1.5 lbs for the entire lockdown plate
  • Uses FOUR connection points on the Diff, and two on the subframe for the ultimate in positive diff location, this will stop all diff movement on launch, saving your guibos, etc
  • 100% Billet construction from 6061-T6 aluminum
  • Anodized in 4 colors for corrosion resistance, a long-lasting finish, and good looks
  • The subframe does NOT have to be removed for installation
  • Uses all 12.9 grade hardware
  • Does not add excessive NVH
  • Positively locks down the diff to eliminate all unwanted movement under launches, acceleration, cornering, etc.



VTT Billet BMW Transfer Case Bushing Inserts

  • 6061- T6 aluminum construction
  • Easy to install
  • Fully reversible
  • Do not add NVH



Included Components

  • VTT A9X Supra/BMW Z4 / G2X / G42 Billet Diff Lock Down Kit
  • VTT A9X, G42, G2X Front Bushing Insert Kit
  • VTT A9X, G8X, G42, G2X Rear Bushing Insert Kit
  • VTT Billet BMW Transfer Case Bushing Inserts
