 |  SKU: 200001157.WMI

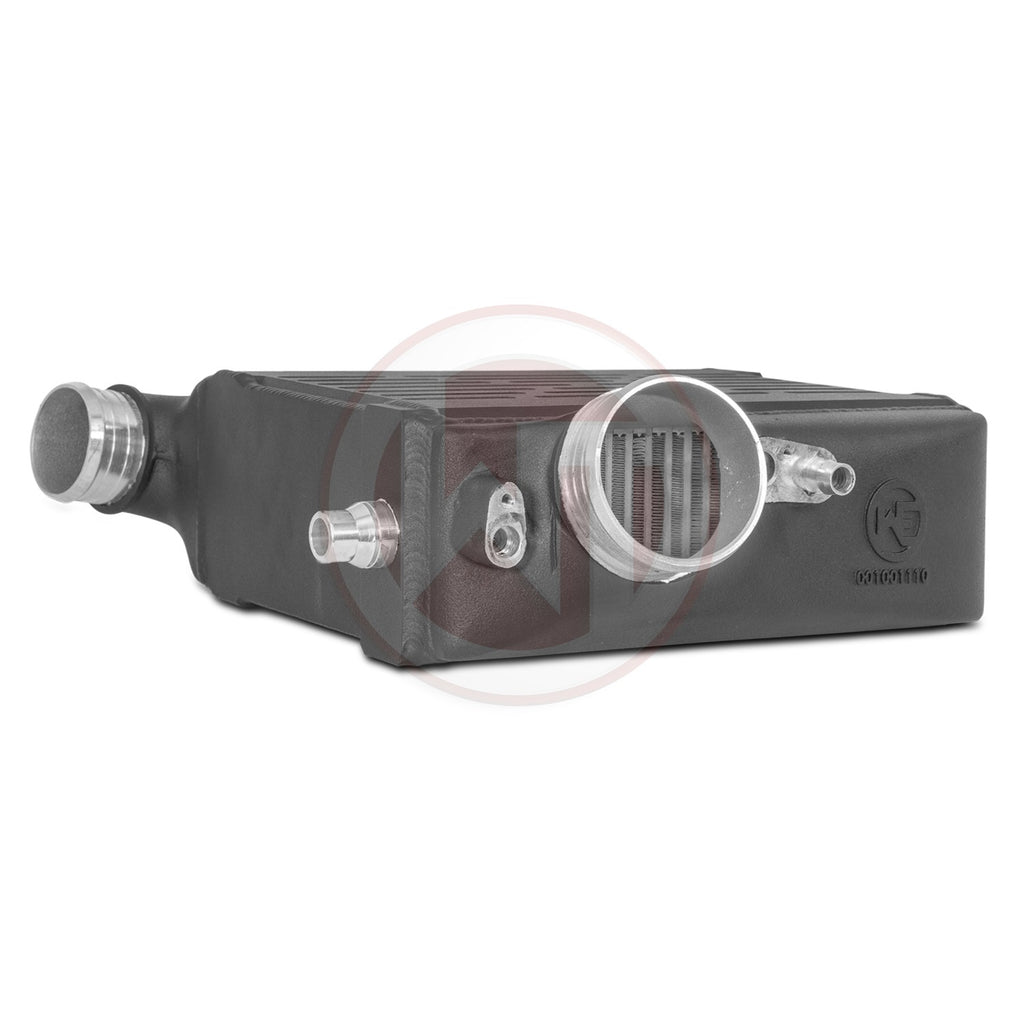

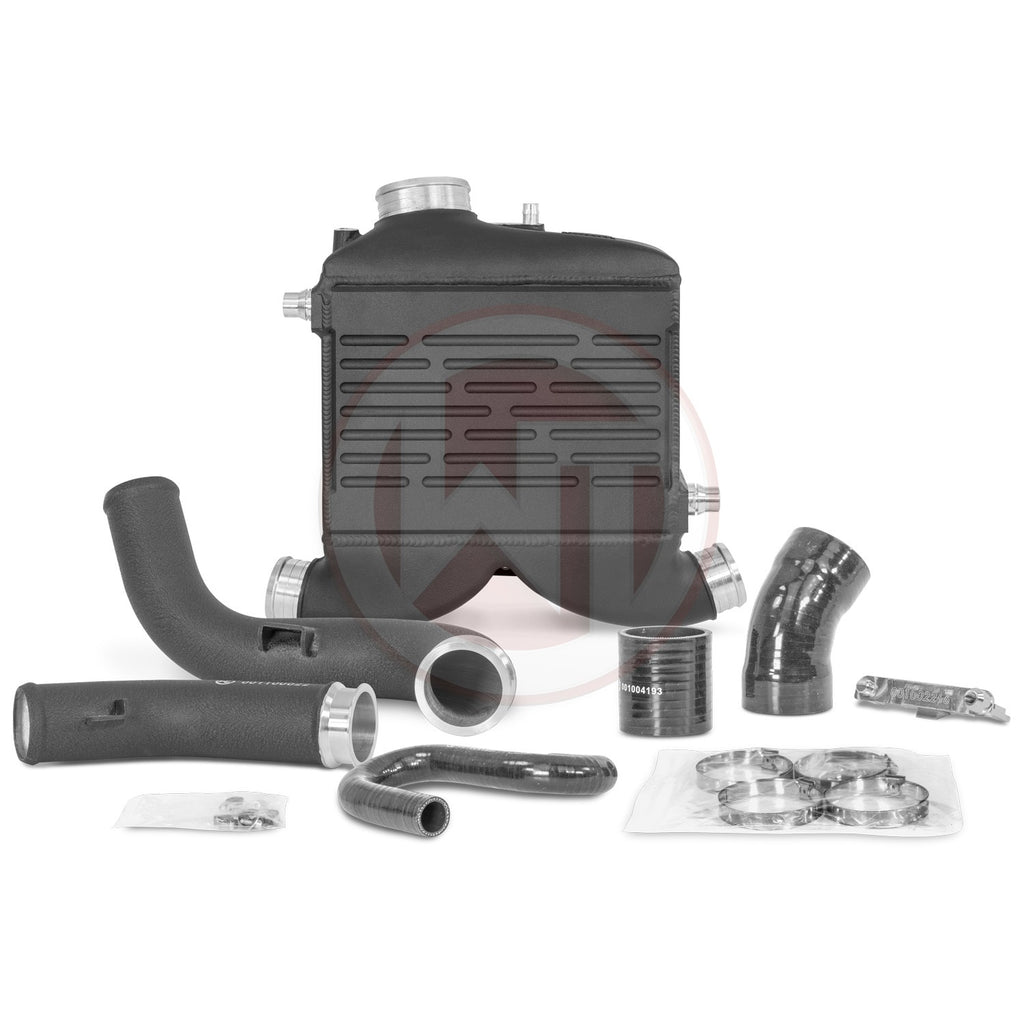

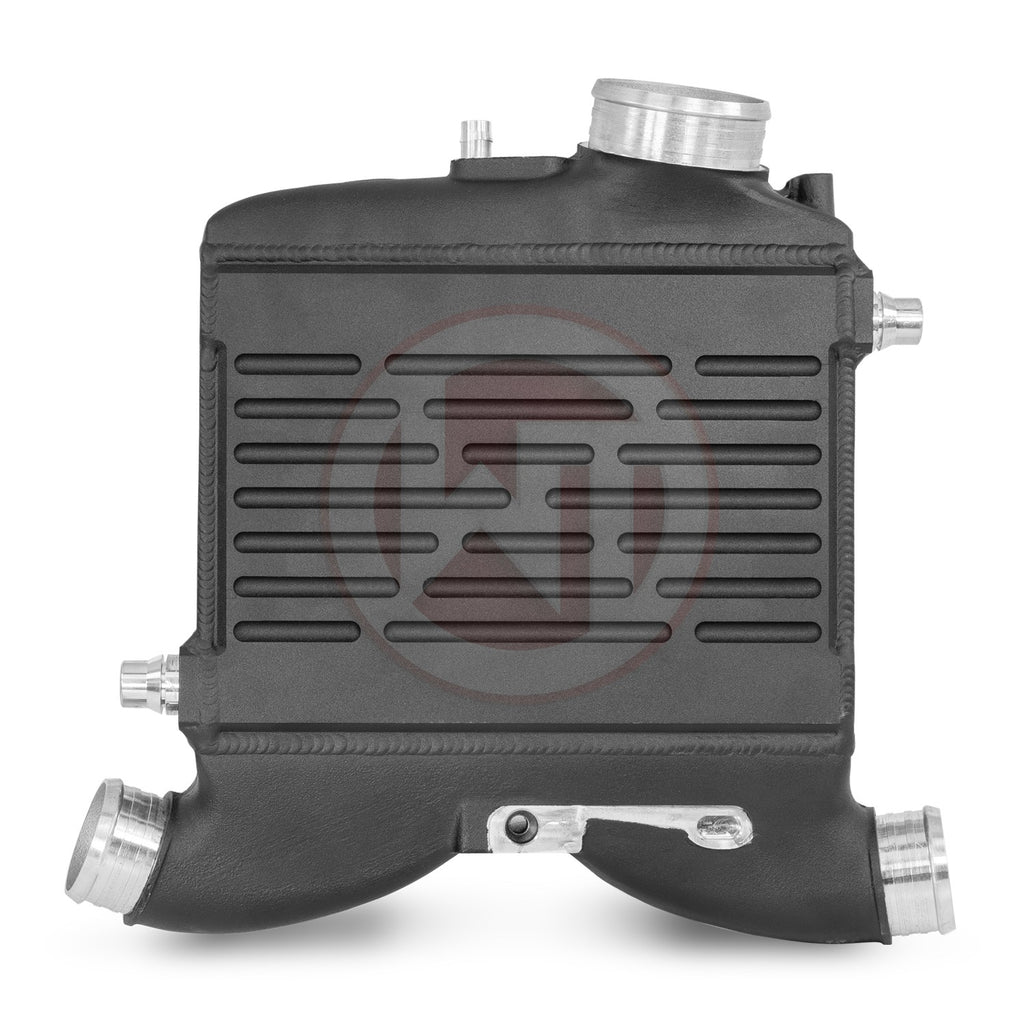

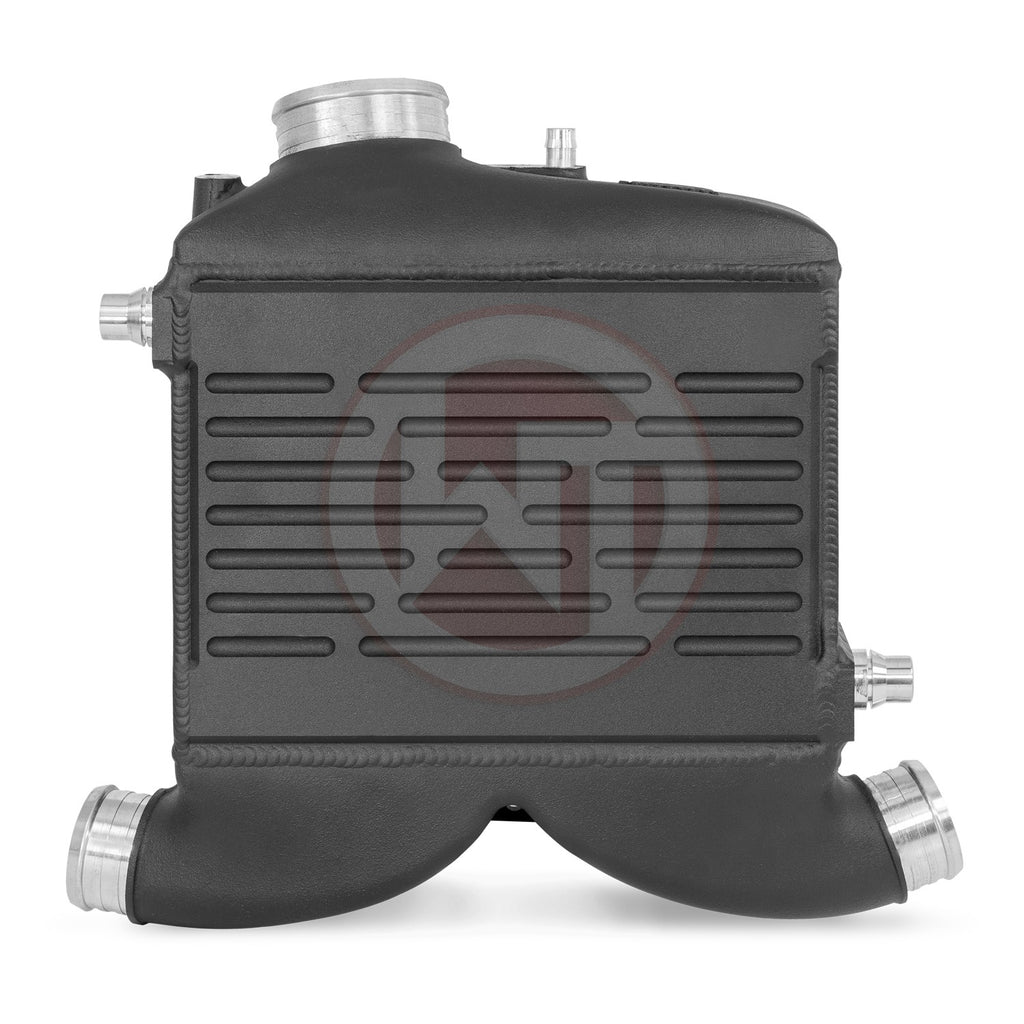

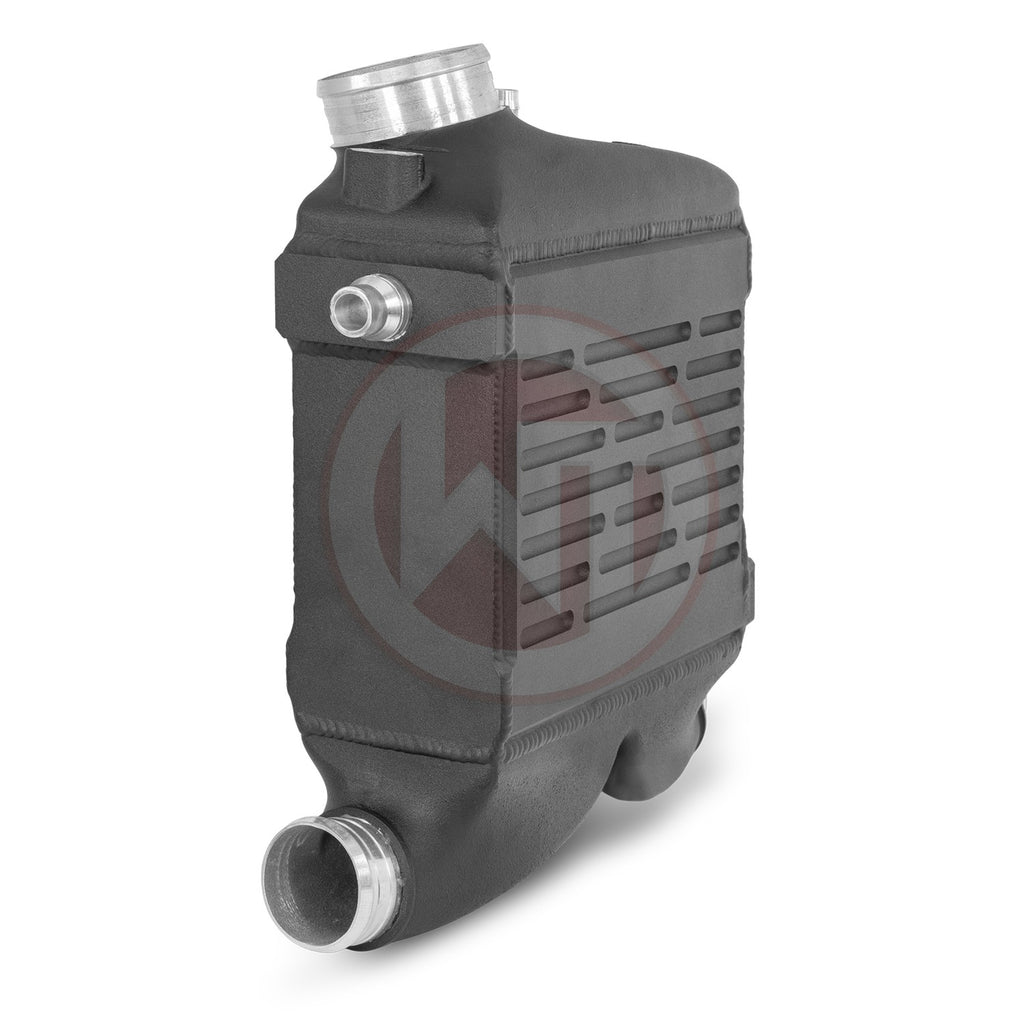

Wagner Competition Intercooler Kit w/ Meth Injection Ports

Mercedes C43 AMG W205/GCL43 AMG W213
$4,529.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

The 3.0 liter V6 biturbo engine (M 276 DE 30 AL) of the Mercedes 43 AMG models is equipped with an indirect charge air cooling circuit. The cooling process of the charge air is therefore implemented by a water-cooled charge air cooler, which is replaced by the WagnerTuning high-performance charge air cooler.


The WAGNERTUNING high-performance intercooler has a new type of performance network with the dimensions 222 mm x 297 mm x 95 mm. This was specially developed for the high demands of the 43 AMG engine and offers 133% more external network volume compared to the original intercooler. The ratio used between the inner and outer cooling surface generates maximum heat transfer and at the same time enables the best possible internal air flow. The cast aluminum end boxes were designed in CAD and optimized with the help of CFD simulations. The result is excellent cooling properties with the lowest possible counter pressure. This kit is therefore also suitable for racing. Optimal cooling of the charged air with a significant increase in performance!



This Intercooler Kit Suits:

  • Mercedes Benz W / S / C / A 205 C450AMG 4MATIC 2015-2016
  • Mercedes Benz W / S / C / A 205 C43 AMG 4MATIC 2016-
  • Mercedes Benz W / S / C / A 213 E43 AMG 4MATIC 2016-2018
  • Mercedes Benz W / S / C / A 213 E450 AMG 4MATIC 2018-06 / 2020
  • Mercedes Benz X / C 253 GLC 43 AMG 4MATIC 2016-2019
  • Mercedes Benz C 292 GLE 43 AMG 4MATIC 2015-2019

Features and Benefits

  • Significantly better cooling performance
  • Less back pressure
  • More power and torque for your engine
  • Mechanical relief of the turbocharger
  • 100% pressure resistance
  • 100% plug and play
  • Up to 4 years guarantee
  • Includes 57mm (2.25inch) aluminum Boost pipe

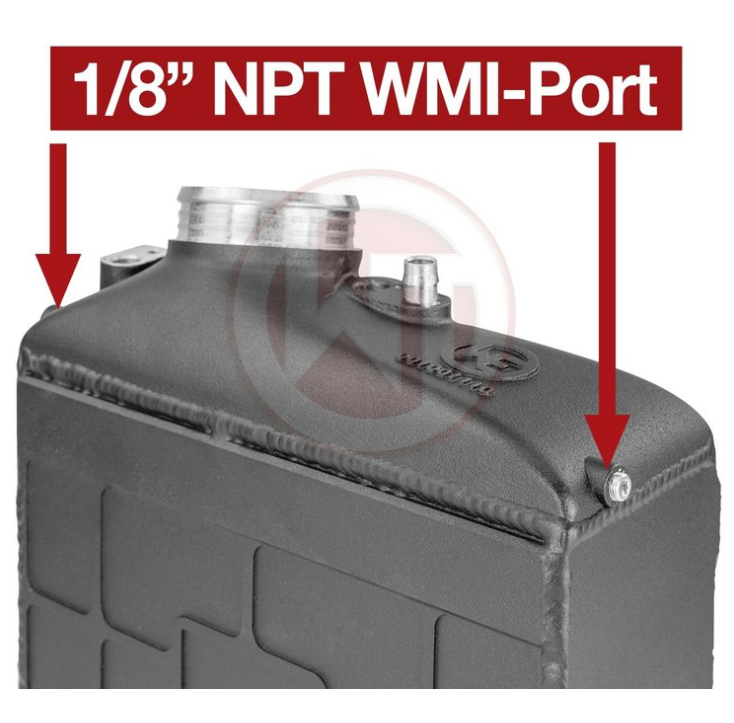

  • Comes with 2 pcs. 1 / 8NPT WMI connections in the upper end box

Technical Specifications

Dimensions of OEM Intercooler:

  • 200 mm x 207 mm x 65 mm
  • V = 2.7L

Dimensions of Wagner Tuning Intercooler:

  • 222 mm x 297 mm x 95 mm
  • V = 6.3L

Fitment Table
