 |  SKU: 200001128

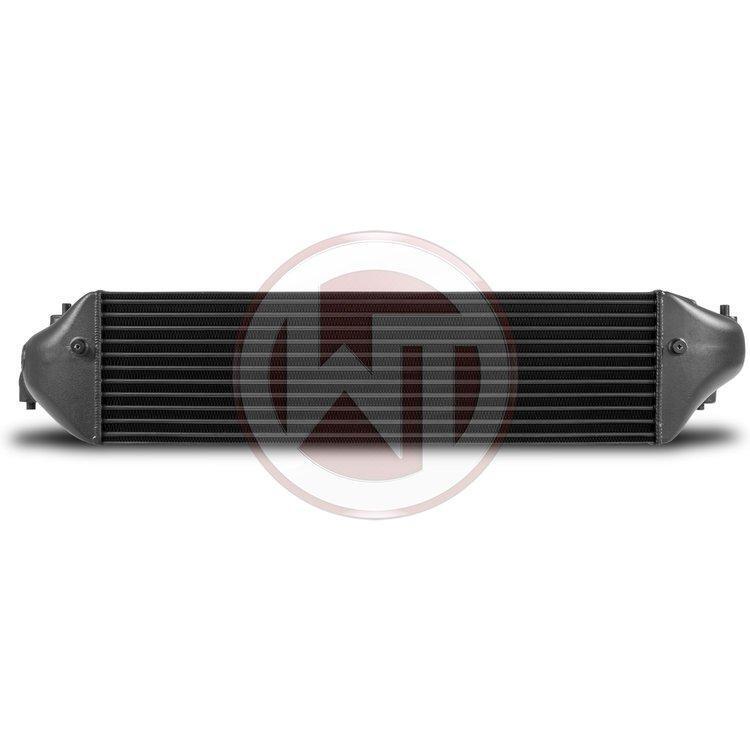

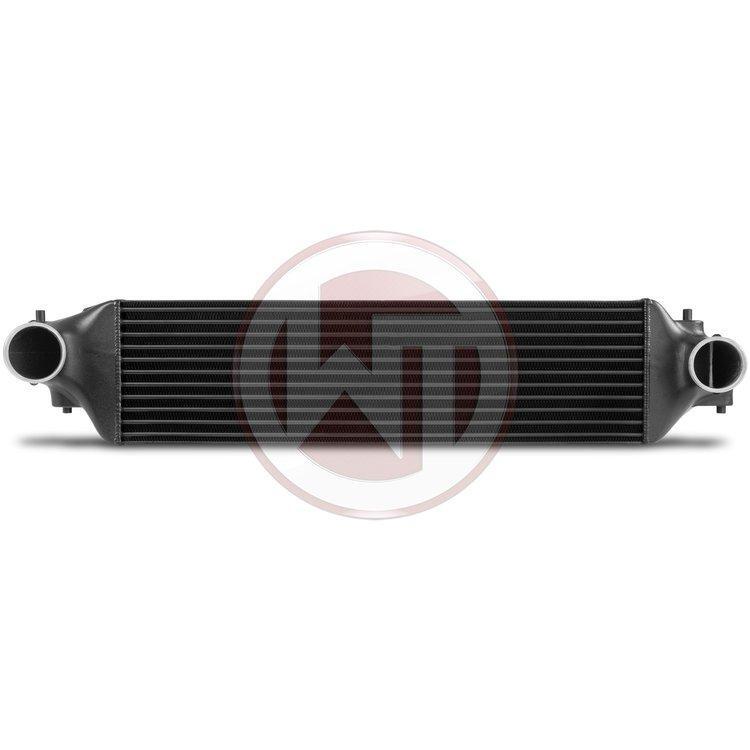

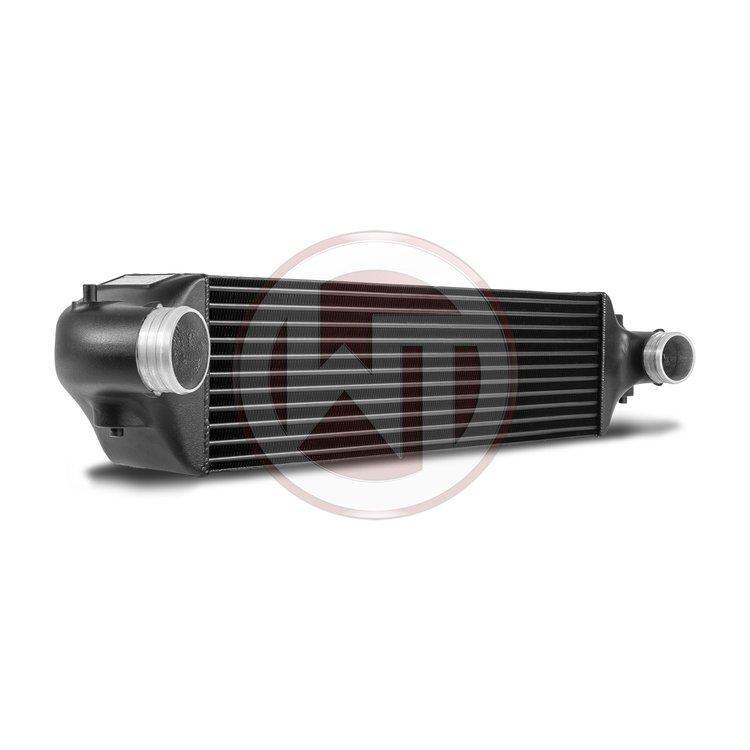

Wagner Tuning Competition Intercooler Kit

Honda Civic Type-R FK8
$1,989.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


The Wagner Tuning high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 670 mm x 183,4 mm x 125 mm (15.4 liters)/ 26,38Inch x 7,22Inch x 4,92Inch (939,76Inch³), which was developed especially for the requirements of the Honda Civic Type R FK8.

This high-performance core offers an 23 % larger frontal surface and 140 % more core volume compared to the stock intercooler.

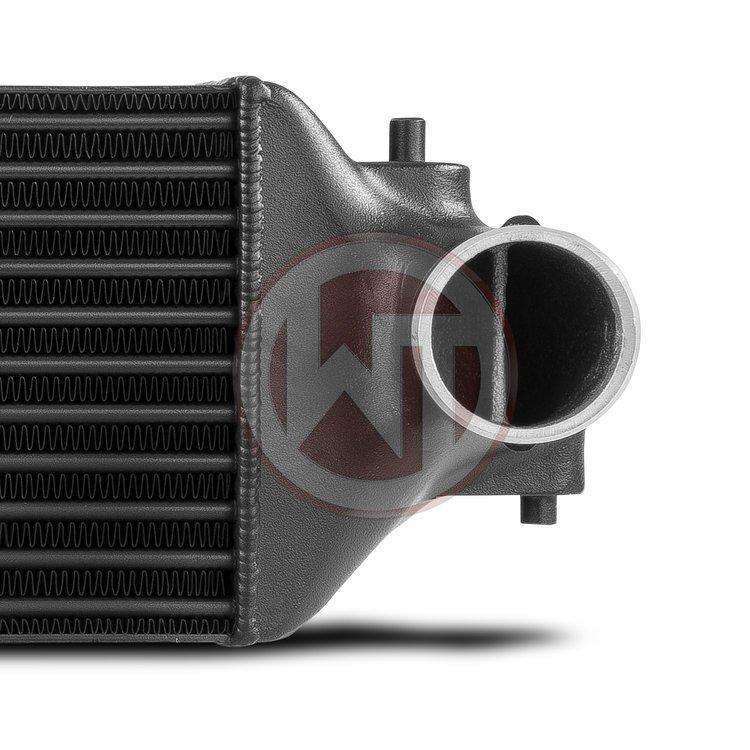

The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler.

The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance.


Features:

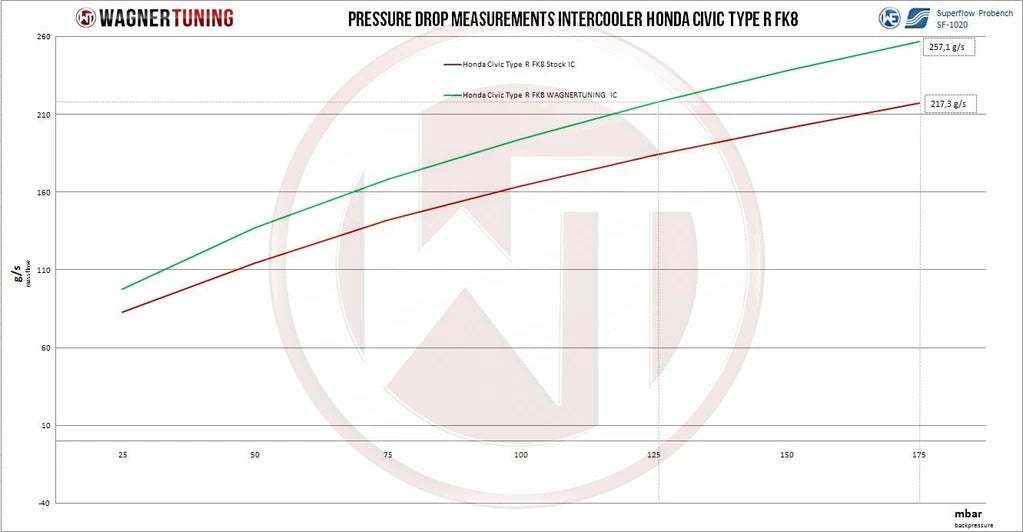

  • Less pressure drop then stock intercooler.

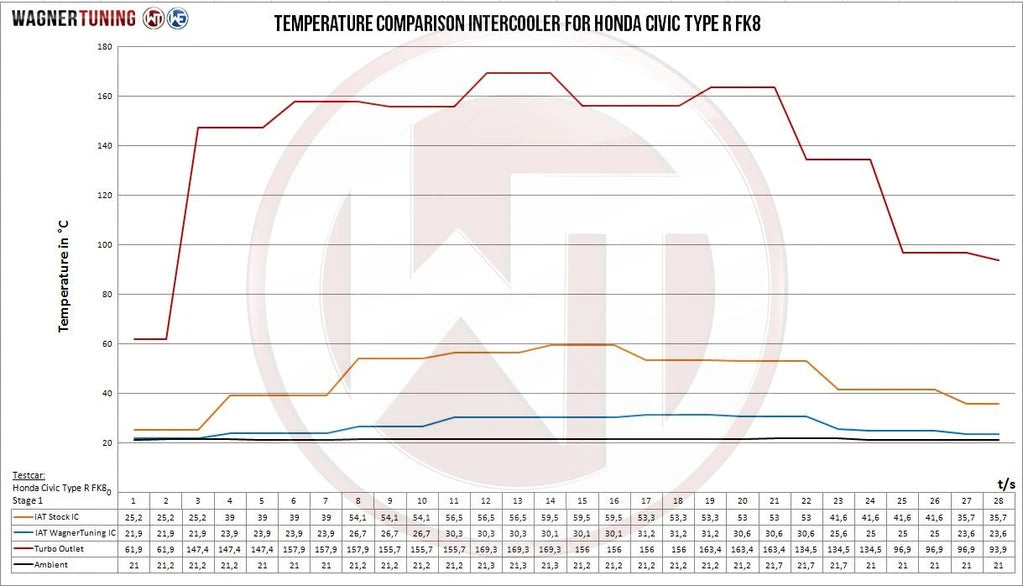

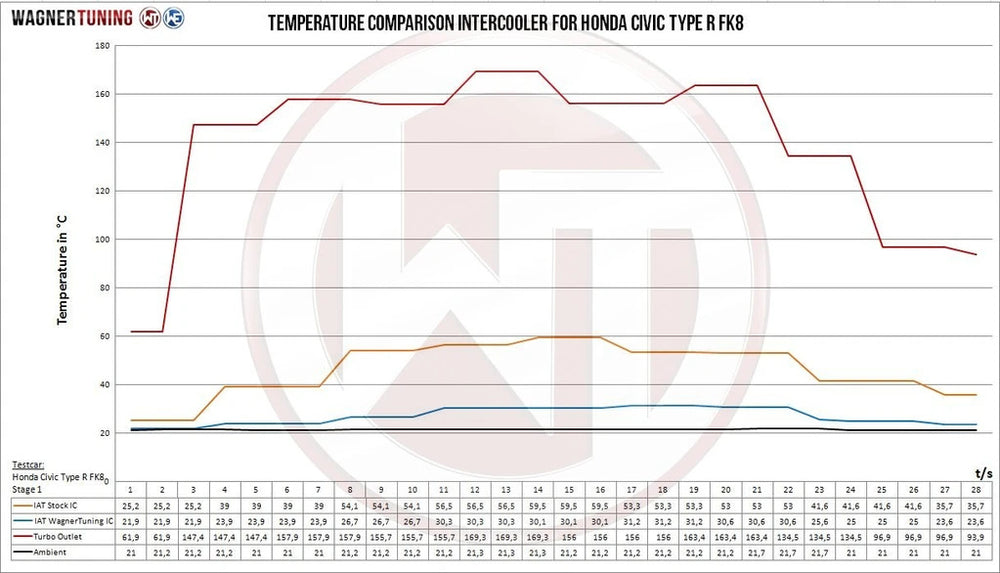

  • Maximum cooling performance with clearly more power.
  • Anti corrosion protective coating with perfect thermal heat dissipating character.
  • Plug & Play Installation
  • All of Wagner products undergo rigorous quality control.
  • Inlet diameter: Ø65 mm
  • Outlet diameter Ø70 mm


Dimensions of stock Intercooler:

  • V = 6.4L
  • A = 6403200 mm²

Dimensions of Wagner Tuning Intercooler:

  • V = 15.4L
  • A = 15359750 mm²

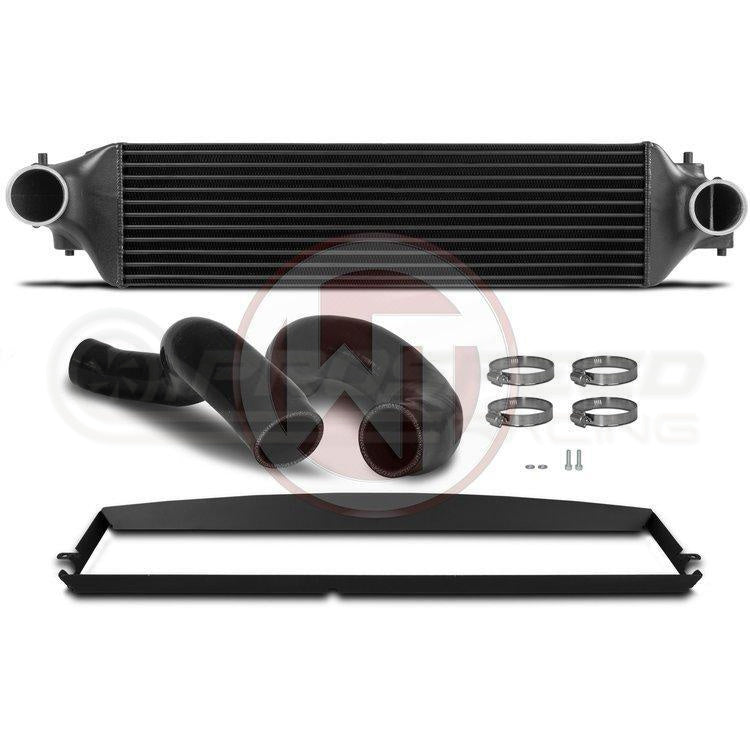

Package Includes:

  • 1 Intercooler
  • 1 Air Baffle
  • 2 Silicone Hoses
  • 1 Mounting Material
  • 1 Installation instructions


Fitment Table
