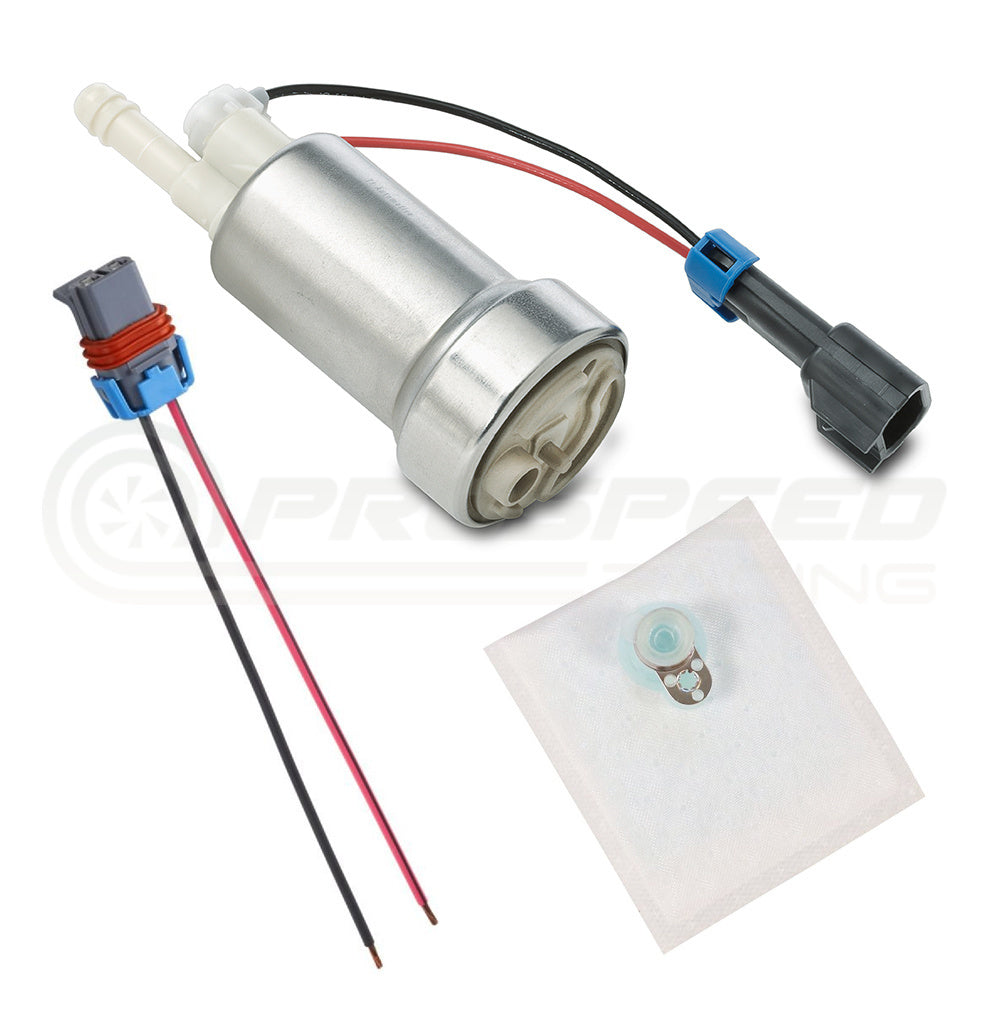

Walbro/TI Automotive 525LPH E85 Safe In Tank Fuel Pump Kit - High Pressure Valve

Enjoy the highest output on today's market with Walbro's new DCSS 39/50 in-tank fuel pump. Able to support an aggressive 700+ horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both petrol and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalleled performance.

Features:

• Fuel: Petrol & E85
• Horsepower: 900+ at 60PSI (naturally aspirated applications)
• Flow Rate: 470lph @ 40psi (tested at 13.5 Volts)
• Directly interchangable with existing Walbro 460lph In-Tank Pumps (F90000267)

Hard Wire Kit Option:

Get the most out of your new high flow fuel pump by ensuring it gets the voltage it needs. Old, compromised OE wiring can limit the voltage your fuel pump receives. A hardwire kit includes everything you need to safely, easily, and reliably wire your pump directly to your battery, ensuring no matter how hard you push your pump, your wiring will be up to the task. We especially recommend this kit for use in cars over 10 years old, cars making over 400whp, and cars which were originally not designed for high horsepower.

Select an AEM hard wire kit when adding to cart.

• Fuel: FLEX
• Horsepower: 985
• Flow @ 276 kPa: 450 lph
• Flow @ 40 psi: 125 gph
• Max System Pressure (psi): 112
• Max System Pressure (kPa): 772
• Over All Pump Length: 131mm
• Main Housing Diameter: 39mm
• Lower Housing Diameter: 50mm
• Fuel Inlet Diameter: 11mm OD
• Fuel Outlet Diameter: 11mm OD
• Test Voltage: 13.5 Volts
• Internal Check Valve: Yes
• Recommended for Boosted Applications: Yes
