 |  SKU: BTF93Z

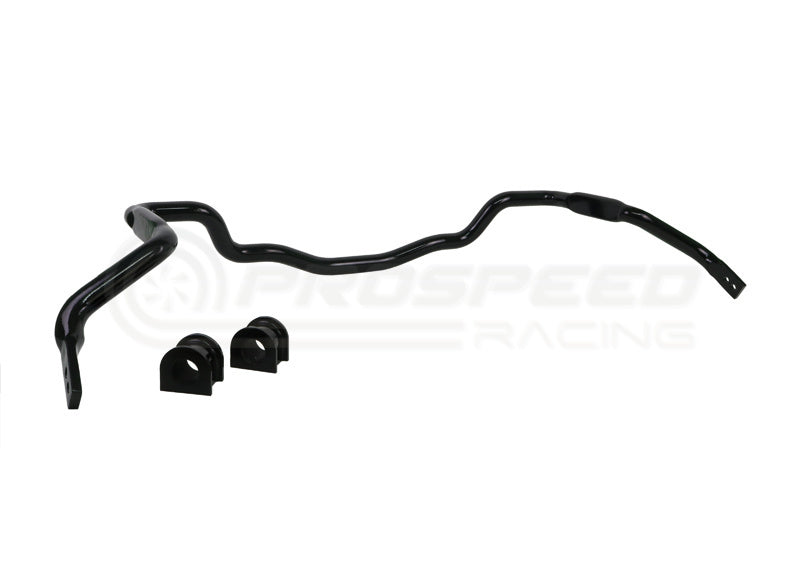

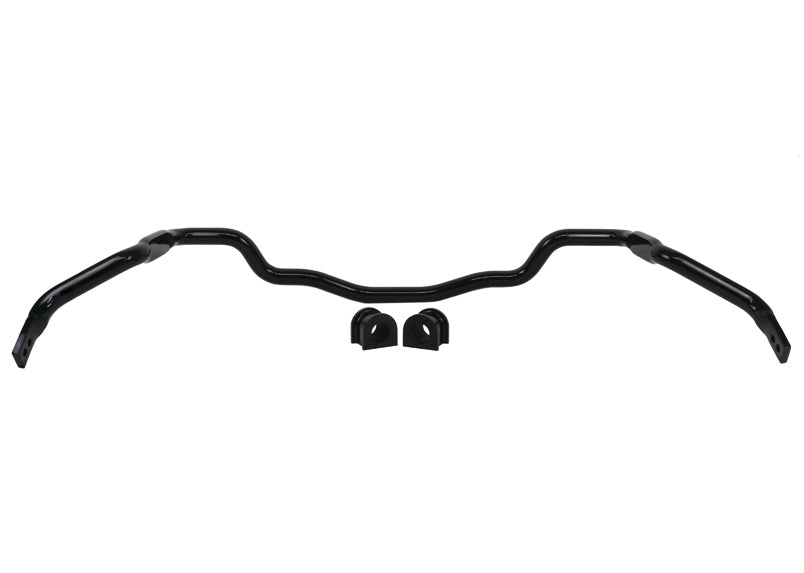

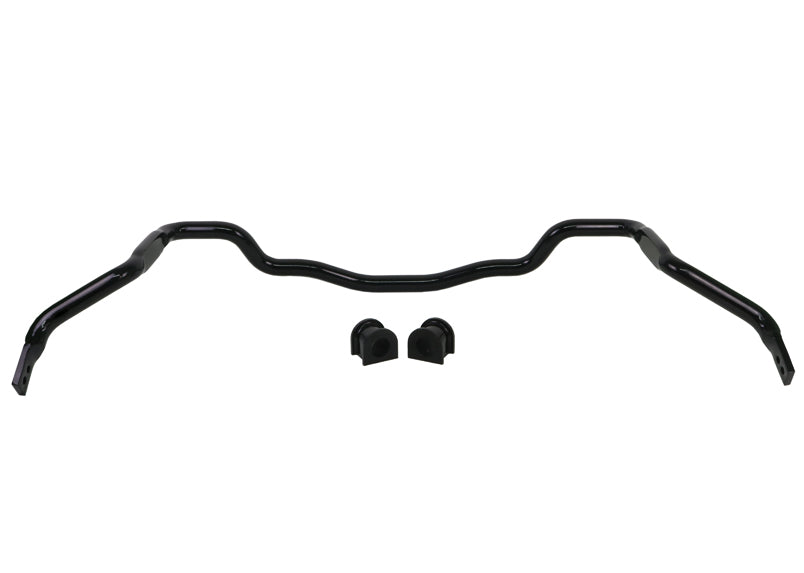

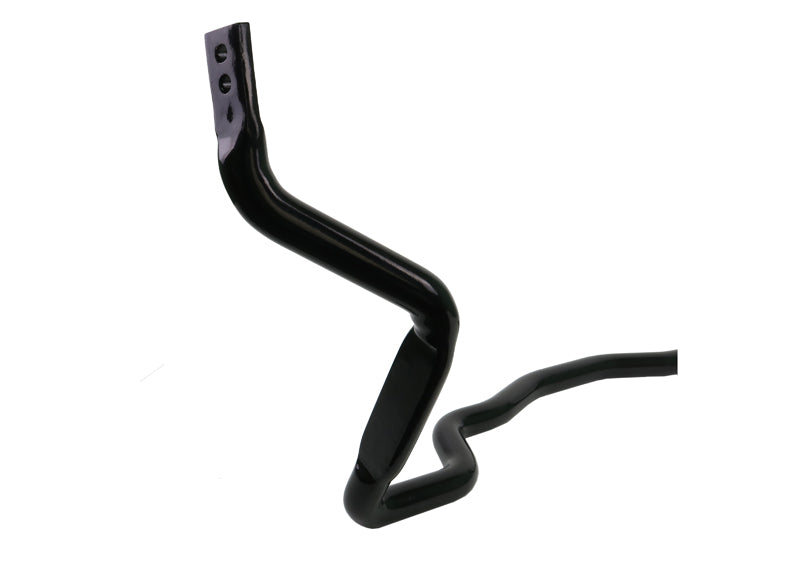

Whiteline 33MM Front Sway Bar

Toyota Fortuner GUN156/Hilux N25R, N26R,N126R, N136R

$391.60
RRP $489.50 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 33mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.



Features:

  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  •

    Kit Includes:

  • 1 Sway Bar, 2 Bushings, Grease
  •

    Alignment Change:

  • N/A
  •

    Service Kit:

  • N/A
  •

    Installation:

  • Fitment Time (Hours): 2
  • Degree Of Fitment Difficulty: DIY - With Specialist Tools
  • Fitment Notes: N/A
  • Wheel Alignment Required: No
  •

    Vehicle Fitment and Important Notes:

  • 2015-ON TOYOTA FORTUNER GUN156 4WD 4/6CYL (33mm - 2 point adjustable)
  • 2005-2015 TOYOTA HILUX GGN25R, KUN26R 4WD IFS FRONT AND LEAF SPRING REAR 4/6CYL (33mm - 2 point adjustable)
  • 2015-ON TOYOTA HILUX GGN125R, GUN126R, GUN136R 4WD IFS FRONT AND LEAF SPRING REAR 4/6CYL (33mm - 2 point adjustable)
  •

    Technical Specifications

    Swaybar Specifications:

    DIAMETERMATERIALADJUSTMENTNOTES
    33mmSolid Spring Steel2 point adjustable

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    Fitment Table
