 |  SKU: W93398

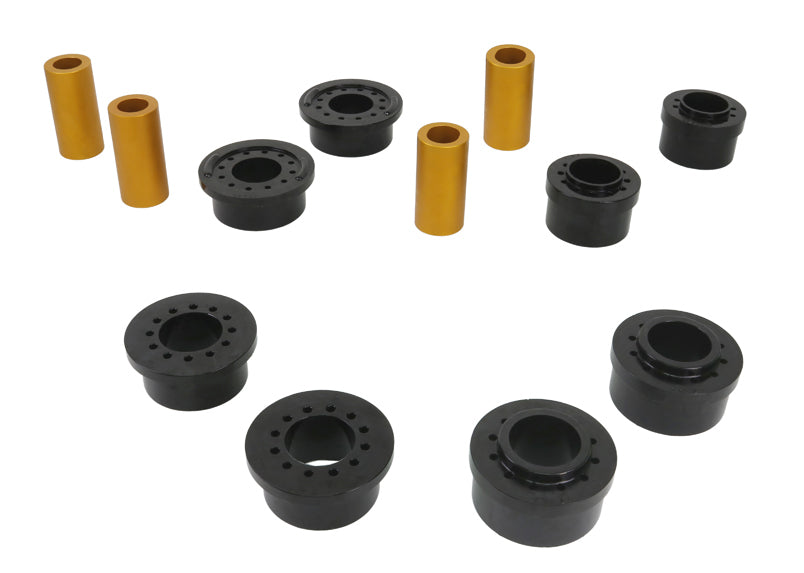

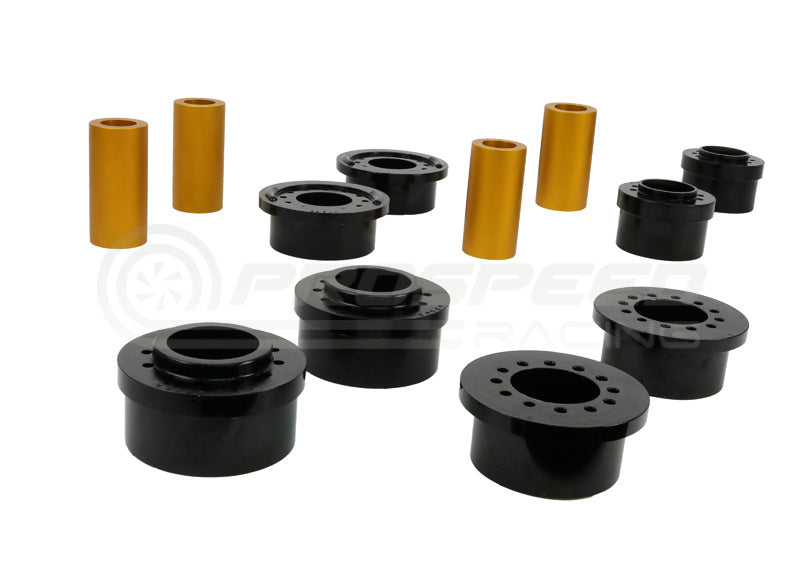

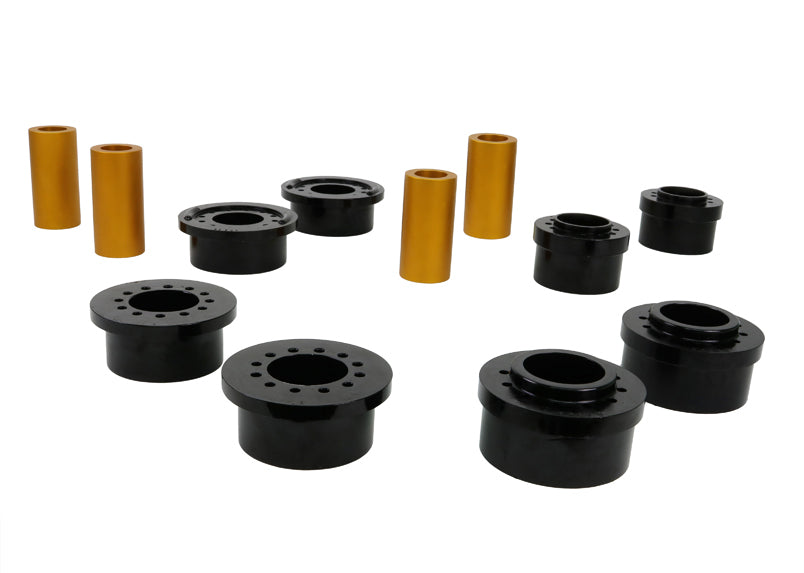

Whiteline Crossmember

Mount Bushing (Cadillac CTS 08-14)
$301.98
RRP $377.47 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description
Ā

Description

Notes: Important
Kits Required:Ā 1
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Bush
Type		 Bush
Qty		 OD
A 		ID
B 		L
C 		FL
D 		FLOD
E 		C/Tube
QTY		 C/Tube
Size
1 2 85 mm 50 mm 47 mm 10 mm 105 mm 2/2 50x30.7x105 / 50x30/35x101 mm
1 2 85 mm 50 mm 62 mm 25 mm 93 mm 2/2 50x30.7x105 / 50x30/35x101 mm
1 2 95 mm 50 mm 45 mm 11.5 mm 117 mm 2/2 50x30.7x105 / 50x30/35x101 mm
1 2 95 mm 50 mm 57 mm 23 mm 103 mm 2/2 50x30.7x105 / 50x30/35x101 mm

Specifications

Bush Type 1
Bush Qty 2
OD AA/AB 85 mm
OD AA/AB 95 mm
ID B 50 mm
L C 47 mm
L C 62 mm
L C 45 mm
L C 57 mm
2FL D25 mm2FL D
Ā

Technical Specifications

Kit Specifications:

KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
8285504710105 2 / 250x30.7x105 / 50x30/35x101Aluminium Crush Tube + Oval ID

Fitment Table
