 |  SKU: GS1-VWN002

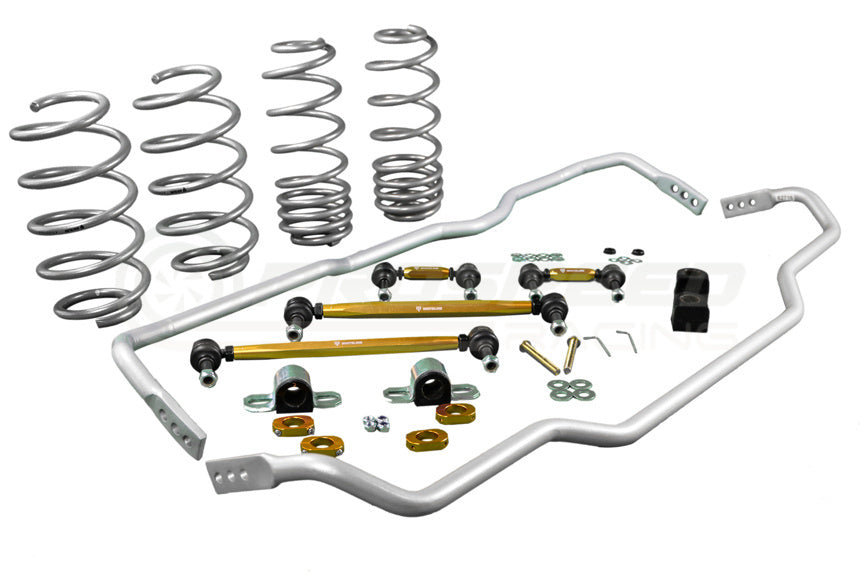

Whiteline F And R Grip Series Kit - VW Golf GTI Mk5

VW Golf GTI Mk5
$1,210.83
RRP $1,424.50 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) swaybars, drop links and performance lowering springs.



Features:

  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Cold rolled in Europe from the highest quality material.

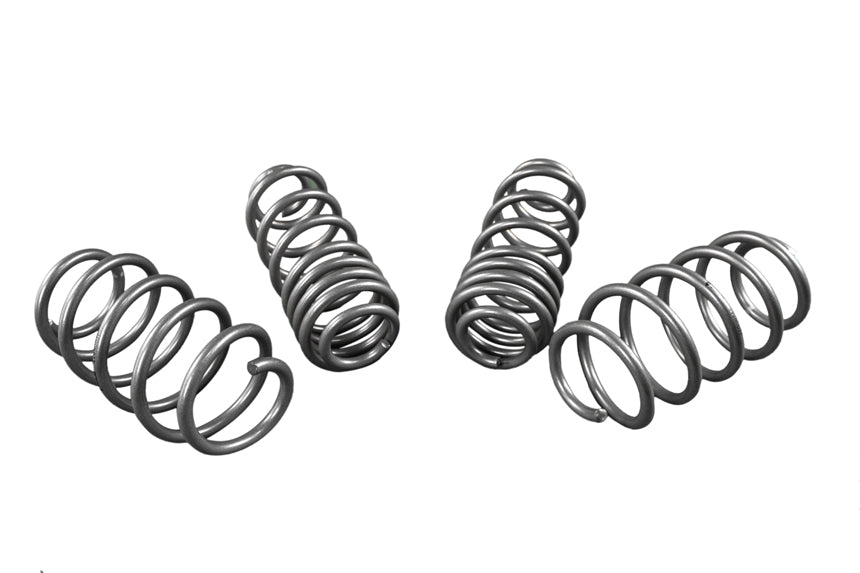

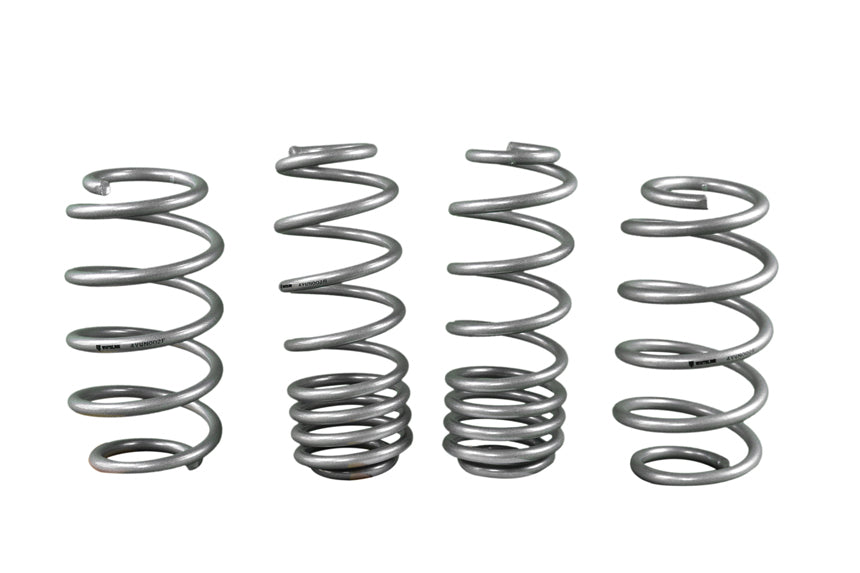

  • These progressive rate springs are designed to provide improved performance without compromising ride quality characteristics.
  • Engineered for superior fit/performance with OEM shocks while produced to the finest tolerances ensuring exact fitment.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

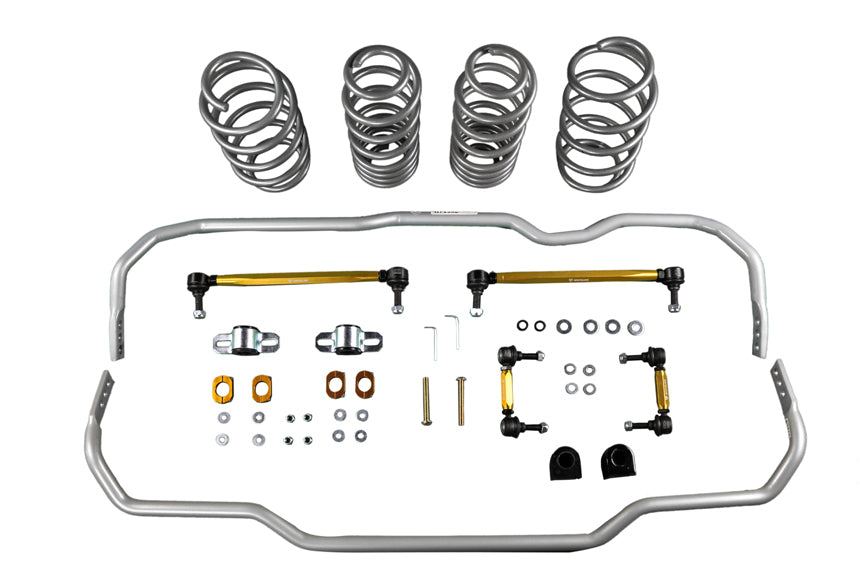

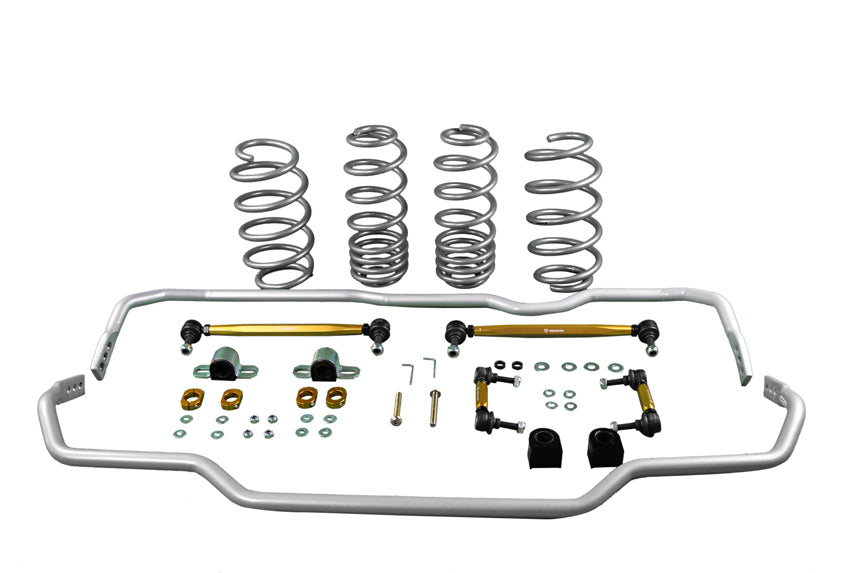

  • 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 2 Bolts, 18 Washers, 4 Nuts, Install Guide

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 8
  • Degree Of Fitment Difficulty: Trade Specialist
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: Yes

    •

    Vehicle Fitment and Important Notes:

  • 2003-2009 VOLKSWAGEN GOLF MK5 GTI (TYP 1K AND 1KP) 4/6CYL (Vehicle sway bar and lowered spring kit - contains WSK-VWN002 and BWK002 - essential to 'Activate more grip')
    •

    Technical Specifications

    Swaybar Specifications:

    DIAMETERMATERIALADJUSTMENTNOTES
    Frt=24mm Rr=24mmSolid Spring SteelFrt=3 point adjustable & Rr=3 point adjustableSway bar vehcile kit includes front & rear sway bars

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    Fitment Table
