 |  SKU: KLC31

Whiteline F And R Sway Bar Link

Subaru Impreza, WRX 94-07/Forester SF/Liberty BC, BD, BF, BG
$382.50
RRP $450.00 (Save 15%)

Description


The kit utilises a high tensile extruded alloy link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 25% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier. Link shape and bush mounts are designed to allow maximum sway bar articulation to ensure full suspension travel while acting more directly under vertical load. Standard length maintains correct sway bar operation.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

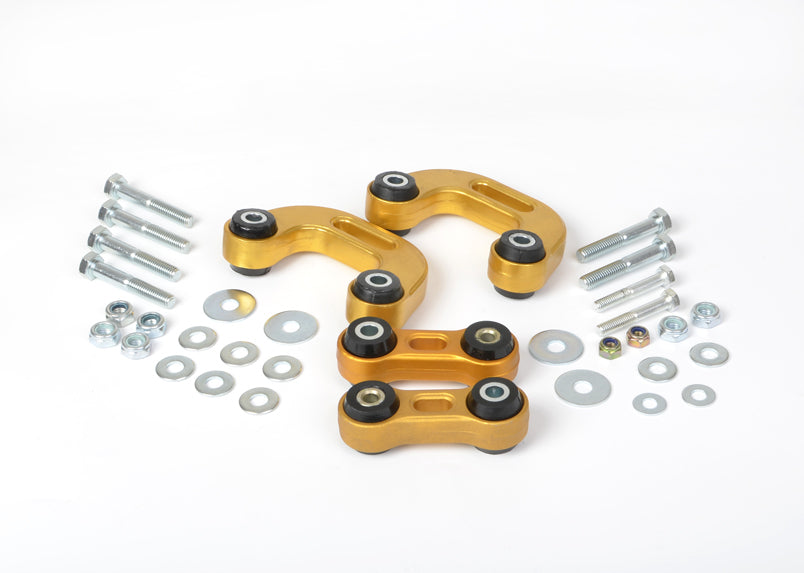

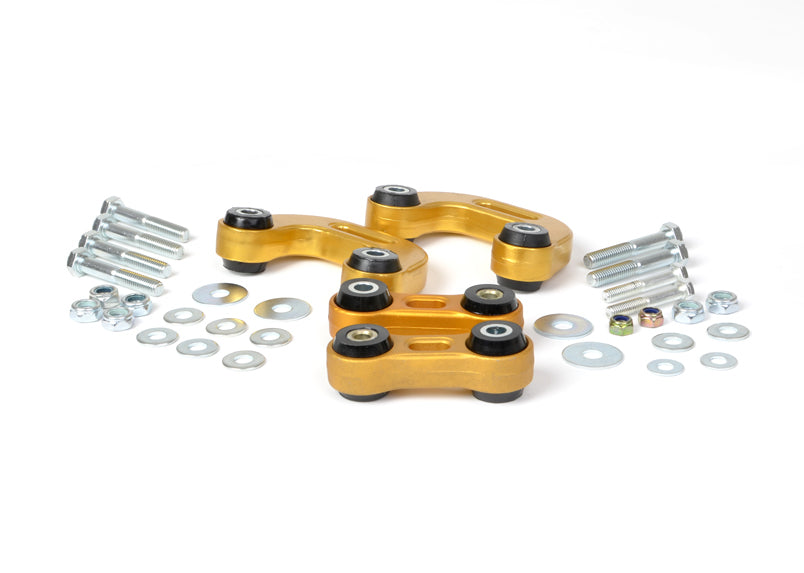

    Kit Includes:

  • 4 Links, 8 Bolts, 16 Washers, 8 Nuts, Install Guide, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 1997-2002 SUBARU FORESTER SF INCL TURBO 4CYL (Vehicle box set - KLC26 and KLC30)
  • 1993-2000 SUBARU IMPREZA GC SEDAN, GF WAGON EXCL WRX AND STI 4CYL (Suits steel arm - vehicle box set - KLC26 and KLC30)
  • 2000-2002 SUBARU IMPREZA GD SEDAN, GG WAGON MY01-02 EXCL WRX AND STI 4CYL (Suits wagon - vehicle box set - KLC26 and KLC30)
  • 2002-2007 SUBARU IMPREZA GD SEDAN, GG WAGON MY03-07 EXCL WRX AND STI 4CYL (Suits wagon - vehicle box set - KLC26 and KLC30)
  • 1993-2000 SUBARU IMPREZA WRX GC SEDAN, GF WAGON 4CYL (Suits steel arm - vehicle box set - KLC26 and KLC30)
  • 2000-2002 SUBARU IMPREZA WRX GG WAGON MY01-02 4CYL (Vehicle box set - KLC26 and KLC30)
  • 2002-2007 SUBARU IMPREZA WRX GG WAGON MY03-07 4CYL (Vehicle box set - KLC26 and KLC30)
  • 1989-1994 SUBARU LEGACY BC, BF INCL RS TURBO 4CYL (Suits models 10/1992 - on - vehicle box set - KLC26 and KLC30)
  • 1994-1998 SUBARU LEGACY BD, BG 4CYL (Vehicle box set - KLC26 and KLC30)
  • 1989-1994 SUBARU LIBERTY BC, BF INCL RS TURBO 4CYL (Suits models 10/1992-on - vehicle box set - KLC26 and KLC30)
  • 1994-1998 SUBARU LIBERTY BD, BG 4CYL (Vehicle box set - KLC26 and KLC30)
  • 1996-1998 SUBARU OUTBACK BG 4CYL (Vehicle box set - KLC26 and KLC30)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    BushingFixedN/AN/A8mm/10mmAlloy Link Inc Hardware65mmHorizontal

    Fitment Table
