 |  SKU: BWK001

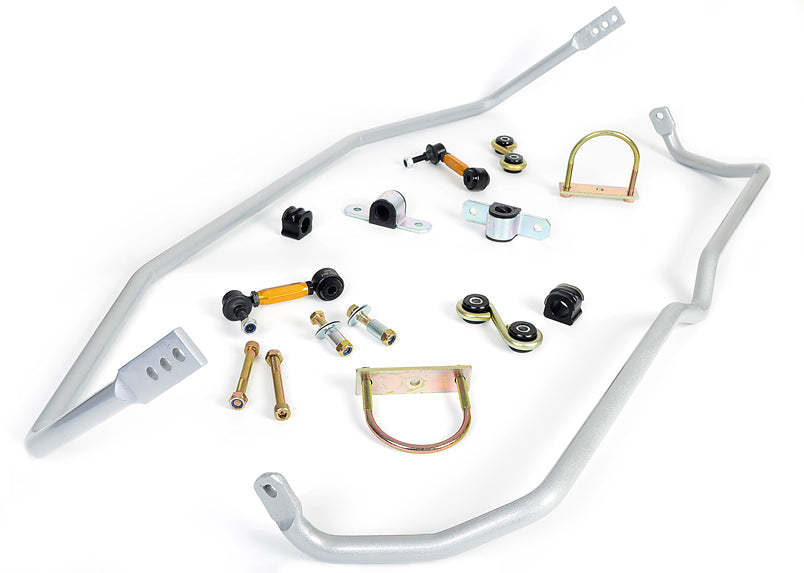

Whiteline F And R Sway Bar Vehicle Kit

Audi A3 8L/TT 8N/VW Golf Mk4 Inc Gti/Jetta Mk4 1J
$818.40
RRP $1,023.00 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Engineered to 'Activate More Grip', BWK001 is a packaged solution designed to improve performance and enhance the driving experience of your vehicle. Boasting a 22mm 3 point adjustable front sway bar and 24mm rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.



Features:

  • Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
  • Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
  • Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
  • Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
  • Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Manufactured from high quality steel and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

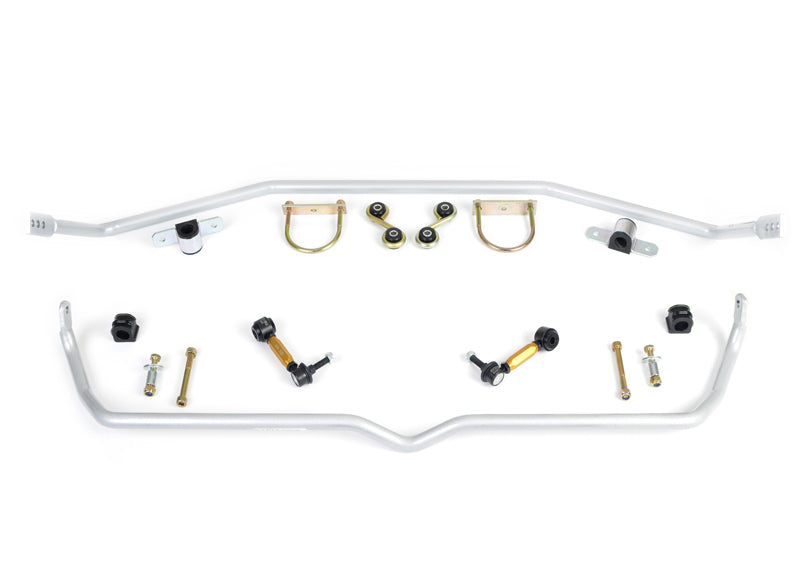

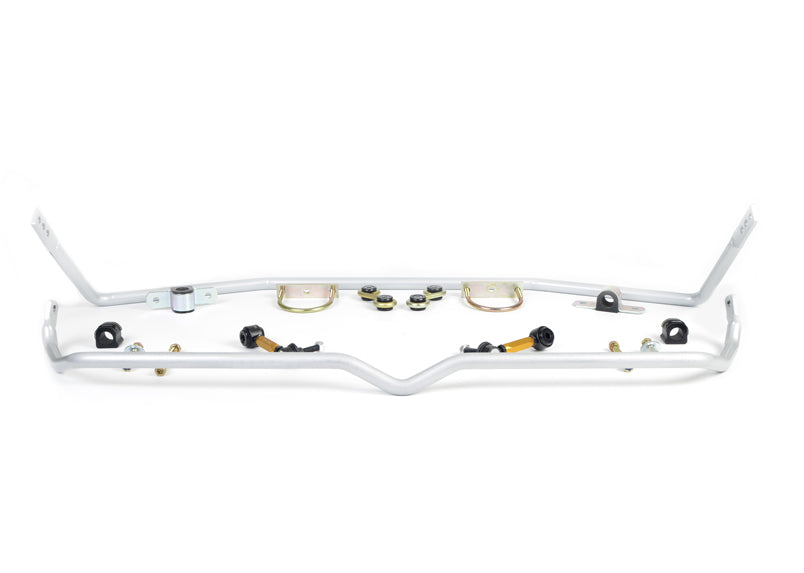

    Kit Includes:

  • 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 2 Plates, 2 Spacers, 2 U-Bolts, 4 Bolts, 4 Washers, 4 Nuts, Install Guide, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): N/A
  • Degree Of Fitment Difficulty: N/A
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 1996-2004 AUDI A3 MK1 (TYP 8L) INCL QUATTRO 4CYL (Suits FWD models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1998-2006 AUDI TT MK1 (TYP 8N) FWD 4/6CYL (Suits models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1997-2010 VOLKSWAGEN BEETLE MK4 (TYP 9C) EXCL 4MOTION 4/5/6CYL (Suits models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1999-2005 VOLKSWAGEN BORA MK4 (TYP 1J) INCL 4MOTION 4/5/6CYL (Suits FWD models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1997-2003 VOLKSWAGEN GOLF MK4 (TYP 1J) 4/6CYL (Suits models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1997-2003 VOLKSWAGEN GOLF MK4 GTI (TYP 1J) 4/6CYL (Suits models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
  • 1999-2007 VOLKSWAGEN JETTA A4 MK4 (TYP 1J) FWD 4/5/6CYL (Suits models with control arm link mount - contains BAF13, BWR22XZ and KLC150 - essential to 'Activate more grip')
    •

    Technical Specifications

    Swaybar Specifications:

    DIAMETERMATERIALADJUSTMENTNOTES
    Frt=22mm Rr=24mmSolid Spring SteelFrt=Non adjustable & Rr=3 point adjustableSway bar vehcile kit includes front & rear sway bars and links

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
