 |  SKU: W93445

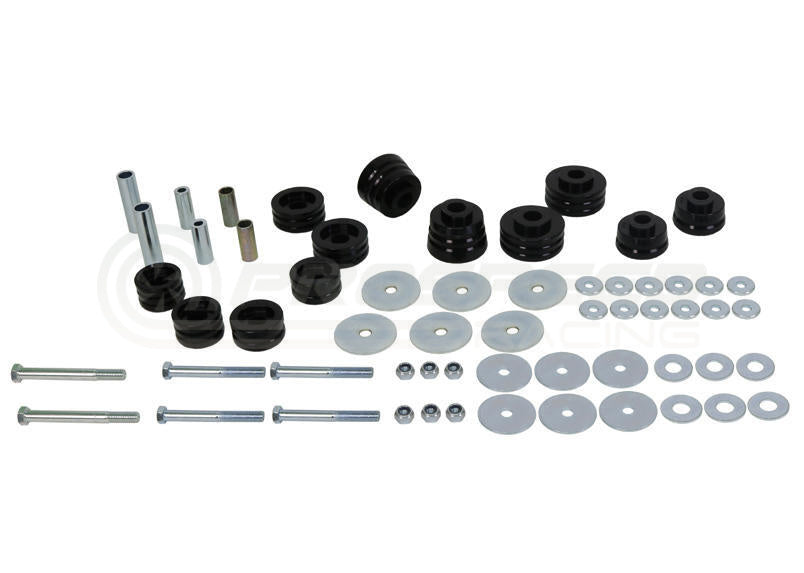

Whiteline Front and Rear Body Mount Bushing Kit

Ford Ranger PJ,PK/Mazda BT-50 UN
$406.62
RRP $508.27 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.



Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Install guide included providing detailed instructions on how to install your new purchase .



Important Notes:

  • Kits Required: 1



Kit Includes:

  • 12 Bushings, 6 Tubes, 6 Bolts, 30 Washers, 6 Nuts, Install Guide



Vehicle Fitment and Important Notes:

  • FORD RANGER 4WD 2006-2011 - RANGER PJ, PK 4WD
  • MAZDA BT-50 4WD 2006-2011 - BT-50 UN 4WD


Technical Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
6 2 34.6 mm 22 mm 42.7 mm 33.2 mm 71.2 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click here

6 2 34.6 mm 22.2 mm 33.3 mm 23.3 mm 64 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click here

6 2 47 mm 25.4 mm 46.6 mm 36.6 mm 87 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click here

6 2 47 mm 25.4 mm 34 mm 22.5 mm 75 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click here

6 2 39.7 mm 25.4 mm 64 mm 54 mm 84 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click here

6 2 39.7 mm 25.4 mm 38 mm 28.5 mm 59.3 mm 2/02/2002 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm click her
