 |  SKU: W53655

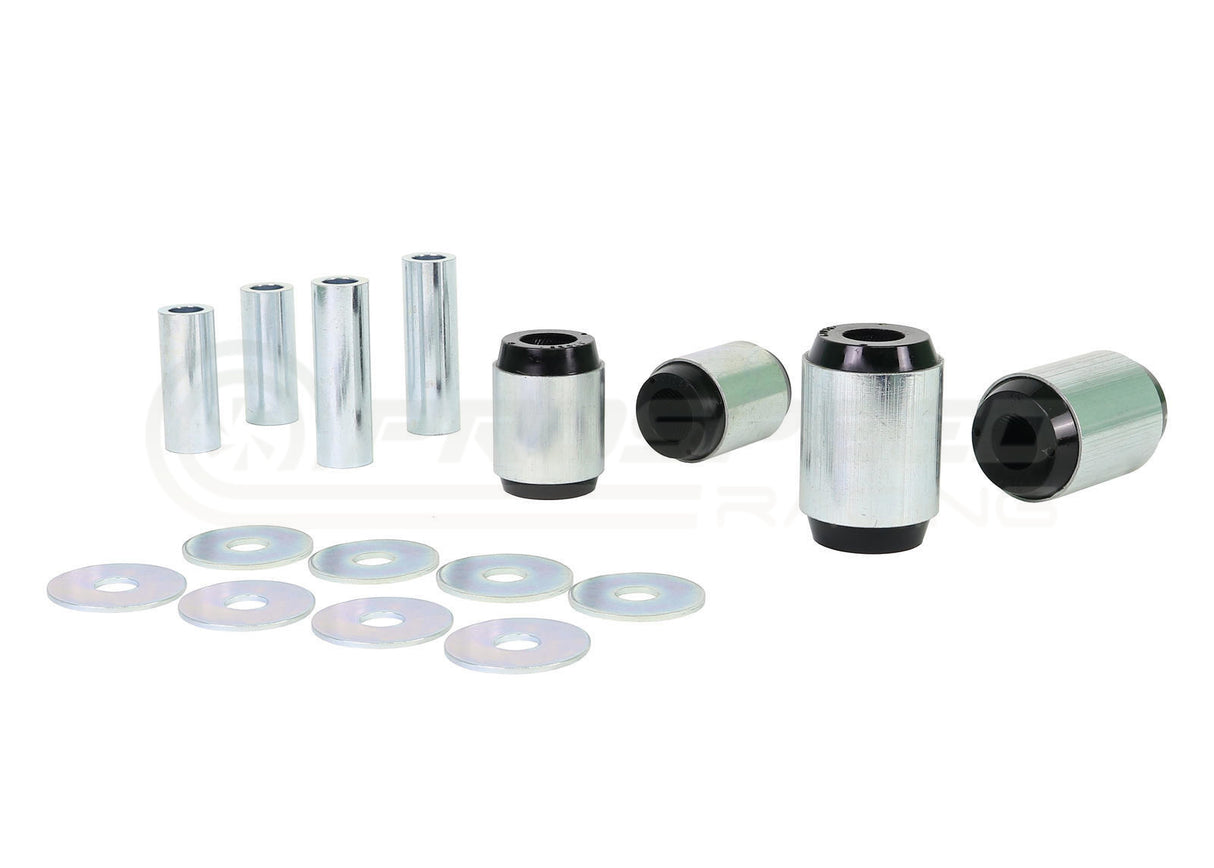

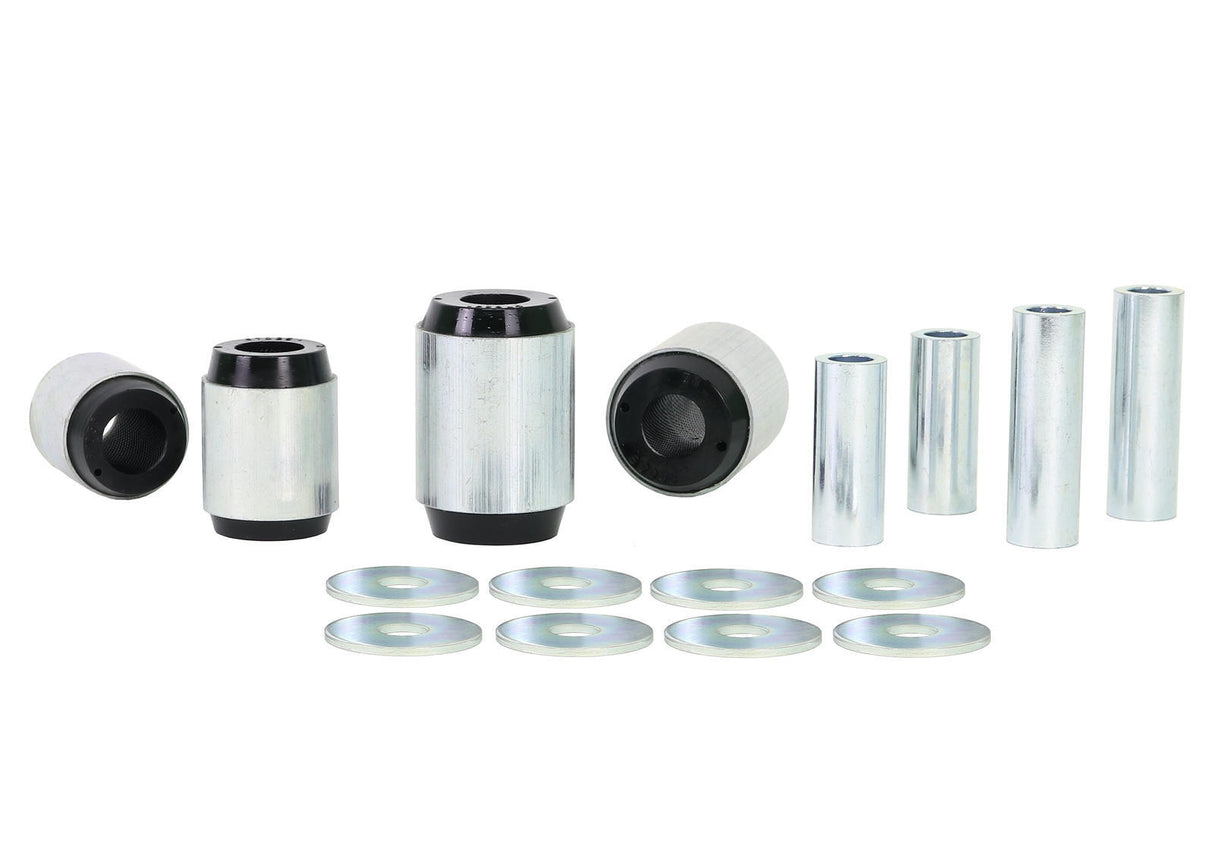

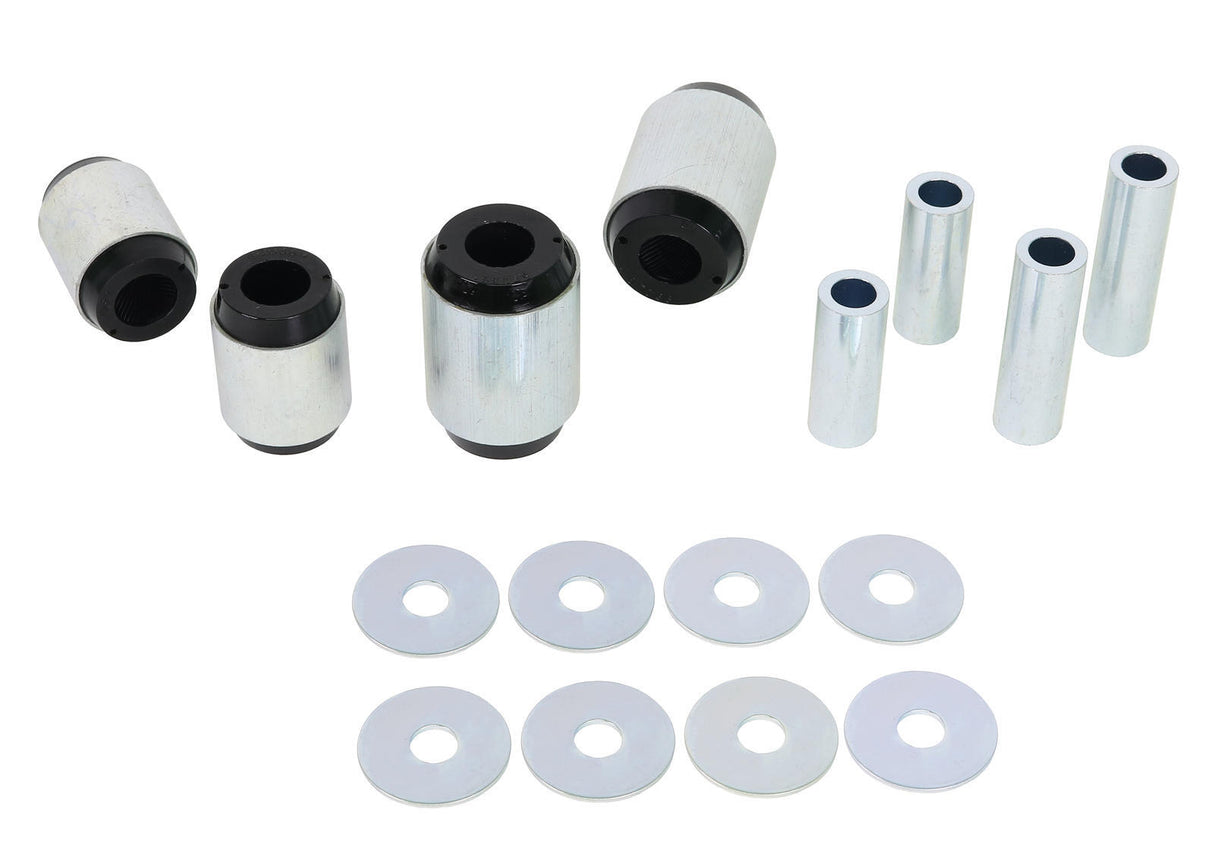

Whiteline Front Control Arm Lower Bushing Kit

Toyota Hilux 15+/Fortuner 15+ (4WD)
$196.02
RRP $245.03 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.



Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Specially bonded design for optimised strength typically required in high load bearing applications.
  • Precisely placed dampening voids further reduces harshness from sudden road inputs.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This kit is covered by a limited lifetime warranty including parts and labour.
  • Install guide included providing detailed instructions on how to install your new purchase .



Important Notes:

  • N/A



Kit Includes:

  • 4 Bushings, 4 Tubes, 8 Washers, Install Guide, Grease



Vehicle Fitment and Important Notes:

  • TOYOTA FORTUNER 2015-ON - FORTUNER GUN156 4WD
  • TOYOTA HILUX 4WD 2015-ON - HILUX GGN125R, GUN126R, 136R 4WD (IFS FRONT AND LEAF SPRING REAR)


Technical Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 2 48.1 mm 25.4 mm 65.6 mm 10.8 mm 56 mm 2-Feb 25.4x16.2x65 / 25.4x16.2x83 mm click here

1 2 56.1 mm 25.4 mm 83.5 mm 12.8 mm 66.5 mm 2-Feb 25.4x16.2x65 / 25.4x16.2x83 mm click here
