 |  SKU: KBR39

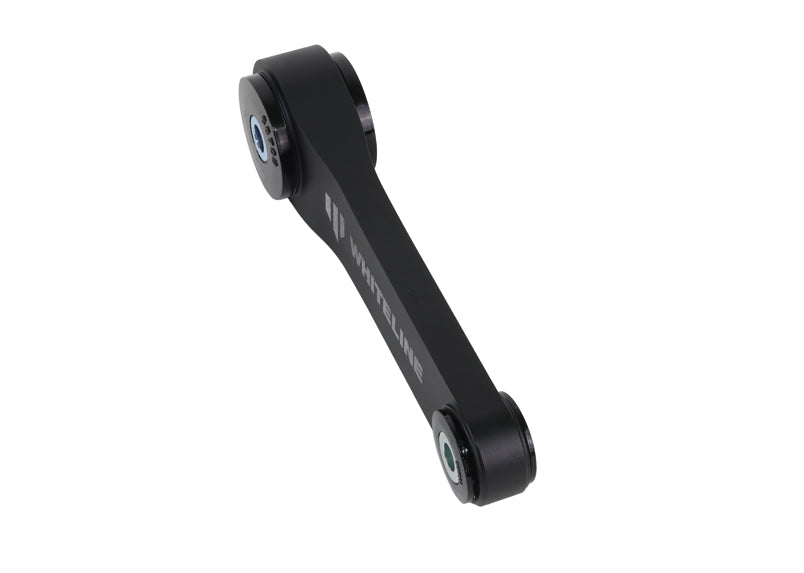

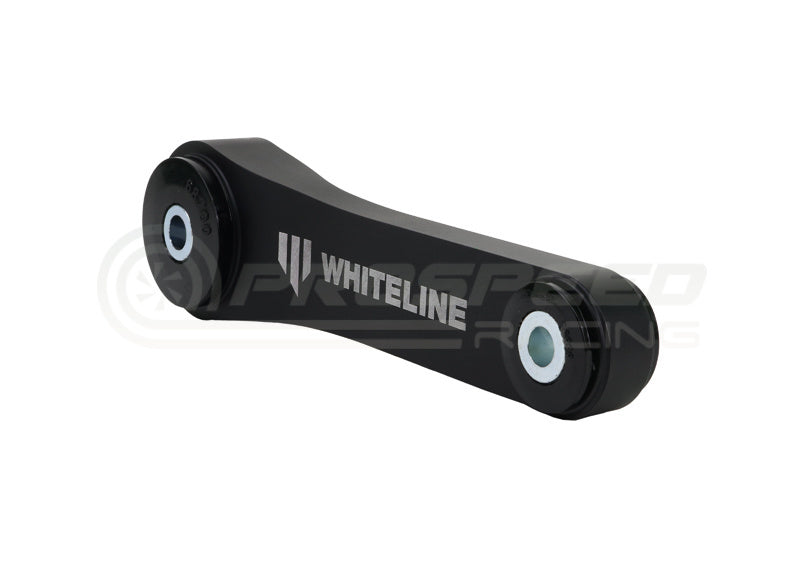

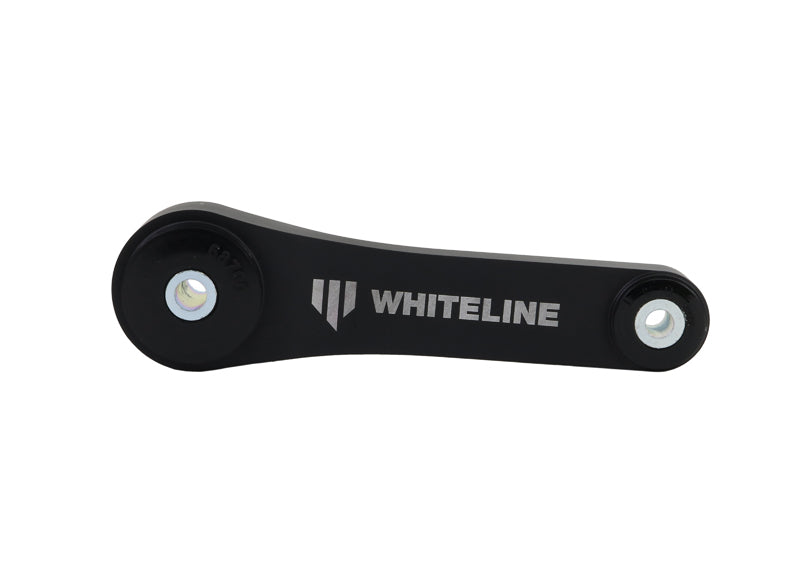

Whiteline Front Engine Pitch Stop Mount

Subaru
$198.90
RRP $234.00 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Subaru designed the pitch stop mount to assist in controlling the engine and drivetrain forward and aft twisting motion. The pitch stop is inherently soft due to the plastic body and high compliance rubber bushing design and was built for comfort and not responsiveness or feel. Whiteline's Billet 6061-T6 aluminium pitch stop mounting is built to handle the demands of high torque and power output engines by limiting the amount of movement the engine and drivetrain will place upon the pitch stop. Utilising low compliance bushing technology this eliminates the slop, twisting and shudder found in the OEM rubber bushings allowing for a faster, positive, responsive feel of power delivery on and off the throttle.



Features:

  • Bracing maintains alignment angles and spring rates by greatly reducing body or chassis flex.
  • Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.



Kit Includes:

  • 1 Pitch Mount, Install Guide



Alignment Change:

  • N/A



Service Kit:

  • N/A



Installation:

  • Fitment Time (Hours): 2
  • Degree Of Fitment Difficulty: DIY - With Specialist Tools
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No



Vehicle Fitment and Important Notes:

  • 2002-2008 SUBARU FORESTER SG INCL TURBO 4CYL (Pitch arm under airbox/intercooler)
  • 2008-2013 SUBARU FORESTER SH INCL TURBO 4CYL (Pitch arm under airbox/intercooler)
  • 1993-2000 SUBARU IMPREZA GC SEDAN, GF WAGON EXCL WRX AND STI 4CYL (Pitch arm under airbox)
  • 2000-2002 SUBARU IMPREZA GD SEDAN, GG WAGON MY01-02 EXCL WRX AND STI 4CYL (Pitch arm under airbox)
  • 2002-2007 SUBARU IMPREZA GD SEDAN, GG WAGON MY03-07 EXCL WRX AND STI 4CYL (Pitch arm under airbox)
  • 2007-2011 SUBARU IMPREZA GE SEDAN, GH HATCH EXCL WRX AND STI 4CYL (Pitch arm under airbox)
  • 2011-2016 SUBARU IMPREZA GJ SEDAN, GP HATCH EXCL WRX AND STI 4CYL (Pitch arm under airbox)
  • 1993-2000 SUBARU IMPREZA WRX GC SEDAN, GF WAGON 4CYL (Pitch arm under intercooler)
  • 2000-2002 SUBARU IMPREZA WRX GD SEDAN MY01-02 4CYL (Pitch arm under intercooler)
  • 2000-2002 SUBARU IMPREZA WRX GG WAGON MY01-02 4CYL (Pitch arm under intercooler)
  • 2002-2007 SUBARU IMPREZA WRX GD SEDAN MY03-07 4CYL (Pitch arm under intercooler)
  • 2002-2007 SUBARU IMPREZA WRX GG WAGON MY03-07 4CYL (Pitch arm under intercooler)
  • 2007-2014 SUBARU IMPREZA WRX GV SEDAN, GR HATCH 4CYL (Pitch arm under intercooler)
  • 2014-21 SUBARU IMPREZA WRX VA SEDAN 4CYL (Pitch arm under intercooler)
  • 2022-ON SUBARU IMPREZA WRX VB SEDAN 4CYL (Pitch arm under intercooler)
  • 1993-2000 SUBARU IMPREZA WRX STI GC SEDAN, GF WAGON 4CYL (Pitch arm under intercooler)
  • 2000-2002 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY01-02 4CYL (Pitch arm under intercooler)
  • 2002-2003 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY03 4CYL (Pitch arm under intercooler)
  • 2003-2004 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY04 4CYL (Pitch arm under intercooler)
  • 2004-2006 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY05-06 4CYL (Pitch arm under intercooler)
  • 2006-2007 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY07 4CYL (Pitch arm under intercooler)
  • 2007-2014 SUBARU IMPREZA WRX STI GV SEDAN, GR HATCH 4CYL (Pitch arm under intercooler)
  • 2012-ON SUBARU XV GP7 4CYL (Pitch arm under airbox)
  •

Technical Specifications

Bracing Specifications:

MATERIALQUICK RELEASENOTES
Anodized AlloyNot Applicable

Kit Specifications:

KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

Fitment Table
