 |  SKU: W81430HD

Whiteline Front Panhard Rod Bushing Kit

Mercedes X-Class/Nissan Navara/Patrol
$44.55
RRP $55.69 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Eliminate front end squirm and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.



Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • This kit is covered by a limited lifetime warranty including parts and labour.



Kit Includes:

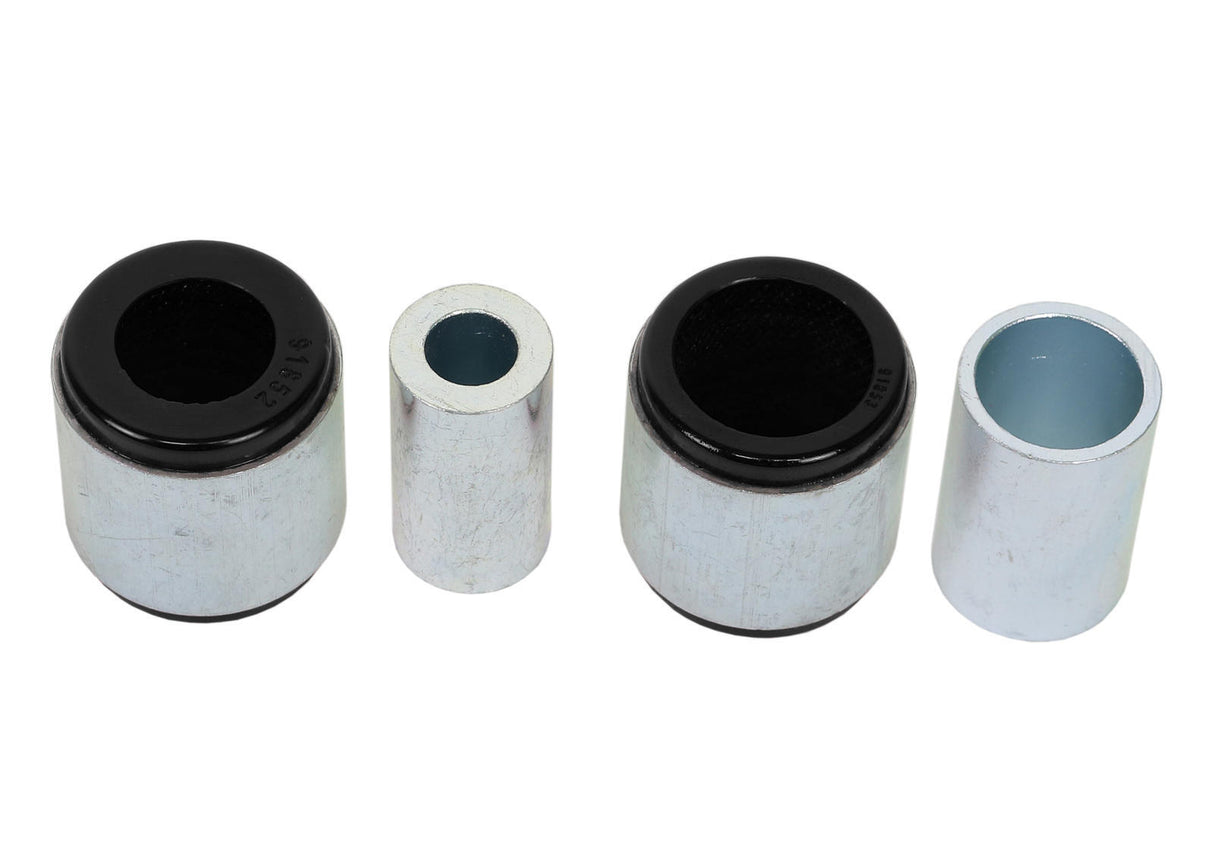

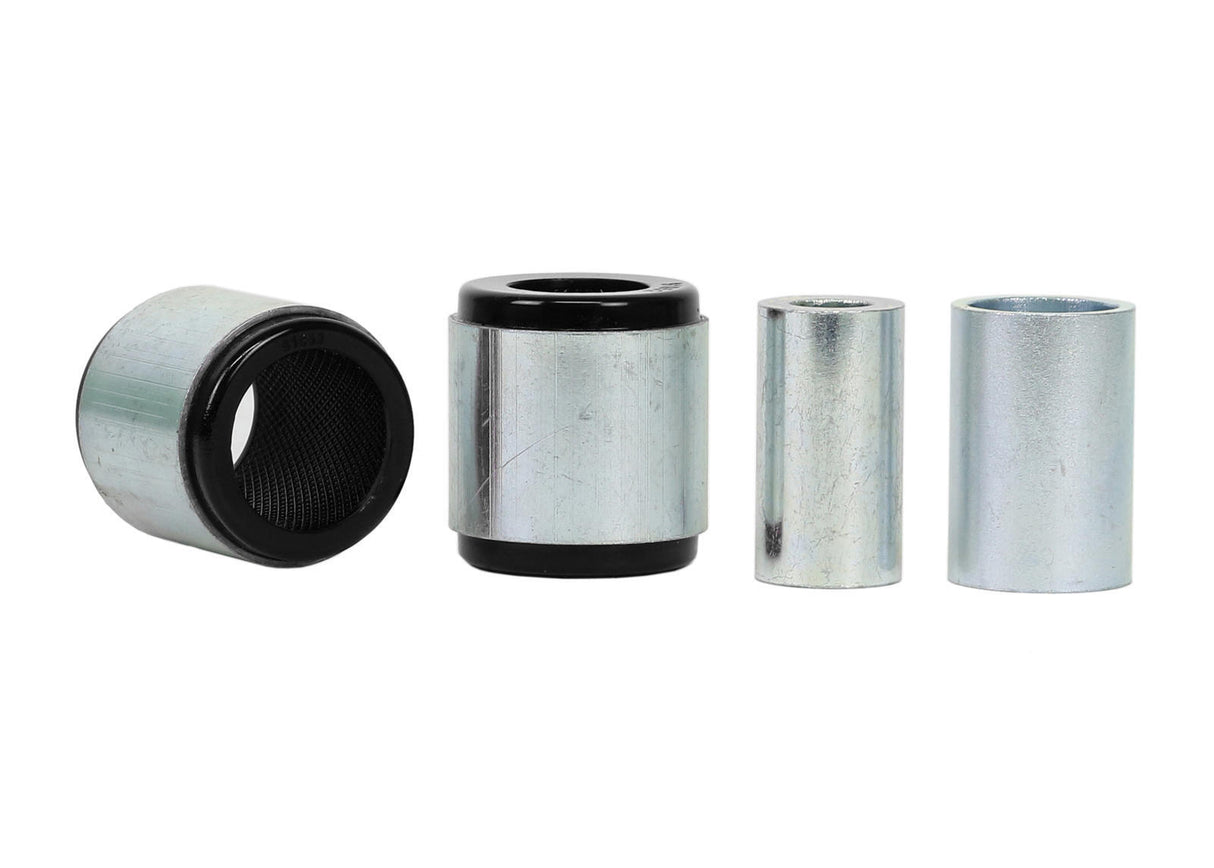

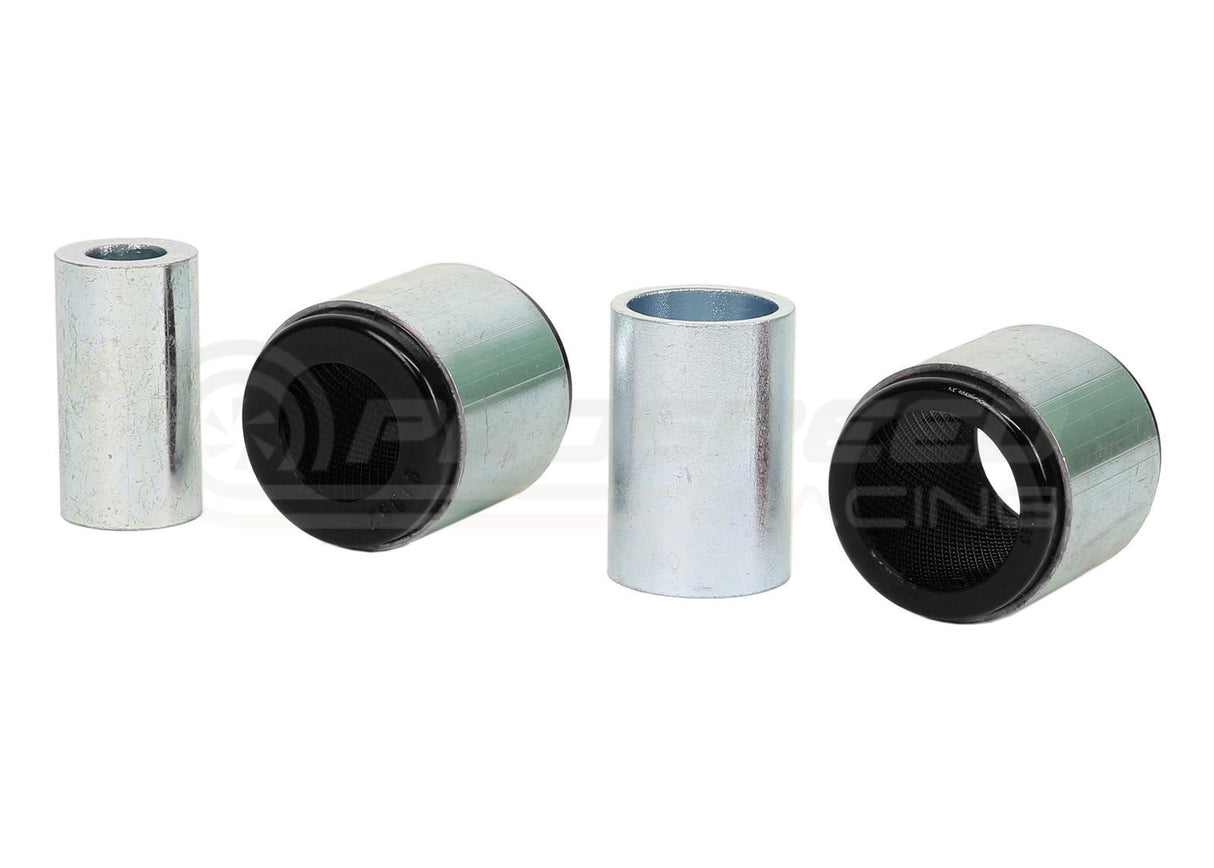

  • 2 Shell Bushings, 2 Tubes, Grease



Vehicle Fitment:

  • MERCEDES-BENZ X-CLASS 2017-ON - X-CLASS X470 4MATIC
  • MERCEDES-BENZ X-CLASS 2017-ON - X-CLASS X470 2WD
  • NISSAN NAVARA 2WD 2015-ON - NAVARA D23, NP300 DUAL CAB UTE 2WD (COIL SPRING REAR)
  • NISSAN NAVARA 4WD 2015-ON - NAVARA D23, NP300 DUAL CAB UTE 4WD (COIL SPRING REAR)
  • NISSAN PATROL 1988-1997 - PATROL GQ Y60 WAGON
  • NISSAN PATROL 1988-1997 - PATROL GQ Y60 CAB CHASSIS (COIL SPRING FRONT AND REAR)
  • NISSAN PATROL 1997-2016 - PATROL GU Y61 WAGON (suits models to - 02/2000)
  • NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND LEAF SPRING REAR)
  • NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND REAR)


Technical Specifications

Bush
Type		 Bush
Qty		 OD
A		 ID
B		 L
C		 FL
D		 FLOD
E		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 1 45.2 mm 25.2 mm 48.5 mm 5.2 mm   1 / 1 25.4x14.3x48 / 31.8x26x48 mm click here

16 1 45.2 mm 31.6 mm 48.5 mm 5.2 mm   1 / 1 25.4x14.3x48 / 31.8x26x48 mm click here



Fitment Table
