🚚 Flat Rate Shipping

 |  SKU: KLC32

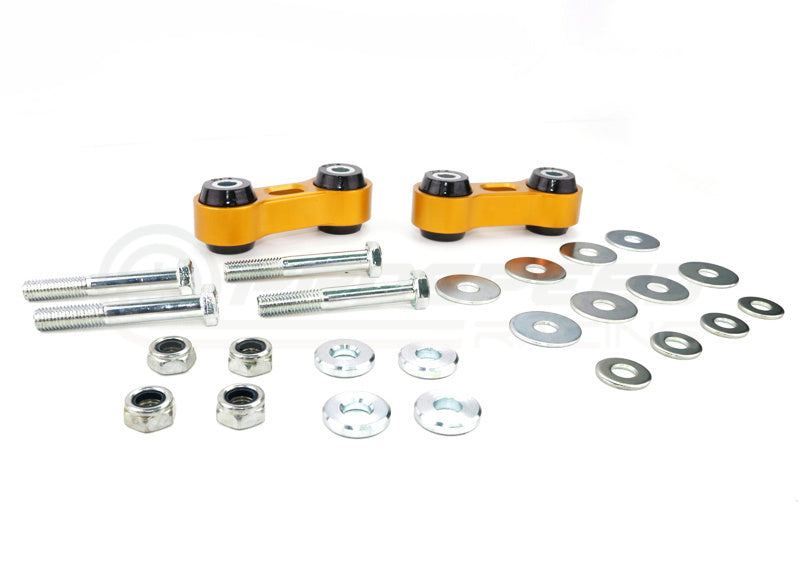

Whiteline Front Sway Bar Link

Subaru Impreza, WRX, STI 94-07/Forester SG/Liberty BE-BP

$199.20
RRP $249.00 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



The kit utilises a high tensile extruded alloy link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 25% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier. Link shape and bush mounts are designed to allow maximum sway bar articulation to ensure full suspension travel while acting more directly under vertical load. Standard length maintains correct sway bar operation.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  •

    Kit Includes:

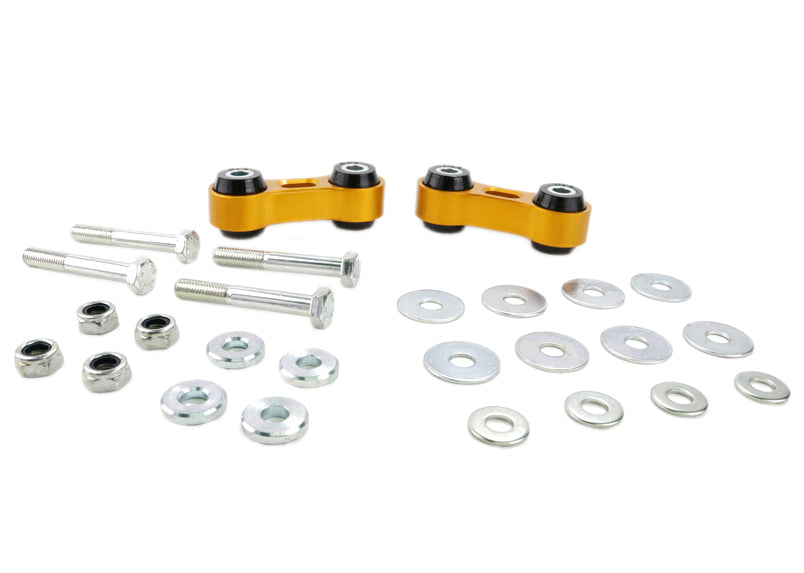

  • 2 Links, 4 Spacers, 4 Bolts, 12 Washers, 4 Nuts, Install Guide, Grease
  •

    Alignment Change:

  • N/A
  •

    Service Kit:

  • W0008
  •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No
  •

    Vehicle Fitment and Important Notes:

  • 2002-2008 SUBARU FORESTER SG INCL TURBO 4CYL (Replaces OEM ball link and OEM bar only)
  • 1993-2000 SUBARU IMPREZA GC SEDAN, GF WAGON EXCL WRX AND STI 4CYL (Suits alloy arm - suits OEM sway bar only)
  • 2000-2002 SUBARU IMPREZA GD SEDAN, GG WAGON MY01-02 EXCL WRX AND STI 4CYL (Suits sedan - suits OEM sway bar only)
  • 2002-2007 SUBARU IMPREZA GD SEDAN, GG WAGON MY03-07 EXCL WRX AND STI 4CYL (Suits sedan - suits OEM sway bar only)
  • 2007-2011 SUBARU IMPREZA GE SEDAN, GH HATCH EXCL WRX AND STI 4CYL (Replaces OEM ball joint link - suits OEM sway bar only)
  • 2011-2016 SUBARU IMPREZA GJ SEDAN, GP HATCH EXCL WRX AND STI 4CYL (Replaces OEM ball joint link - suits OEM sway bar only)
  • 1993-2000 SUBARU IMPREZA WRX GC SEDAN, GF WAGON 4CYL (Suits alloy arm - suits OEM sway bar only)
  • 2000-2002 SUBARU IMPREZA WRX GD SEDAN MY01-02 4CYL (Suits OEM sway bar only)
  • 2002-2007 SUBARU IMPREZA WRX GD SEDAN MY03-07 4CYL (Suits OEM sway bar only)
  • 1993-2000 SUBARU IMPREZA WRX STI GC SEDAN, GF WAGON 4CYL (Suits OEM sway bar only)
  • 2000-2002 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY01-02 4CYL (Suits OEM sway bar only)
  • 2002-2003 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY03 4CYL (Suits OEM sway bar only)
  • 2003-2004 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY04 4CYL (Replaces OEM ball joint link and OEM sway bar only)
  • 2006-2007 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY07 4CYL (Replaces OEM ball joint link and OEM sway bar only)
  • 2007-2014 SUBARU IMPREZA WRX STI GV SEDAN, GR HATCH 4CYL (Replaces OEM ball joint link and OEM sway bar only)
  • 1998-2003 SUBARU LEGACY BE, BH INCL TURBO 4CYL (Replaces OEM ball link and OEM bar only)
  • 2003-2009 SUBARU LEGACY BL, BP INCL TURBO 4/6CYL (Replaces OEM ball link and OEM bar only)
  • 1998-2003 SUBARU LIBERTY BE, BH INCL TURBO 4CYL (Replaces OEM ball link and OEM bar only)
  • 2003-2009 SUBARU LIBERTY BL, BP INCL TURBO 4/6CYL (Replaces OEM ball link and OEM bar only)
  • 2003-2009 SUBARU OUTBACK BP INCL TURBO 4/6CYL (Replaces OEM ball link and OEM bar only)
  • 2012-ON SUBARU XV GP7 4CYL (Replaces OEM ball joint link - suits OEM sway bar only)
  •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    BushingFixedN/AN/A10mmContains Hardware110mmHorizontal

    Fitment Table
