 |  SKU: W23180

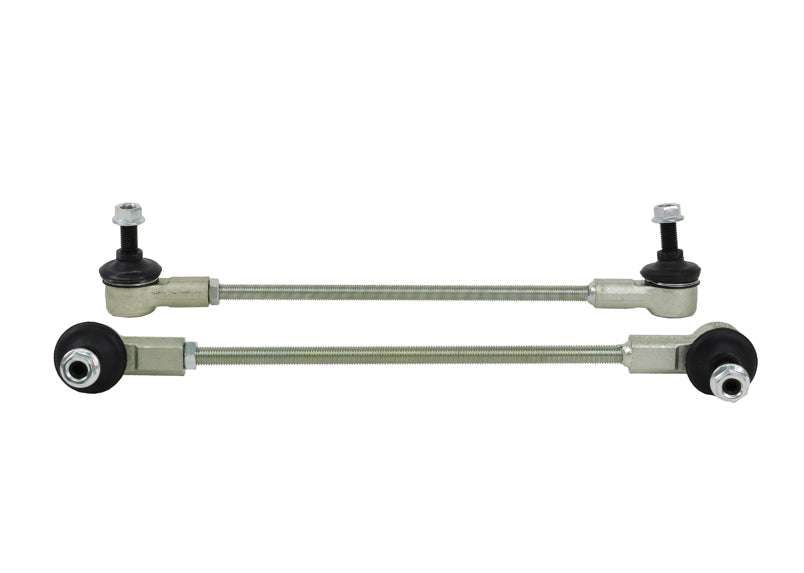

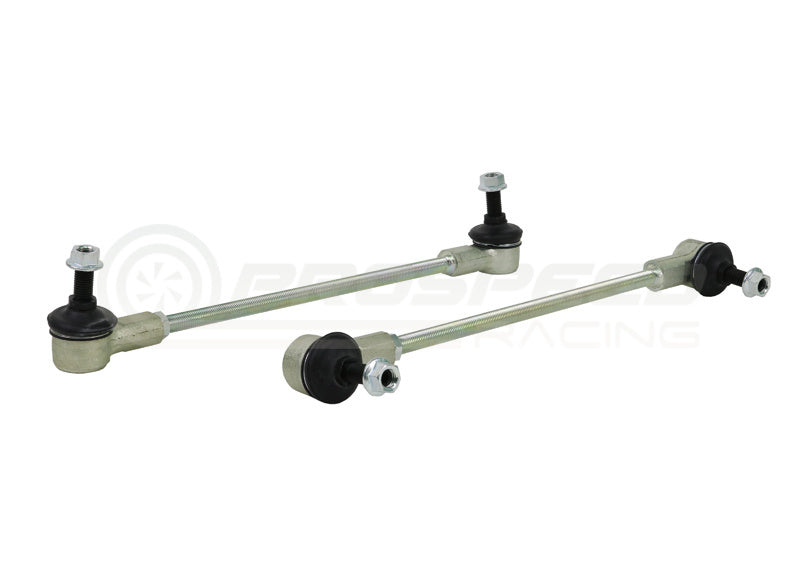

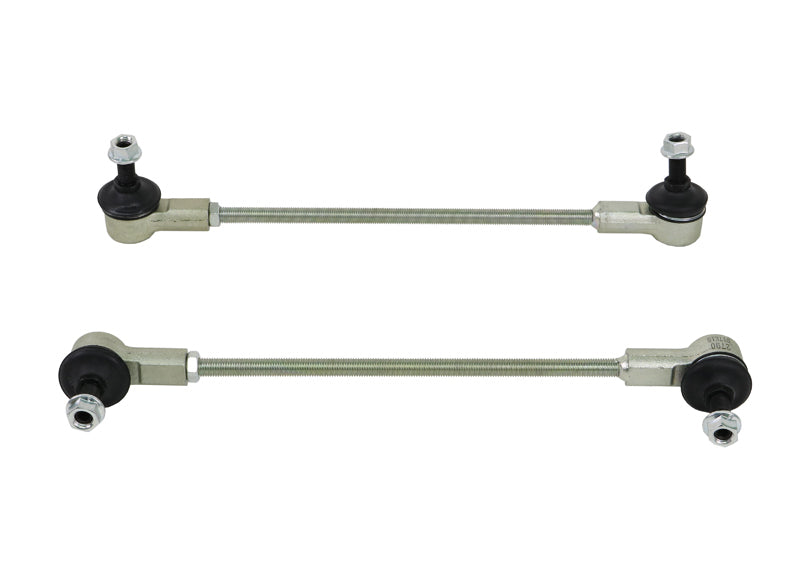

Whiteline Front Sway Bar Link

Various Models Cut to Length
$119.43
RRP $140.50 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Do you have every sway bar link on the shelf? Well you don't need too, Whiteline have developed a clever cut to length universal sway bar link that has a 10mm ball stud has a working range of 80-320mm c/c. 1 part number covers hundreds of applications.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality steel and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.



Kit Includes:

  • 2 Links, Install Guide



Alignment Change:

  • N/A



Service Kit:

  • N/A



Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Cut Link To Length - Refer Install Guide
  • Wheel Alignment Required: No



Vehicle Fitment and Important Notes:

  • 2017-ON TESLA MODEL 3 5YJ (Front Universal cut to length link - must cut to 300mm)


Technical Specifications

Kit Specifications:

KIT QTY BUSH QTY OD (A) ID (B) LENGTH (C) FLANGE THICKNESS (D) FLANGE OD C/TUBE QTY C/TUBE OD x ID x LENGTH COMMENTS
2 2 Complete Sway Bar Link

End Link Specifications:

LINK TYPE ADJUSTABLE ON CAR ADJUSTABLE ADJUSTMENT BOLT DIAMETER NOTES OVERALL LENGTH CONFIGURATION
Ball/ Bushing Yes Yes 180mm 10mm Universal Cut To Length 80mm-260mm Horizontal/ Vertical

Fitment Table
