| SKU:
W22119

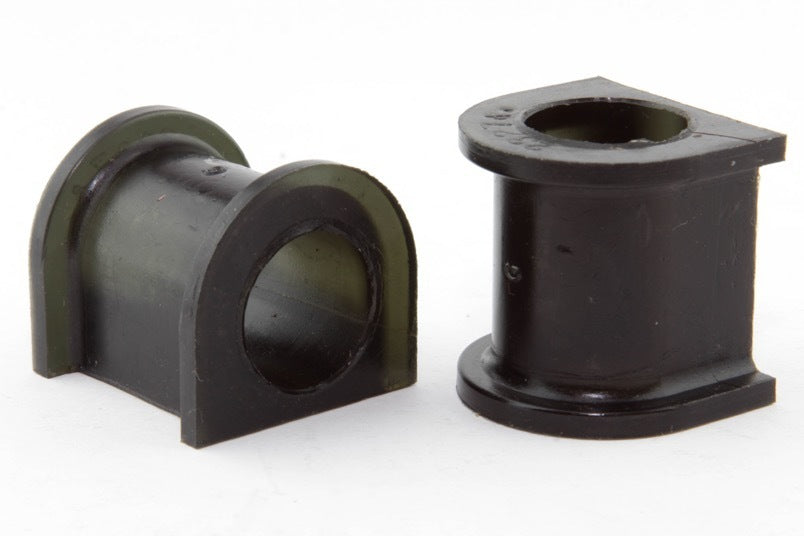

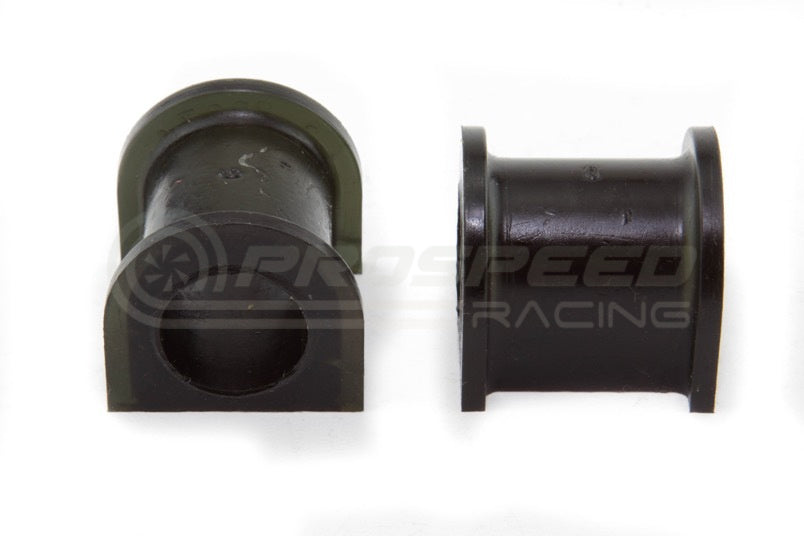

Whiteline Front Sway Bar Mount Bushing 23mm
Toyota Celica/Corolla/Hilux/Landcruiser
$22.19
RRP $26.11
(Save 15%)
Unit price
/
Unavailable
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

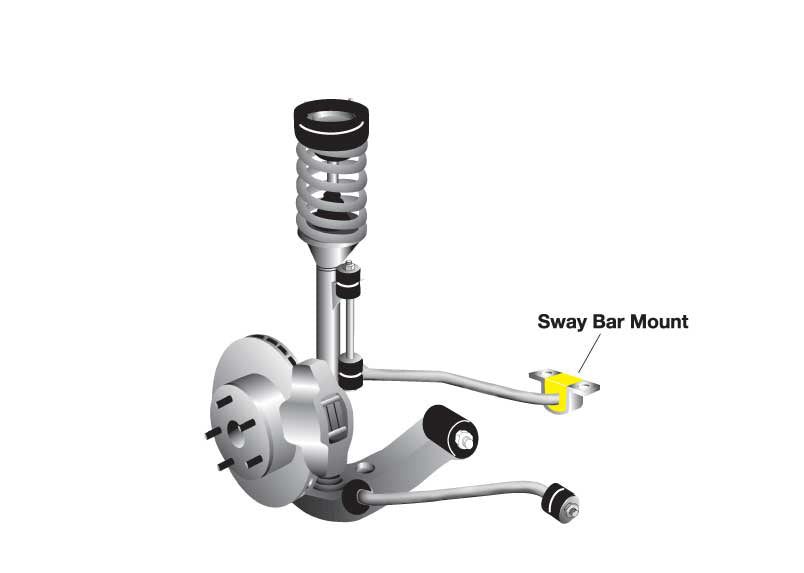

One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.
Features:
Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering. Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life. Internal grease reservoirs provide continual self-lubrication for optimum friction management. This Whiteline kit is covered by a limited lifetime warranty including parts and labour.
Kit Includes:
2 Bushings, Grease
Alignment Change:
N/A
Service Kit:
N/A
Installation:
Fitment Time (Hours): 1 Degree Of Fitment Difficulty: DIY - Do It Yourself Fitment Notes: N/A Wheel Alignment Required: No
Vehicle Fitment and Important Notes:
1977-1981 TOYOTA CELICA RA40, MA45 4CYL (23mm - suits models 11/1980 - on) 1980-1984 TOYOTA CHASER X51, X61 6CYL (23mm) 1981-1985 TOYOTA COROLLA KE70, 71, AE70, 71 4CYL (23mm - suits panel van) 1981-1985 TOYOTA CRESSIDA MX62 6CYL (23mm) 1983-1988 TOYOTA HILUX LN55, 56, YN55, 56, 57, 58 2WD TORSION BAR FRONT AND LEAF SPRING REAR 4CYL (23mm) 1980-1991 TOYOTA LAND CRUISER FJ60, 62, HJ60, 61, 62 6CYL (23mm) 1980-1991 TOYOTA LAND CRUISER FJ60, 62, HJ60, 61, 62 6CYL (23mm - suits models 7/1987 - on - 32mm height saddle) 1985-1991 TOYOTA LAND CRUISER LJ70, RJ70 4CYL (23mm - suits models 8/1987 - 1/1990 - 32mm height saddle) 1985-1990 TOYOTA LAND CRUISER BJ70, 73, 74 4CYL (23mm - suits models to - 5/1986) 1985-1992 TOYOTA LAND CRUISER FJ70, 73, 75 6CYL (23mm - suits models to - 5/1986 - 31mm height saddle) 1985-1990 TOYOTA LAND CRUISER HJ75 6CYL (23mm - suits models to - 5/1986) 1979-1992 TOYOTA LITEACE CM20, 35, KM20, 36, YM21, 30, 35 RWD 4CYL (23mm - suits CM20 and KM20 models 8/1981 - on) 1979-1992 TOYOTA LITEACE CM20, 35, KM20, 36, YM21, 30, 35 RWD 4CYL (23mm - suits KM20 wagon 10/1982 - on) 1994-2000 TOYOTA RAV 4 SXA10, 11, 16 4CYL (23mm - suits 31mm height saddle) 1979-1983 TOYOTA T-18 TE72 4CYL (23mm)
Kit Specifications:
KIT QTY BUSH QTY OD (A) ID (B) LENGTH (C) FLANGE THICKNESS (D) FLANGE OD C/TUBE QTY C/TUBE OD x ID x LENGTH COMMENTS 2 2 31.5 23 40.3 4.3 36
