 |  SKU: KLB111-20

Whiteline Lowering Block Kit 2.0" - Various Models Inc Toyota Hiace/Hilux

Various Models Inc Toyota Hiace/Hilux
$165.67
RRP $194.91 (Save 15%)

Description

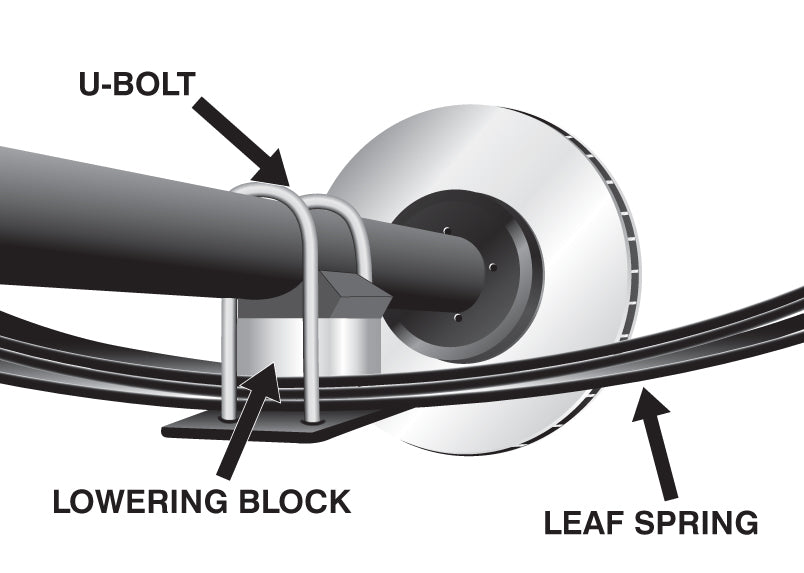

Whiteline aluminium lowering blocks are the economical and quick way to lower many leaf sprung vehicles. Lowering blocks allow the vehicle's height to be modified by 2.0 inch transforming the handling and looks of your vehicle.



Features:

  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

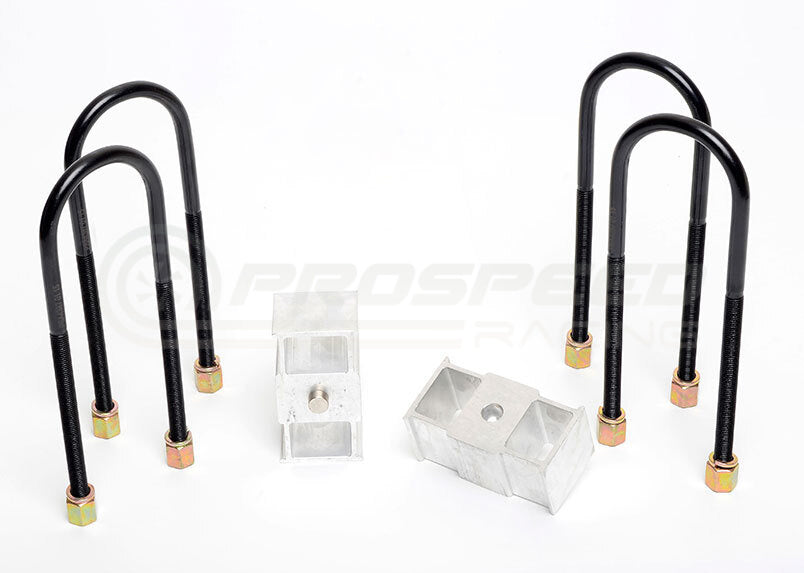

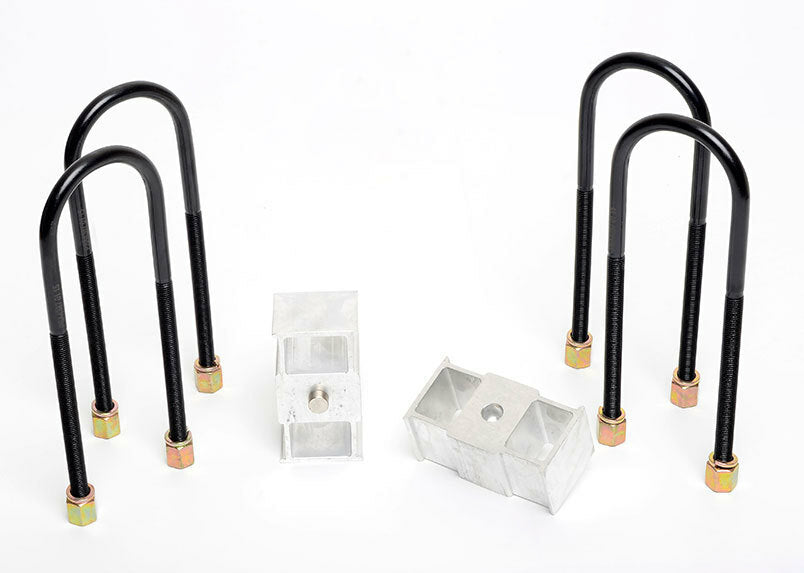

  • 2 Blocks, 4 U-Bolts, 4 Washers, 4 Nuts, Install Guide

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 1977-1985 TOYOTA HIACE RH11, 20, 32, 42 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1983-1989 TOYOTA HIACE LH51, 60, 61, 63, 70, 71, 73,YH50, 51, 61, 63, 71, 73 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1989-2005 TOYOTA HIACE LH103, 113, 125, RZH103, 113, 125 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1999-2005 TOYOTA HIACE LH154, 162, 164, 172, 174, 184 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1983-1988 TOYOTA HILUX LN55, 56, YN55, 56, 57, 58 2WD TORSION BAR FRONT AND LEAF SPRING REAR 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1988-1997 TOYOTA HILUX LN85, 86, RN85, 90, YN85 GRINNER 2WD TORSION BAR FRONT AND LEAF SPRING REAR 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1997-2005 TOYOTA HILUX LN147, RZN147, 149, 154 2WD TORSION BAR FRONT AND LEAF SPRING REAR 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1979-1992 TOYOTA LITEACE CM20, 35, KM20, 36, YM21, 30, 35 RWD 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1986-1988 TOYOTA LITEACE YM40, 41 AWD 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1971-1979 TOYOTA TOYOACE JY16, RY16 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • 1980-1985 TOYOTA TOYOACE LY30, 31, RY31 4CYL (2.0" - suits Japanese diff with 16mm centre bolt)
  • ALL UNIVERSAL PRODUCTS LOWERING BLOCKS LOWERING BLOCKS ALL (Block Size = 2", Top Pin = 16, Bottom Hole = 16, U Bolt Width = 75)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    22Lowering Block

    Fitment Table
