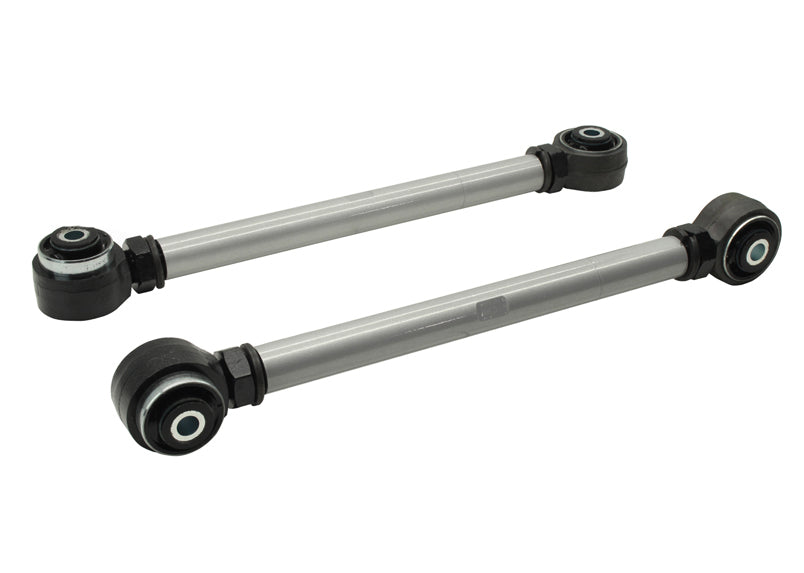

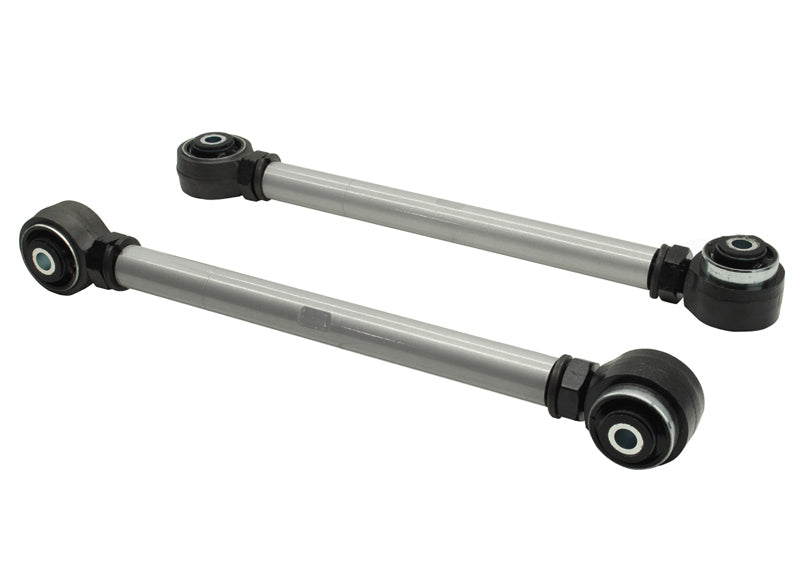

The S197 chassis' stock lower control arms leave much to be desired and contribute to the inherent traction and wheel hop problems from the factory. Whiteline's adjustable lower control arms are made from tubular DOM steel with Forged Rod Ends for optimal strength and feature our Giiro bushings, engineered specific for this application. Our Grease free, non-bonded bushing tube design allows the crush tubes to free float, eliminating bushing wind and snap back, increasing handling predictability.
Features:
Engineered to alter/ optimise vehicles pinion angle to minimise vibration and increase rear drive power/torque to the wheels.
Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
Install guide included providing detailed instructions on how to install your new Whiteline purchase .
This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
Kit Includes:
2 Arms, Install Guide
Alignment Change:
Pinion Angle
Service Kit:
N/A
Installation:
Fitment Time (Hours): 2
Degree Of Fitment Difficulty: DIY - Do It Yourself
Fitment Notes: Refer Install Guide
Wheel Alignment Required: No
Vehicle Fitment and Important Notes:
2005-2010 FORD MUSTANG S197 INCL GT AND SHELBY GT500 6/8CYL (Set of two on-car adjustable arms for pinion angle and 4-wheel alignment. Recommended for use with KBR37 - MOTORSPORT)
2011-2014 FORD MUSTANG S197 INCL GT AND SHELBY GT500 6/8CYL (Set of two on-car adjustable arms for pinion angle and 4-wheel alignment. Recommended for use with KBR37 - MOTORSPORT)
Technical Specifications
Kit Specifications:
KIT QTY
BUSH QTY
OD (A)
ID (B)
LENGTH (C)
FLANGE THICKNESS (D)
FLANGE OD
C/TUBE QTY
C/TUBE OD x ID x LENGTH
COMMENTS
Arm Specifications:
ARM TYPE
UNITS
INCL BALL JOINT
ADJUSTABLE
Alignment
Pair
Not Applicable
Yes
Fitment Table
