 |  SKU: KTA123

Whiteline Rear Lower Front and Rear Control Arm

Subaru STI 04-07
$511.92
RRP $639.90 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

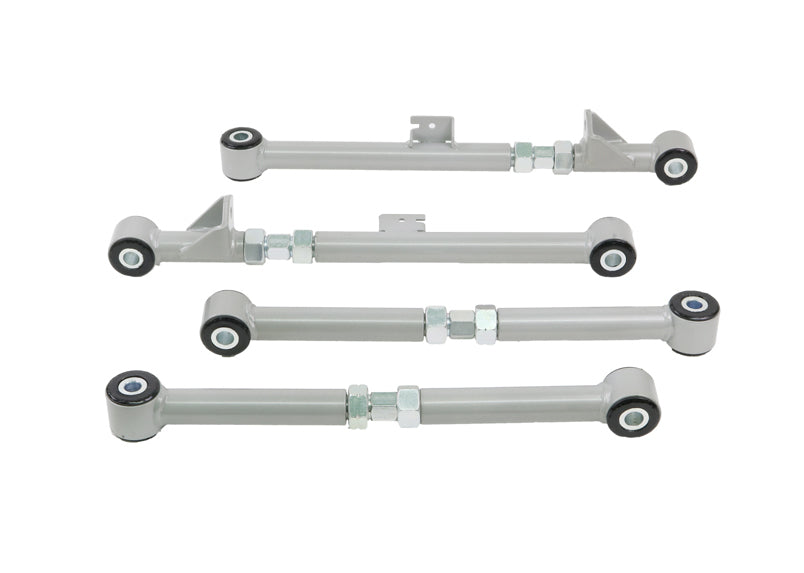

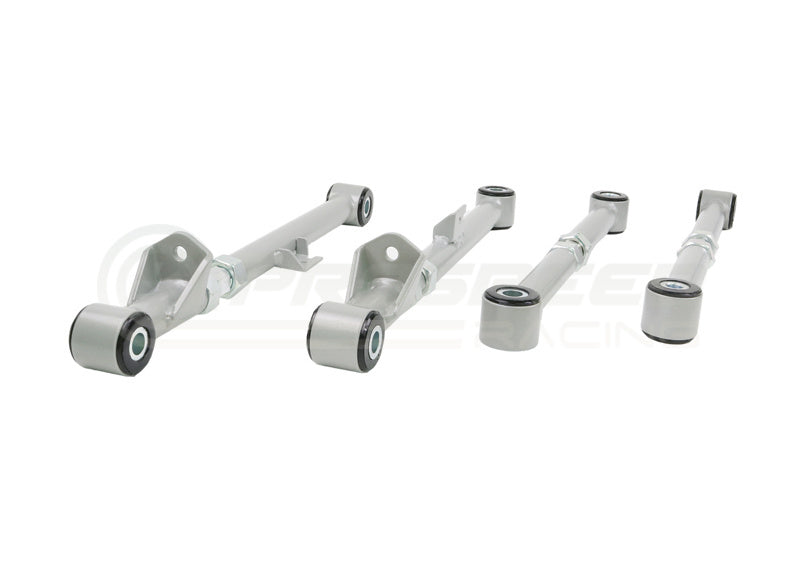

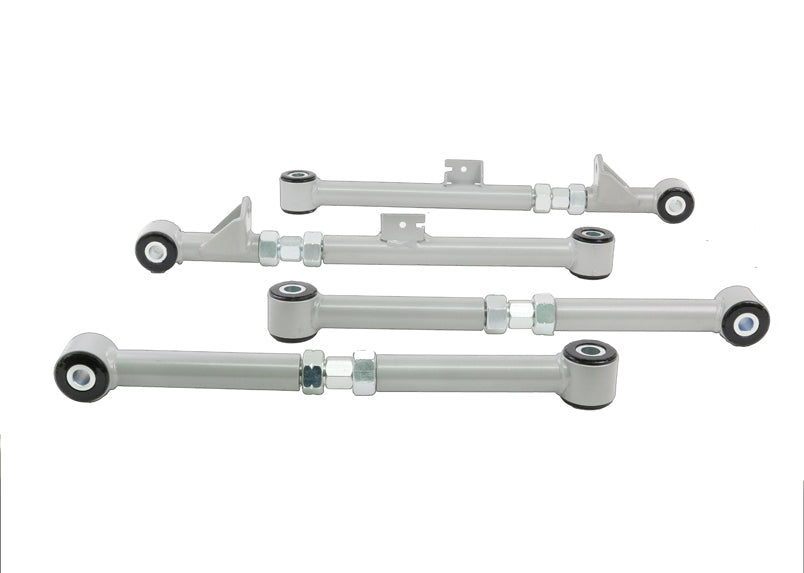

KTA123 is a complete kit of 4 adjustable control arms fitted with low compliance bushings designed to modify rear factory camber - toe and track. The result is greater range and more precise adjustment and a more direct connection between body and rear suspension.



Features:

  • Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
  • Engineered to alter/ optimise toe alignment to rectify tyre wear and/or reduce inherent understeer/oversteer behaviour.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

  • 4 Arms, Install Guide, Grease

    •

    Alignment Change:

  • Camber/Toe

    •

    Service Kit:

  • W0595

    •

    Installation:

  • Fitment Time (Hours): N/A
  • Degree Of Fitment Difficulty: N/A
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 2003-2004 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY04 4CYL (Complete new arms with 50mm adjustment - MOTORSPORT)
  • 2004-2006 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY05-06 4CYL (Complete new arms with 50mm adjustment - MOTORSPORT)
  • 2006-2007 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY07 4CYL (Complete new arms with 50mm adjustment - MOTORSPORT)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    Arm Specifications:

    ARM TYPEUNITSINCL BALL JOINTADJUSTABLE
    AlignmentSetNot ApplicableYes

    Fitment Table
