 |  SKU: KTA107

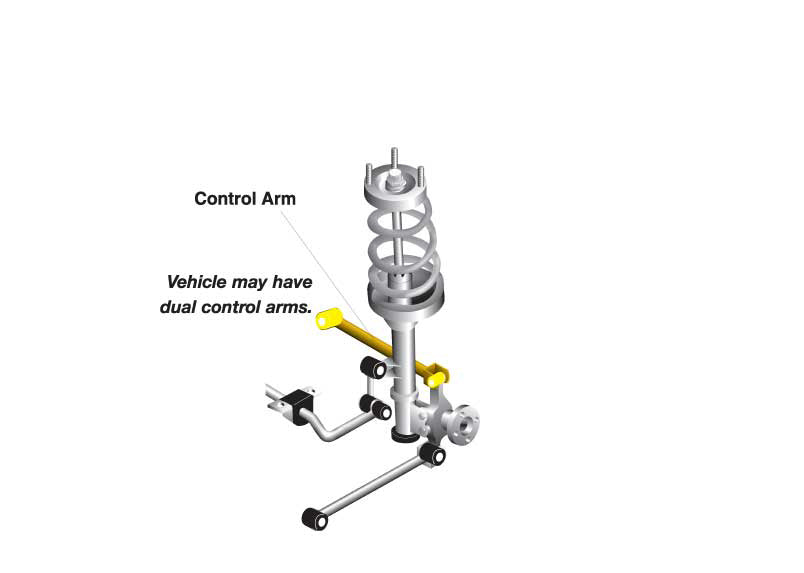

Whiteline Rear Lower Front Control Arm

Subaru WRX 94-05/STI 94-07/Forester SF, SG

$368.55
RRP $460.69 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



This series of adjustable trailing arms are designed to modify factory camber - toe and track on the rear of Subaru Impreza and Liberty. Use KTA107 as an economical solution for lack of rear toe adjustment particularly on Impreza GD-GH (MY01- on) series. This kit is supplied as 2x adjustable front arms and matching rear arm poly bushings. KTA108 and KTA109 utilise 4 complete adjustable arms with performance low compliance bushings. The result is greater range and more precise adjustment and a more direct connection between body and rear suspension delivering more predictable dynamic behaviour. Left-right-hand thread adjustment turn-buckle nut allows for easy on-car adjustment.



Features:

  • Engineered to alter/ optimise toe alignment to rectify tyre wear and/or reduce inherent understeer/oversteer behaviour.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  •

    Kit Includes:

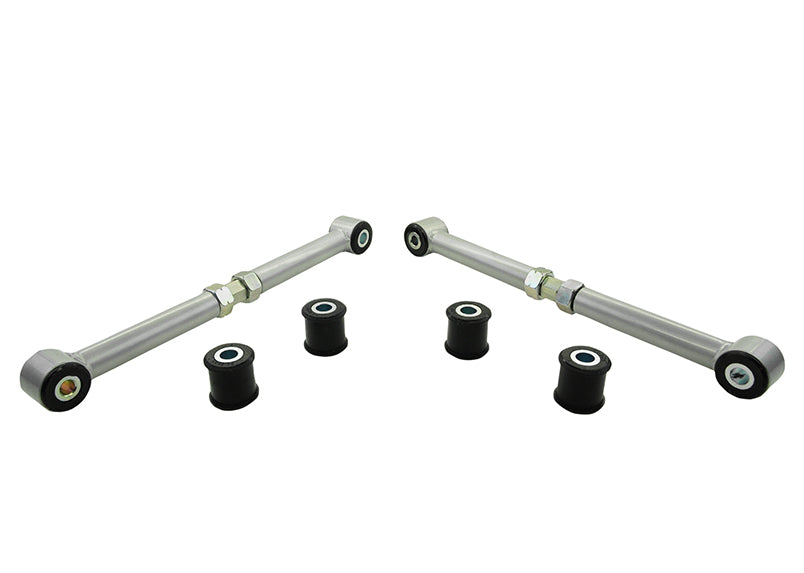

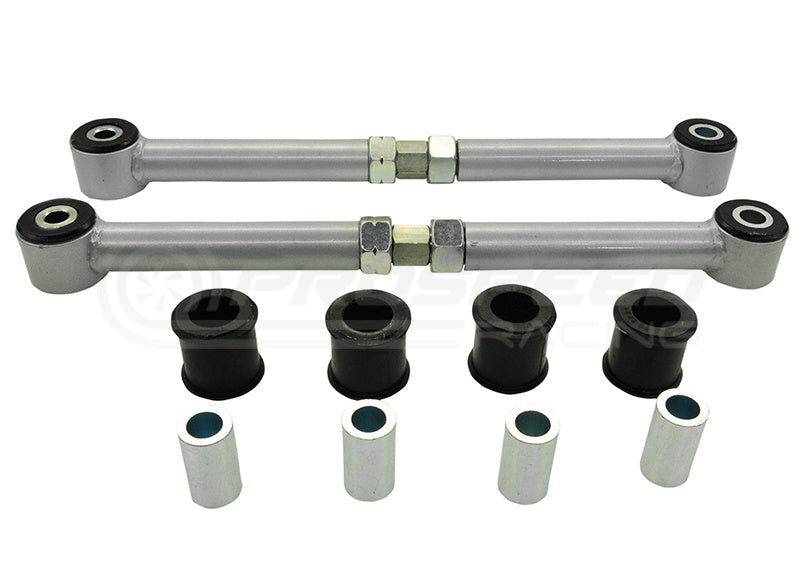

  • 2 Arms, 4 Bushings, 4 Tubes, Install Guide, Grease
  •

    Alignment Change:

  • Toe
  •

    Service Kit:

  • W0596
  •

    Installation:

  • Fitment Time (Hours): 2
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No
  •

    Vehicle Fitment and Important Notes:

  • 1997-2002 SUBARU FORESTER SF INCL TURBO 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2002-2008 SUBARU FORESTER SG INCL TURBO 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1993-2000 SUBARU IMPREZA GC SEDAN, GF WAGON EXCL WRX AND STI 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2000-2002 SUBARU IMPREZA GD SEDAN, GG WAGON MY01-02 EXCL WRX AND STI 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2002-2007 SUBARU IMPREZA GD SEDAN, GG WAGON MY03-07 EXCL WRX AND STI 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1993-2000 SUBARU IMPREZA WRX GC SEDAN, GF WAGON 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2000-2002 SUBARU IMPREZA WRX GD SEDAN MY01-02 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2000-2002 SUBARU IMPREZA WRX GG WAGON MY01-02 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2002-2007 SUBARU IMPREZA WRX GD SEDAN MY03-07 4CYL (Suits MY03-05 models - complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2002-2007 SUBARU IMPREZA WRX GG WAGON MY03-07 4CYL (Suits MY03-05 models - complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1993-2000 SUBARU IMPREZA WRX STI GC SEDAN, GF WAGON 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2000-2002 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY01-02 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2002-2003 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY03 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2003-2004 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY04 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2004-2006 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY05-06 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 2006-2007 SUBARU IMPREZA WRX STI GD SEDAN, GG WAGON MY07 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1989-1994 SUBARU LEGACY BC, BF INCL RS TURBO 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1994-1998 SUBARU LEGACY BD, BG 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1989-1994 SUBARU LIBERTY BC, BF INCL RS TURBO 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1994-1998 SUBARU LIBERTY BD, BG 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  • 1996-1998 SUBARU OUTBACK BG 4CYL (Complete new front arms with 50mm adjustment and 4 x rear bushings - MOTORSPORT)
  •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    Arm Specifications:

    ARM TYPEUNITSINCL BALL JOINTADJUSTABLE
    AlignmentPairNot ApplicableYes

    Fitment Table
