 |  SKU: KDT937

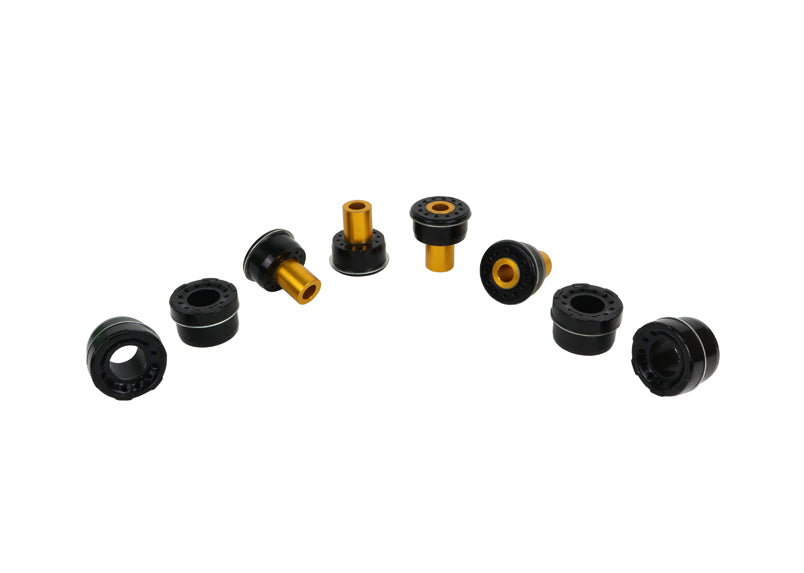

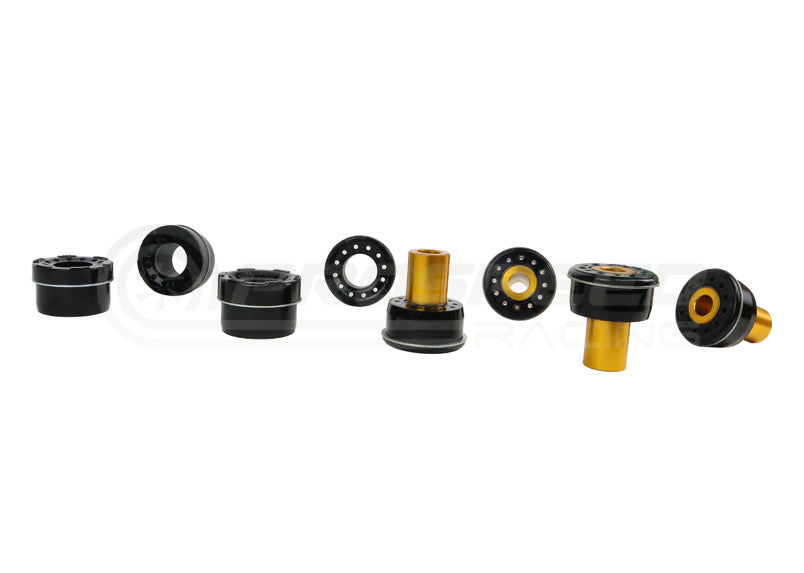

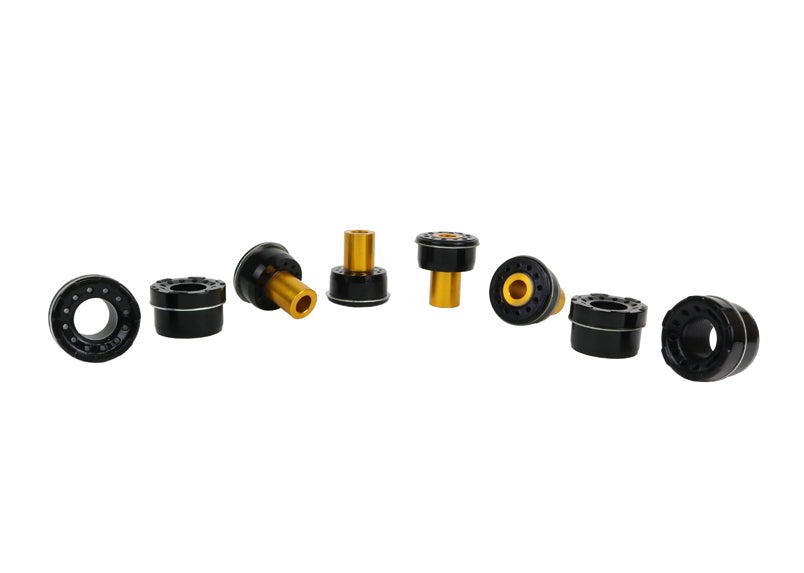

Whiteline Rear Subframe Mount Bushing

Subaru WRX, STI 15+/Forester SJ

$194.40
RRP $243.00 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description



Subaru's rear subframe is mounted on rubber voided bushings which allows for a significant amount of compliance/movement in the frame during high cornering loads. Whiteline's low compliance polymer bushings eliminate this condition by positively locking in the frame position and removing the 'lateral walking' found when using high grip tyres. The polymer bushing design has soft 'stand-off' buffers on the top and bottom surfaces of the bushing to allow slight vertical bushing movement of the subframe to eliminate that 'rock-solid' NVH feel and cushion against minor bumps and allow solid positive location when high torque and power is applied.



Features:

  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
  •

    Kit Includes:

  • 8 Bushings, 4 Tubes, Install Guide, Grease
  •

    Alignment Change:

  • N/A
  •

    Service Kit:

  • N/A
  •

    Installation:

  • Fitment Time (Hours): 2
  • Degree Of Fitment Difficulty: DIY - With Specialist Tools
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: Yes
  •

    Vehicle Fitment and Important Notes:

  • 2013-2018 SUBARU FORESTER SJ INCL TURBO 4CYL (Positive traction kit - locks subframe to body)
  • 2014-ON SUBARU IMPREZA WRX VA SEDAN 4CYL (Positive traction kit - locks subframe to body)
  • 2014-ON SUBARU IMPREZA WRX STI VA SEDAN 4CYL (Positive traction kit - locks subframe to body)
  • 2015-ON SUBARU LEGACY BN, BS INCL TURBO 4/6CYL (Positive traction kit - locks subframe to body)
  • 2015-ON SUBARU LEVORG VM 4CYL (Positive traction kit - locks subframe to body)
  • 2015-ON SUBARU LIBERTY BN, BS INCL TURBO 4/6CYL (Positive traction kit - locks subframe to body)
  • 2014-ON SUBARU OUTBACK BS INCL TURBO 4/6CYL (Positive traction kit - locks subframe to body)
  •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    846018.272.86.366.7Bonded Crush Tube

    Fitment Table
