 |  SKU: KLC185

Whiteline Rear Sway Bar Link

Mazda 3 MPS BK, BL
$159.19
RRP $198.99 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Articulation voids deliver necessary suspension articulation and/or compression under loads.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

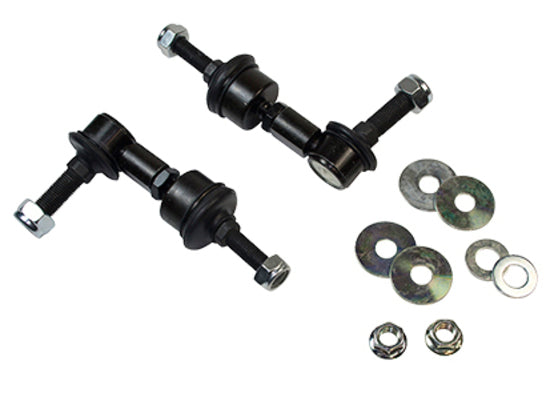

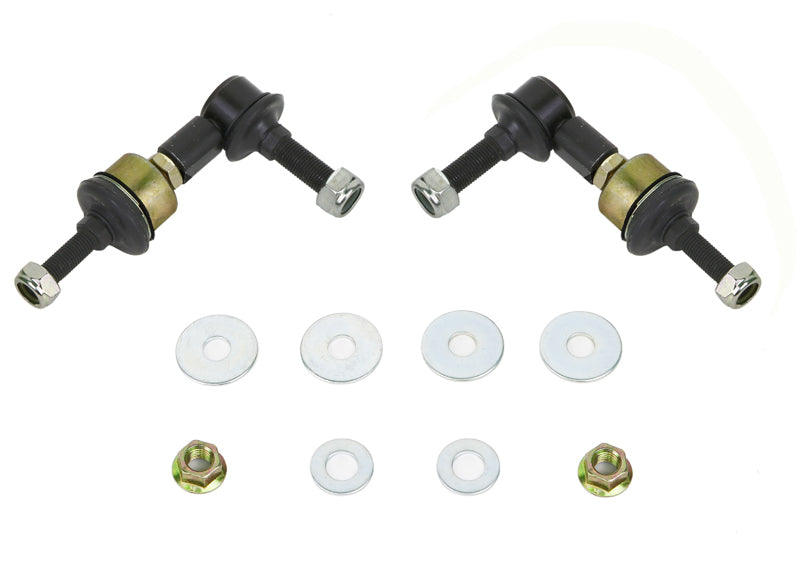

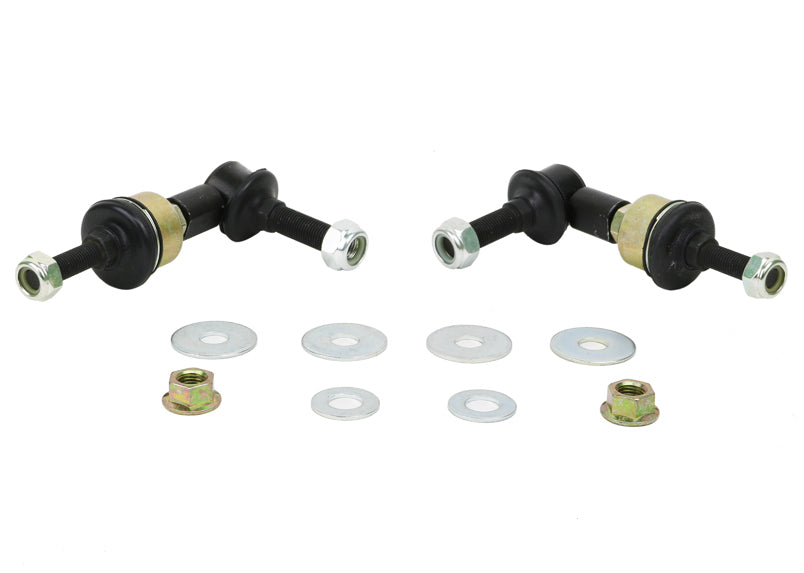

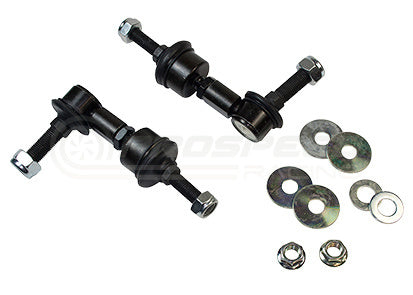

  • 2 Links, 6 Washers, 2 Nuts, Install Guide

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 2006-2009 MAZDA MAZDA3 BK MPS 4CYL (Suits models with 12mm ball stud - adjustable extra heavy duty)
  • 2009-2014 MAZDA MAZDA3 BL MPS 4CYL (Adjustable extra heavy duty)
  • 2006-2009 MAZDASPEED AXELA BK MPS 4CYL (Suits models with 12mm ball stud - adjustable extra heavy duty)
  • 2009-2014 MAZDASPEED AXELA BL MPS 4CYL (Adjustable extra heavy duty)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    BallYesYes25mm10mmContains Hardware - Adjustable Extra Heavy Duty90mm-115mmHorizontal/ Vertical
