 |  SKU: W0004

Whiteline S Style Sway Bar Link Service Kit

Universal
$16.70
RRP $19.65 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


The kit utilises a high tensile spring steel link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 20% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier.



Features:

  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self-lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty including parts and labour.

    •

    Kit Includes:

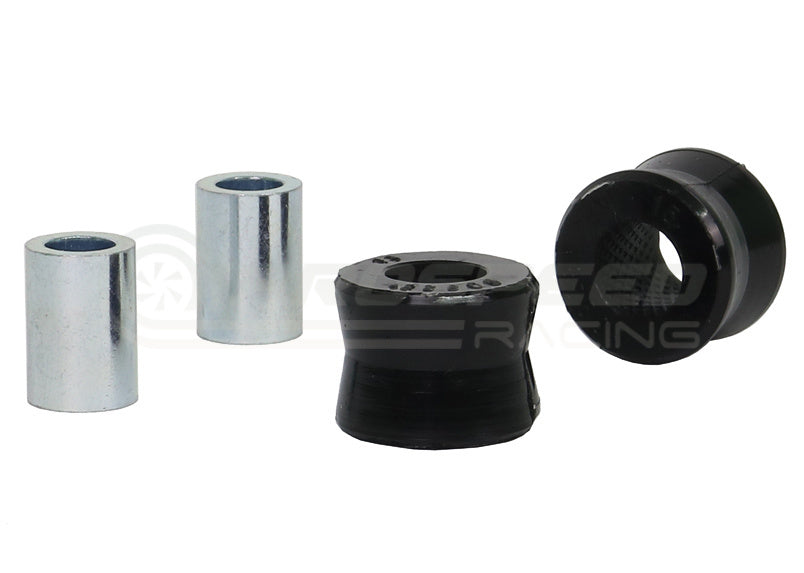

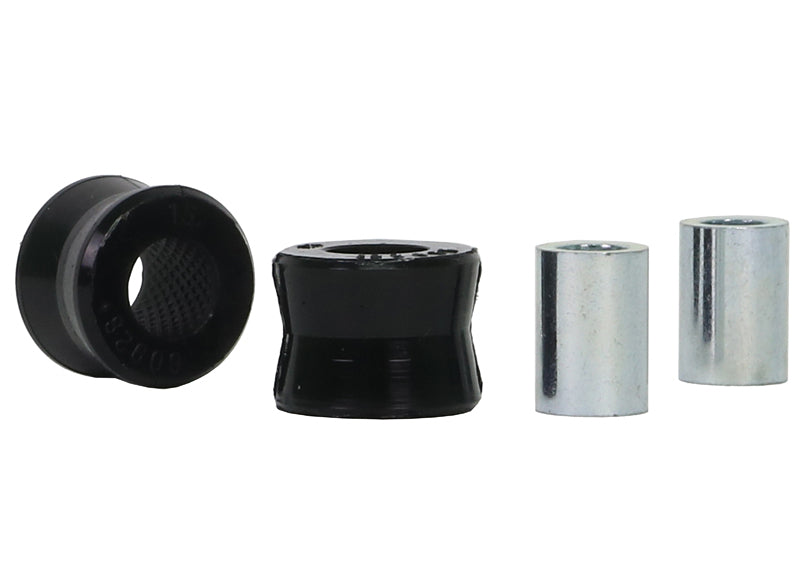

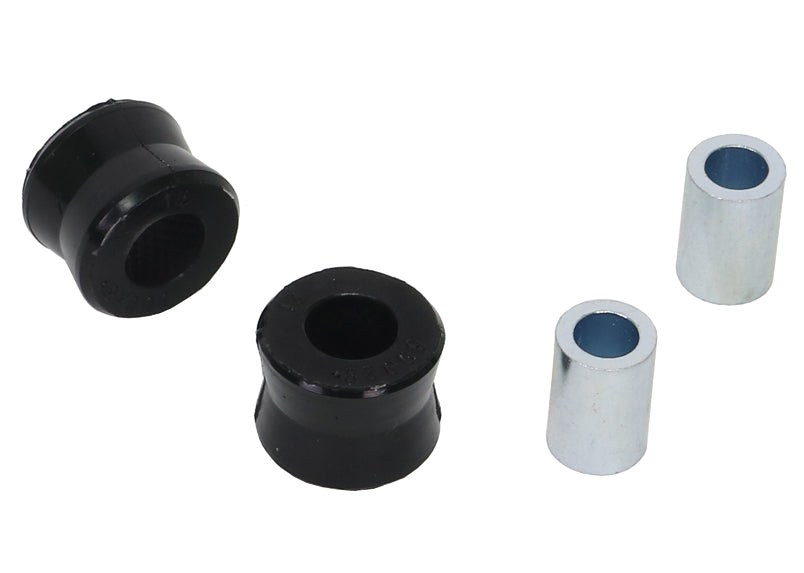

  • 2 Bushings, 2 Tubes, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: N/A
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • ALL UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR - LINK S STYLE ALL (Service bushing kit for S link or single eye link 2 x bushings in kit)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    22AI=29.3 AII=261423.2216x10.2x23
    1

    Fitment Table
