 |  SKU: KLC188

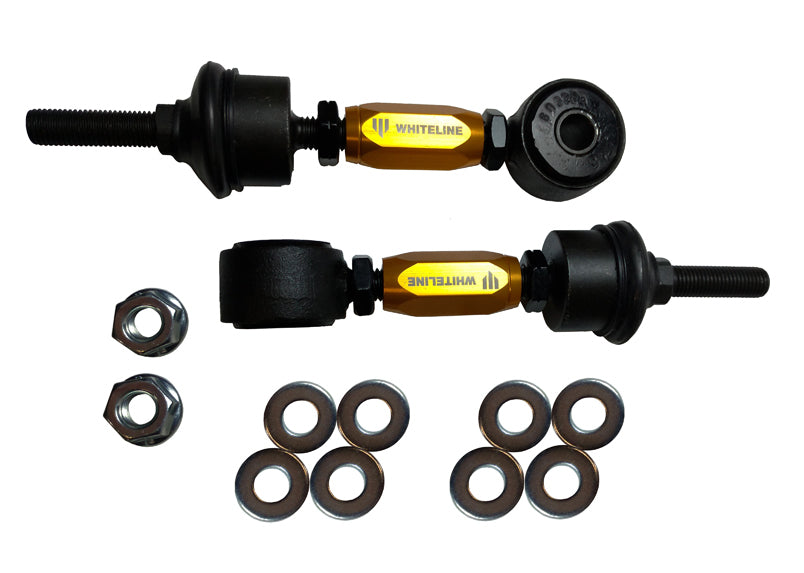

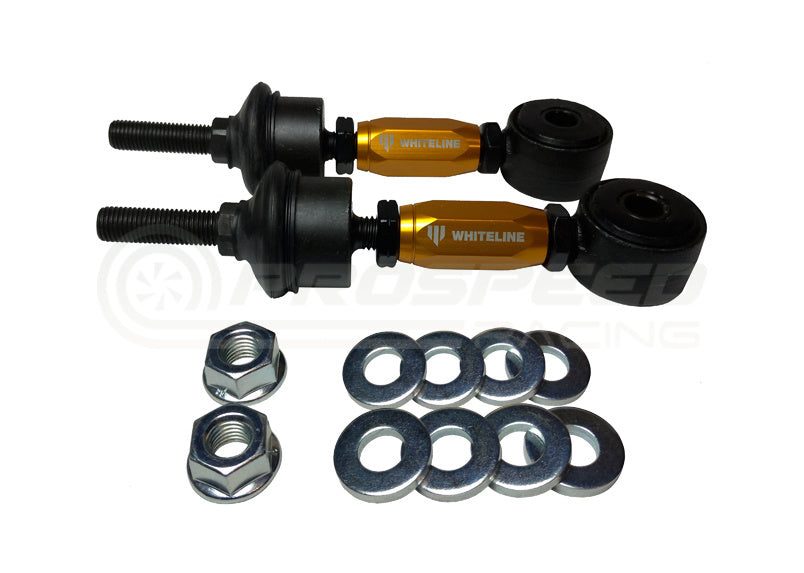

Whiteline Sway Bar Link 10mm Ball Stud, 110-135mm Length

Universal
$155.71
RRP $183.19 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Knock, knock, knock! That's the sound you hear when your sway bar links are not doing their job. Links are a common service item due to either worn or over compliant bushings/ joints and possibly bent or snapped centre bodies. Upgrade from the old units to Whiteline sway bar links with superior features that outlast and outperform the original equipment.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

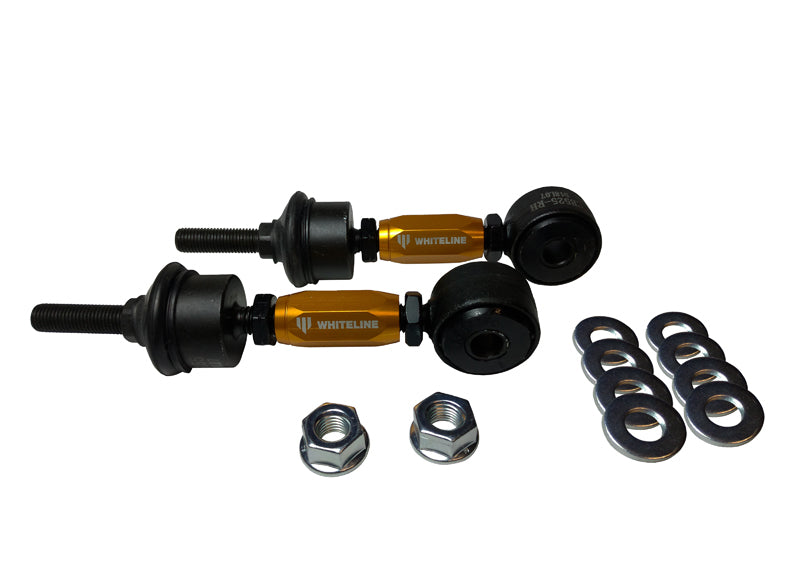

  • 2 Links, 8 Washers, Install Guide, Grease

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • ALL UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR - LINK BALL/BUSHING STYLE ALL (110-135mm - Vertical ball/ Horizonal bushing 10mm ball stud)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    Ball/ BushingYesYes25mm10mmAdjustable Extra Heavy Duty110-135mmHorizontal
