 |  SKU: KLC160

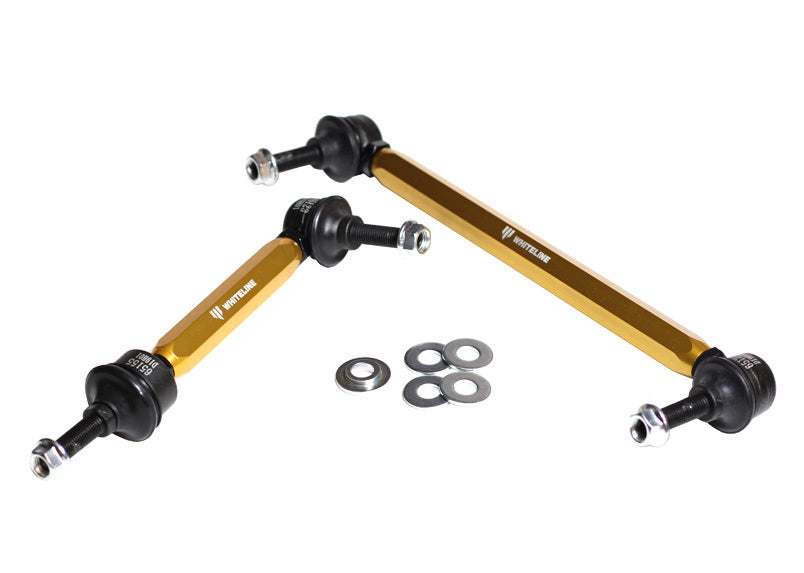

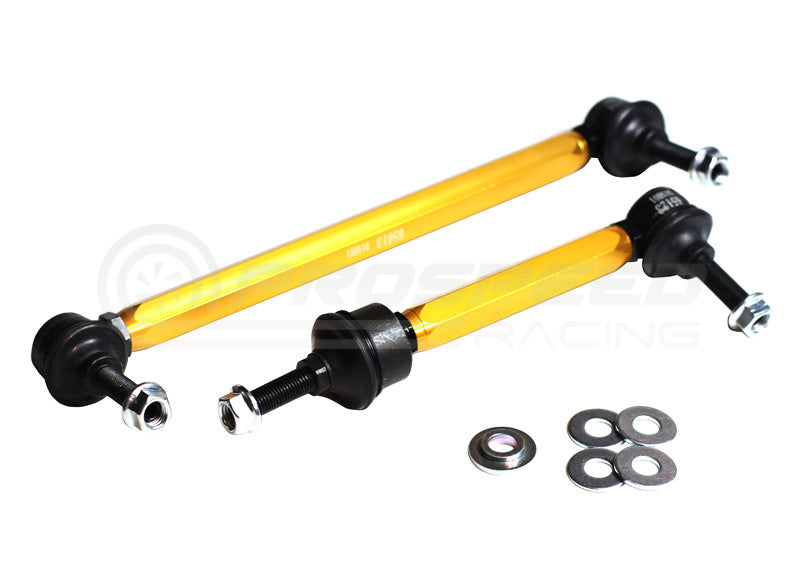

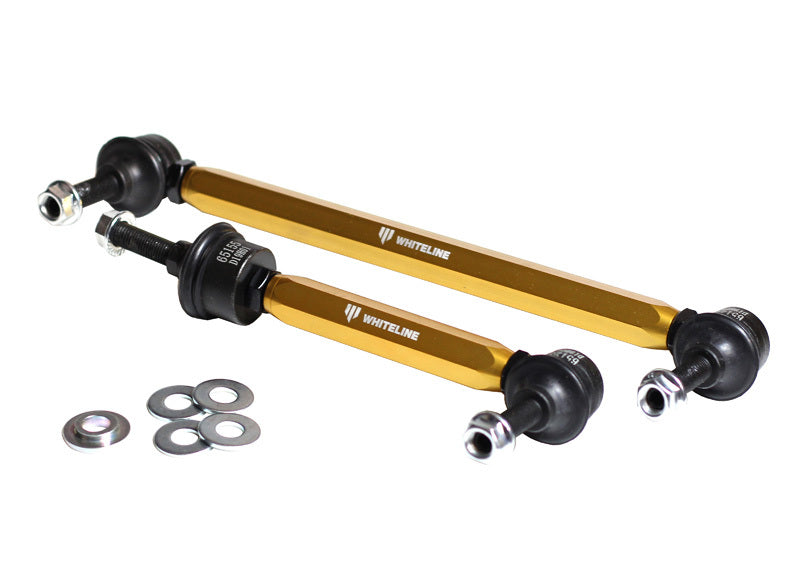

Whiteline Sway Bar Link 10MM Ball Stud

Nissan Patrol GU Y61
$159.19
RRP $198.99 (Save 20%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


Not many enthusiasts are aware that OE and more importantly aftermarket sway bar effectiveness can be hindered by worn or inadequate mounts, drop links and lateral stoppers. Whiteline adjustable sway bar links are engineered to be up to the task with top spec, light weight componentry combined with a window of adjustability, eliminating sway bar preload on installation but most importantly ensuring the maximum output of the sway bar for improved grip and better handling.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
  • Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
  • Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
  • Install guide included providing detailed instructions on how to install your new Whiteline purchase .
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

  • 2 Links, 1 Spacer, 4 Washers, Install Guide

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: Refer Install Guide
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • 1997-2010 NISSAN PATROL GU Y61 WAGON AND CAB CHASSIS 4/6CYL (Suits 50mm raised vehicles - adjustable extra heavy duty)
  • ALL UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR - LINK ADJUSTABLE BALL/BALL STYLE ALL (170-195mm c/c, horizontal / vertical ball joint 10mm bal stud and 270-295mm c/c, horizontal ball joint 10mm ball stud)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS
    Complete Sway Bar Link

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    BallYesYes25mm10mmVehicle Specific Link170mm-195mmHorizontal/ Vertical

    Fitment Table
