 |  SKU: KLD110B

Whiteline Sway Bar Link S Style, 110mm Length

Universal
$58.99
RRP $69.40 (Save 15%)
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description


The kit utilises a high tensile spring steel link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 20% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier.



Features:

  • These high strength links increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
  • Manufactured from high quality steel and utilise the latest technology synthetic elastomer link bushings ensuring maximum strength and durability.
  • Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
  • This Whiteline kit is covered by a 3 Year / 60,000kms warranty including parts and labour.

    •

    Kit Includes:

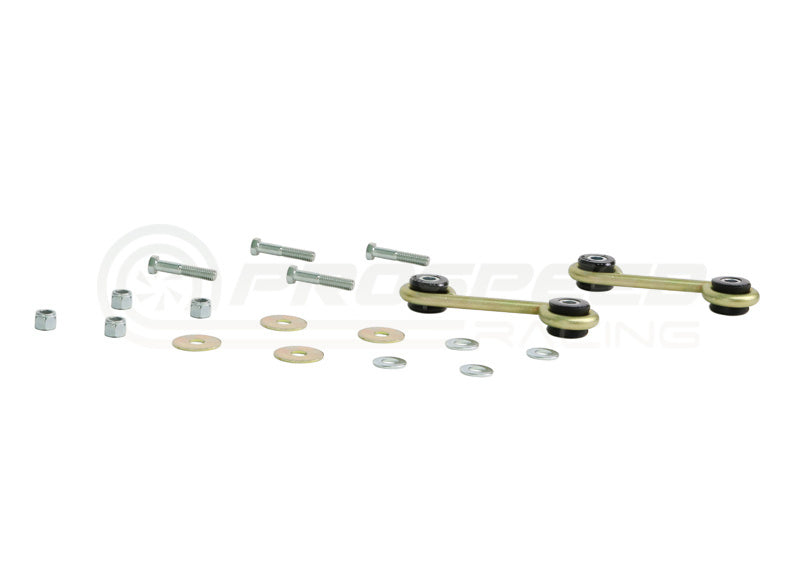

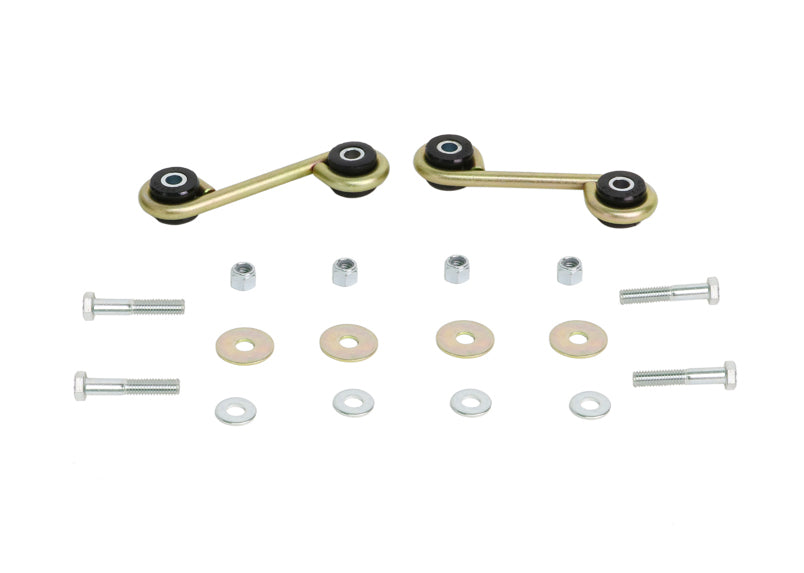

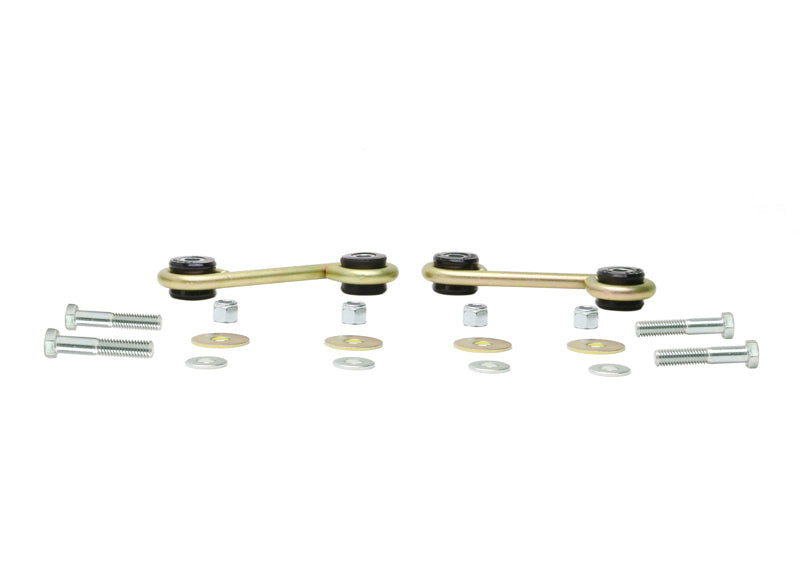

  • 2 Links, 4 Bolts, 8 Washers, 4 Nuts

    •

    Alignment Change:

  • N/A

    •

    Service Kit:

  • N/A

    •

    Installation:

  • Fitment Time (Hours): 1
  • Degree Of Fitment Difficulty: DIY - Do It Yourself
  • Fitment Notes: N/A
  • Wheel Alignment Required: No

    •

    Vehicle Fitment and Important Notes:

  • ALL UNIVERSAL PRODUCTS SWAY BAR - LINKS AND BUSHINGS SWAY BAR - LINK S STYLE ALL (Double eye S link - 110mm centres with bolts)
    •

    Technical Specifications

    Kit Specifications:

    KIT QTYBUSH QTYOD (A)ID (B)LENGTH (C) FLANGE THICKNESS (D)FLANGE ODC/TUBE QTYC/TUBE OD x ID x LENGTHCOMMENTS

    End Link Specifications:

    LINK TYPEADJUSTABLEON CAR ADJUSTABLEADJUSTMENTBOLT DIAMETERNOTESOVERALL LENGTHCONFIGURATION
    BushingFixedN/AN/A10mmContains Hardware125mmHorizontal/ Vertical

    Fitment Table
