 |  SKU: 160-12286

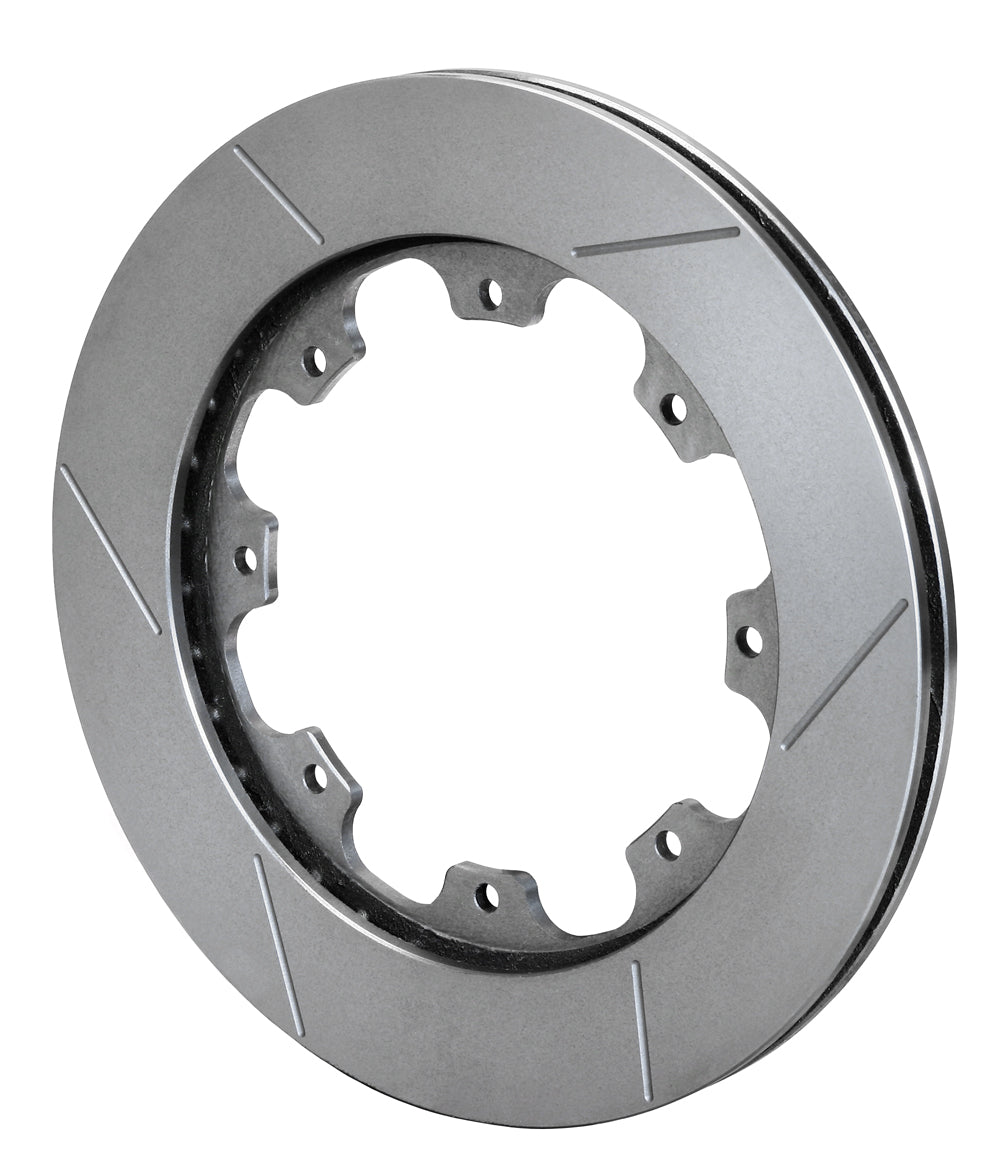

Wilwood GT36 Curved Vane Brake Rotor LEFT

$319.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Wilwood's GT 36 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Combined with our proven GT Series asymmetrical face slot pattern and individual dynamic balancing, you are assured the smoothest braking available.

Features and Benefits

  • Premium grade, Spec-37 Heavy Wall Castings
  • Suitable for high temperature racing to street use.

Technical Specifications

Rotor Dimensions

  • Width (in) 0.81
  • Diameter (in) 11.75
  • Mount Side L/H

Rotor Design

  • Material Spec-37 Iron
  • Vane Count 36 CV
  • Weight(Lbs) 9.00

Rotor Style & Finish

  • Type GT
  • Style GT Slotted
  • Surface Finish Plain

Rotor Upgrades

  • Burnished No
  • Balanced Yes

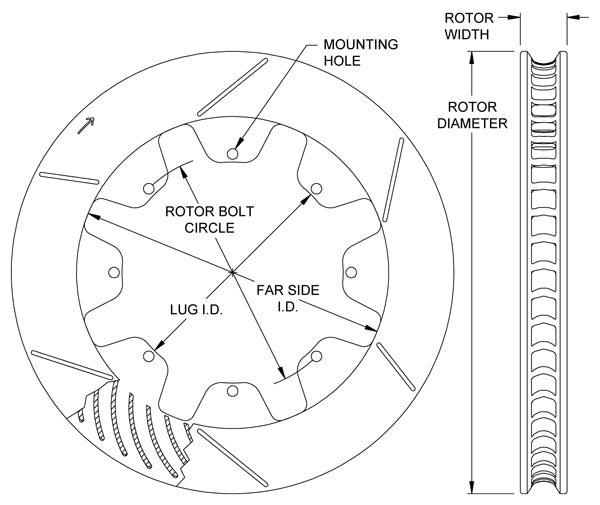

Additional Rotor Dimensions

  • Rotor Bolt Circle (in): 8 x 7.00
  • Rotor Mount Hole Size (in): 0.326
  • Lug ID / Registration (in): 6.38
  • Far Side Inside Diameter (in): 7.87
