Wisefab Rear Suspension Drop Knuckle Kit

Nissan GT-R R35
$15,099.00
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

Nissan GT-R R35 is a great performance car, but the rideheight is still designed for street use and going over speedbumps without scraping the underbody. Lowering the car will give more grip and better handling, but then the factory designed kinematics won't work as they are supposed to. If the kinematics are out of range, than mechanical grip is decreased and this also influenses aerodynamical grip as the kinematics support less roll, squat and pitch.



Other information:

  • This kit assumes coilovers
  • Original wheel speed sensor can be used

Features and Benefits

  • Higher roll center (RC)
    Our Nissan GT-R front kit brings the RC, bump steer and camber curve into normal range, provides better roll stiffness, handling and grip on a lowered car
  • Dual kinematics setup
    Uprights have two attachment points. One is for lowered rideheight with standard 710mm (28") diameter wheels and second set of points is for either small wheels (that are required by some series rules) with lowered rideheight or for standard wheel with standard ride height.
  • 7075-T6 aluminium billet CNC knuckles
    With optimized double shear design that provides low weight and high strenght
  • CrMo rod ends and sphericals used instead of OEM style bushings
  • Easy camber adjustment
  • Designed for bigger CV joints
    Nissan GT-R R35 CV joints are good to handle big power, but for any case if the power and grip exceed their limits, then the uprights have room for bigger CV joints if needed

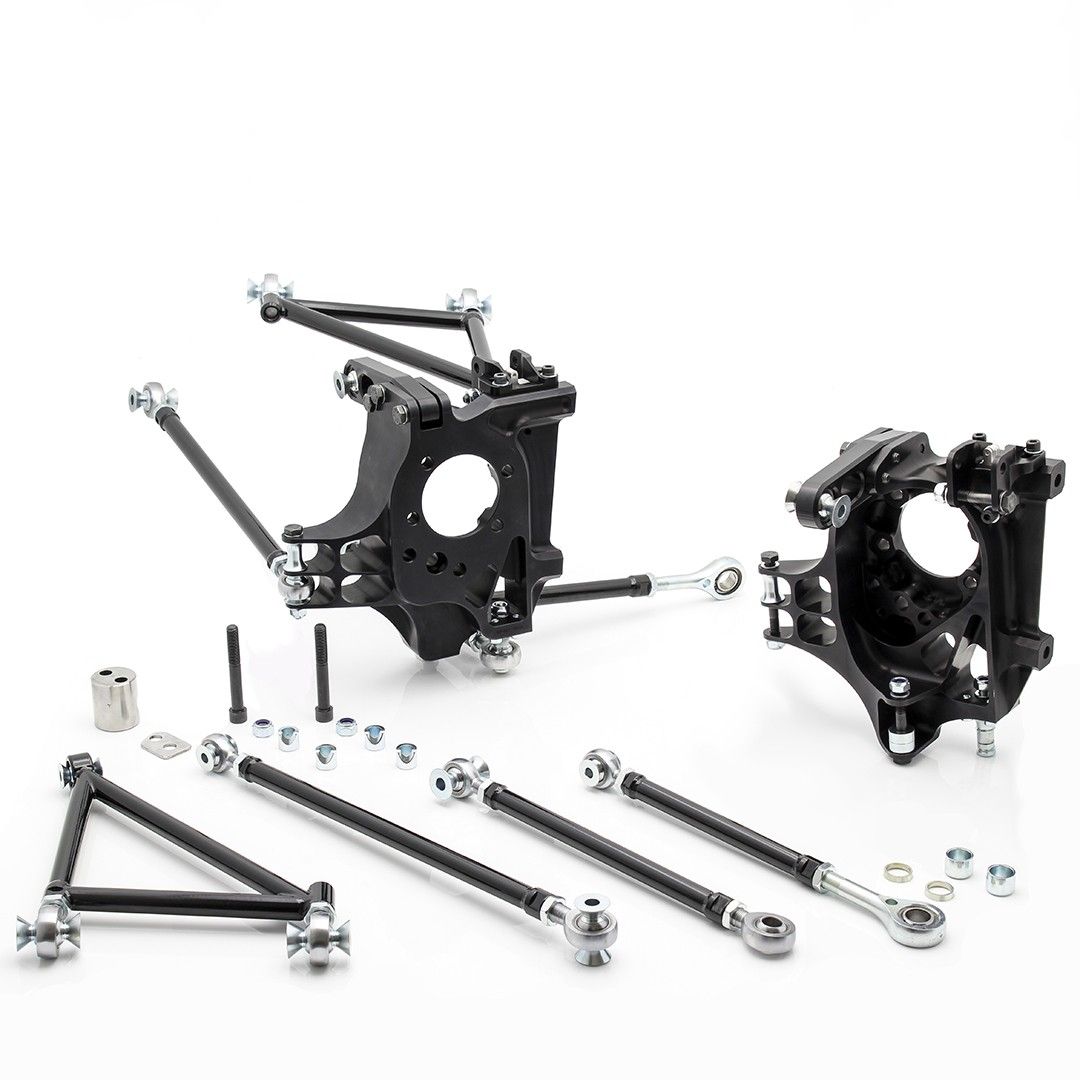

Included Components

  • Pre-set suspension links
  • Knuckles with hardware
  • Pick-up point relocating kit
  • Installation guide

Fitment Table
