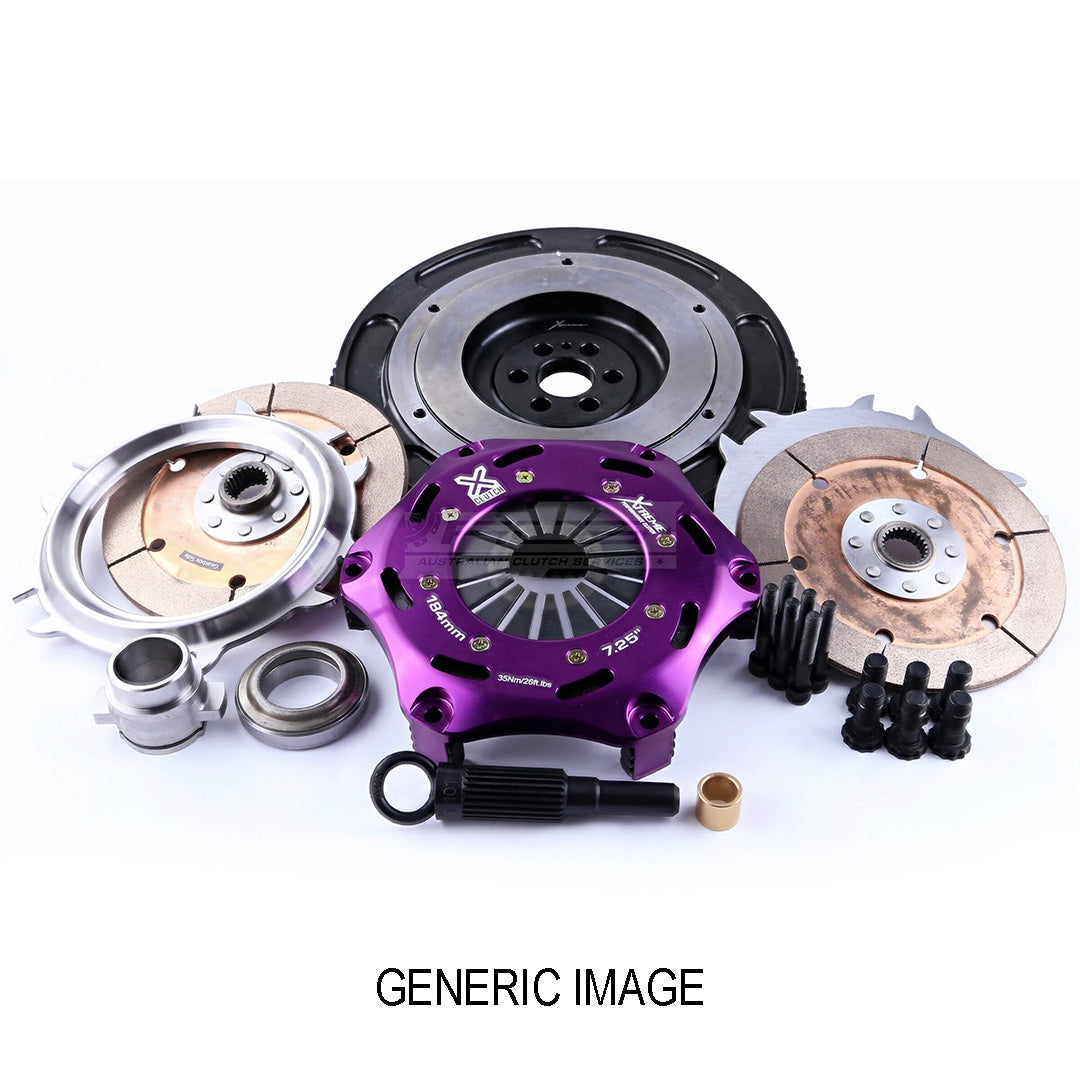

Xtreme 184mm Twin Plate Solid Ceramic Clutch Kit incl. Flywheel

Subaru BRZ 12+/Toyota 86, GR86 12+
$2,129.95
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Description

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



Solid Ceramic Twin Plate - 2E

Xtreme Solid Ceramic Twin Plate Clutch Kits are designed for track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive, so it is not recommended for daily driven vehicles.



Recommended for: Track (Motorsport) focused cars



Notes:

  • This clutch kit includes a Flywheel

Features and Benefits

  • Twin friction discs for increased torque capacity
  • Solid ceramic friction discs for improved torque capacity, heat resistance and faster engagement
  • Ideal for street use in Track (Motorsport) focused cars
  • Includes all necessary components for easy installation

Technical Specifications

  • Flywheel Step (mm) +2.5mm
  • Clutch Disc Diameter (mm) 184mm
  • Clutch Disc Spline Count 24
  • Clutch Disc Spline Diameter (mm) 25.2mm
  • Disc Type Solid
  • Friction Material Ceramic
  • Multiplate Twin
  • Recommended Use Track
  • Torque (Nm / ftlbs) Inc FOS 1220 / 900
  • Spigot Bush/Bearing Included Yes
  • Aligning Tool Included Yes
  • Flywheel Included Single Mass
  • Flywheel Bolts Included Yes
  • Pressure Plate Bolts Included Yes
  • Spline Grease Included Yes
  • Weight (kg) 14.5 kg

Included Components

  • Xtreme 184mm Twin Plate Solid Ceramic Clutch Disc
  • Xtreme Heavy Duty Clutch Cover
  • Xtreme Clutch Flywheel

    • Fitment Table
